28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
Product Description
Product Description
Place of Origin:
Guangdong China (Mainland)
Model Number:
DB2838
Usage:
Fan, Home Appliance
Certification:
ROHS
Type:
Micro Motor
Torque:
17.5mNm
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Drip-proof
Speed(RPM):
4430rpm no load
Continuous Current(A):
0.08A no load
Output Power:
1W~10W
Voltage(V):
12V
Efficiency:
IE 1
Rated load speed:
3000rpm
Rated load torque:
17.5mNm
Rated load current:
0.73A
Starting torque:
56.8mnm
Starting current:
2.0A
The length of the motor:
37.6±0.3mm
Shaft dia:
2.3mm
Shaft length:
Can be customized
Application:
Air pump
Packaging & Shipping
Packaging Detail:
1.Export standard packing; 2.Our factory standard packing; 3.Packaging can be customized according to customer's request.
Delivery Detail:
15 days for samples, 25-30 DAYS for batch.
Our Services
dc motor, dc gear motor, dc brushless motor, OEM and provide motor product design
Specifications: 28mm 2838 12v brushless dc motor 1000rpm for electric boat, 12v boat dc brushless motor 2838 motor
- 1. size:28*38MM
- 2.Long life, low noise, low EMI;
- 3.CW & CCW, Signal function available;
- 4.Locked rotor protection, Stepless speed regulation.
28mm 12v brushless dc motor 1000rpm for boat

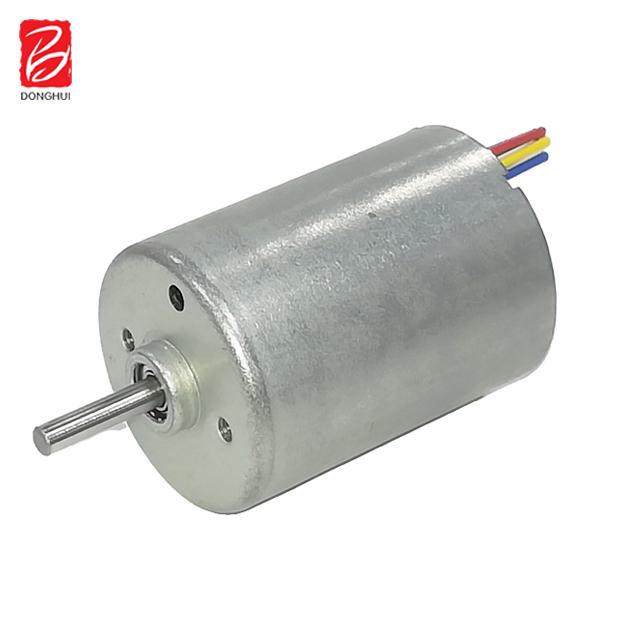

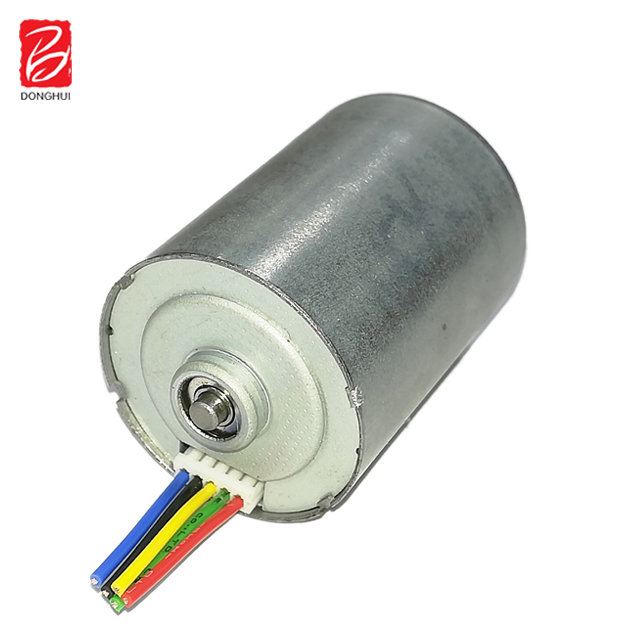

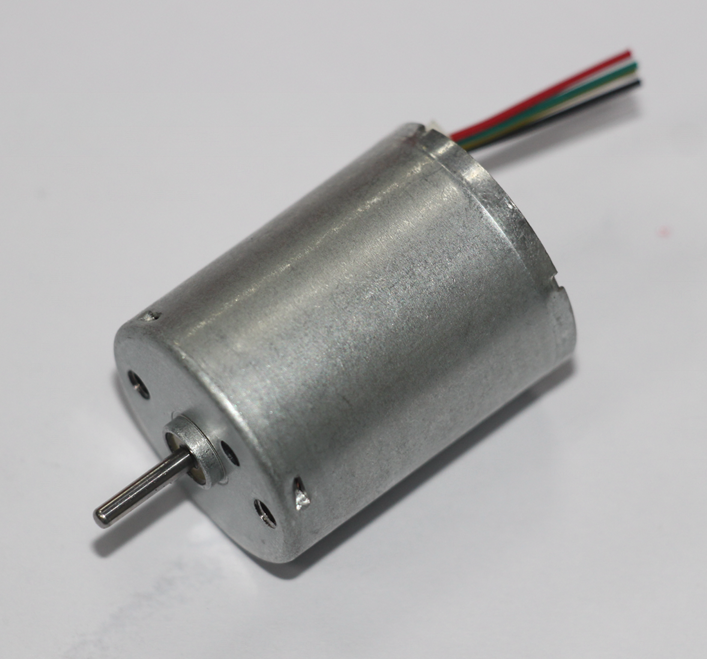

MOTOR PHOTOS:

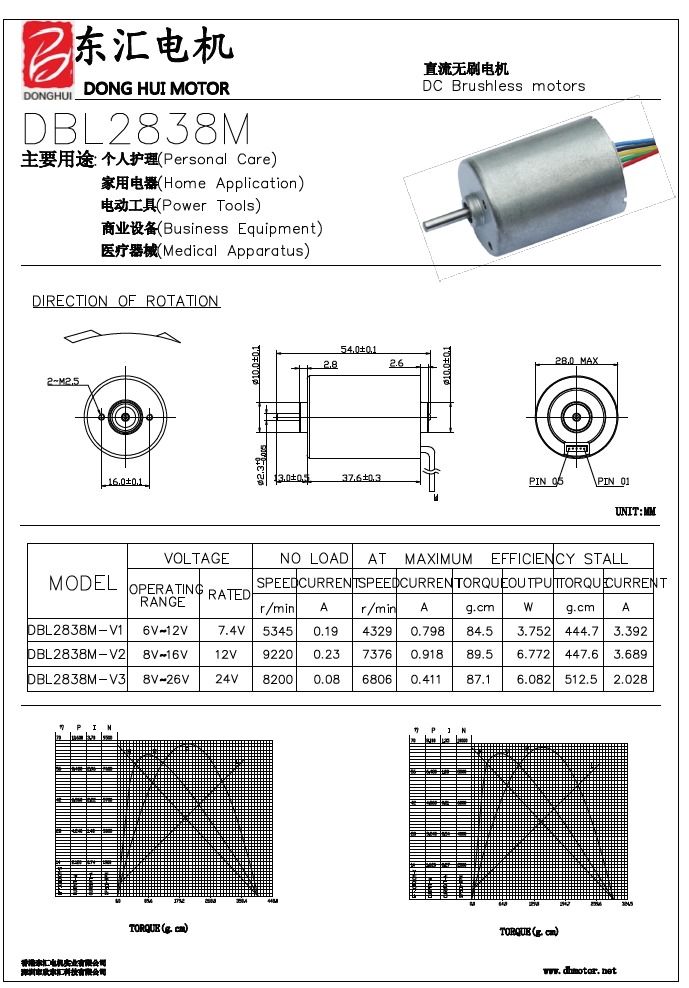

MOTOR SPECS:
Company Information
Since established in 2003, committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:
- 1. Our main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- 2. Products size range: Diameter: 4-100mm
- 3. DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- 4. Speed range: 1 RPM-30,000RPM
- 5. Stall torque: 1g.cm-30kg.cm
- 6. Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
Q1: What are the primary applications for the DB2838 brushless DC motor?
A1: The DB2838 motor is ideal for fans, home appliances, air pumps, and electric boat applications.
Q2: Can the motor shaft length be customized?
A2: Yes, the motor shaft length is fully customizable according to client requests and technical requirements.
Q3: What are the core electrical specifications of this 12V brushless motor?
A3: It runs on a 12V DC power supply, with an output power ranging from 1W to 10W, a no-load speed of 4430rpm, and a continuous no-load current of 0.08A.
Q4: What protective features does this micro motor offer?
A4: The motor is built with drip-proof protection, locked rotor protection, and supports stepless speed regulation.
Q5: What are the standard packaging and delivery timeframes?
A5: We support standard export packaging, factory standard packaging, or customized packing solutions. Delivery takes 15 days for samples and 25 to 30 days for batch production.
Q6: What is the overall size range of micro motors you produce?
A6: The product diameters range from 4mm up to 100mm, with voltage options between 1.5V and 42V DC.
