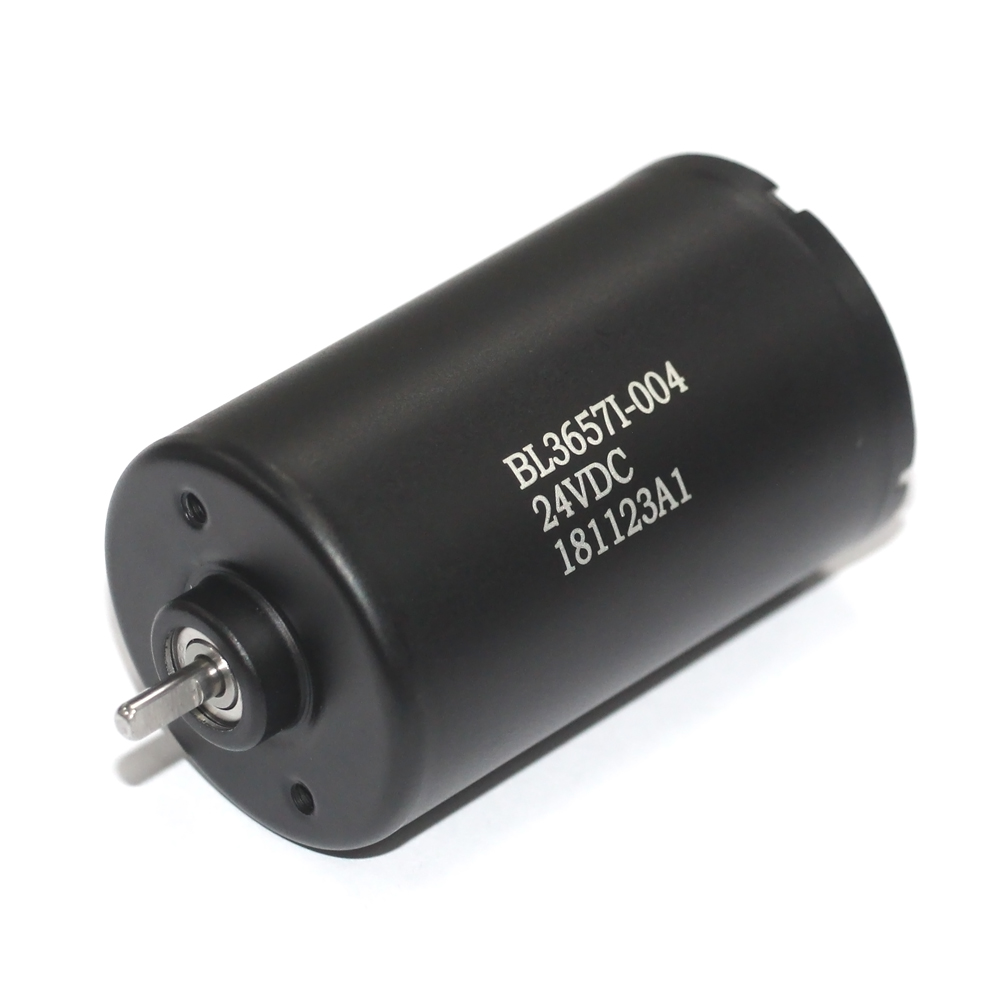

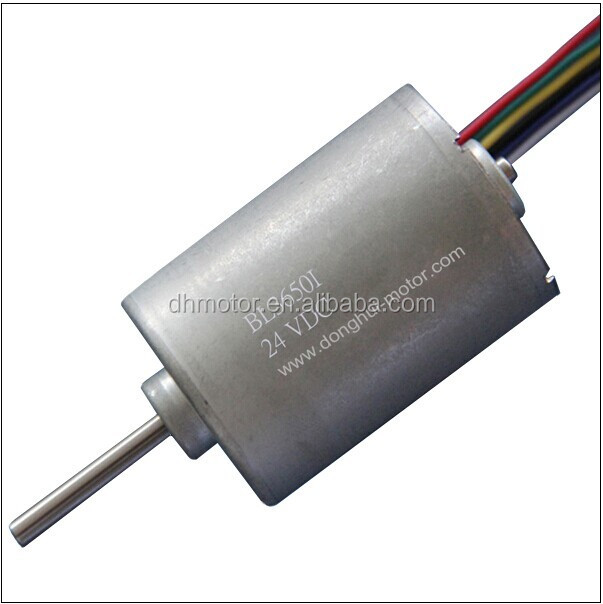

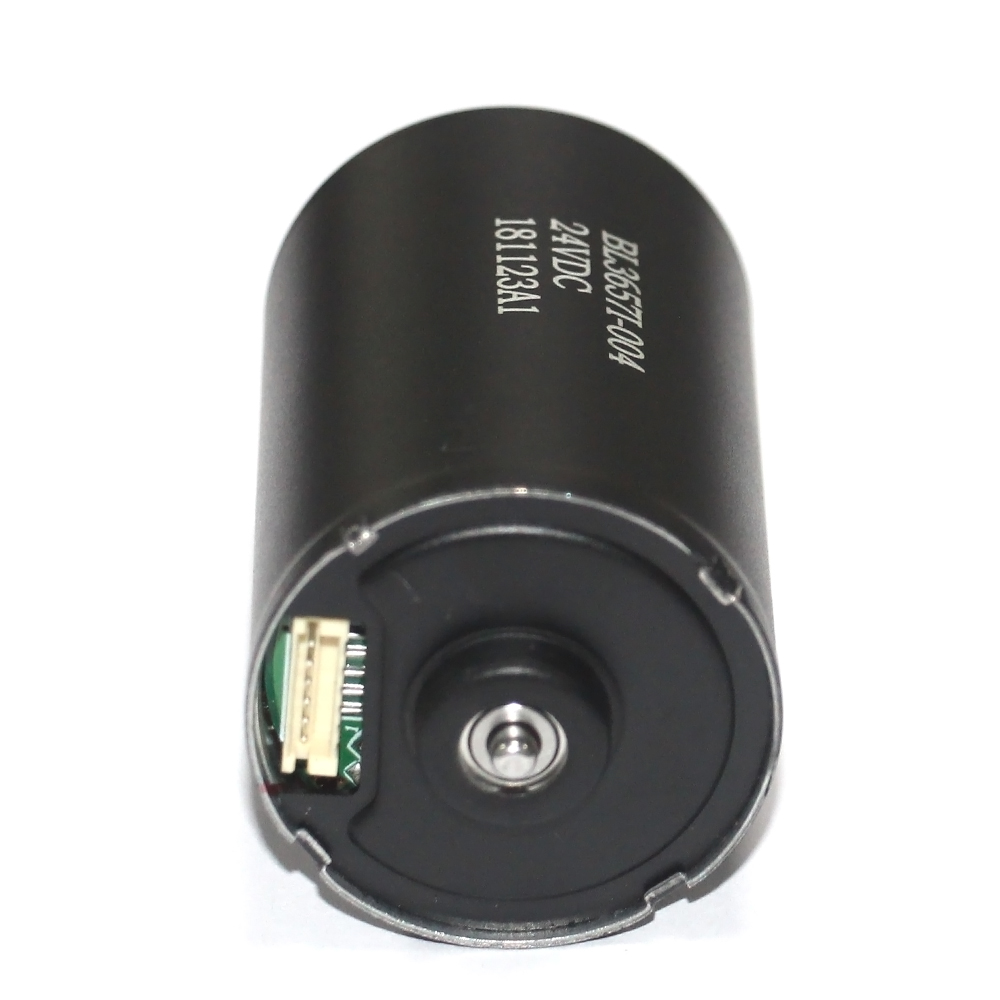

36mm BL3650 Brushless Motor 12v Brushless Dc Motor 3000rpm 5000RPM 12v 10w Dc Brushless Motor BL3657 Model
Product Description
Product Specifications
Place of Origin
Guangdong China (Mainland)
Model Number
DBL3650
Usage
Fan, Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
25mNm
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Drip-proof
Speed (RPM)
3500rpm no load
Continuous Current (A)
0.18A no load
Output Power
1W~100W
Voltage (V)
12V
Efficiency
IE 1
Rated Load Speed
3000rpm
Rated Load Torque
25mNm
Rated Load Current
0.58A
Starting Torque
162mnm
Starting Current
2.8A
Length of Motor
50±0.3mm
Shaft Diameter
4.0mm
Shaft Length
Can be customized
Application
Air pump
Packaging & Shipping
📦
Packaging Details
- Export standard packing
- Our factory standard packing
- Customized packaging configurations supported upon customer's request
🚚
Delivery Details
- Samples: Approximately 15 days processing timeline
- Batch Orders: 25-30 days production schedule
Custom Services & Technical Details
dc motor, dc gear motor, dc brushless motor, OEM and provide motor product design
36mm 3650 Motor 12V Brushless DC Motor (3650 3657 Model)
Size: 36 * 50/57MM
- Long life, low noise, low EMI
- CW & CCW, Signal function available
- Locked rotor protection, Stepless speed regulation
- 36mm 12v brushless dc motor configuration

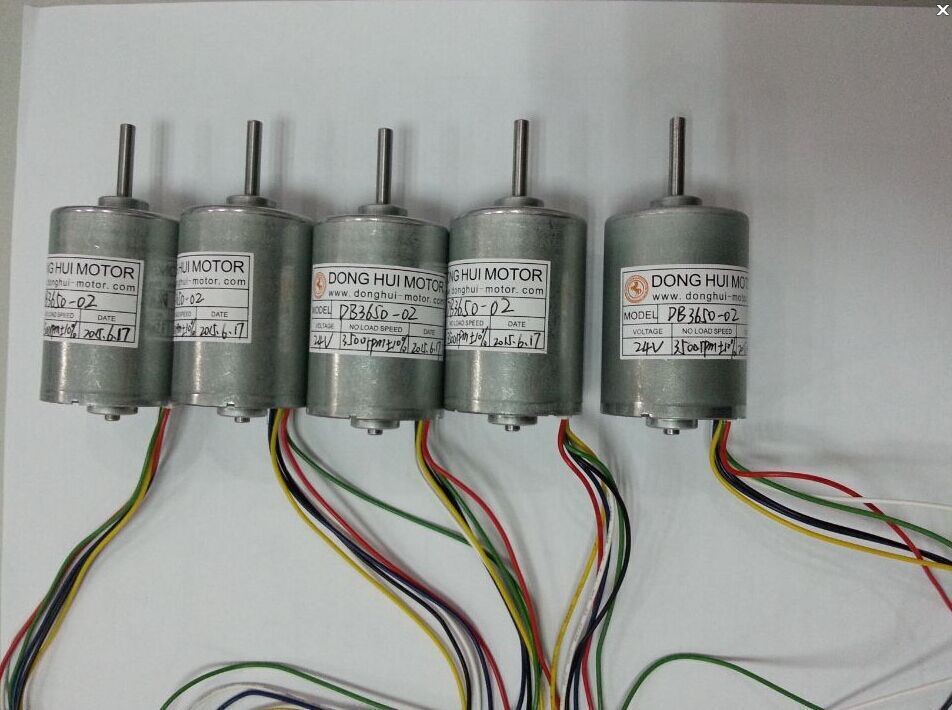

Product Gallery
Technical Specification Drawings
Manufacturing & Development Capabilities
Since established in 2003, we have been committed to the development and production of micro motors, featuring four major product series: Micro DC motors, DC gear motors, coreless motors, and brushless motors. All products are widely integrated across consumer electronics, electric toys, household appliances, office automation systems, medical devices, power tools, automotive controls, and many other specialized sectors.
Core Capabilities & Parameters
- Comprehensive Product Lineup: Dia 4~100mm DC Micro Motor, Auto DC Motor, Electric Motor, Coreless Brushless Motor, Gear Motor, DC Motor, Brush DC Motor, Spur Gear Motor, Vibration Motor, etc.
- Dimensions Range: Diameter configurations spanning from 4mm up to 100mm.
- Voltage Capabilities: DC voltage ranges from 1.5V to 42V, with AC rectified input options including 100V, 110V, 220V, 230V, 240V, etc.
- Speed Configurations: Operational speeds from 1 RPM up to 30,000 RPM.
- Stall Torque Range: Spanning from 1g.cm to 30kg.cm.
- Application Fields: Broadly utilized in Home appliances, Power Tools, Toys & Models, Precision Instruments, Office equipment, Personal care products, Automotive components, and Audio-Visual systems.
Frequently Asked Questions (FAQ)
What are the primary applications of this brushless DC motor?
This motor is ideal for high-performance applications including home appliances, electric fans, air pumps, precision instruments, medical equipment, power tools, and office automation.
Can the motor shaft dimensions and length be customized?
Yes, we support comprehensive customization for motor shafts, output options, electrical profiles, and mounting designs to match your specific engineering criteria.
What protection features does this micro motor include?
The motor is engineered with locked-rotor protection, a drip-proof protection structure, and options for stepless speed regulation to ensure prolonged operation.
What is the typical lead time for samples and production batches?
Generally, prototypes/samples take 15 days to prepare, while standard bulk production runs require between 25 to 30 days depending on final specification requirements.
Does the brushless motor series comply with environmental standards?
Yes, all of our micro DC motors, gear motors, and brushless motor series are fully compliant with ROHS environmental certification standards.
What voltage ranges does your manufacturing system support?
We manufacture motors spanning DC voltages from 1.5V up to 42V, and rectified AC solutions suitable for main power supplies of 100V, 110V, 220V, 230V, and 240V.
