High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
Product Description

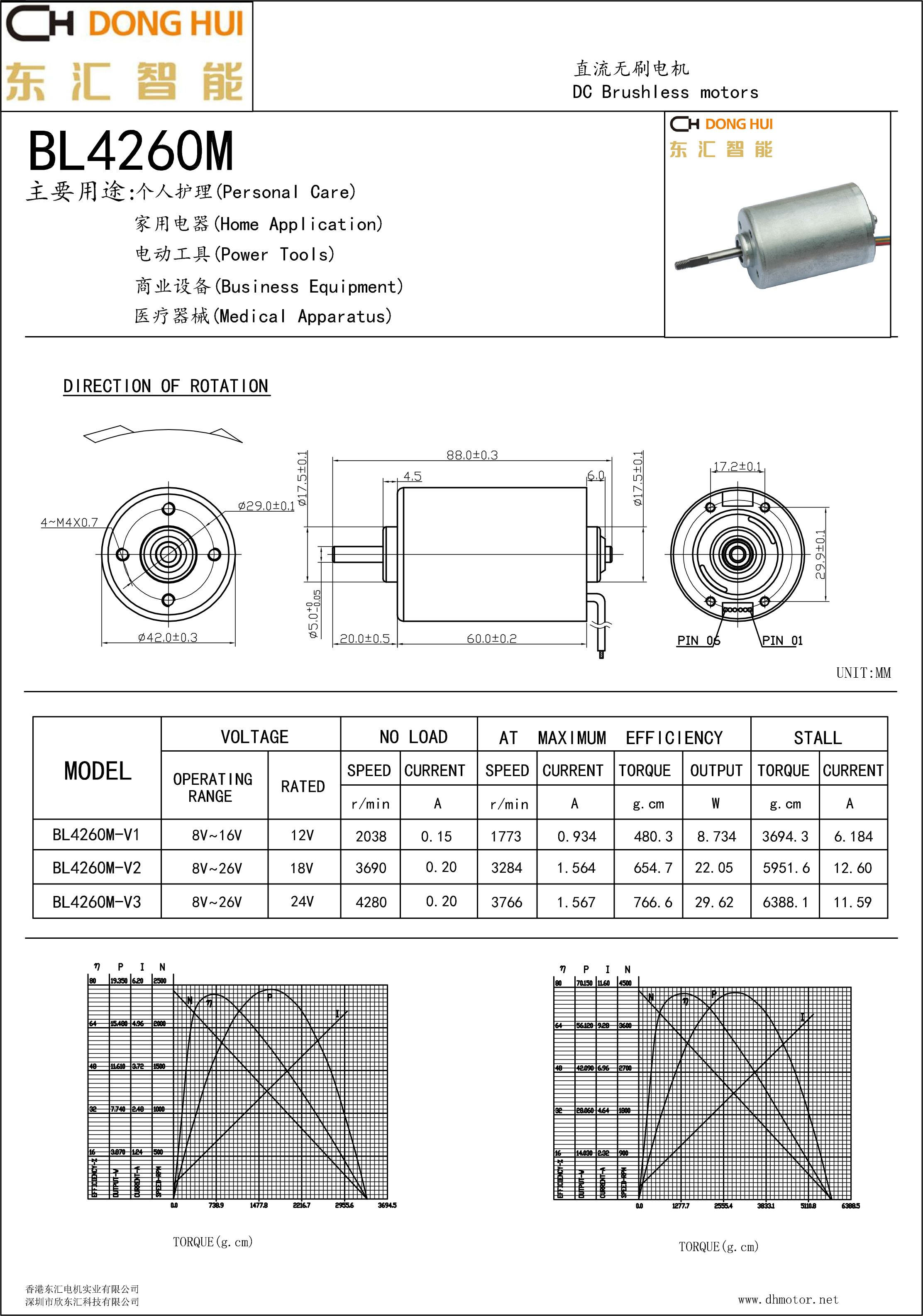

KEY SPECIFICATION OF THE MOTOR
| ITEM | VALUE |
|---|---|
| Motor Type | brushless dc motor |
| Motor Model No | BL4260M |
| Size(Dimensions) | D42*60mm |
| Operating Voltage | 8V~24V DC |
| No Load Speed | 2000~8000 r/min |
| Load Torque | 200g.cm~2000g.cm |
| Typical Application | Electric Massager, Home Appliance, Smart Home |
| Shaft Length | Customized |
| Shaft shape | D-Cut |
Frequently Asked Questions
What is the motor type of model BL4260M?
The BL4260M is a brushless DC (BLDC) motor, which provides high efficiency, long service life, and low maintenance compared to brushed motors.
What is the size and dimension of this brushless DC motor?
The physical dimensions of this motor are D42mm by 60mm (Diameter 42mm, Length 60mm).
What operating voltage range is supported?
The motor operates stably within a DC voltage range of 8V to 24V DC.
What speed and load torque can this motor achieve?
It provides a no-load speed ranging from 2000 to 8000 r/min, and supports a load torque ranging from 200g.cm to 2000g.cm.
What are the typical applications for the BL4260M motor?
Typical applications include electric massagers, various household appliances, and smart home automation devices.
Can the motor shaft configuration be customized?
Yes. The shaft length can be customized based on your specific requirements. The standard shaft shape is a D-cut configuration.
