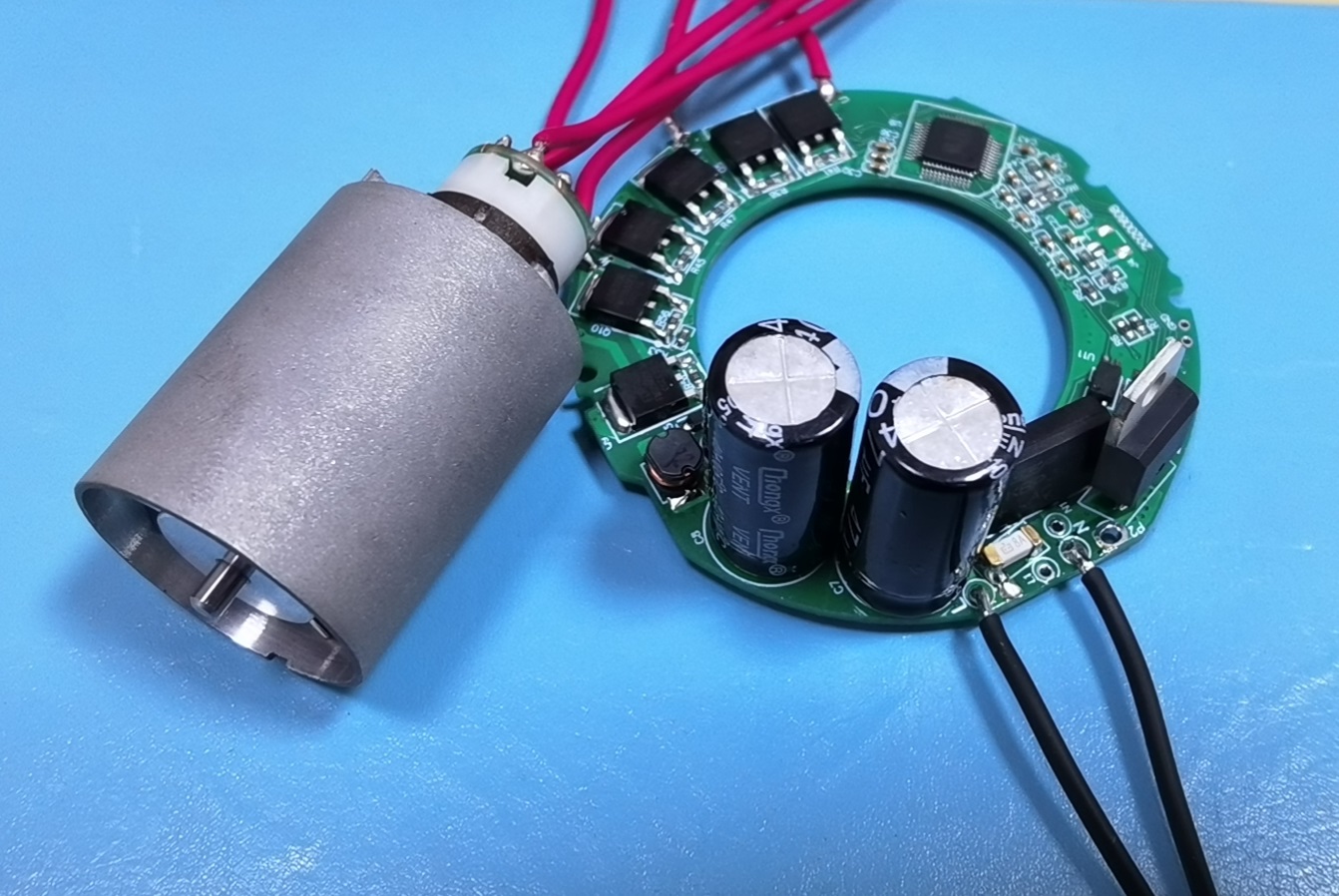

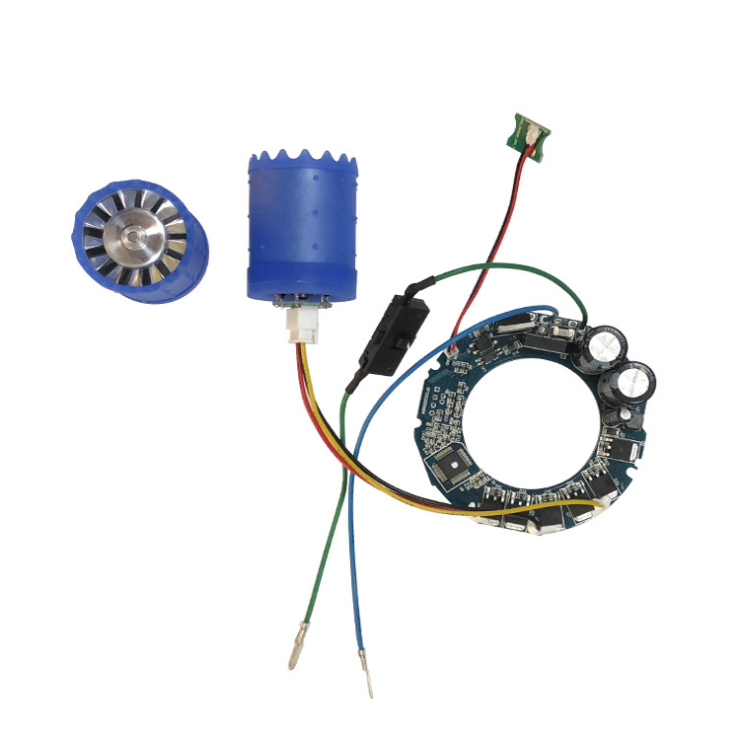

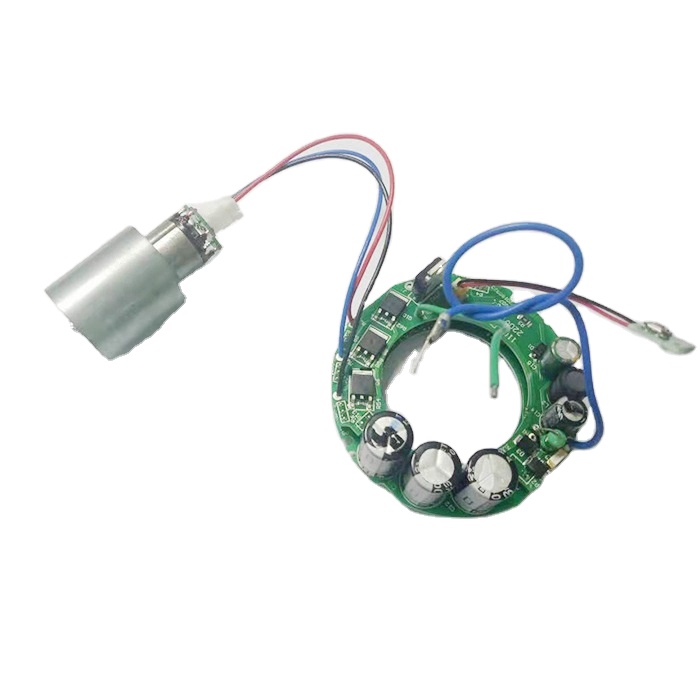

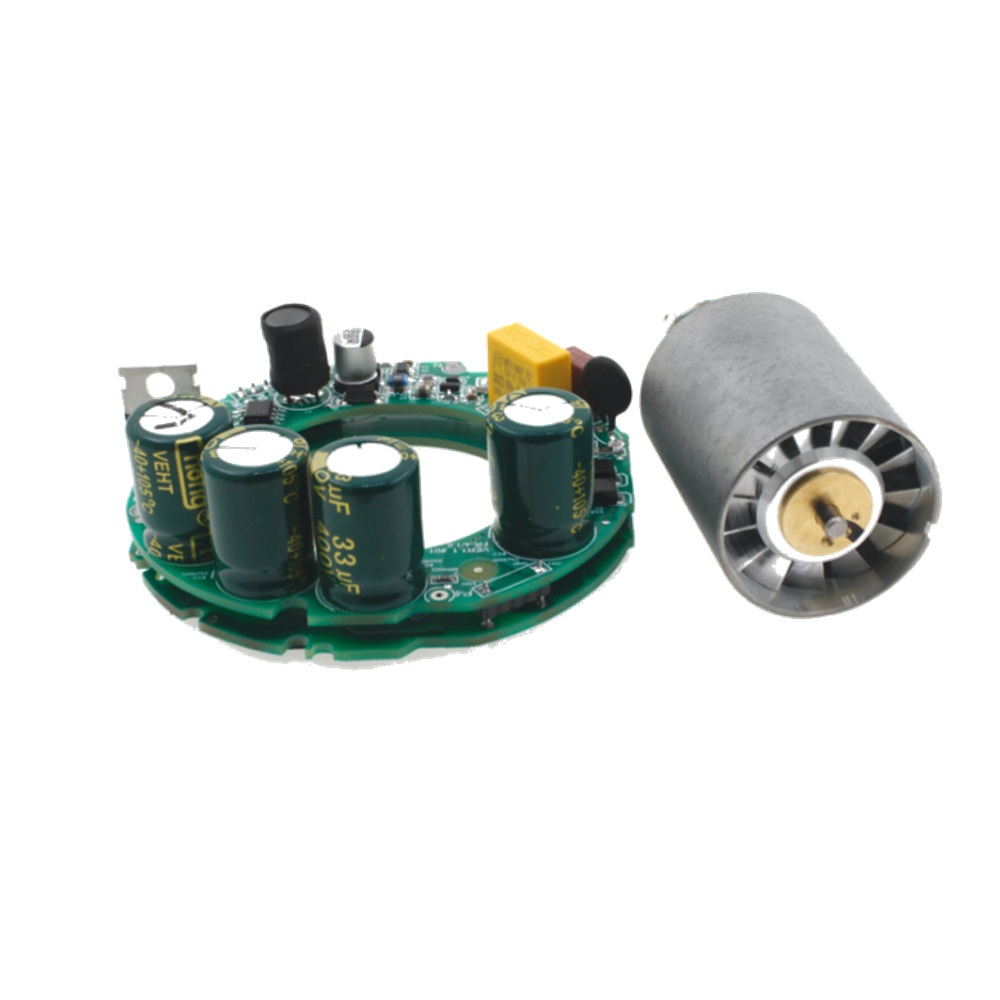

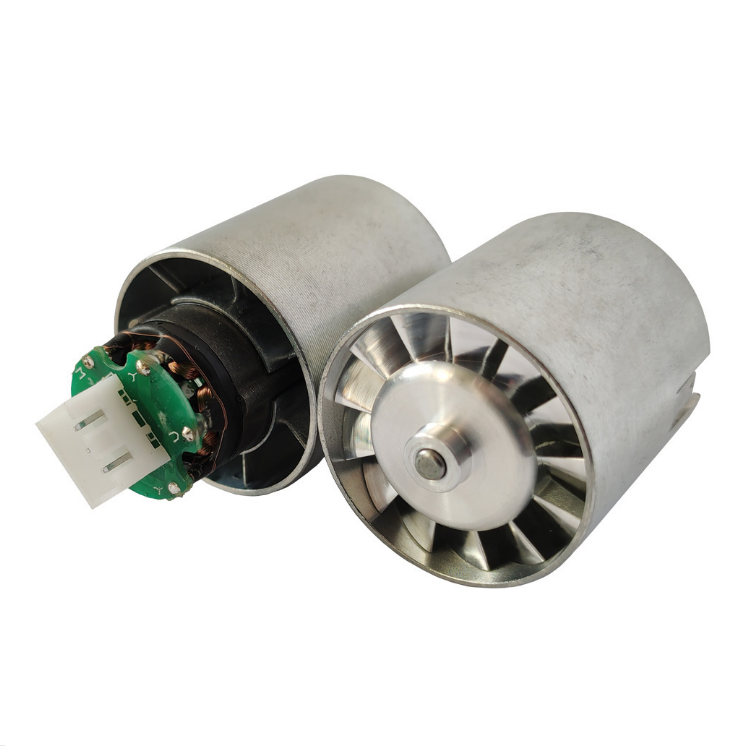

29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
Product Description

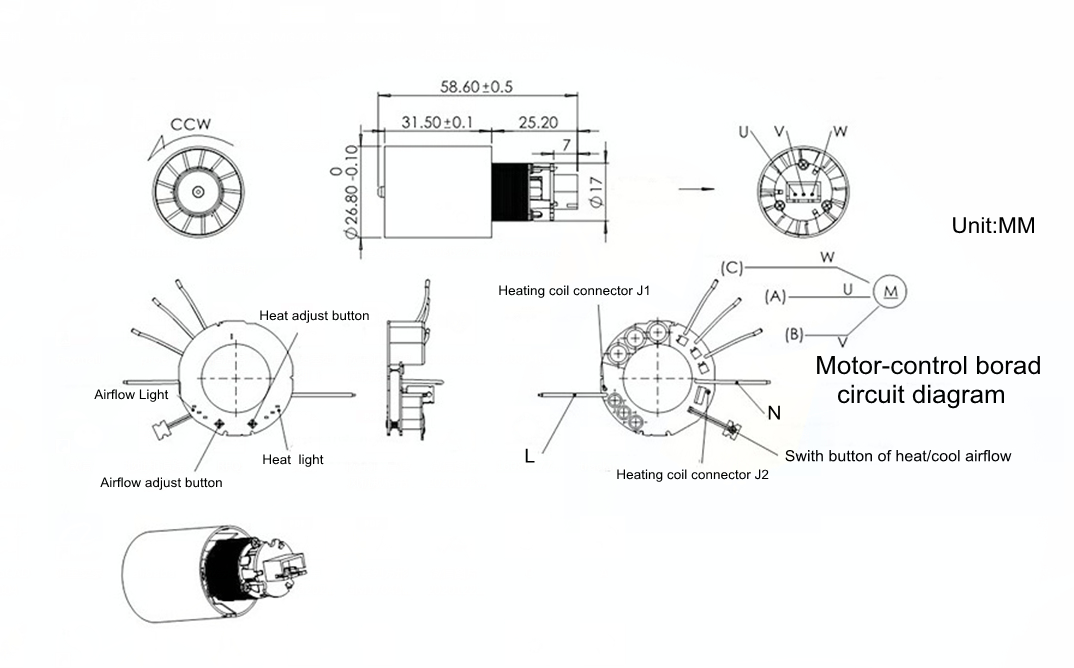

Specification
| Item | 100000rpm electric motor |
| Size | Diameter 29mm, Length40mm |
| Voltage | 110V 220v 230v Customized（12V 24V 36V 48V） |
| Speed | 100000-110000rpm Closed loop |
| Rated Load | Ø 27 - 13 fan blades |
| Max Wattage | ≤125watt |
| Rated Current | ~0.58A |
| Rated Input Power | ≤80watt |
| Air Velocity | 19.0 m/s REF. |
| lifetime | more than 1000 hours |
| Protection | Over current protection, Over heating protection |
| Feature | Long Lifetime, Low Noise, High Efficiency, Stable and Reliable |
| Application | hair dryer |
Product Description
Customization Options
The following motor voltage, speed, torque, shaft length, shaft type can be customized

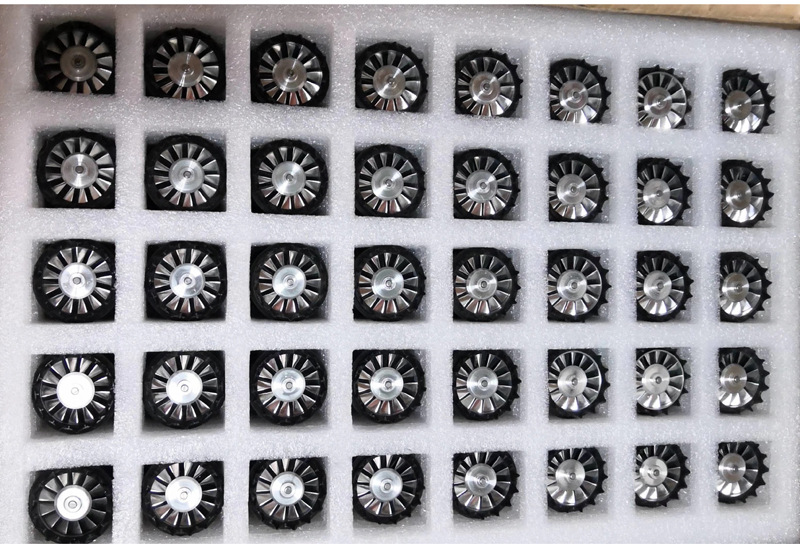

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Professional micro motor/engine manufacturer for 10 years.
Product capacity:
- Brush Dc Motor: Φ6mm—Φ60mm
- Brushless Dc Motor: Φ12mm-Φ42mm Coreless
- Brush/Brushless DC Motor: Φ4mm—Φ45mm
- Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
- Stepper Dc Motor: Φ6mm—Φ24mm
- Vibration Dc Motor: Φ4mm—Φ45mm
- Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
- Speed Range: 0.1-80,000RPM
- Output Torque: 0.01-500Kg.cm
- Shaft Length: 0.1-150mm
- Gearbox Ratio: 1:4---1:5000
FAQ
QWhat's your main products?
Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
QWhat's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.
QDo you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
QWhat kind of data do i need to provide if i want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
QWhat if i don't know the above data?
Please contact our salesman, tell us your requirement, we will recommend the best fit model.
