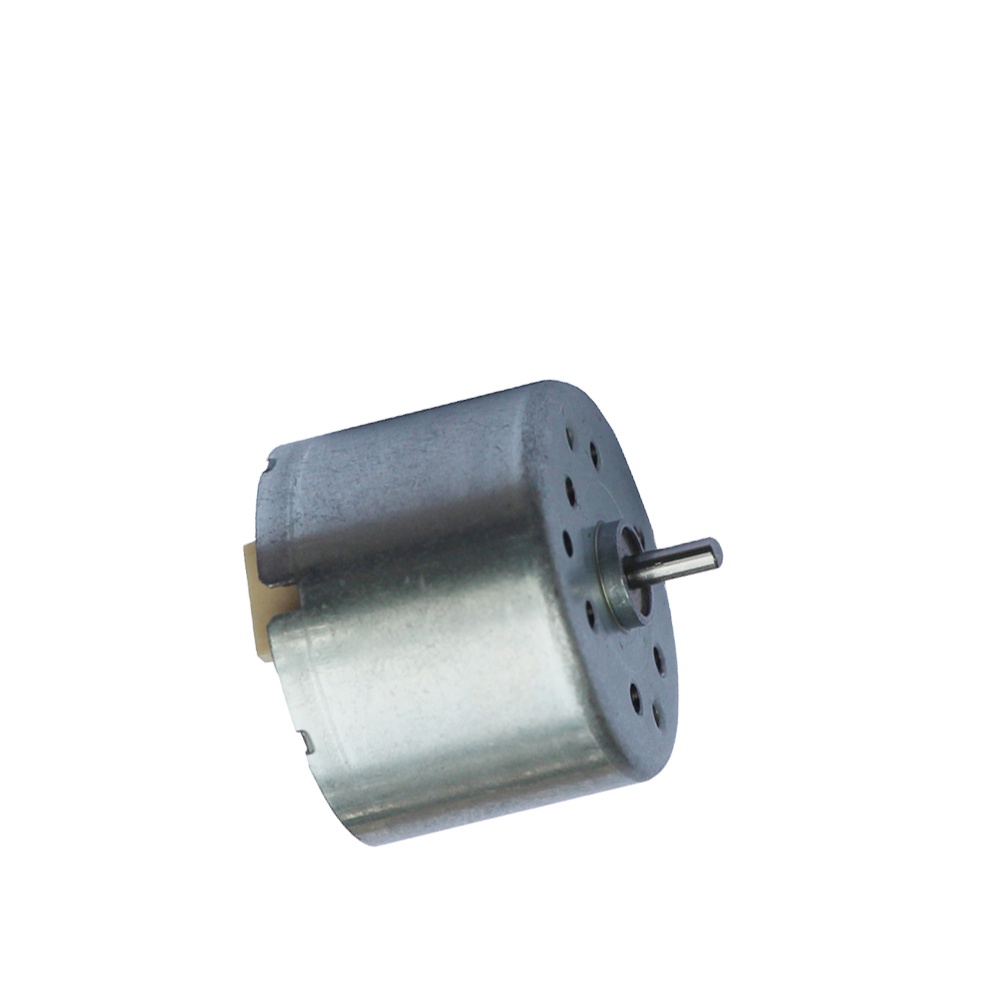

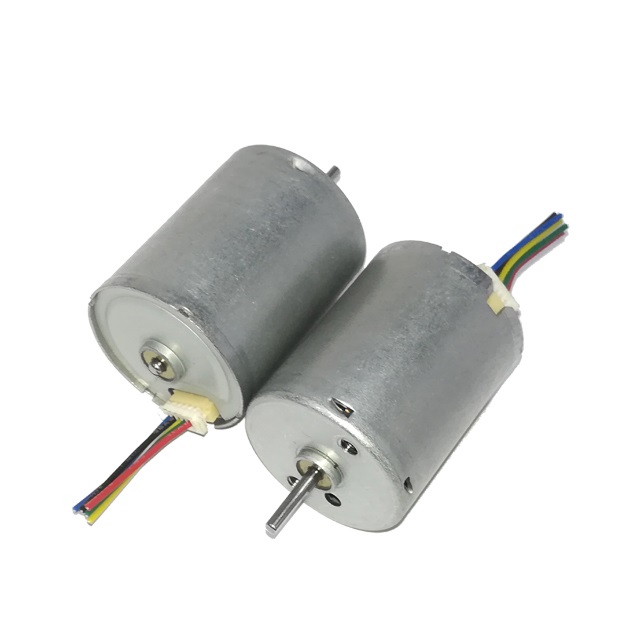

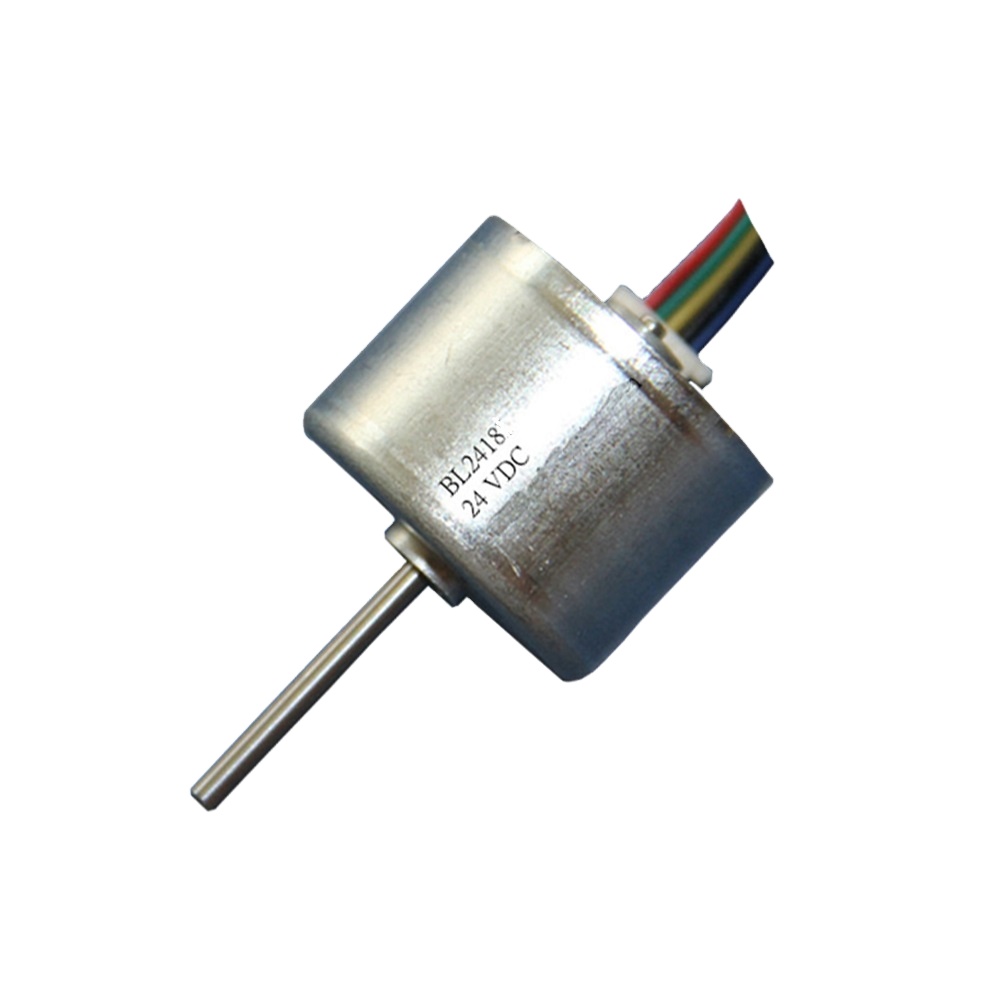

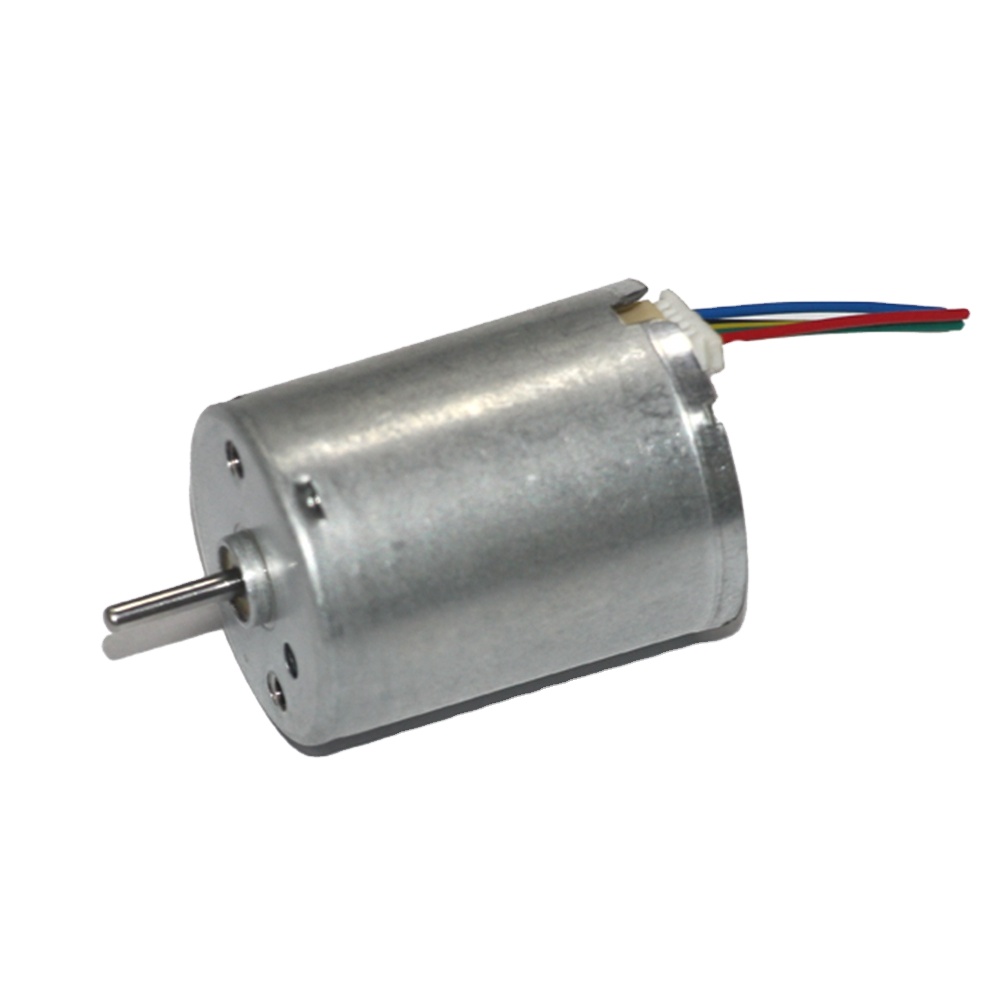

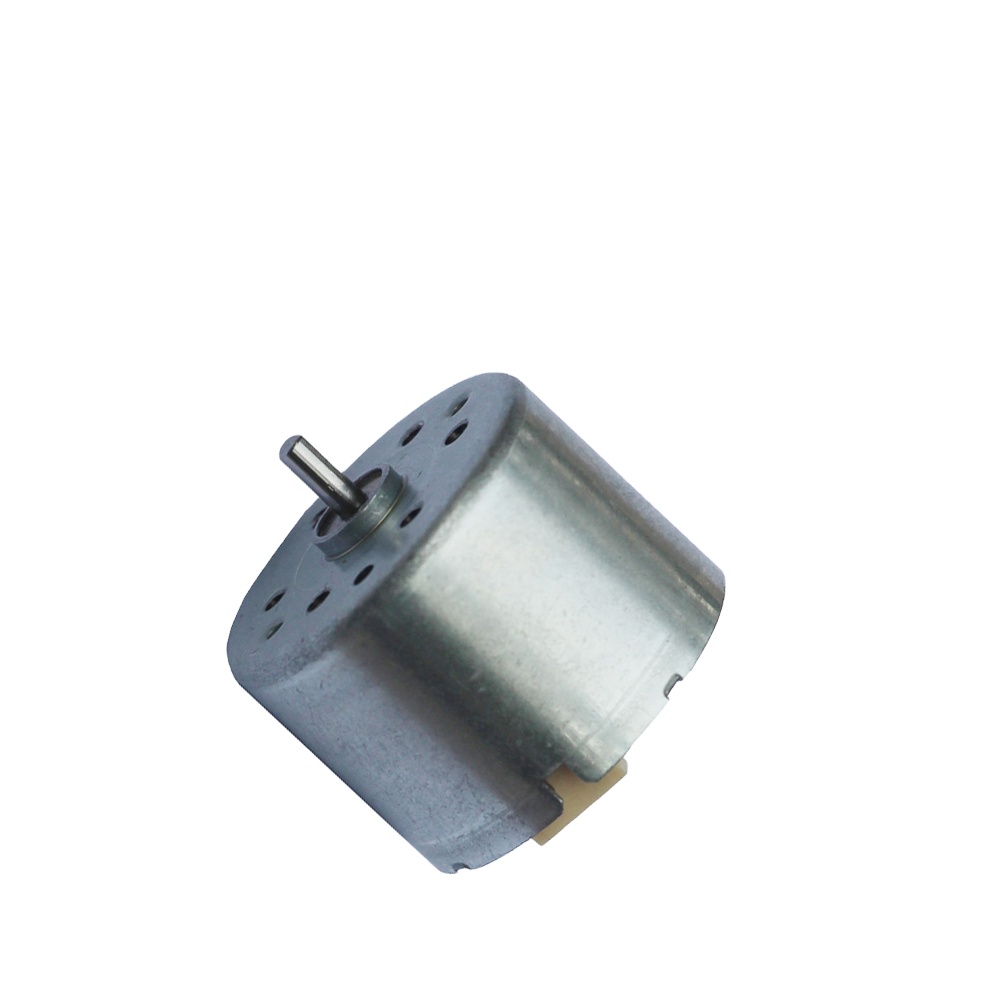

Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
Product Description

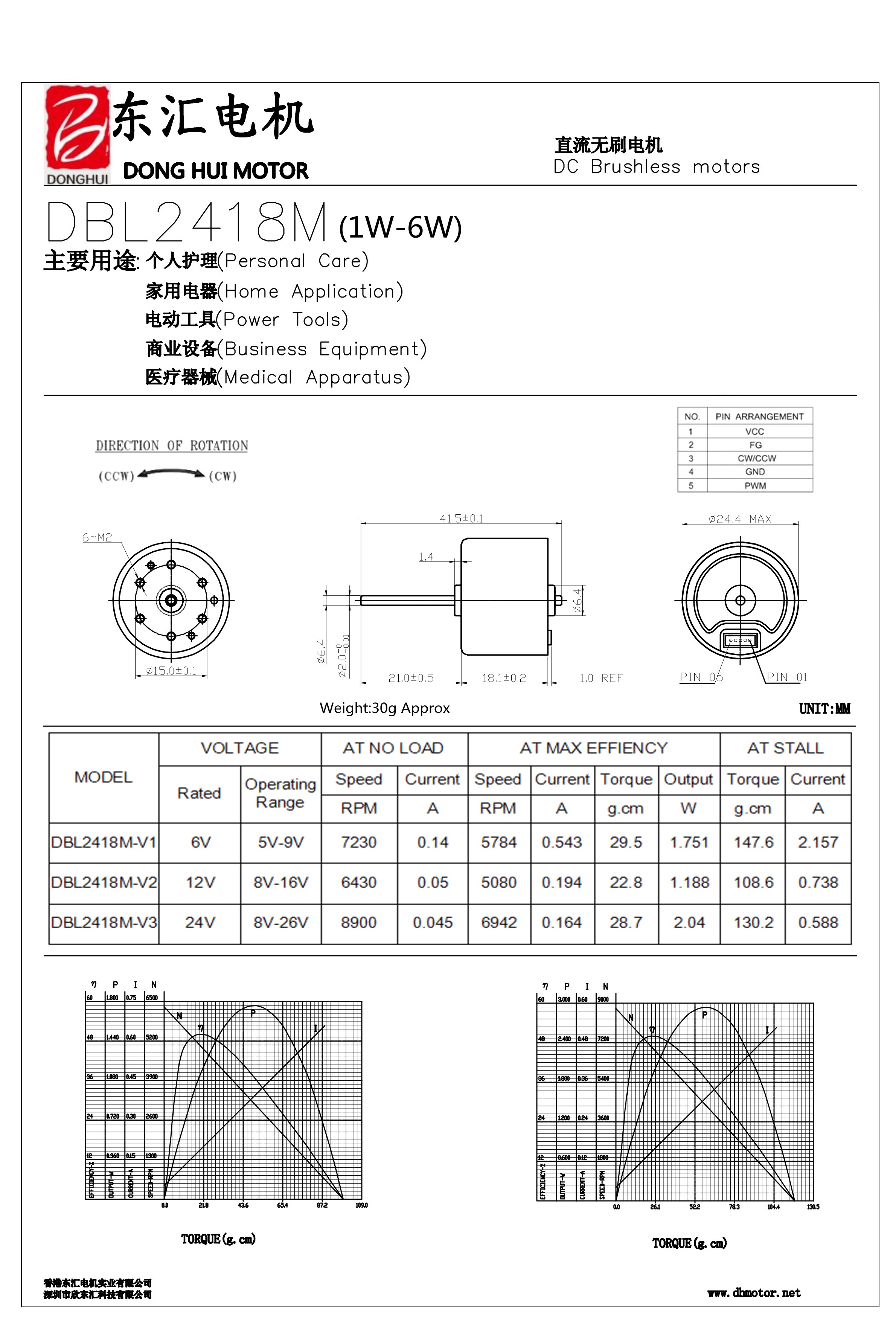

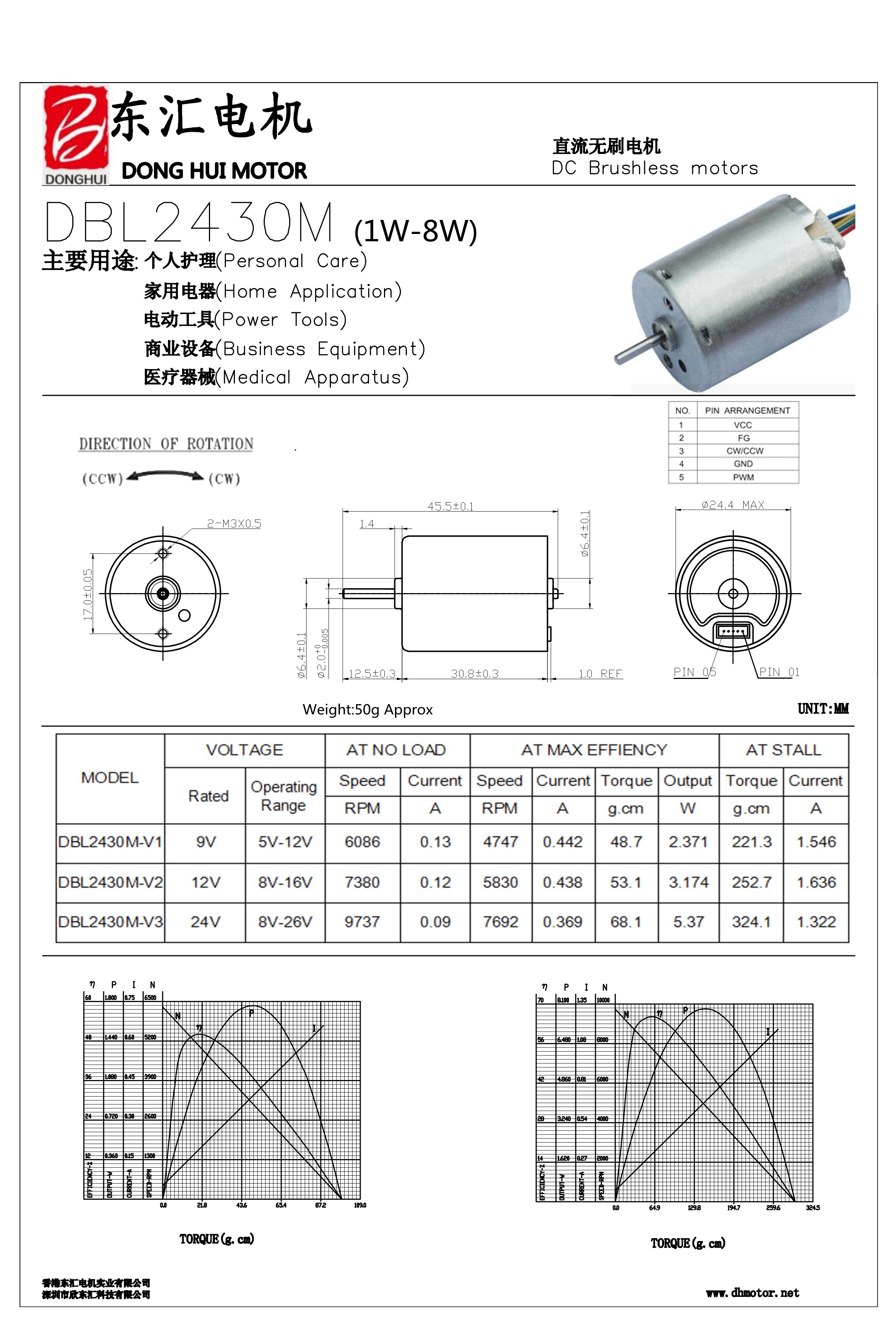

Specification
| Item | Mini Brushless Motor |
| Size | Diameter 24mm, Length 18mm, 30mm |
| Voltage | 3.7V~26V |
| Unload Speed | 2000-11000rpm |
| Output torque | ≤350g.cm |
| Wattage | ≤8watt |
| Driver | Built-in design or Customized |
| Bearing | Ball bearing or normal bearing |
| Lifetime | 3000hours~20000hours |
| Function | FG, CW/CCW, PWM |
| Protection | Over current protection, Over heating protection |
| Feature | long lifetime, low noise, high efficiency, stable and reliable |
| Application | Fan, Car Vacuum Cleaner, Food Processor, Pump, Toy and Model, Power tool, Drill |

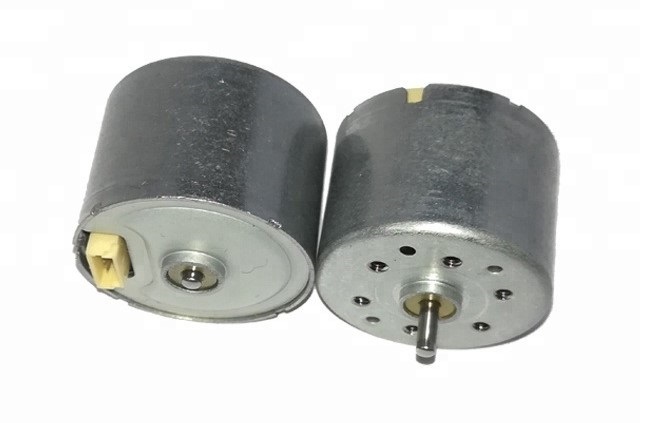

Product Description
The following motor's voltage, speed, current, wattage, torque, shaft length, and type can be customized.

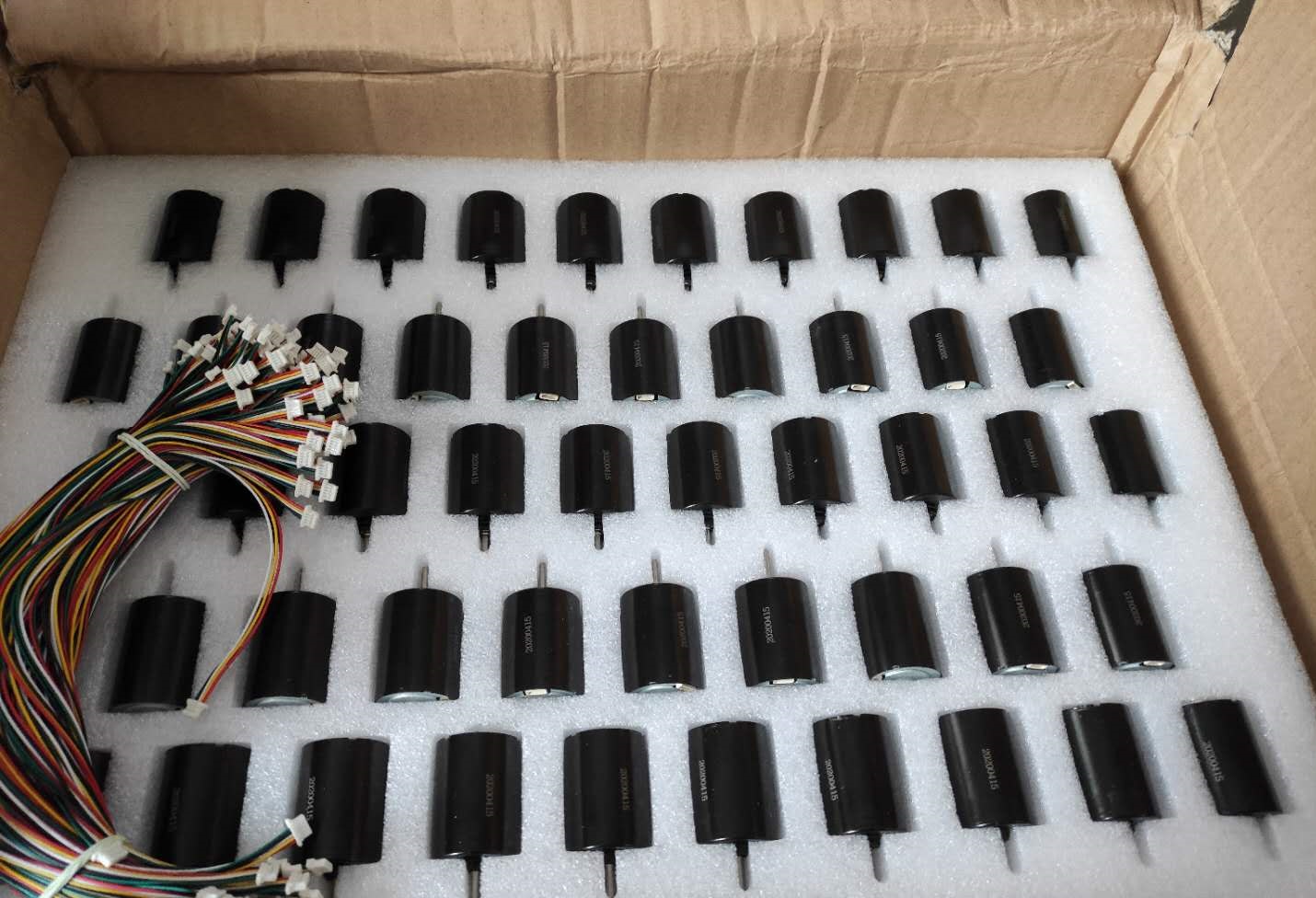

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

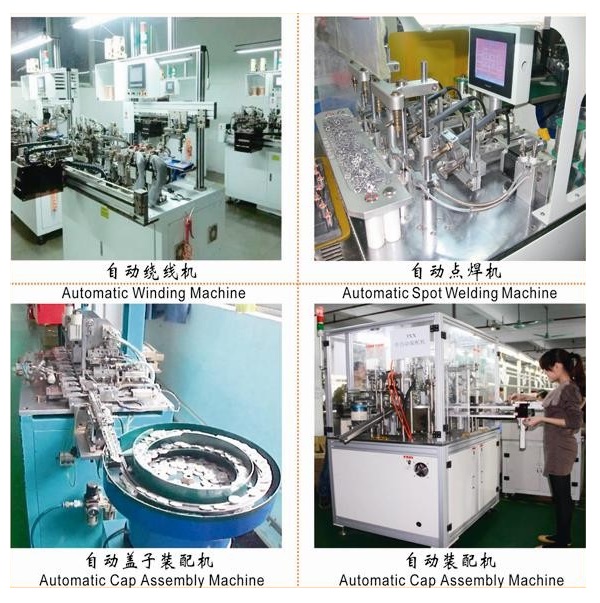

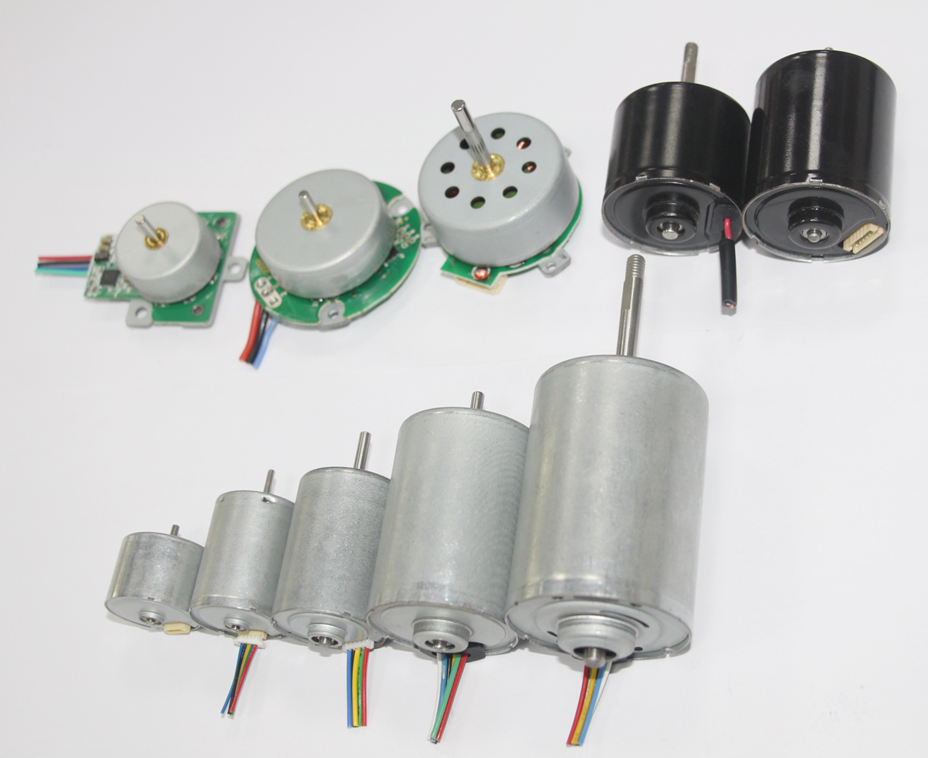

Production Range & Capabilities
Professional micro motor/engine manufacturer for 10 years.
- Brush Dc Motor: Φ6mm—Φ60mm
- Brushless Dc Motor: Φ12mm-Φ42mm Coreless
- Brush/Brushless DC Motor: Φ4mm—Φ45mm
- Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
- Stepper Dc Motor: Φ6mm—Φ24mm
- Vibration Dc Motor: Φ4mm—Φ45mm
- Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
- Speed Range: 0.1-80,000RPM
- Output Torque: 0.01-500Kg.cm
- Shaft Length: 0.1-150mm
- Gearbox Ratio: 1:4---1:5000
FAQ
What's your main products?
Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
What's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.
Do you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
What kind of data do i need to provide if i want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
What if i don't know the above data?
Please contact our support team, tell us your requirement, and we will recommend the best fit model.
Can you customize voltage and speed according to application requirements?
Yes, the motor's voltage, speed, current, wattage, torque, shaft length, and type can be fully customized to meet your specific technical needs.
