12V 18V 24V Outer Rotor Brushless Dc Motor for Massager
Product Description

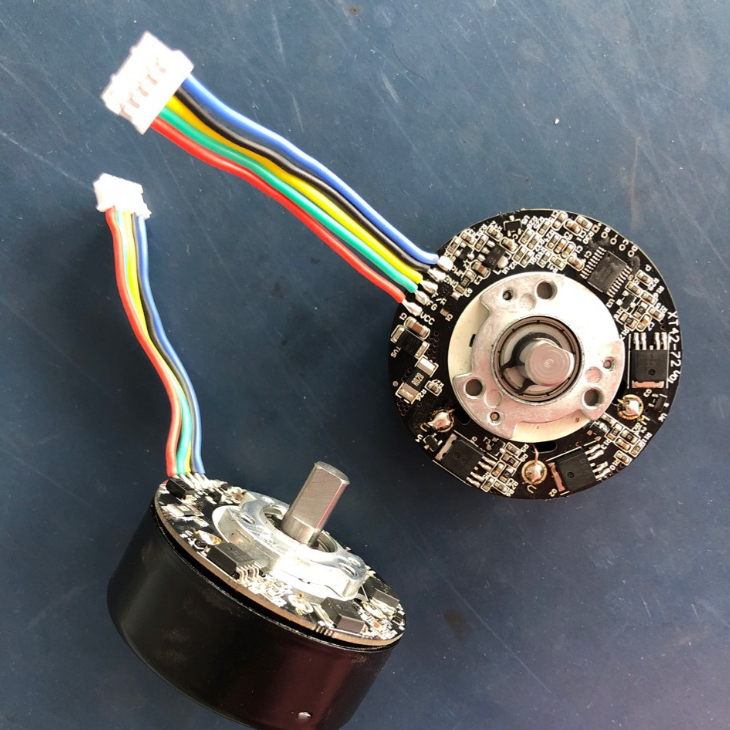

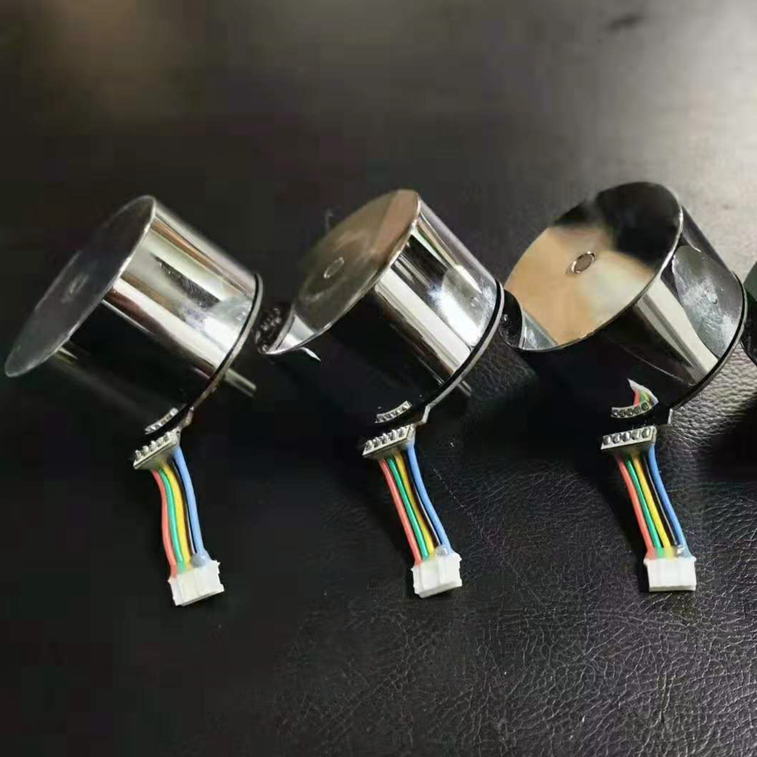

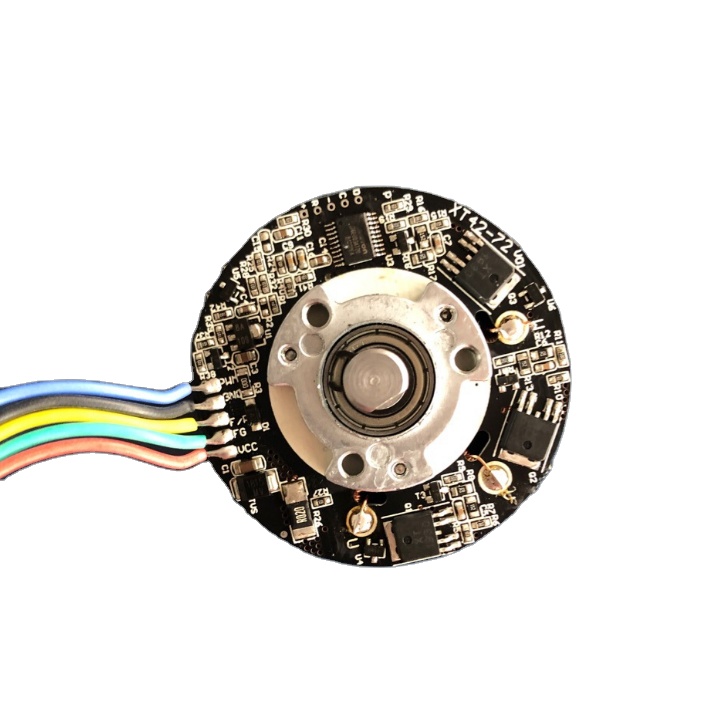

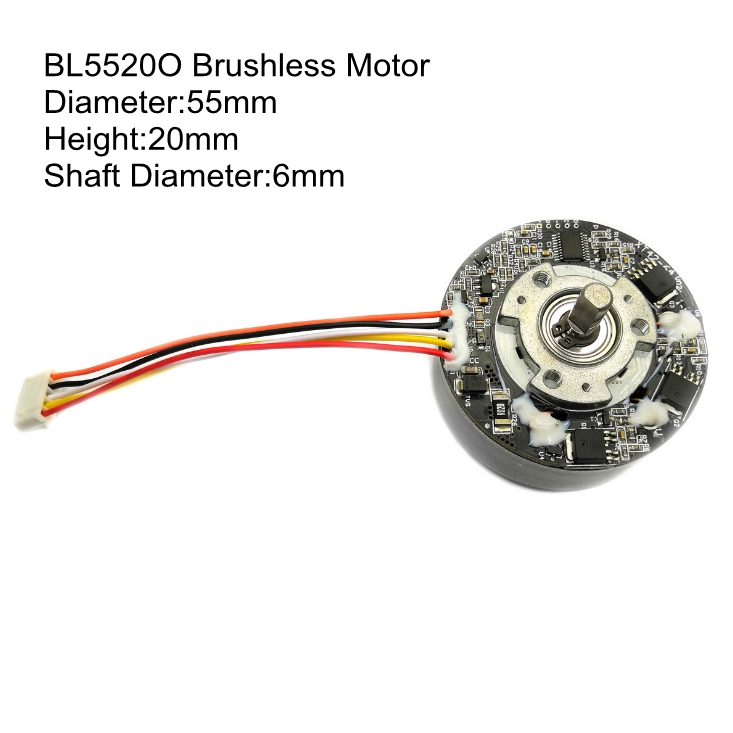

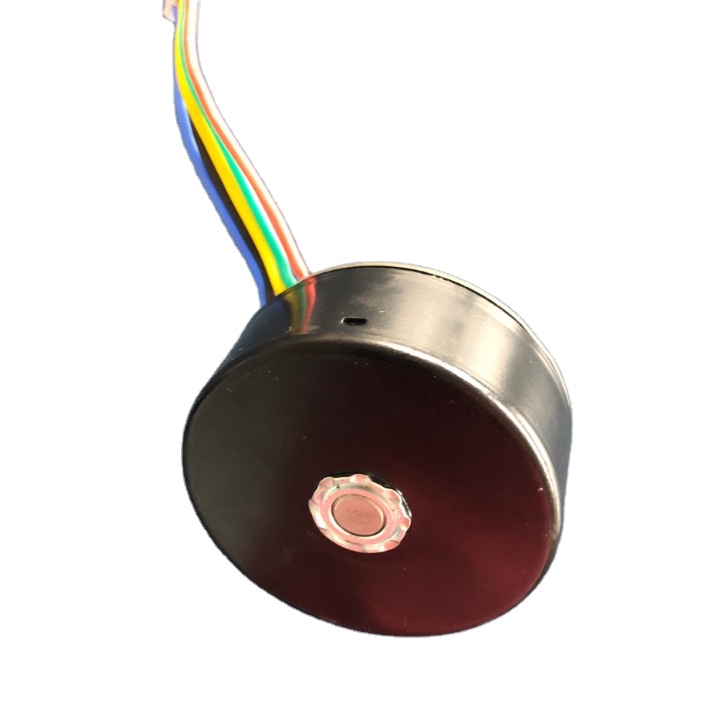

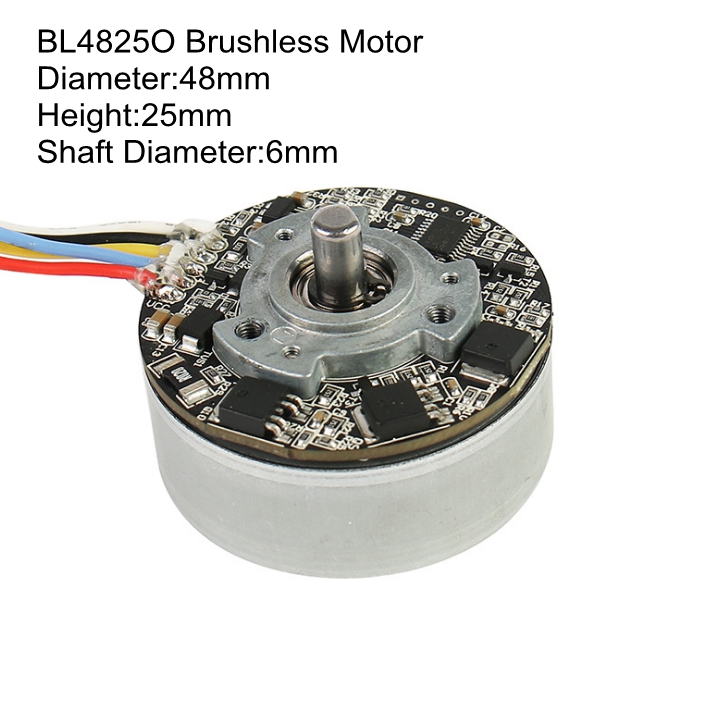

12V 18V 24V Outer Rotor Brushless DC Motor

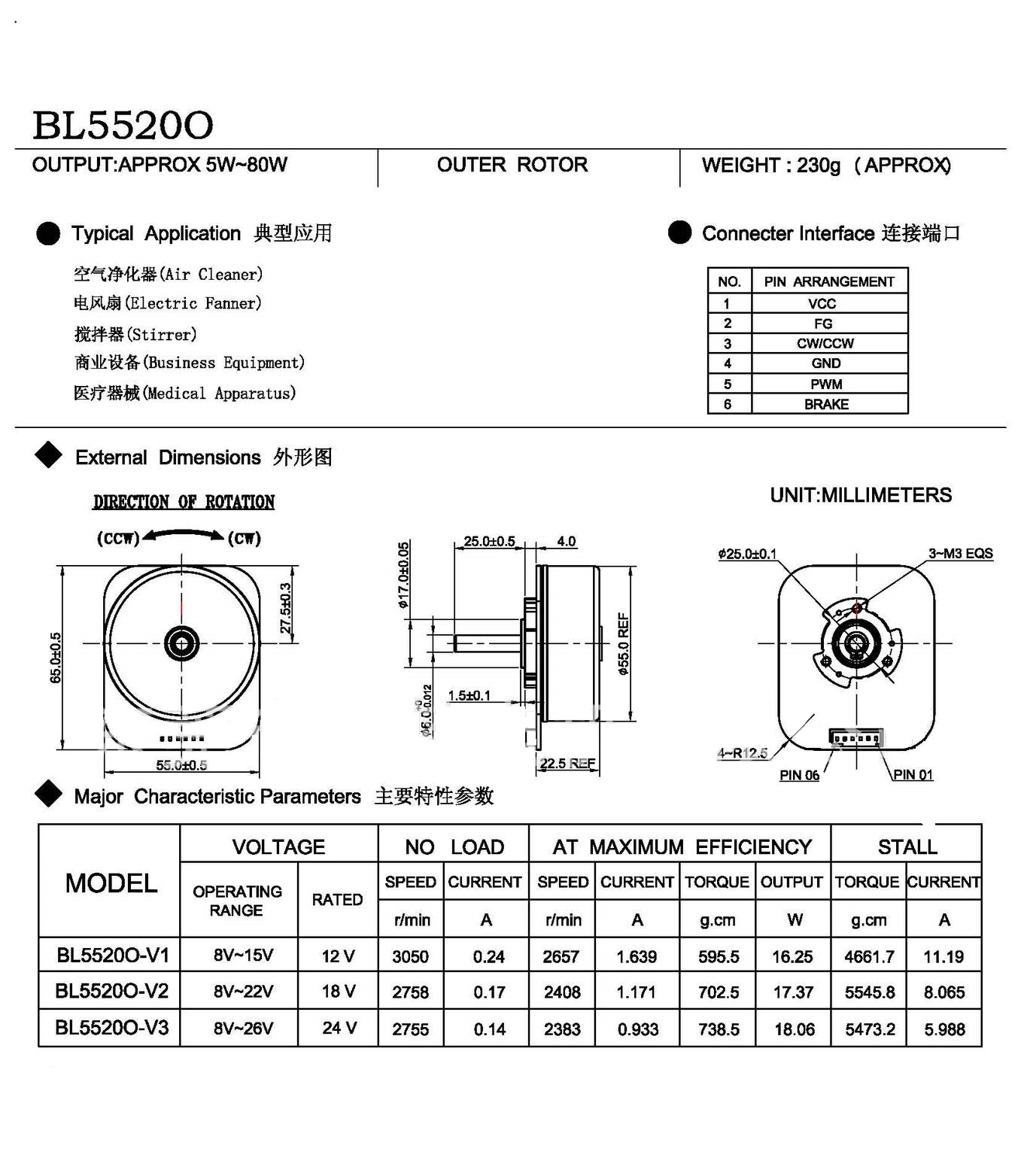

Product Specifications

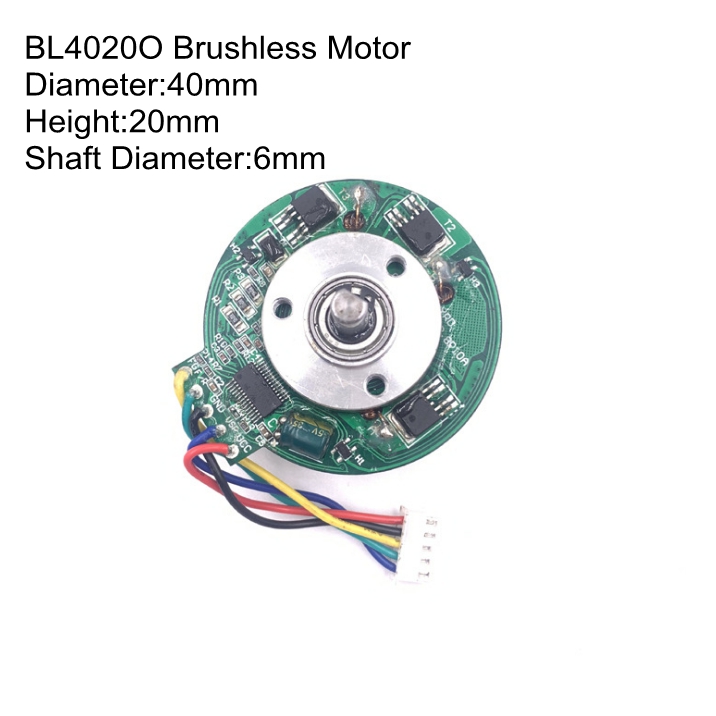

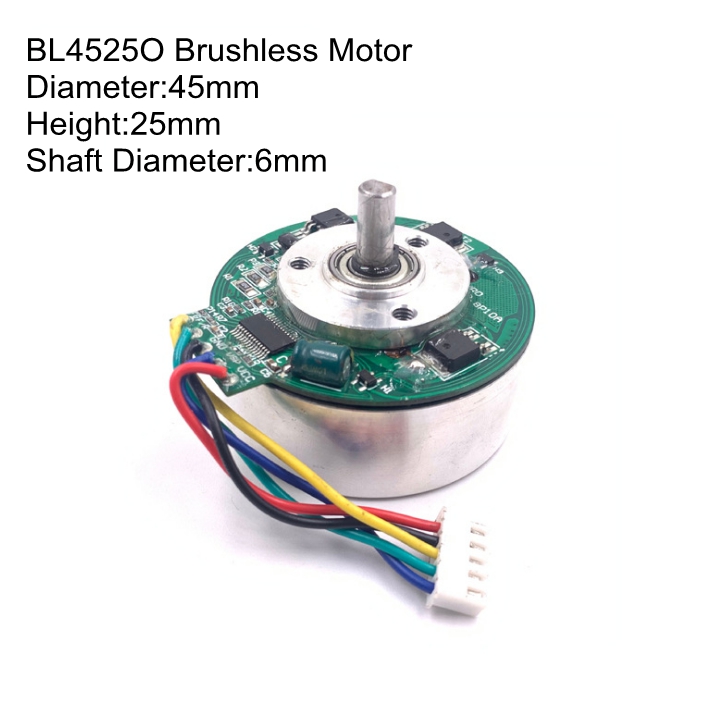

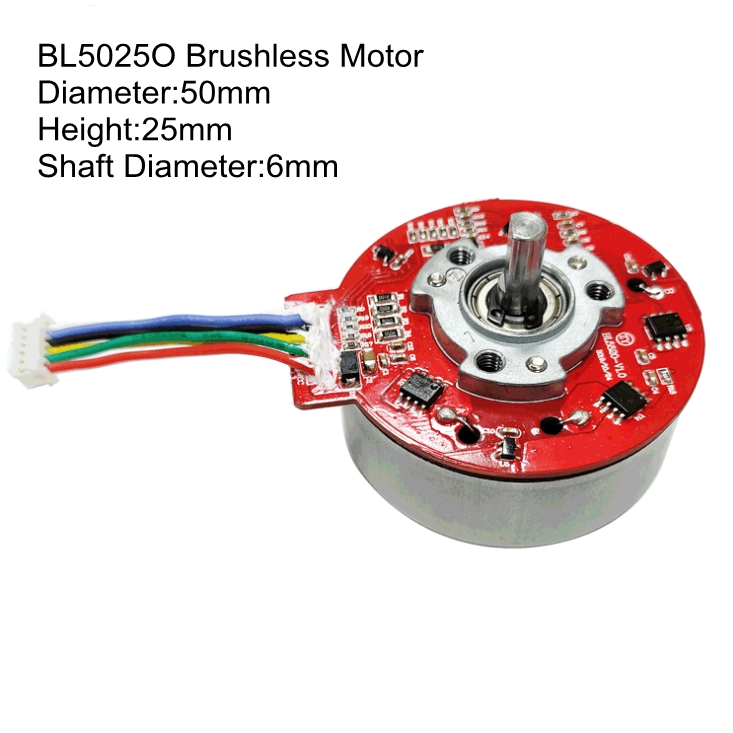

| Size | Diameter: 40mm, 45mm, 48mm, 50mm, 55mm |
| Voltage | 12V / 18V / 24V |
| Unload Speed | 2000 - 4000 rpm |
| Rated Torque | ≤ 0.1 N.m |
| Max Torque | ≤ 1.0 N.m |
| Wattage | 5 - 80 W |
| Shaft Diameter | 6 mm |
| Application | Muscle Massager, Massager Gun, Fascia Massager, Massager Hammer |
| Characteristic | CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI |
Notice: Data in the typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement.
Packaging & Shipping
Production Facilities

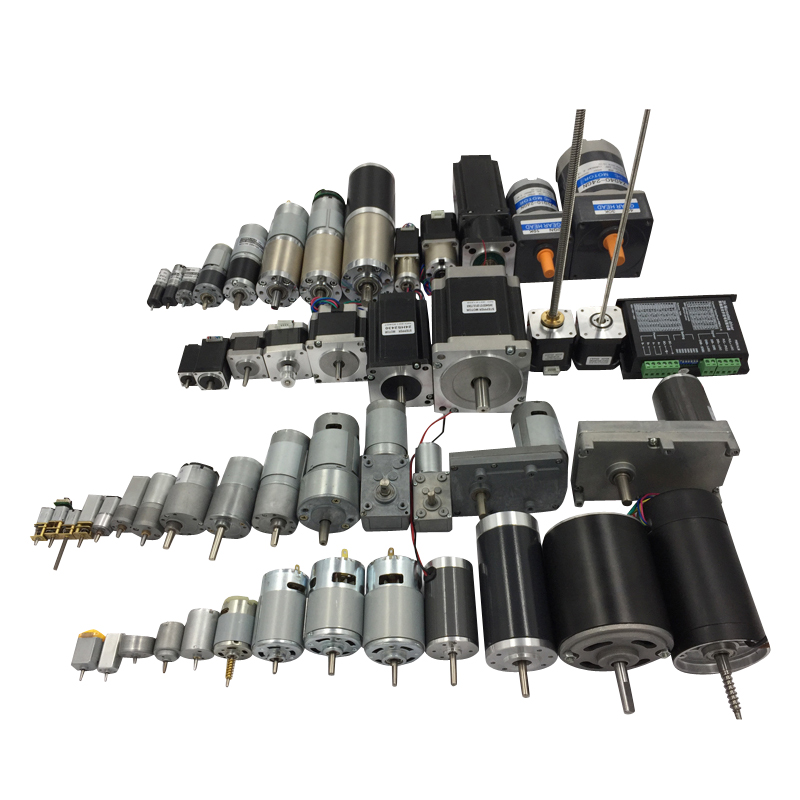

Production Capacity & Range
Professional micro motor/engine manufacturer for 10 years.
Brush Motor: Φ6mm—Φ60mm
Brushless Motor: Φ12mm-Φ42mm
Coreless Brush/Brushless Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Motor: Φ4mm—Φ60mm
Stepper Motor: Φ6mm—Φ24mm
Vibration Motor: Φ4mm—Φ45mm
Motor Voltage: DC 1.5V-220V, AC 110V/220/230/240V
Speed: 0.1-80,000 RPM
Torque: 0.01-500 Kg.cm
Shaft Length: 0.1-150mm
Ratio: 1:4 --- 1:5000
📋 How To Know If The Motor Works For You?
- Check the motor size
- Check the motor voltage
- Check the motor speed
- Check the motor torque/wattage
- If no suitable parameters are found, please send an inquiry
- If you do not know any parameters, please send an inquiry detailing "how you want the motor to work for your application"
Frequently Asked Questions
What are the main advantages of an outer rotor brushless DC motor?
Outer rotor brushless DC motors offer higher inertia and torque stability compared to inner rotor designs. This architecture results in lower noise levels, reduced electromagnetic interference (low EMI), and improved thermal dissipation, making them ideal for high-precision applications.
Can the voltage, speed, and dimensions be customized?
Yes, we support full customization. Parameters including voltage (12V, 18V, 24V), rated speed, torque range, shaft extensions, and external housing dimensions can be tailored according to your specific engineering requirements.
What safety mechanisms are built into these brushless motors?
These motors can be configured with locked rotor protection, stepless speed regulation, CW & CCW direction control, and built-in signal output functions to ensure stable and secure operation under various load conditions.
What are the typical application fields for this motor?
Due to its smooth output and reliable structure, it is widely applied in wellness and therapeutic devices such as muscle massagers, massage guns, fascia massagers, and massage hammers.
What other types of micro motors do you manufacture?
Our technical capability spans across a variety of micro motors, including Brush Motors (Φ6-Φ60mm), Brushless Motors (Φ12-Φ42mm), Coreless Motors, Stepper Motors, and Planetary Gear Motors with ratios up to 1:5000.
How do I choose the correct motor model if I only know the application?
You can send us an inquiry detailing how you intend to use the motor, the space available, and your functional expectations. Our engineering department will evaluate the requirements and suggest the optimal motor configuration.
