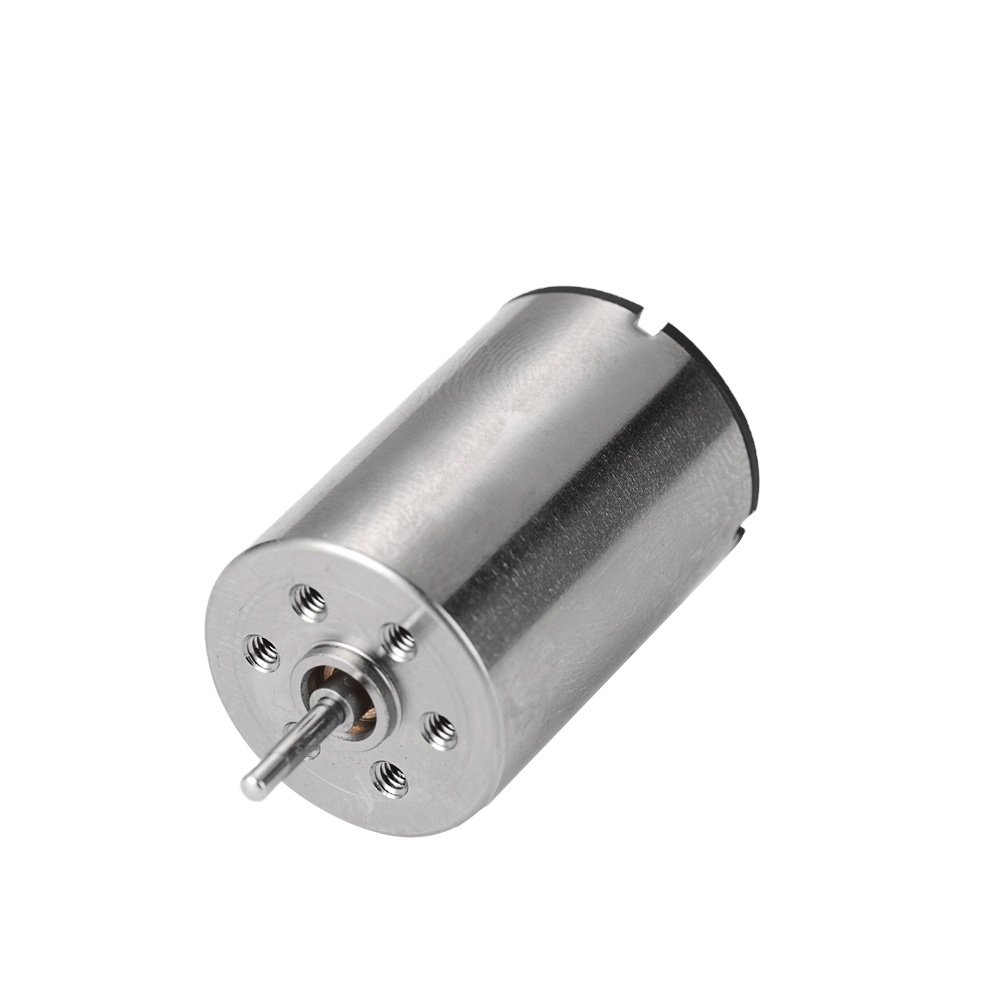

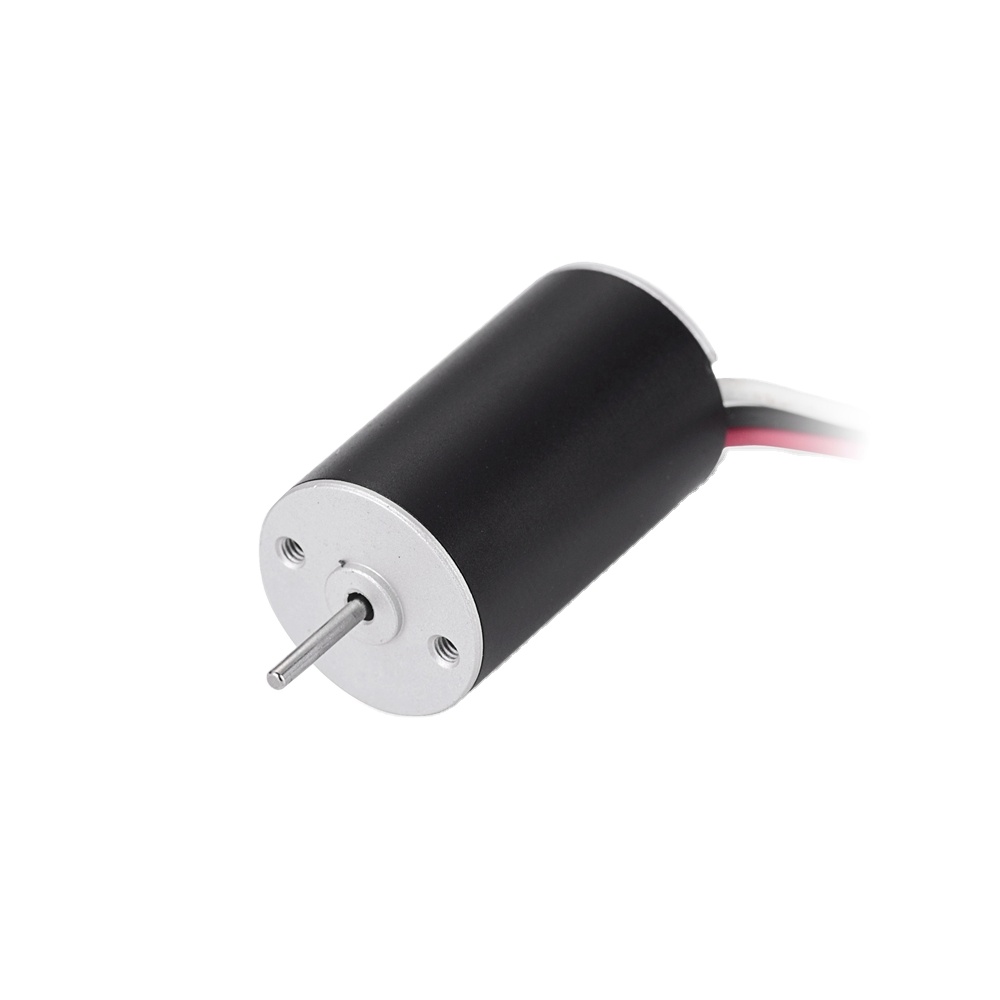

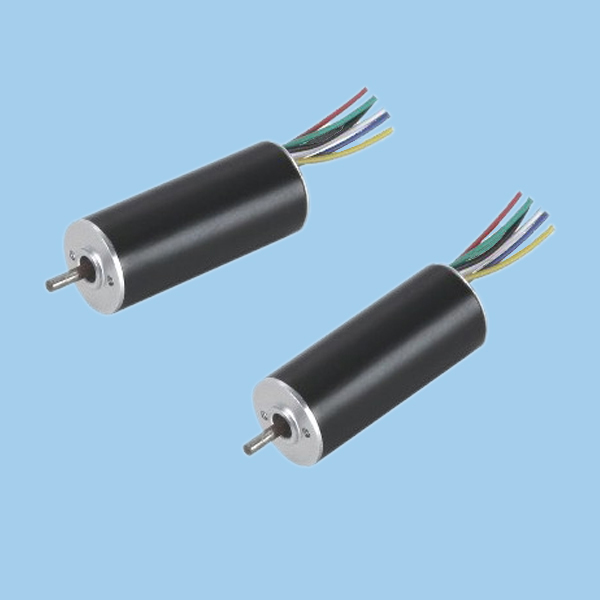

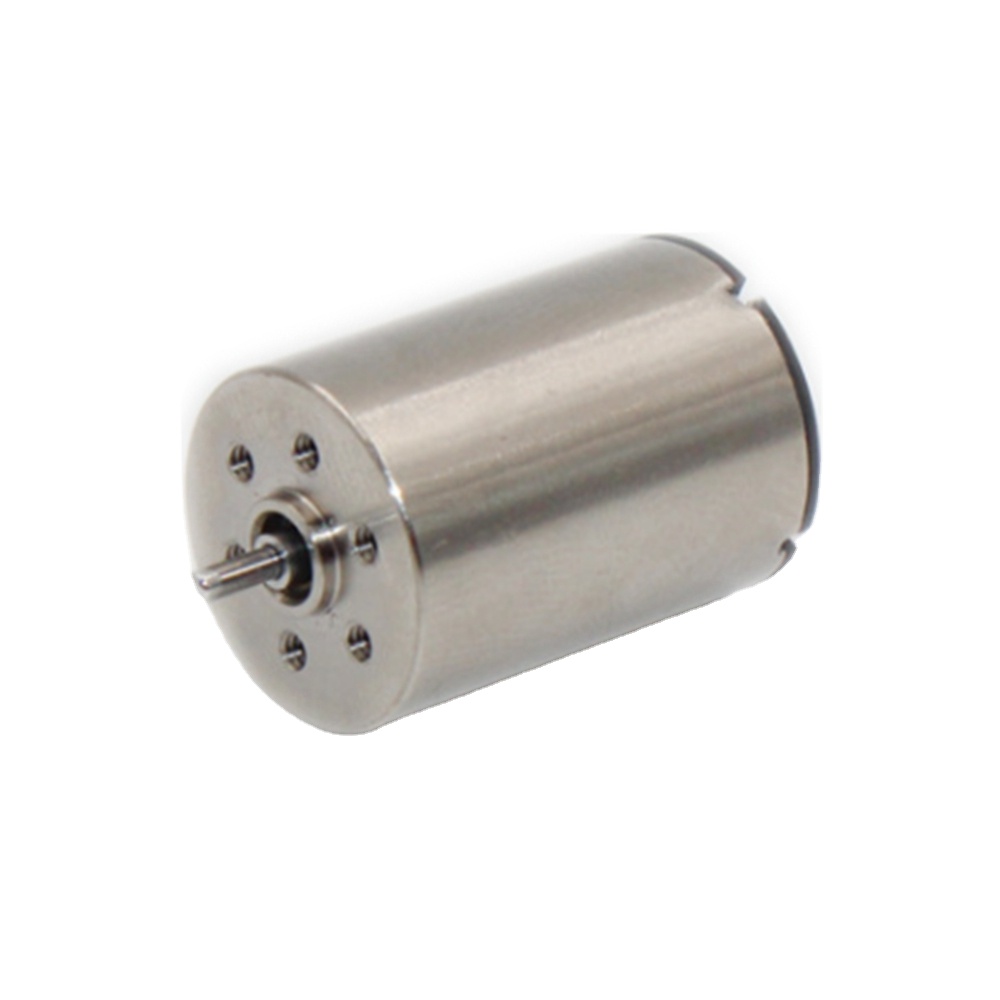

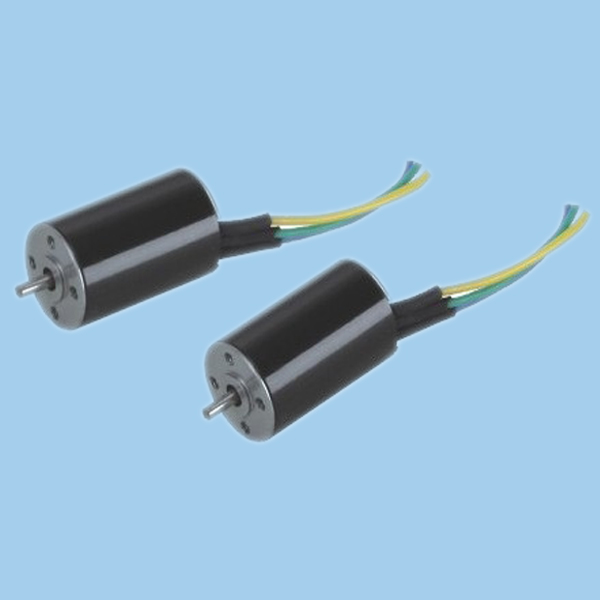

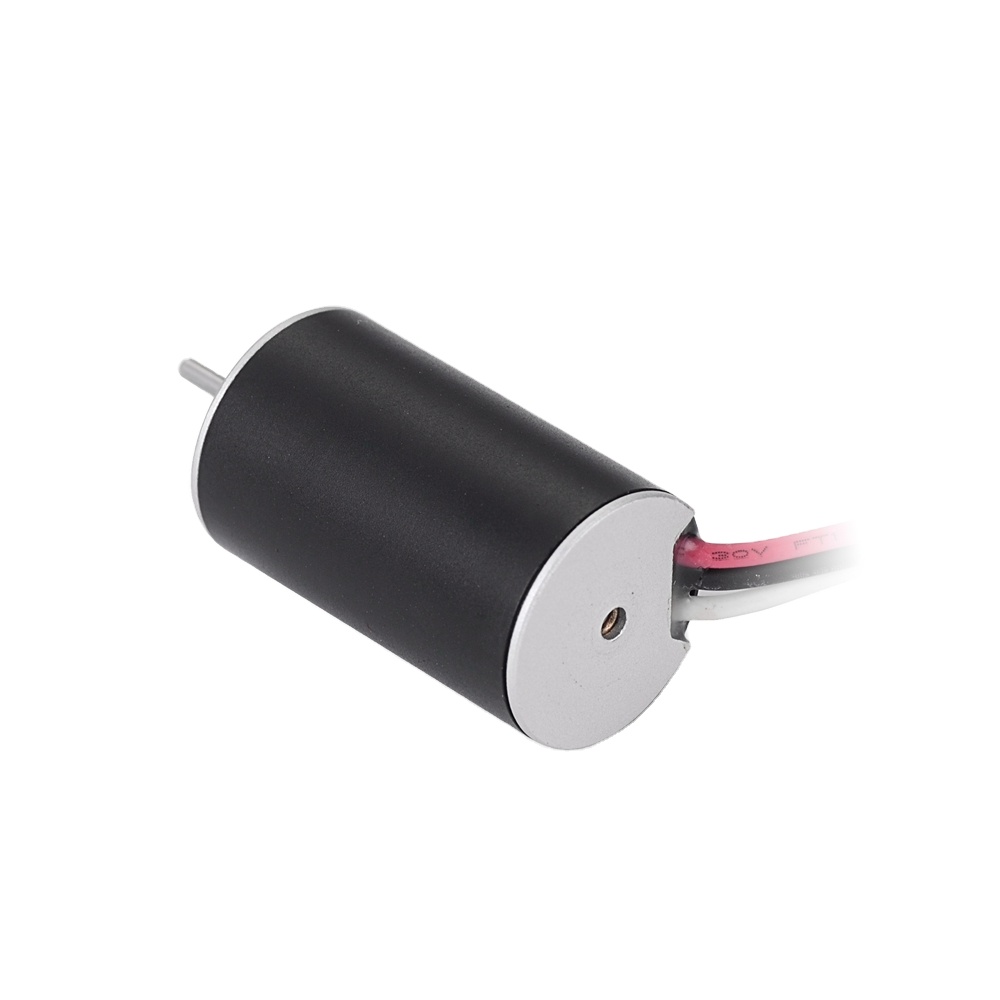

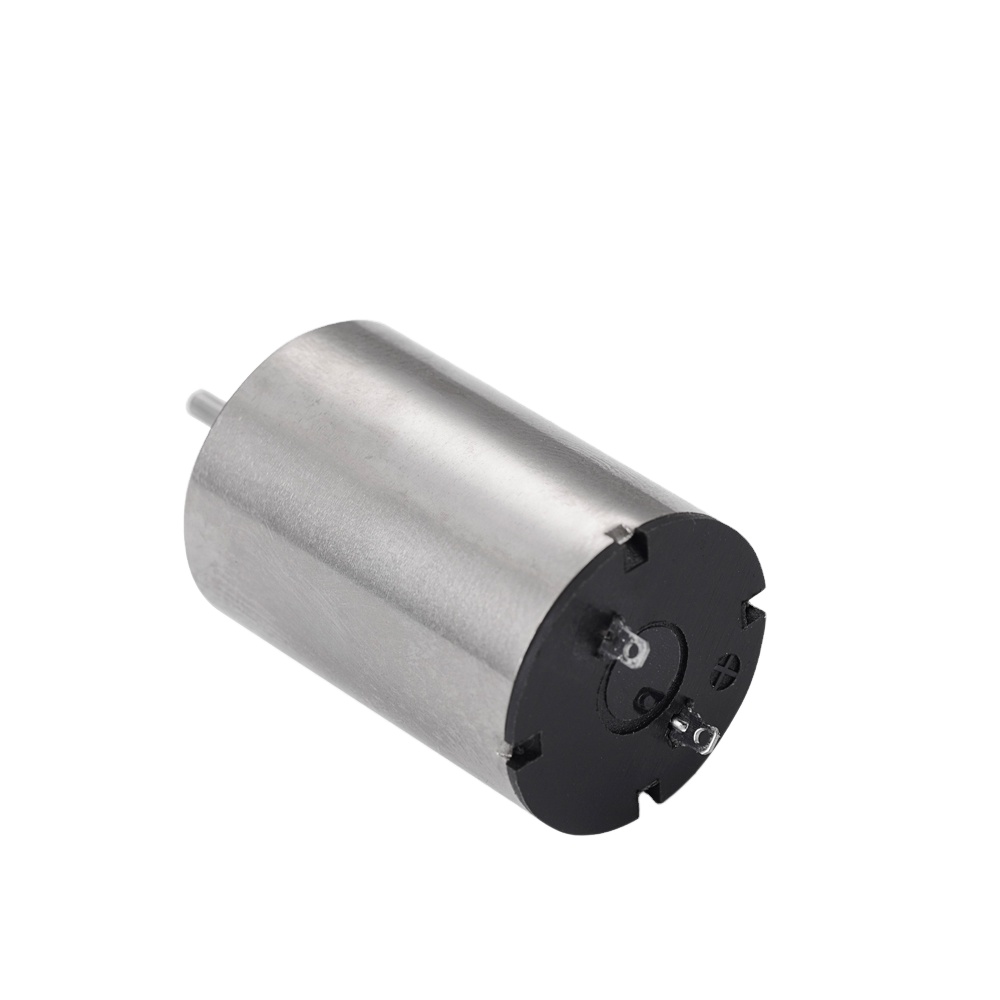

12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
Product Description
Product Description
12mm micro coreless motor 1220, coreless micro motor 12v dc motor for aircraft model, helicopter, quadcopter
Place of Origin
Guangdong China (Mainland)
Model Number

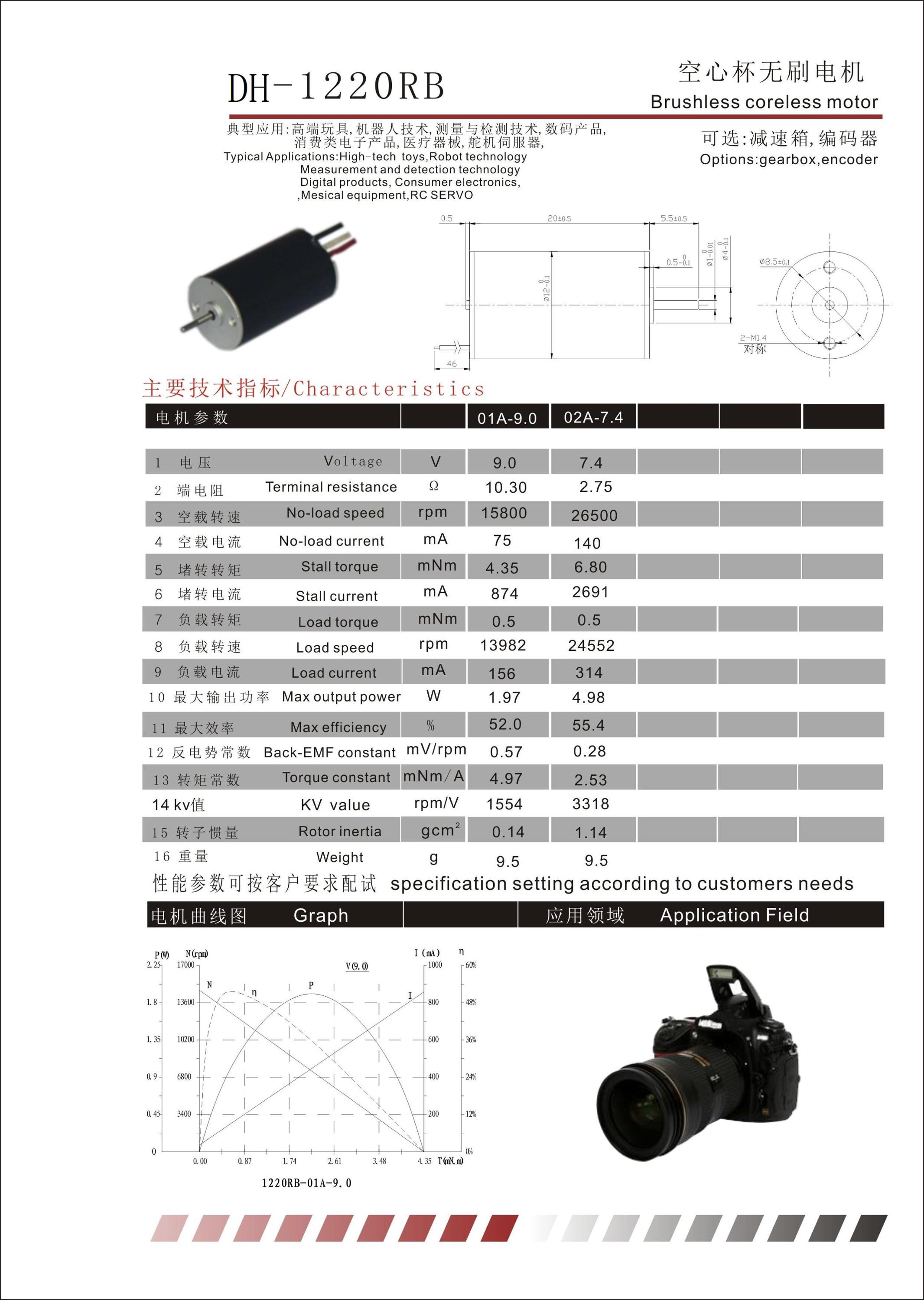

DH1220RB
Usage
Fan, Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
4.35mNm
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Drip-proof
Speed (RPM)
15800rpm no load
Continuous Current (A)
0.075A no load
Output Power
2W
Voltage (V)
9V
Efficiency
IE 1
Rated Load Speed
14000rpm
Rated Load Torque
0.5mNm
Rated Load Current
0.156A
Starting Torque
4.35mNm
Starting Current
0.874A
Motor Length
20±0.5mm
Shaft Diameter
1.0mm
Shaft Length
Can be customized
Application
Toys, Medical Equipment
Packaging & Shipping
Packaging Detail
1. Export standard packing;
2. Our factory standard packing;
3. Packaging can be customized according to customer's request.
2. Our factory standard packing;
3. Packaging can be customized according to customer's request.
Delivery Detail
15 days for samples, 25-30 DAYS for batch production.
Our Services
Company Information

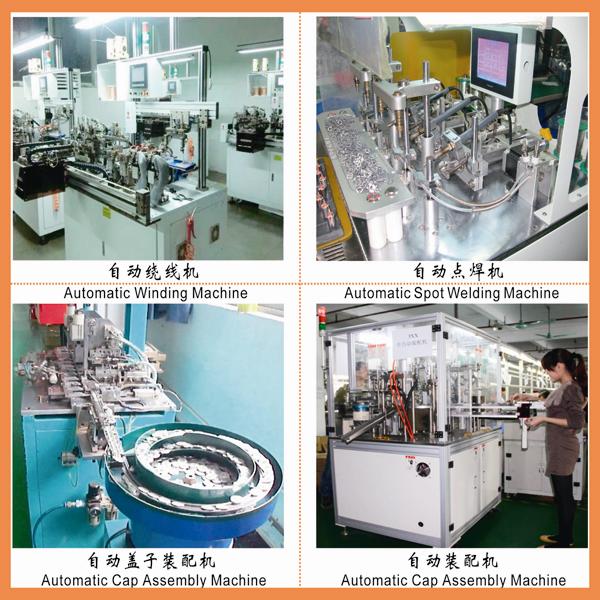

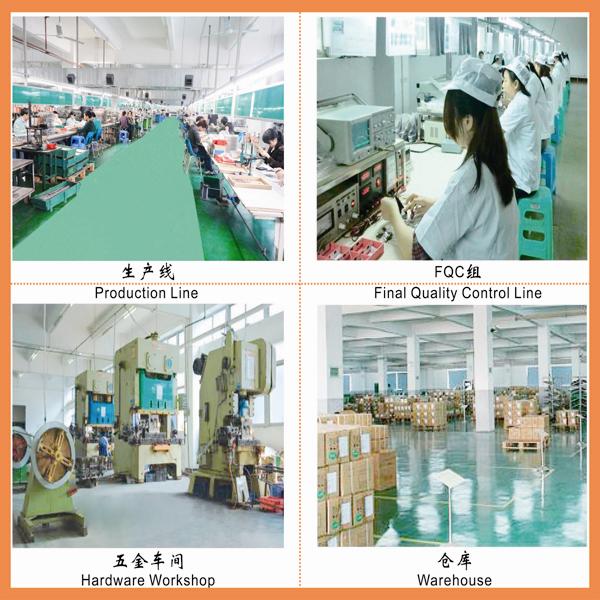

Since established in 2003, there has been a commitment to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:
-
1
Our Main Products Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
-
2
Products Size Range Diameter: 4-100mm
-
3
DC Voltage Range 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
-
4
Speed Range 1 RPM - 30,000RPM
-
5
Stall Torque 1g.cm - 30kg.cm
-
6
Application Fields Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions (FAQ)
Q1: What are the primary applications of this 12mm micro coreless motor?
A1: This motor is widely used in aircraft models, helicopters, quadcopters, home appliances, toys, and medical equipment.
Q2: Can the motor shaft length be customized?
A2: Yes, the shaft length of the coreless motor can be customized according to your specific application requirements.
Q3: What certifications do these micro motors possess?
A3: The micro motors are fully compliant with ROHS environmental safety and quality standards.
Q4: What is the typical lead time for samples and batch production?
A4: The delivery detail is generally 15 days for samples, and 25-30 days for batch production orders.
Q5: What are the power options and speed ranges available?
A5: We provide micro motors operating in the DC voltage range of 1.5V to 42V, with rotational speeds ranging from 1 RPM to 30,000 RPM.
Q6: What packaging options do you offer?
A6: We offer export standard packing, factory standard packing, and fully customized packaging options tailored to your specific request.
