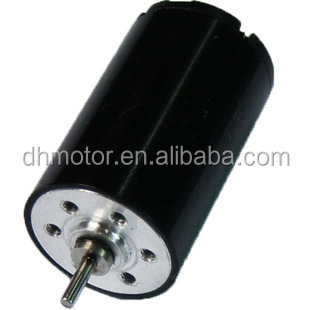

12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
Product Description
Product Description
Specifications
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed BLDC Motor Coreless Motor
1
NMB Ball Bearing
2
Nd-Fe-B Magnet
3
High Efficiency
4
High Power Density

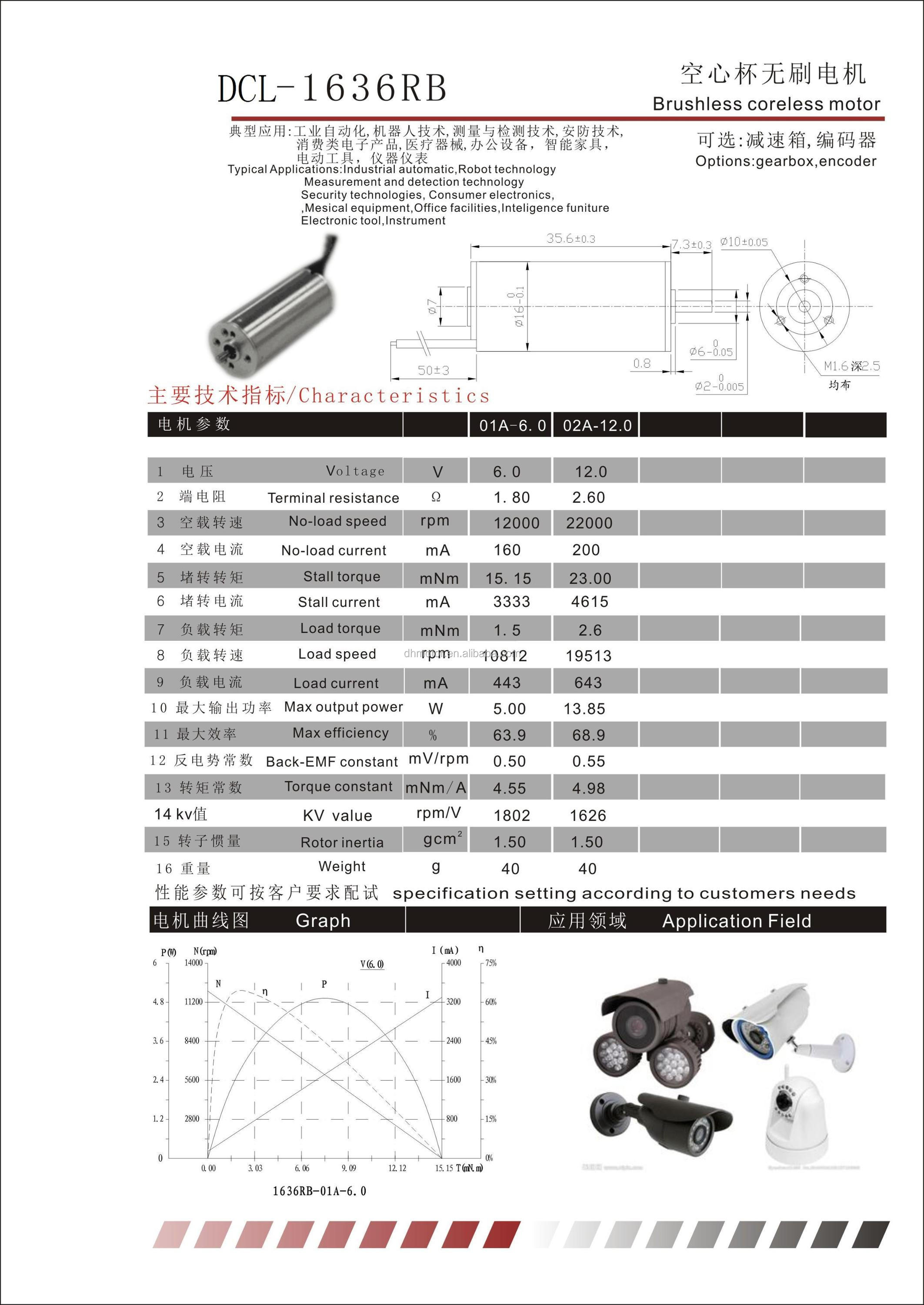

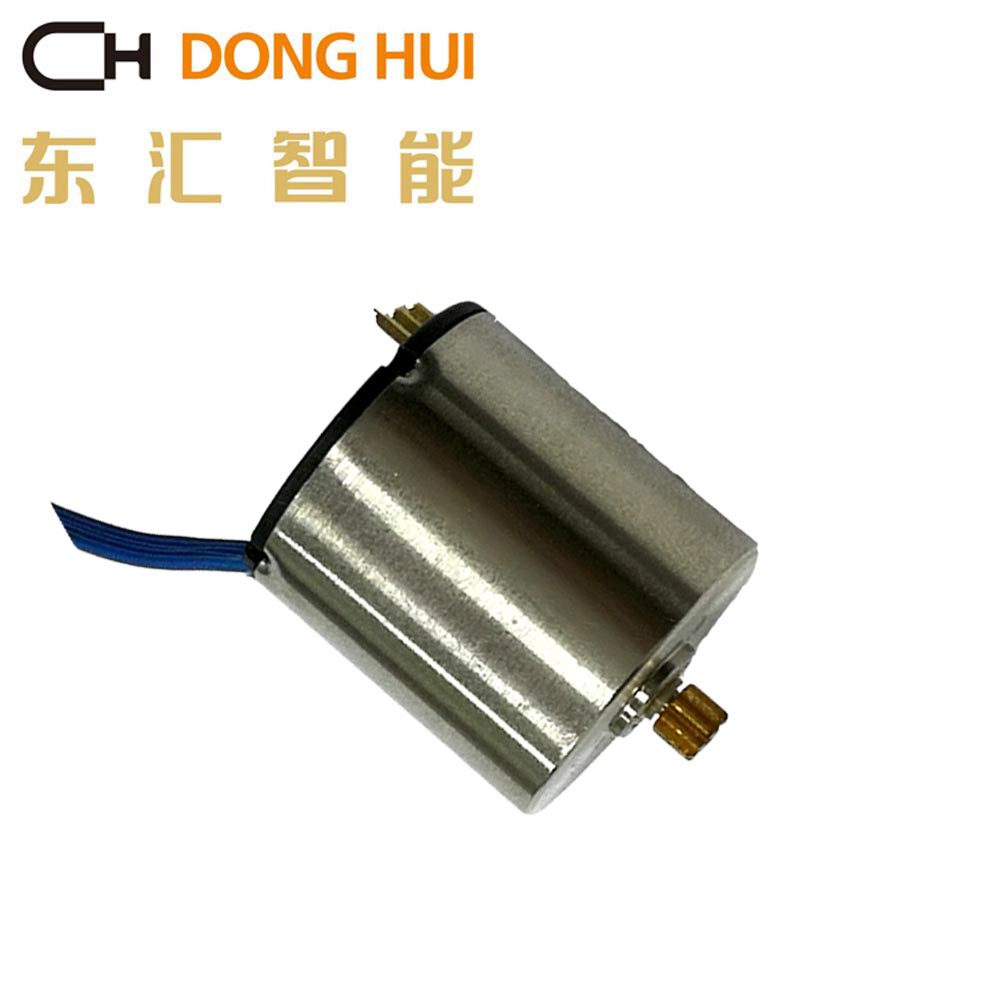

16mm Coreless Motor - 16mm High Speed BLDC Coreless DC Motor
| Product name | Coreless motor |
| Usage | Fan, Home Appliance |
| Type | Micro Motor |
| Torque | 23mNm |
| Construction | Permanent Magnet |
| Commutation | Brushless |
| Protect Feature | Drip-proof |
| Speed(RPM) | 22000rpm no load |
| Continuous Current(A) | 0.64A no load |
| Output Power | 13W |
| Voltage(V) | 12V |
| Efficiency | IE 1 |
| Rated load speed | 19500rpm |
| Rated load torque | 2.6 mNm |
| Rated load current | 0.64A |
| Starting torque | 23mNm |
| Starting current | 4.6A |
| The length of the motor | 36±0.5mm |
| Shaft dia | 2.0mm |
| Shaft length | Can be customized |
| Application | Toys, Medical Equipment |
Packaging & Shipping
Packaging Detail:
1.Export standard packing; 2.Our factory standard packing; 3.Packaging can be customized according to customer's request.
Delivery Detail:
15 days for samples, 25-30 days for batch.
Our Services
Manufacturing Facilities
Frequently Asked Questions
Q
What's your main products?
Dia10~52mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Q
What's the main usage of the micro dc gear motor?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, the Sanitation industry, High-class toys, Banking Systems, Electronic and electrical tools, the automation industry, bank equipment, payment equipment, vending machines, power door locks, and electric door locks.
Q
Do you accept customization?
Sure. As we have a strong design team, any customization requirements or technical problems will receive professional assistance from our engineers.
Q
What kind of data do I need to provide if I want to order?
Please kindly provide information on your required voltage, speed, torque, and overall dimensions.
Q
What if I don't know the above data?
Please contact our sales team. We will guide you through the selection process and answer all of your technical questions patiently.
