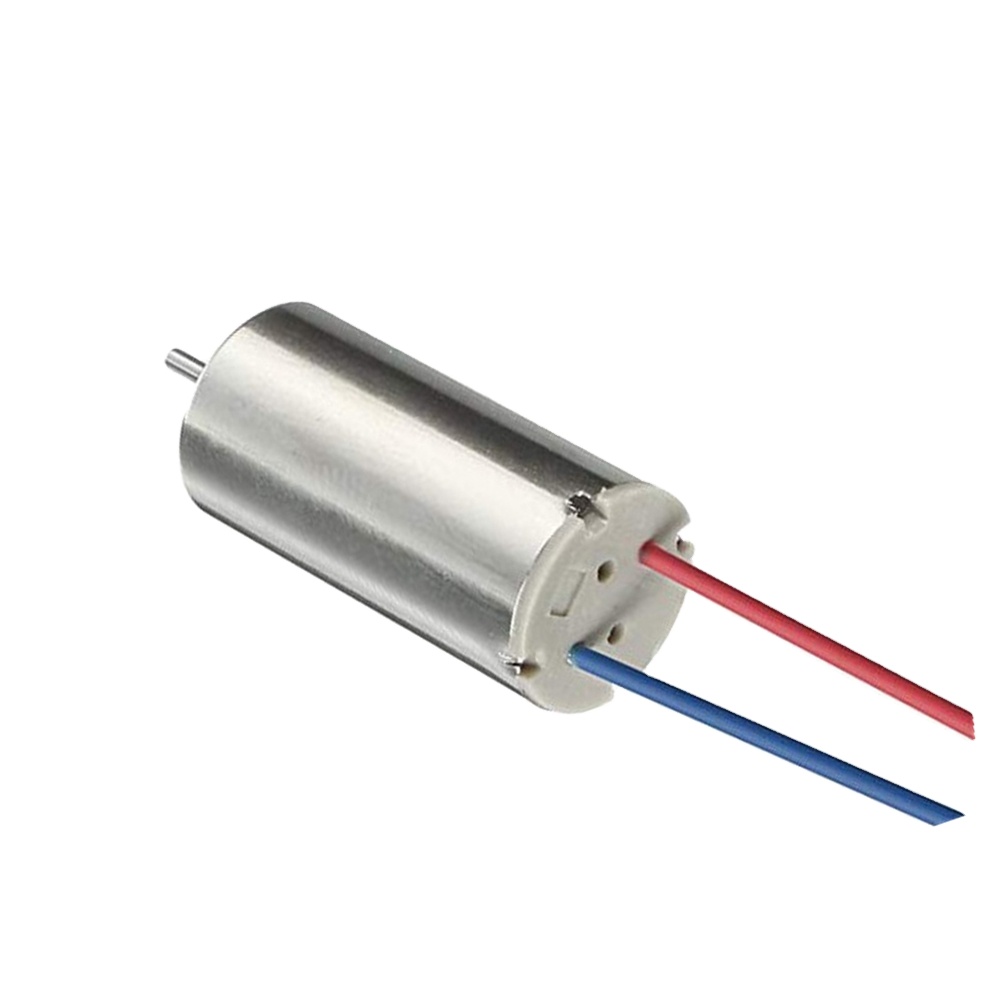

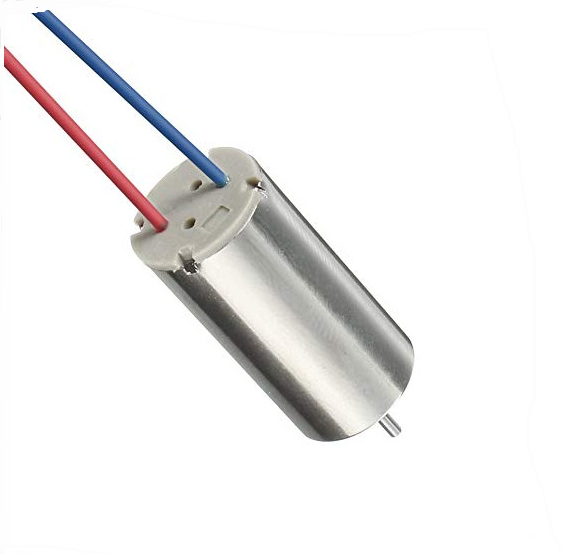

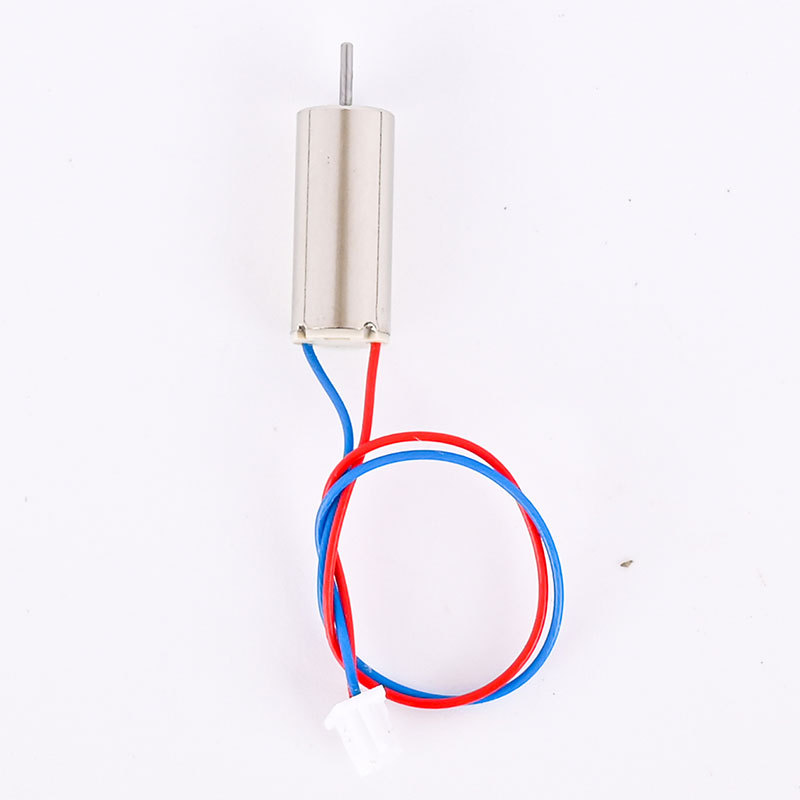

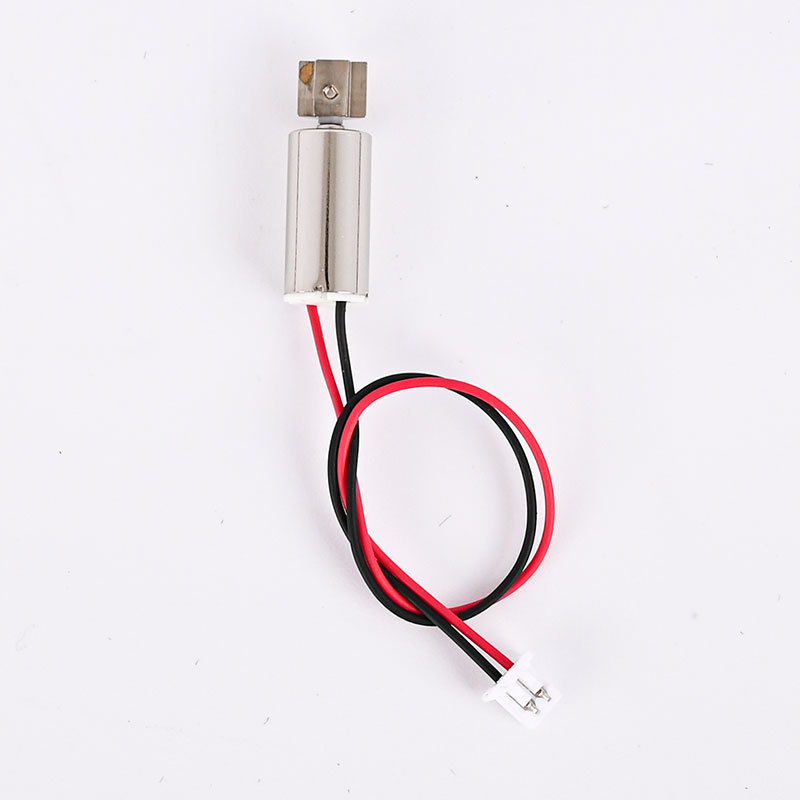

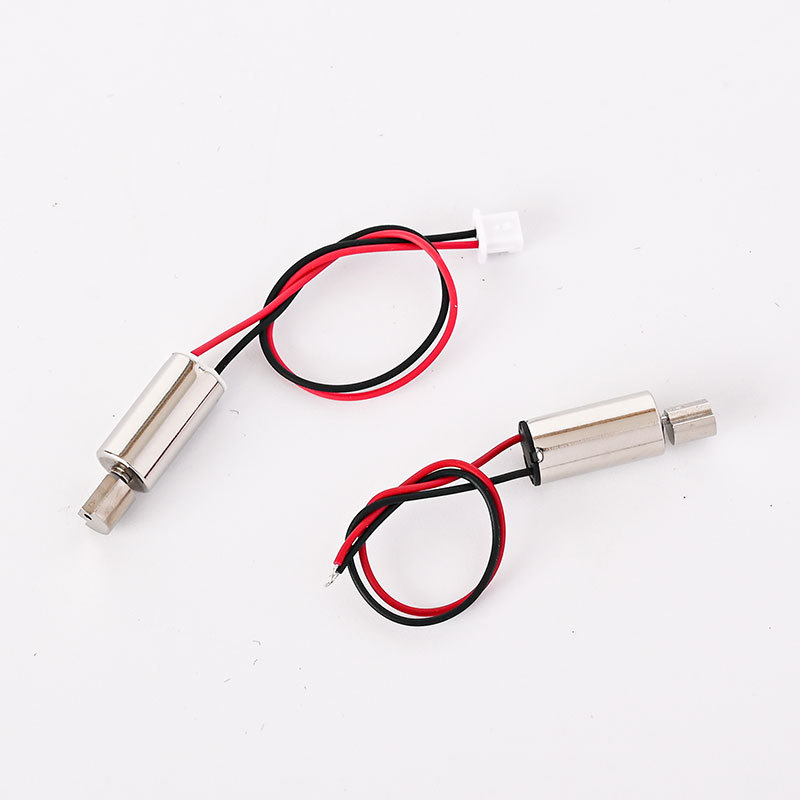

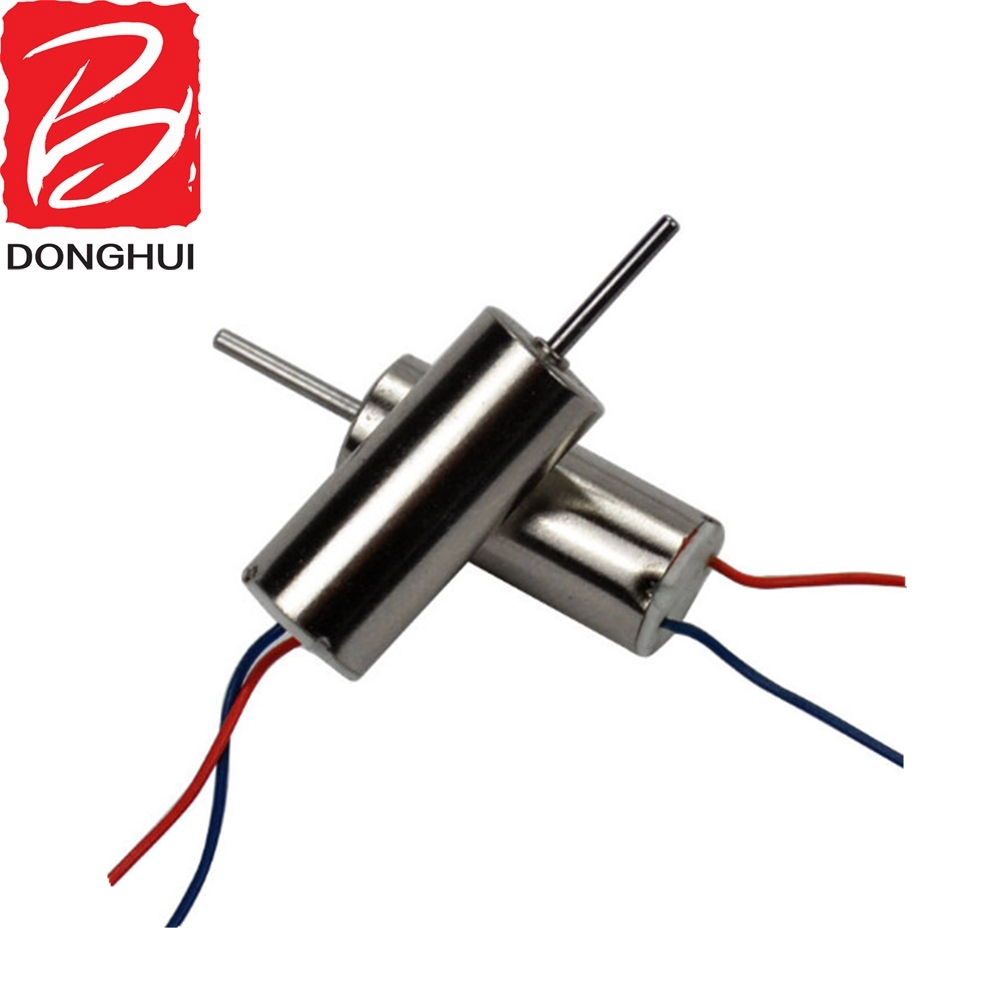

DCL-0716 7mm 3.7v Mini Drone Motor
Product Description
Product Description
DCL-0716 7mm 3.7v mini drone motor

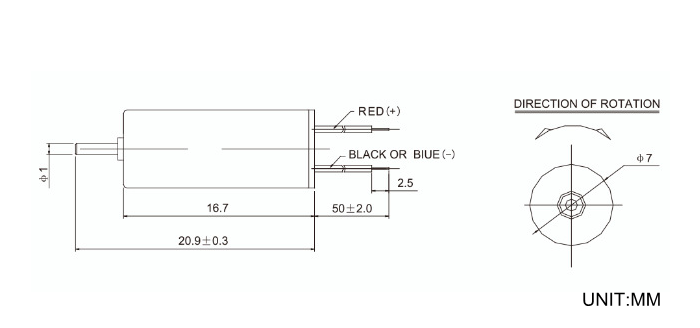

| Size | D7mm*L16mm |
| Voltage | 1.5V, 3V, 3.7V, 4.5V |
| Unload Speed | 8000-50,000rpm |
| Torque | ≤0.8mNm |
| Stall Current | ≤1A |
| Efficient | 85% |
| Application | Aeromodel, Sexy care, massager, beauty equipment |
⚙️
Motor's voltage, speed, current, torque, screw length, and shaft length can be customized.
| Model | Voltage | Noload | At Max Efficiency | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Operating Range (V) | Nominal (V) | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (g.cm) | Output (W) | Current (A) | Torque (g.cm) | |
| DCL-0716-13230 | 1.2-2.4 | 1.5 | 21000 | 0.056 | 15430 | 0.15 | 0.7 | 0.11 | 0.43 | 2.53 |
| DCL-0716-11340 | 2.4-4.5 | 3 | 23000 | 0.027 | 17390 | 0.08 | 0.7 | 0.38 | 0.26 | 2.96 |
| DCL-0716-09450 | 1.5-4.2 | 3.7 | 50000 | 0.075 | 40000 | 1.5 | 13 | 2 | 4.4 | 36 |

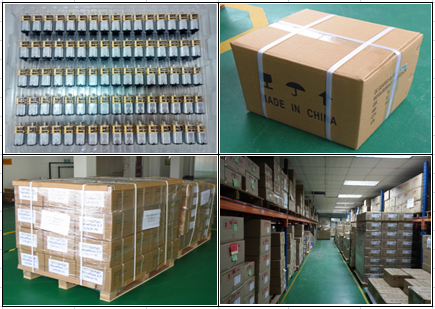

Packaging & Shipping

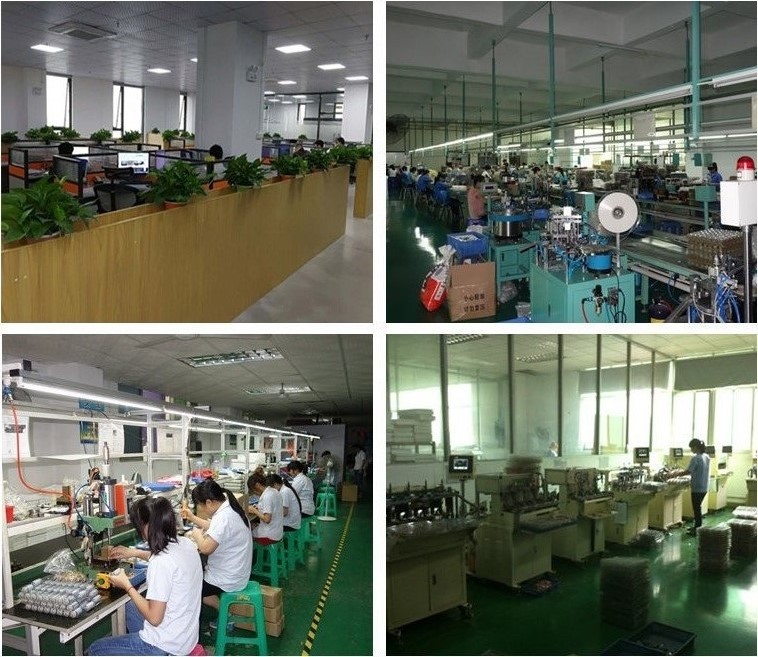

Production Facility
❓ Frequently Asked Questions (FAQ)
💡 What are the key specifications of the DCL-0716 mini motor?
The DCL-0716 mini motor measures D7mm * L16mm. It supports operating voltages between 1.5V and 4.5V, offering an unload speed range of 8,000 to 50,000 RPM, stall torque up to 0.8mNm, and a high efficiency rating of 85%.
💡 Can this mini drone motor's specifications be customized?
Yes, we support comprehensive parameter customization. The motor's voltage, speed, current, torque, screw length, and shaft length can all be customized according to your specific application requirements.
💡 What are the primary applications of the DCL-0716 coreless motor?
This compact, high-speed motor is widely used in aeromodels and drones, personal care products, massagers, and beauty equipment.
💡 What is the efficiency and stall current limit for this motor?
The motor operates with a maximum efficiency of 85% and keeps energy usage safe with a stall current of ≤1A.
💡 What models are available in the DCL-0716 series?
The series includes three main configurations: DCL-0716-13230 (nominal 1.5V, 21000 RPM), DCL-0716-11340 (nominal 3V, 23000 RPM), and DCL-0716-09450 (nominal 3.7V, 50000 RPM).
