Zelt Motor
1 / 5

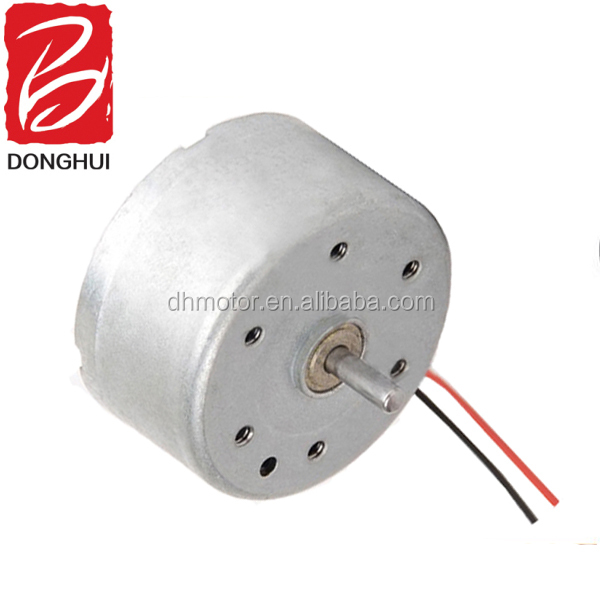

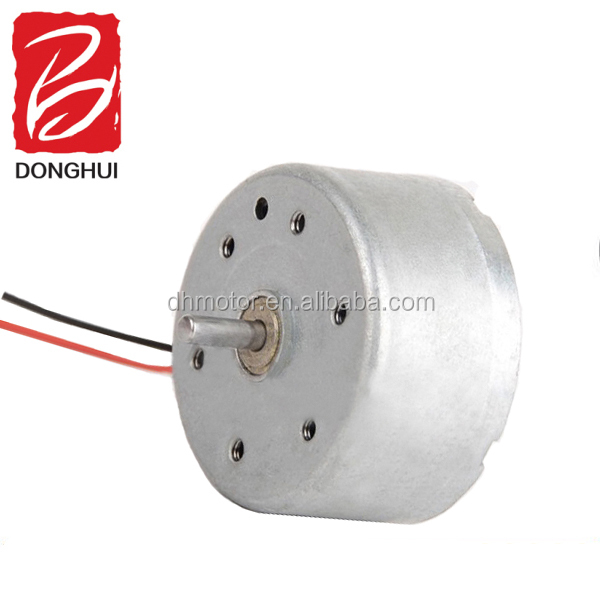

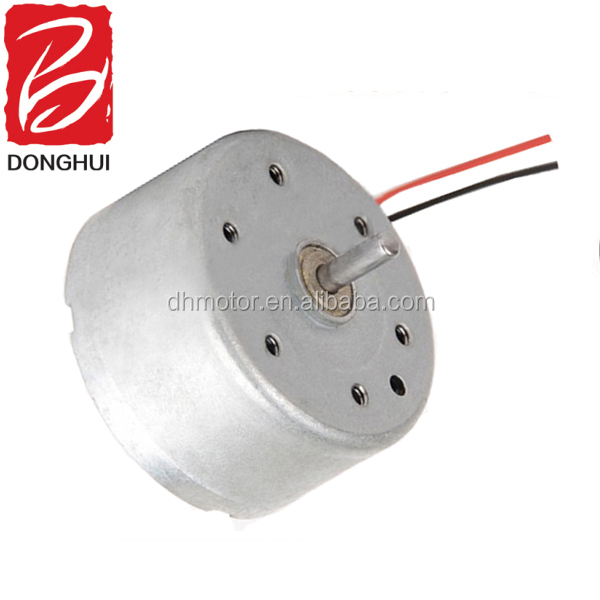

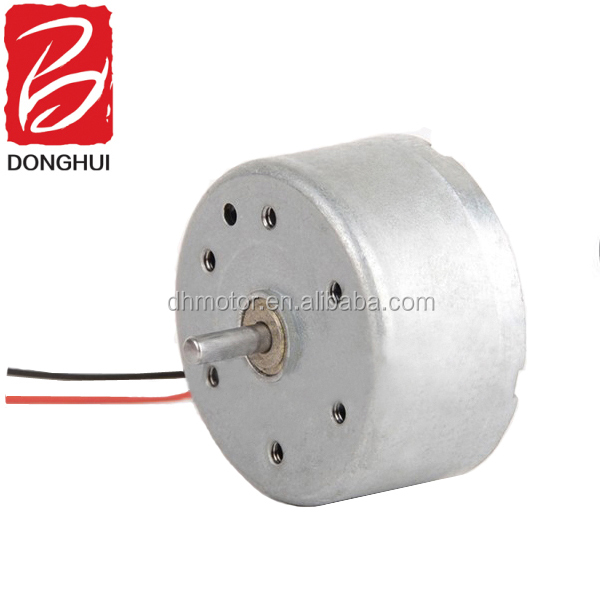

12v Dc Motor, 6 Volt Dc Motor Low Rpm,10v Dc Motor
Product Description
Product Description
Model: DRF-300, DRF-500

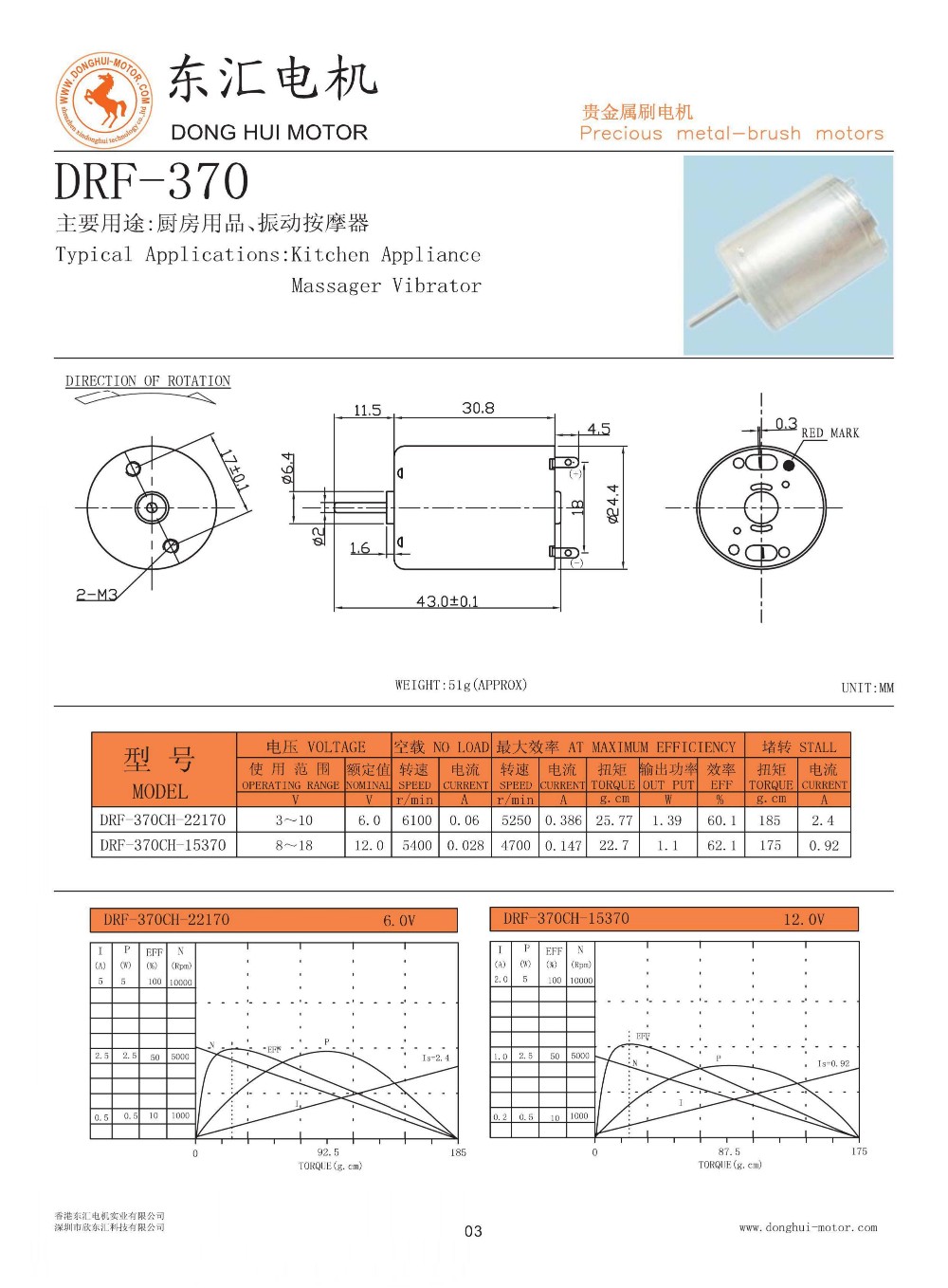

13v DC Motor, R370
- Rated Voltage: DC 13V
- Speed No load: 1000-8000RPM
- 10-25 g.cm Torque At Max Efficiency
- Precious Metal-brush motors
- Diameter 24.4mm, length 30.8mm, shaft 2.0mm
- Weight: 35g Approx
6v DC Motor Low RPM, R300
- Rated Voltage: DC 6V
- Speed No load: 3000RPM
- 10-25 g.cm Torque At Max Efficiency
- Precious Metal-brush motors
- Diameter 24.4mm, length 12.5mm, shaft 1.0mm
- Weight: 20g Approx
10v DC Motor, R280
- Rated Voltage: DC 10V
- Speed No load: 1000-8000RPM
- 10-25 g.cm Torque At Max Efficiency
- Precious Metal-brush motors
- Diameter 23.8mm, length 30.5mm, shaft 2.0mm
- Weight: 42g Approx
Specifications
Rated Products
Our Company
Founded in 2003, our company is a private high-tech enterprise, and mainly engaged in the design, development, production, sale and service of precision DC motors and gear motors.
Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras and domestic appliances.
Production Experience
13 years experience to produce dc motor and dc gear motor.
Quality Assurance
Military enterprise as quality assurance, gears from Military enterprise.
R & D Capability
Strong Production and R & D Ability.
Export Experience
10 Years Export Experience in Germany, Japan and USA.
Frequently Asked Questions
What's your main products?
Dia10~52mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
What's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipments, payment equipments, vending machines, power door lock, electric door lock.
Do you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
What kind of data do I need to provide if I want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
What if I don't know the above data?
Please contact our salesman to handle, we'll answer your questions patiently.
What advantages do you offer for dc motor production?
We offer 13 years of DC motor and gear motor manufacturing experience, military-level quality assurance, strong production & R&D ability, along with 10 years of export experience to Germany, Japan, and USA.
