Zelt Motor
1 / 4

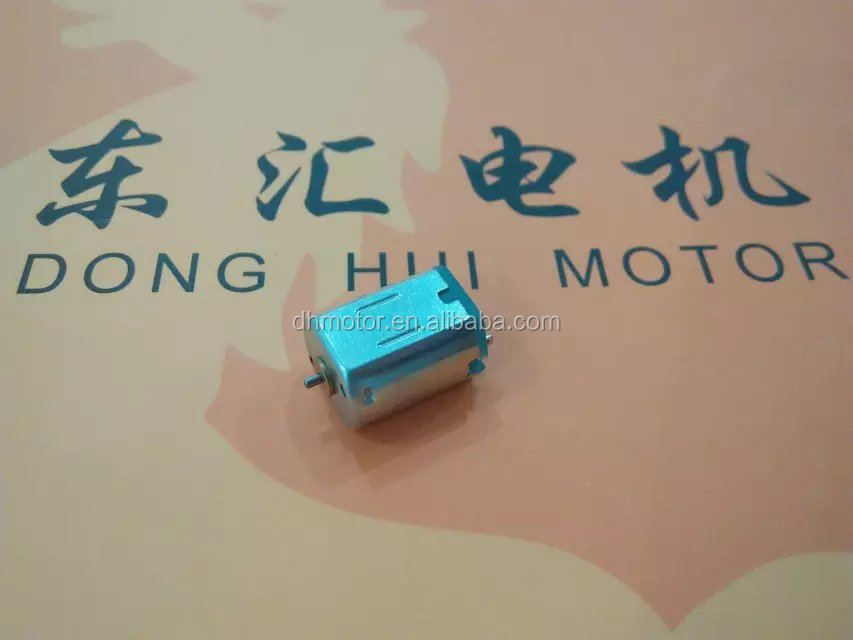

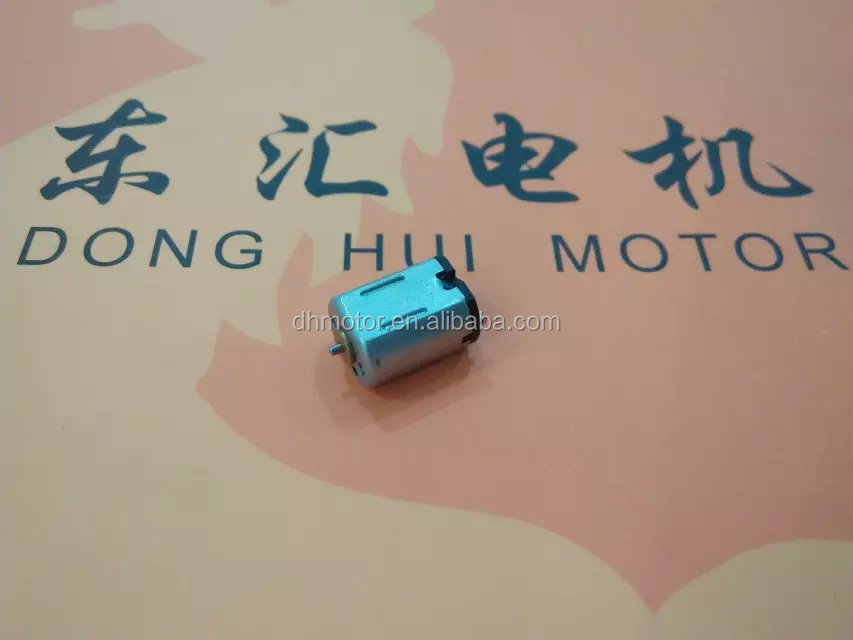

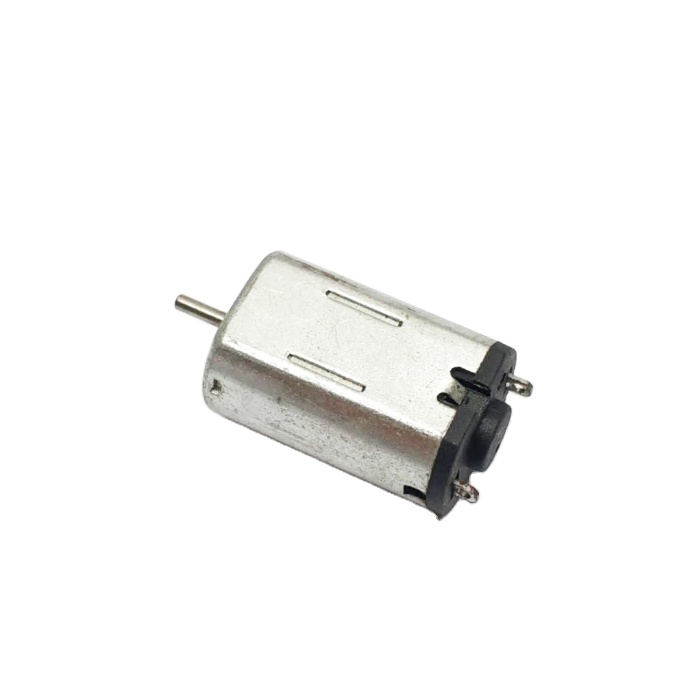

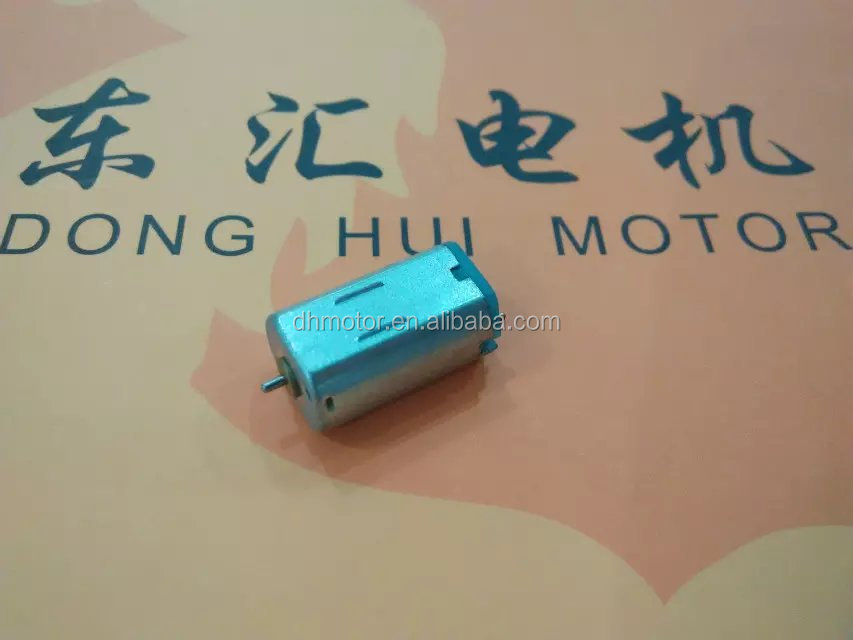

Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30
Product Description
⚙️ Product Description
1.2v 3v 6v 7v 9v dc motor FN20 FN30
-
⚡
Rated Voltage: DC 1.2-9V
-
🔄
Speed No load: 3000-15000RPM
-
💪
Torque At Max Efficiency: 2.5-20g.cm
-
🔹
Brushes: Precious Metal-brush motors
-
📐
Dimensions: Diameter 12 mm, length 20.0mm, shaft 1.0mm
-
⚖️
Weight: 10g Approx
-
🔋
Output Power: 0.3~1.5W
-
🎯
Application: Robot, Home Appliance, Door Lock, etc.
-
🛠️
Customization: Free performance adjustment (voltage, speed, torque, etc.)

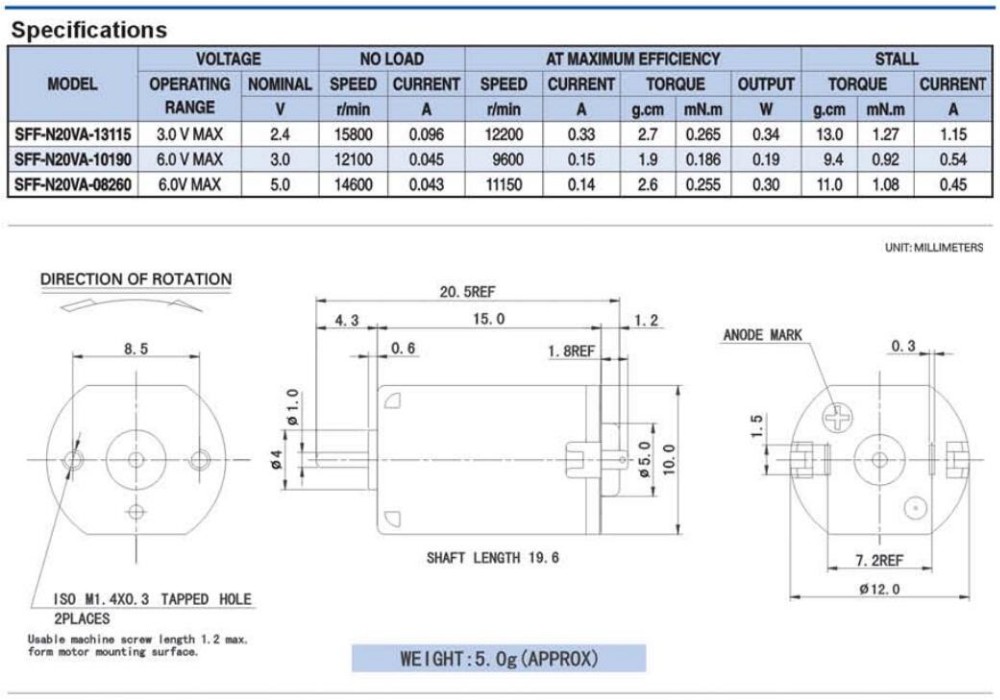

📋 Specifications - FF-N20
Note: We can adjust the performance of voltage, torque, speed, current, power, shaft shape and length according to your need. Our engineer will send you the drawing and specs once you choose us.
Model No: FF-N20 (1.2v 3v 6v 7v 9v dc motor FN20 FN30)

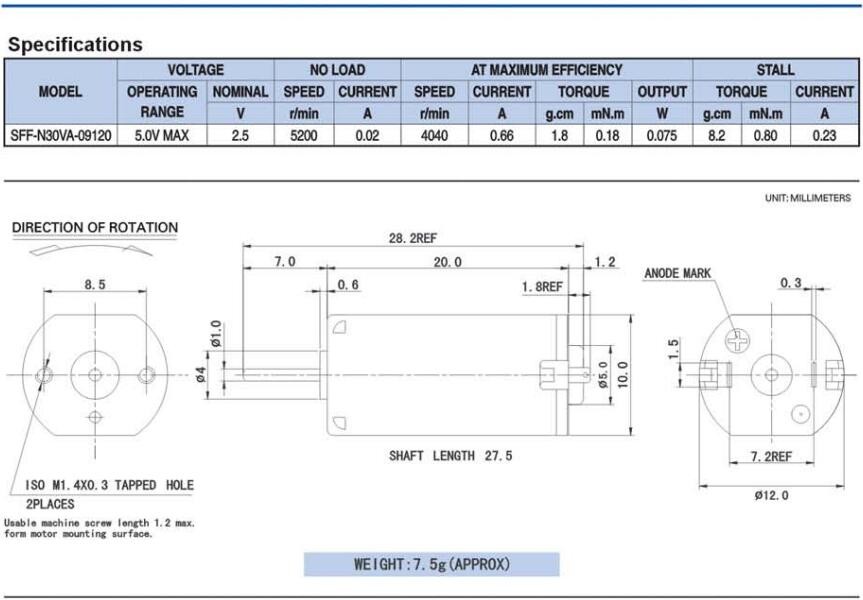

📋 Specifications - FF-N30
Note: We can adjust the performance of voltage, torque, speed, current, power, shaft shape and length according to your need. Our engineer will send you the drawing and specs once you choose us.
Model No: FF-N30 (1.2v 3v 6v 7v 9v dc motor FN20 FN30)
📦 Related Products
🏭 Manufacturing Strength
Founded in 2003, we are a private high-tech enterprise, and mainly engaged in the design, development, production, sale and service of precision DC motors and gear motors. Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras and domestic appliances.
Our Advantages
⭐
13 Years Experience
Specialized in designing and producing precision DC motors and DC gear motors.
🛡️
High-Quality Assurance
Strict quality control processes, leveraging premium components and precision-cut gears.
💡
Strong R & D
Equipped with powerful production capabilities and advanced engineering research.
🌍
Global Exports
Over 10 years of export experience supplying clients in Germany, Japan, and the USA.
❓ Frequently Asked Questions
Question 1: What are your main products?
Answer: Dia 10~52mm DC Micro Motor and Gear Motor, Auto DC motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor, etc.
Question 2: What is the main usage of the micro DC gear motor?
Answer: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industries, High-class toys, Banking Systems, Electronic and electrical tools, automation industries, bank equipment, payment equipment, vending machines, power door locks, and electric door locks.
Question 3: Do you accept customization?
Answer: Sure, as we have a strong design team, any customization requirements will get our professional technical answers and solutions.
Question 4: What kind of data do I need to provide if I want to place an order?
Answer: Please kindly provide us with your requested voltage, speed, torque, and overall dimension requirements.
Question 5: What if I do not know the required technical specifications?
Answer: Please feel free to reach out to our service team. We will guide you through the selection process and answer all of your questions patiently.
