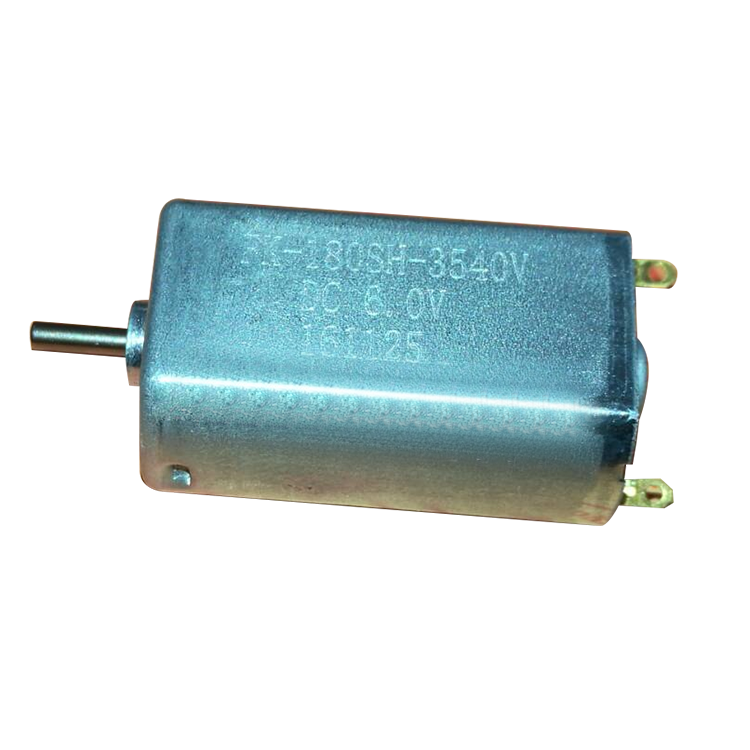

FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
Product Description
Product Description
Quick Details
Place of Origin
Guangdong China
Model Number
FF-180
Usage
Home Appliance
Certification
CCC, CE, ROHS
Type
Micro Motor
Torque
110 g.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Drip-proof
Speed (RPM)
6900 rpm
Continuous Current
0.16A
Output Power
1.1W
Voltage
2.4V
Efficiency
IE 1
No Load Speed
8300 rpm
Packaging & Shipping
| Packaging Details: | 500PCS/CTN, standard export carton packing |
| Delivery Detail: | Within 25 days |
Our Services & Specifications
Core Motor Focus
Micro dc motor, dc gear motor, dc brushless motor
Specifications: Electric Shaver DC Motor 2.4v 12v FF-180 dc motor
- 3V-24V dc mini Motor for CD, mini dc motor
- Low noise high speed long-life (Carbon brush or metal brush)
- Motor Voltage: 2.4v-12v
- The shaft: dia 2.0mm
- Motor Diameter: 20.4mm length: 32.1mm, flat shape
- Output power: approx 0.5W~3.5W
- Certification: CE, ROHS ISO9001:2000
- Precious metal-brush motors
- The motor weight: 32g (Approx)
- Motor direction of rotation: CW & CCW
- FF-180 mini dc Motor for Audio and Visual equipments: VCR
- Household Appliances: Electric Shaver / Tooth Brush
- Motor specifications and shaft length can be tailor-made according to customer's requirements

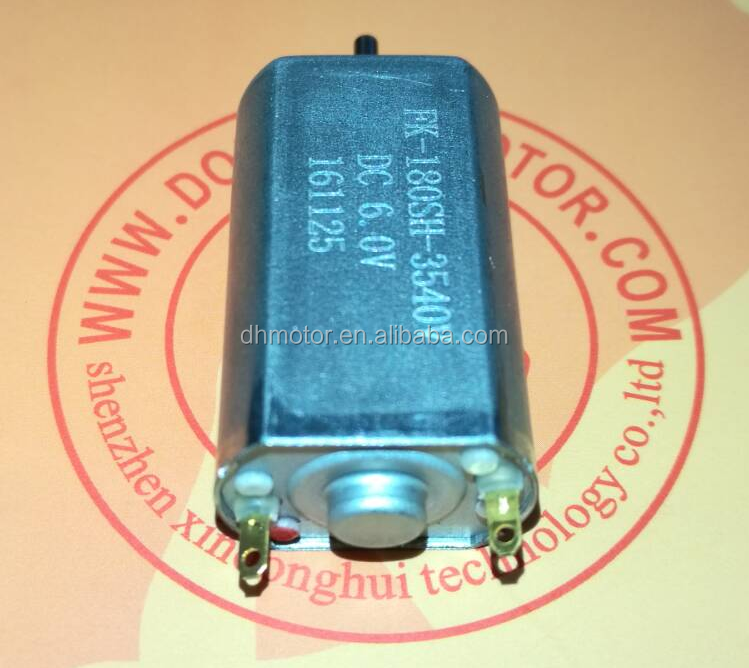

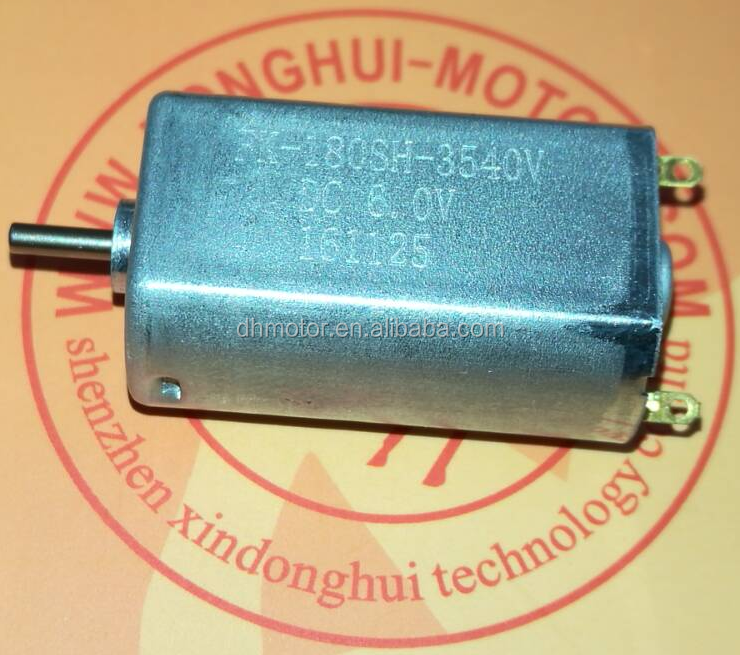

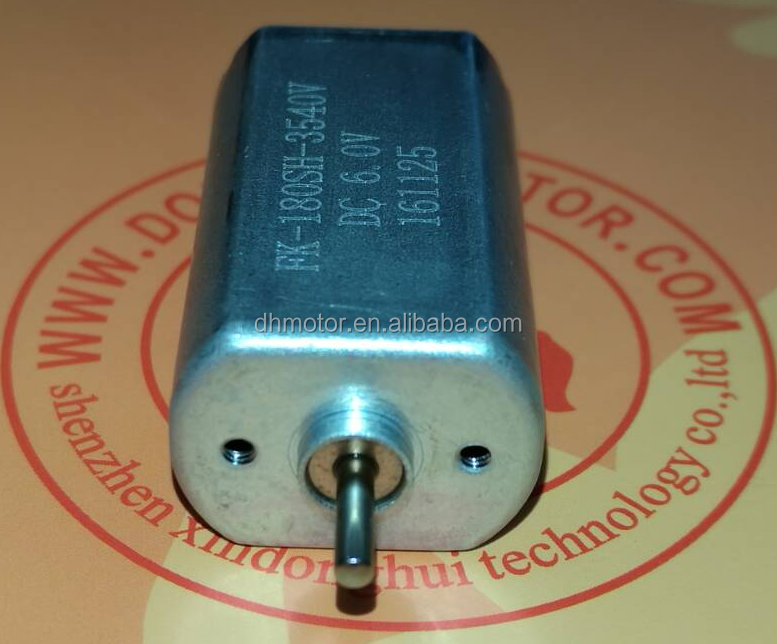

Photo Details

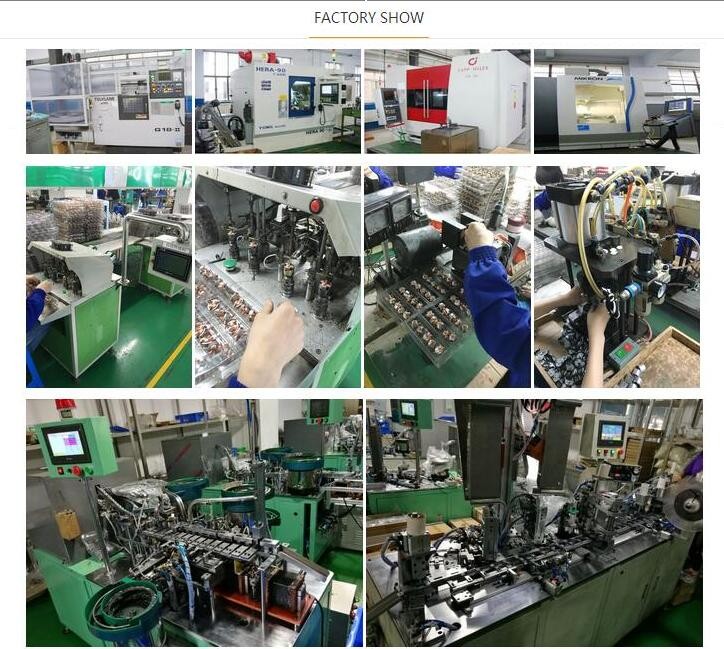

Manufacturing & Production Capabilities
Since the facility's establishment in 2003, there has been a steady commitment to the development and production of micro motors. This covers 4 major product series: Micro DC motors, DC gear motors, coreless motors, and brushless motors.
- Main Product Line: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor, etc.
- Product Dimensions: Diameter range of 4mm to 100mm.
- DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V, etc.)
- Speed Performance: From 1 RPM up to 30,000 RPM.
- Stall Torque Range: 1g.cm to 30kg.cm.
- Broad Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment, etc.
Frequently Asked Questions
What are the primary applications of the FF-180 micro DC motor?
The FF-180 micro DC motor is widely used in household appliances such as electric shavers and toothbrushes, as well as audio and visual equipment like VCRs.
What are the voltage and speed specifications of this motor?
The motor operates at a voltage range of 2.4V to 12V (and up to 24V for specific configurations). It delivers a rated speed of 6900 rpm and a no-load speed of 8300 rpm.
What certifications does the FF-180 micro motor possess?
This motor complies with international safety and quality standards, carrying CCC, CE, and RoHS certifications, as well as complying with ISO9001:2000 processes.
Can the specifications and shaft configuration be customized?
Yes. The motor specifications and the shaft length can be tailor-made and optimized according to the customer's specific technical requirements.
What are the standard packaging and delivery terms?
The standard packing structure is 500 pieces per export carton. Delivery details indicate shipments are fulfilled within 25 days.
What are the physical dimensions and weight of the FF-180 motor?
The motor has a diameter of 20.4mm, a flat shape configuration, a length of 32.1mm, a shaft diameter of 2.0mm, and weighs approximately 32 grams.
