Zelt Motor
12v Micro Dc Motor RS 390 RS 395 Dc Motor
Product Description
| Place of Origin: | Guangdong China (Mainland) | Model Number: | RS-395 |
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Certification: | ROHS, ISO9001 |
| Type: | Micro Motor | Torque: | 310 G.cm |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | drip-proof | Speed(RPM): | 3285 rpm |
| Continuous Current(A): | 0.32A | Output Power: | 2W |
| Voltage(V): | 12v | Efficiency: | IE 1 |
| Shaft: | 2.3MM D-cup shaft | Weight: | 85g |
| No Load Speed: | 4100rpm | Max Efficiency: | 53.3% |
| Application: | Kitchen Utensil, Household Appliance | Brush: | Carbon brushes |
| Style: | motor RS-395 | ||
12v dc micro motor RS 390 RS 395 dc motor
- ✔ 1. Low noise high torque long-life
- ✔ 2. Motor Voltage: 3v-24v (RS 390 RS 395 dc motor)
- ✔ 3. The shaft: dia 2.3mm
- ✔ 4. Motor Diameter: 27.7mm, length: 47mm (Tube shape)
- ✔ 5. Output power: approx 1W ~ 35W
- ✔ 6. Certification: CE, ROHS, ISO9001:2000
- ✔ 7. Carbon-brush motors
- ✔ 8. Motor weight: 85g (Approx)
- ✔ 9. Motor direction of rotation: CW & CCW
- ✔ 10. 3v-24v mini dc Motor Typical Applications: household appliances, massager/vibrator, air compressor
- ✔ 11. Motors specification and shaft length can be tailor-made according to customer's requirements
| Packaging Detail: | 1. International standard packaging 2. Standard packaging 3. Customers' standard packaging |
| Delivery Detail: | less than 30 days |

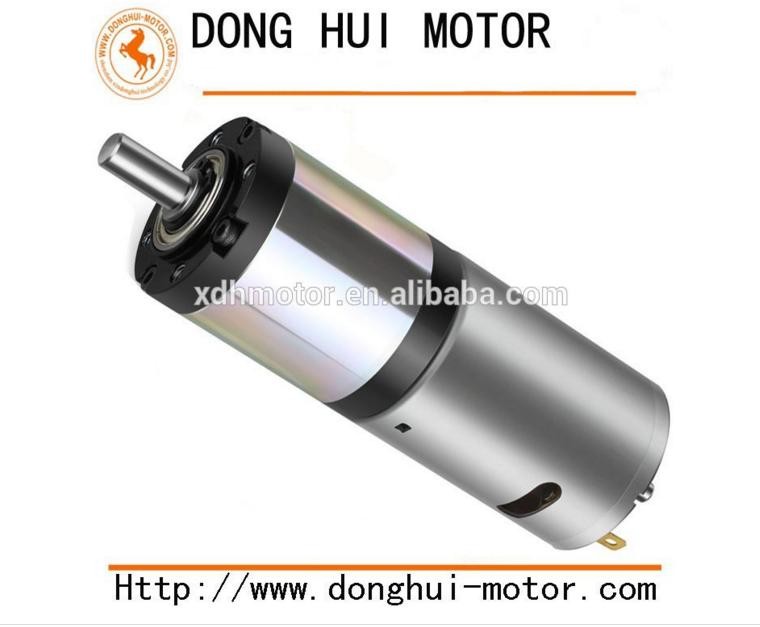

Micro dc motor rs-390 rs-395, dc gear motor, dc brushless motor

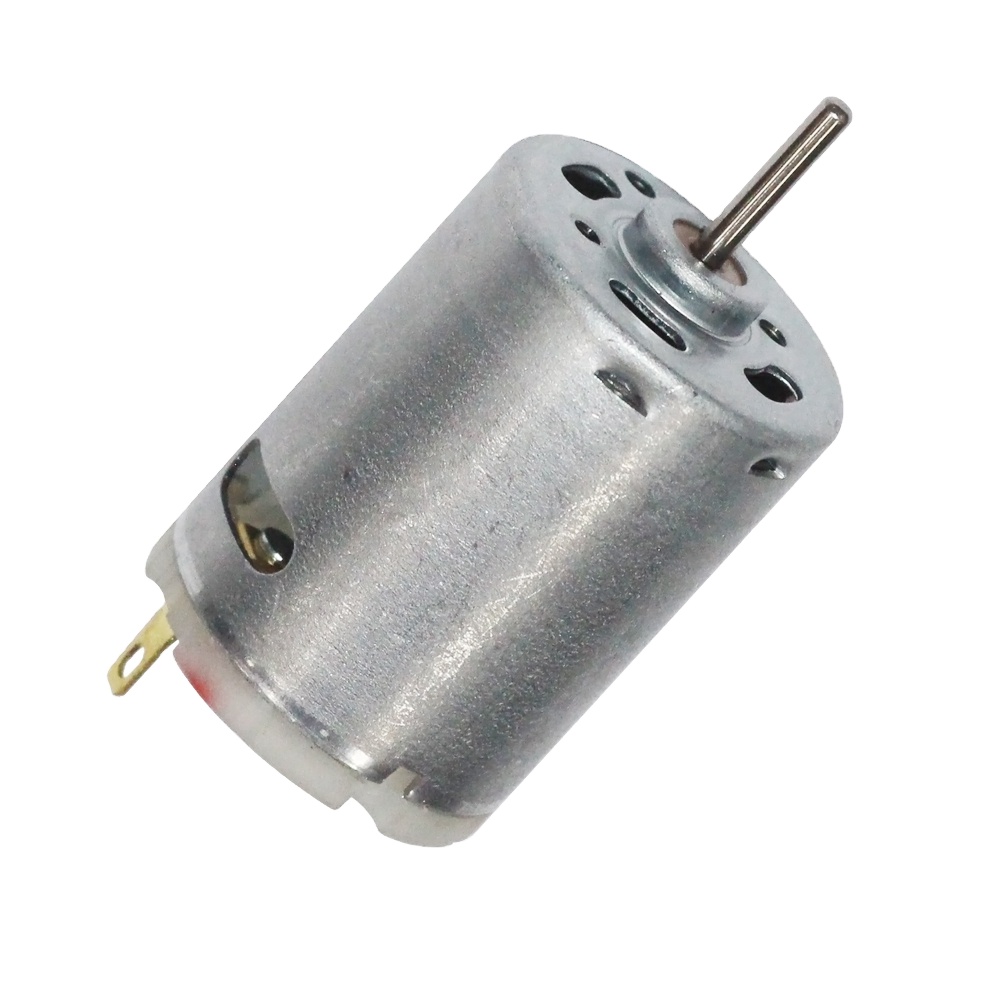

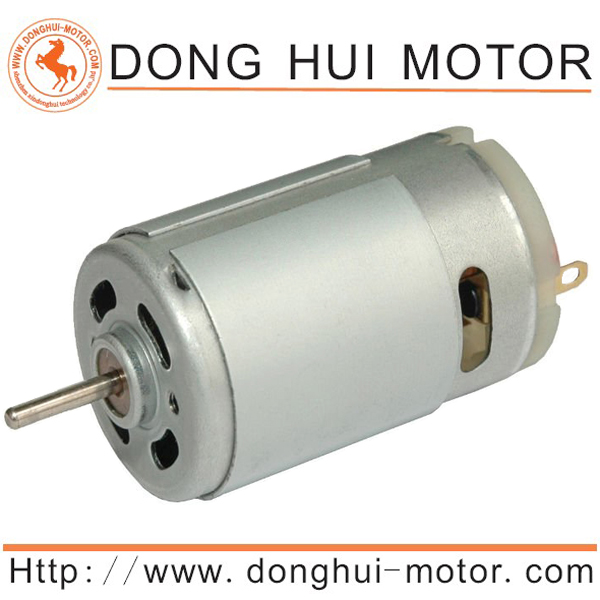

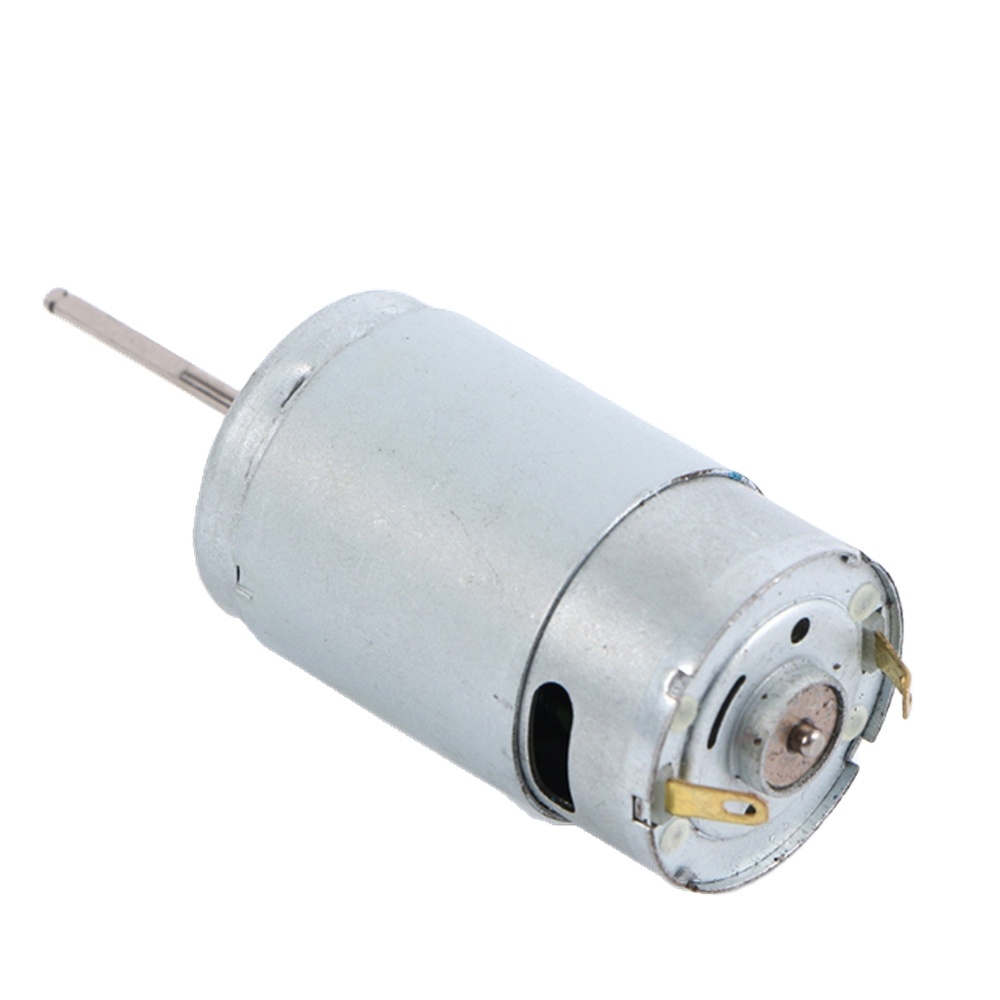

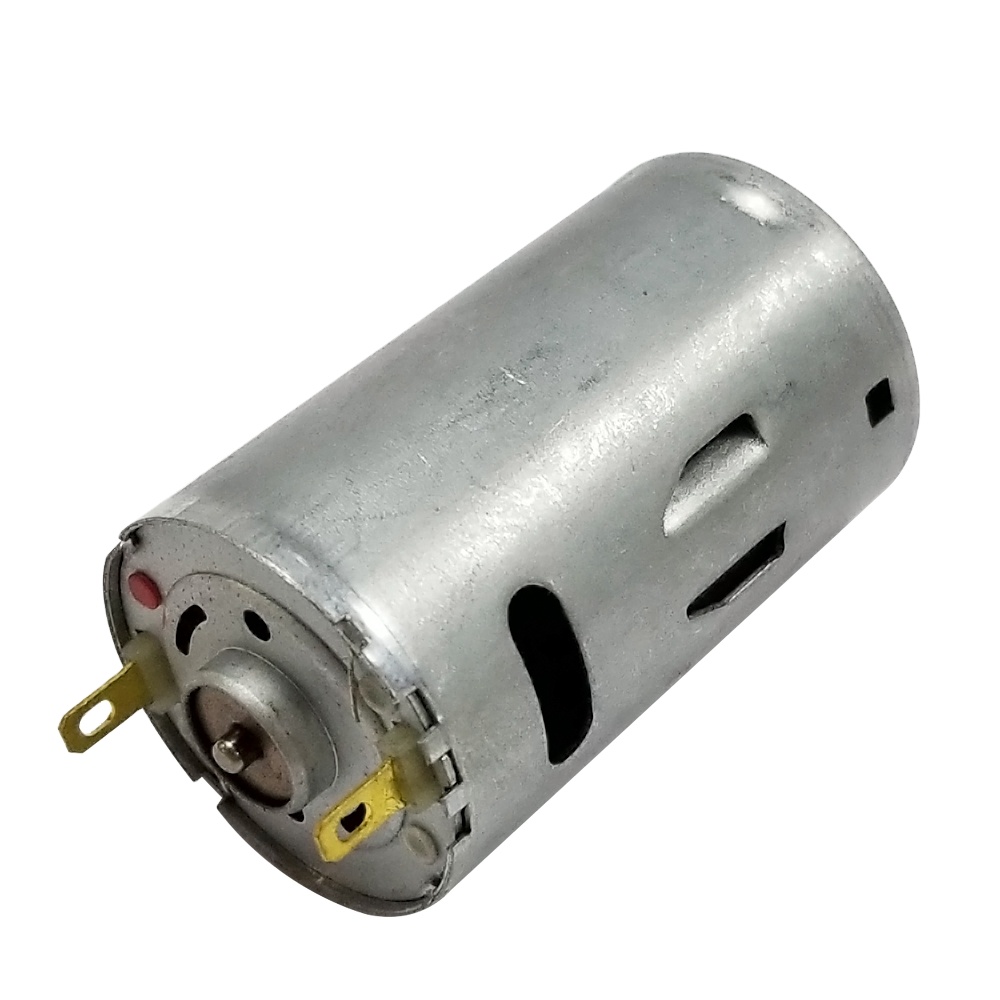

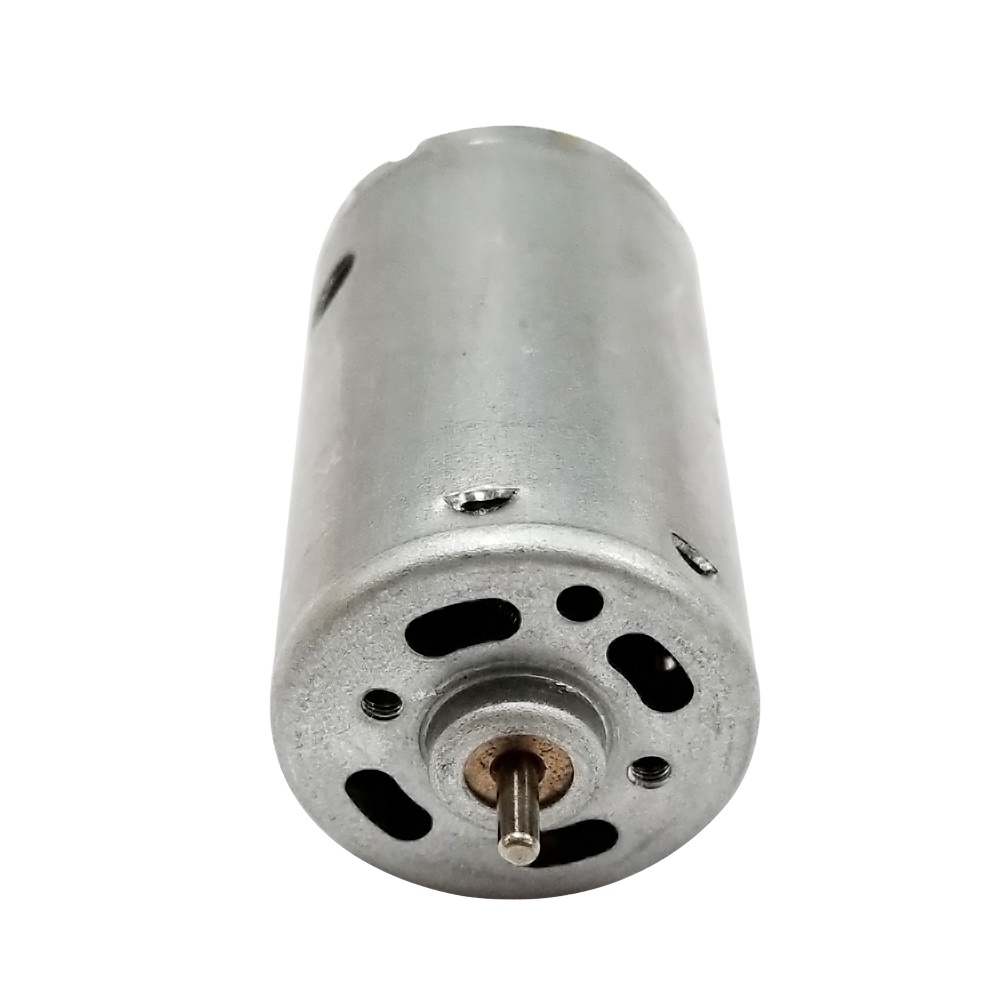

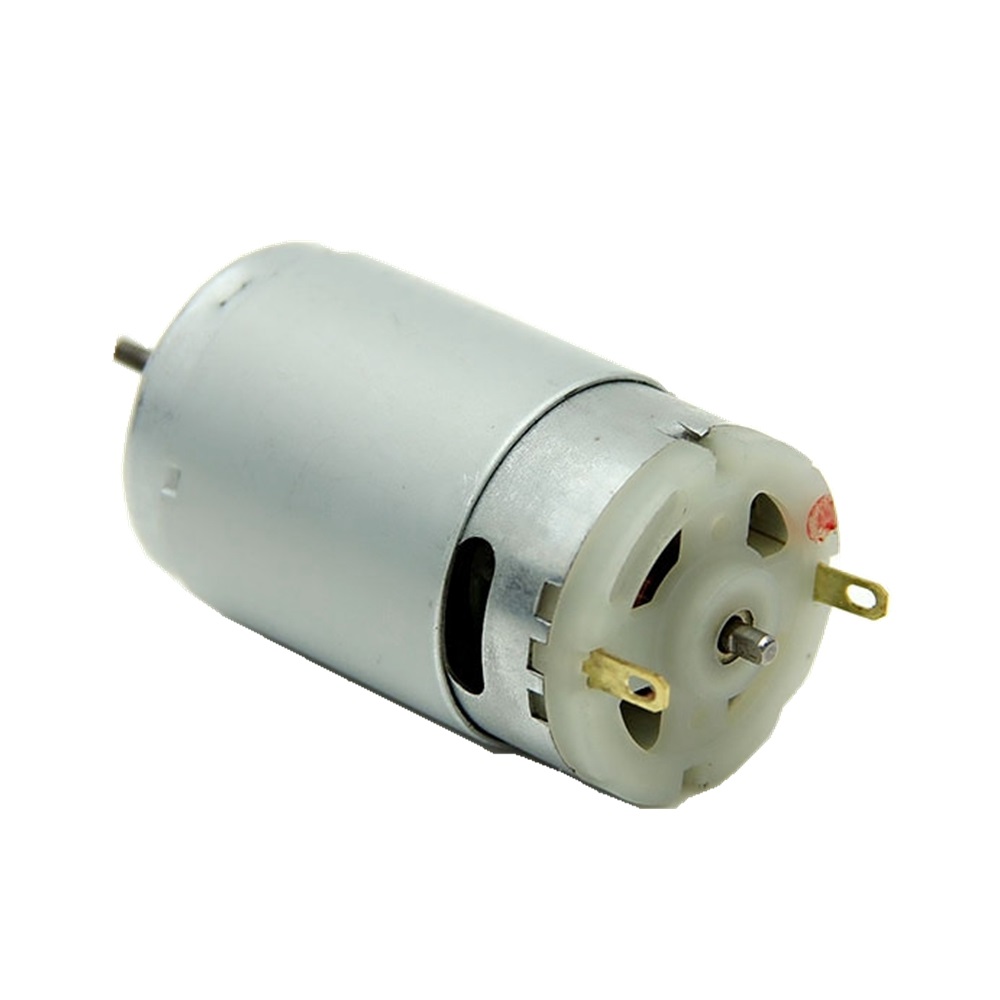

DC Motor RS-390 & RS-395 Photos
Committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.
- ◆ 1. Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- ◆ 2. Products size range: Diameter: 4-100mm
- ◆ 3. DC Voltage range: 1.5V - 42V; AC rectify: 100V, 110V, 220V, 230V, 240V etc.
- ◆ 4. Speed range: 1 RPM - 30,000RPM
- ◆ 5. Stall torque: 1g.cm - 30kg.cm
- ◆ 6. Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
QWhat is the main voltage range for these micro DC motors?
The standard operating voltage for the RS-390 and RS-395 motors is 12V DC, but we support customized voltage configurations ranging from 3V up to 24V DC depending on project requirements.
QCan you customize the motor specifications and shaft dimensions?
Yes, absolutely. The motor specifications, custom speed ranges, and shaft lengths can be fully tailor-made to match your specific application requirements.
QWhat certifications do these micro motors possess?
Our micro DC motors are certified to comply with CE, ROHS, and ISO9001:2000 standards, ensuring high quality and international safety compliance.
QWhat are the typical applications of the RS-395 motor?
They are widely used in household appliances, kitchen utensils, personal massagers, vibrators, mini air compressors, power tools, electric models, and various automotive equipment.
QWhat are your packaging options and the standard delivery timeline?
We offer international standard packaging, standard packaging, and customer-specified custom packaging. The standard delivery timeline is typically less than 30 days.
QWhat ranges of speed and torque can you produce?
Our micro motors cover a wide size range from 4mm to 100mm in diameter, with speed ranges from 1 RPM to 30,000 RPM, and stall torque capacities from 1g.cm to 30kg.cm.
