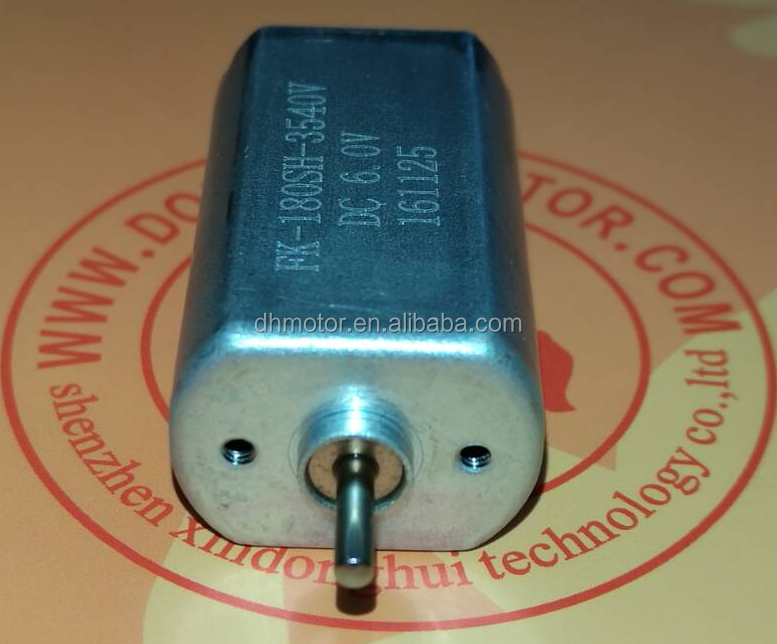

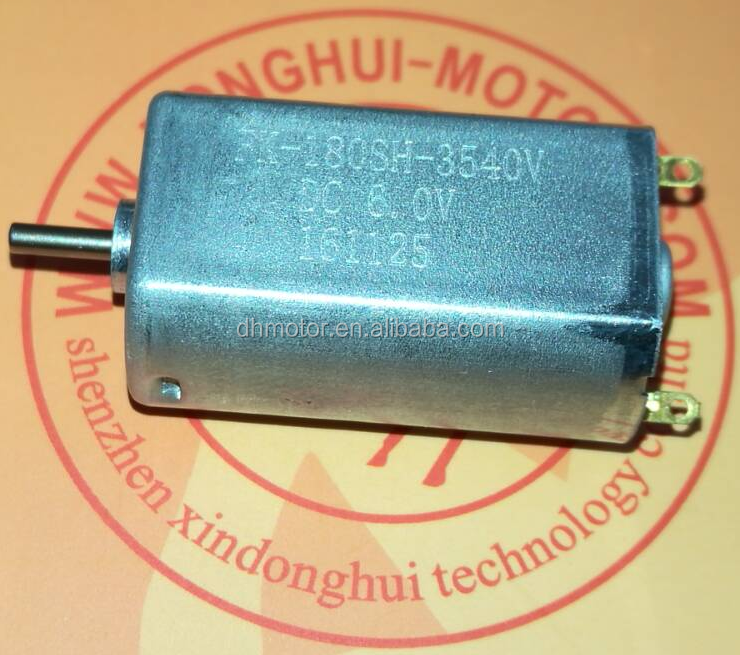

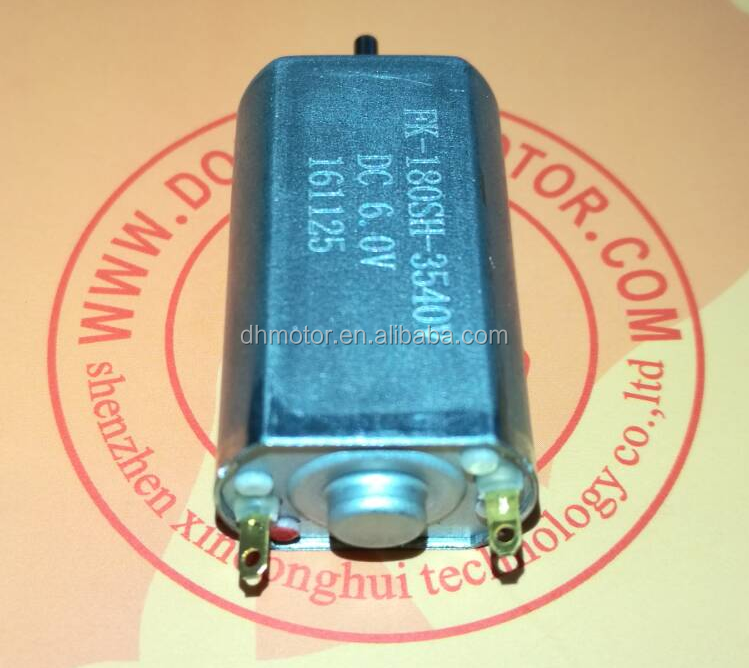

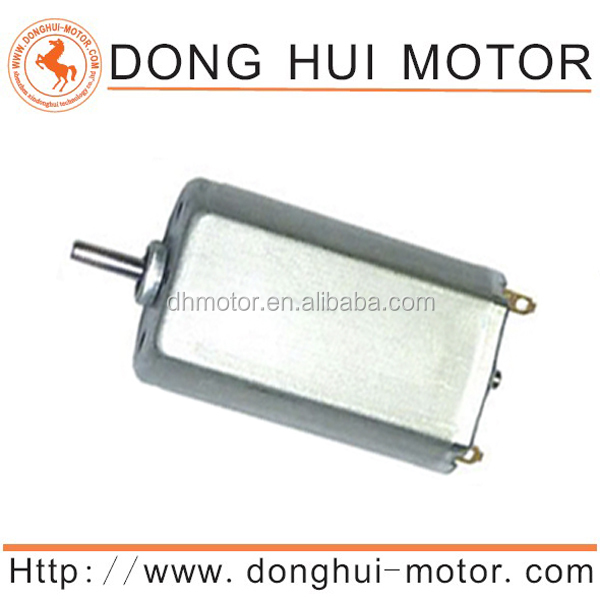

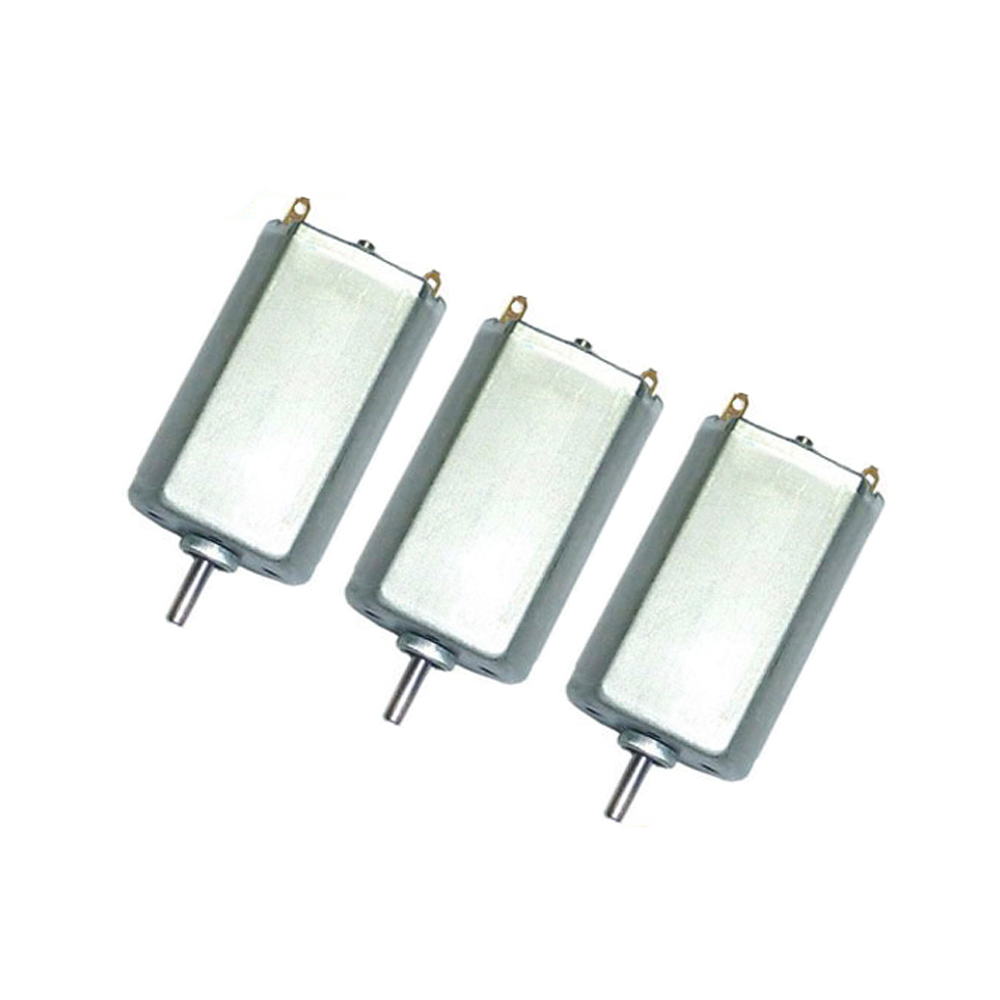

12v Small Battery Powered Dc Motor Fk-180sh
Product Description
Product Description
| Model | Dc brush motor DRF-180 |
| Size | 20.4 * 15.4 * 32.1mm |
12v small battery powered motor mabuchi fk-180sh
Rated Voltage: DC 12V
Speed No load: 8000RPM
Torque At Max Efficiency: 10-25 g.cm
Motor Type: Precious Metal-brush motors
Dimensions: Diameter 20.4mm, length 32.1mm, shaft 2.0mm
Weight: 51g Approx
Output power: 0.3~1.5W
Application: Robot, Home Appliance, Door Lock etc
Customization: Adjust the performance freely (voltage, speed, torque, etc.)
Specifications Details
Key Advantages
13 years experience to produce dc motor and dc gear motor.
Military enterprise level quality assurance, high precision gears.
Strong Production and R & D Ability.
10 Years Export Experience in Germany, Japan and USA.
Frequently Asked Questions
Question 1: What's your main products?
Answer: Dia10~52mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Question 2: What's the main usage of the micro dc gear motor?
Answer: Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipments, payment equipments, vending machines, power door lock, electric door lock.
Question 3: Do you accept customize?
Answer: Sure, as we have a strong design team, any problems will get our technical answer.
Question 4: What kind of data do I need to provide if I want to order?
Answer: Please kindly tell us your voltage, speed, torque and overall dimension.
Question 5: What if I don't know the above data?
Answer: Please contact our support team to handle, we'll answer your questions patiently and help you choose the right configuration.
Question 6: Can we request samples for performance testing?
Answer: Yes, we can provide samples for your validation and testing before placing bulk orders to ensure it meets your specific project requirements.
