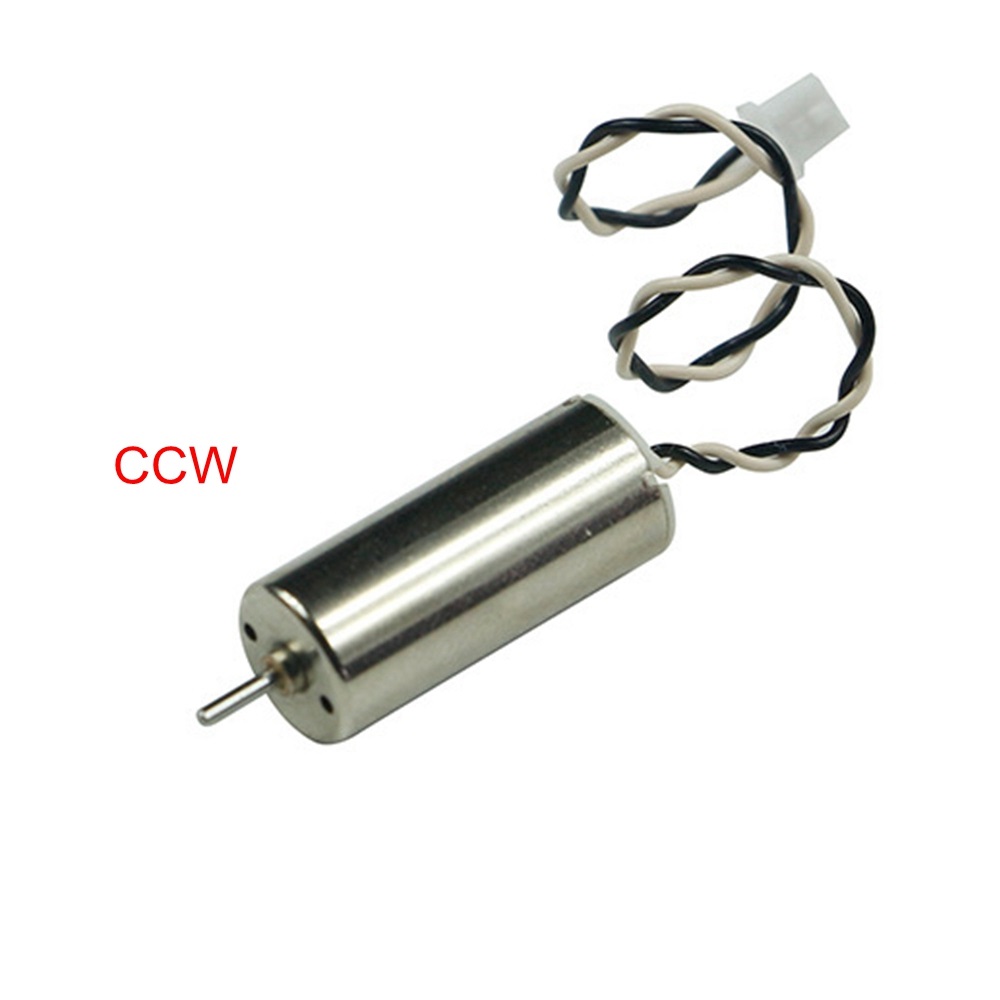

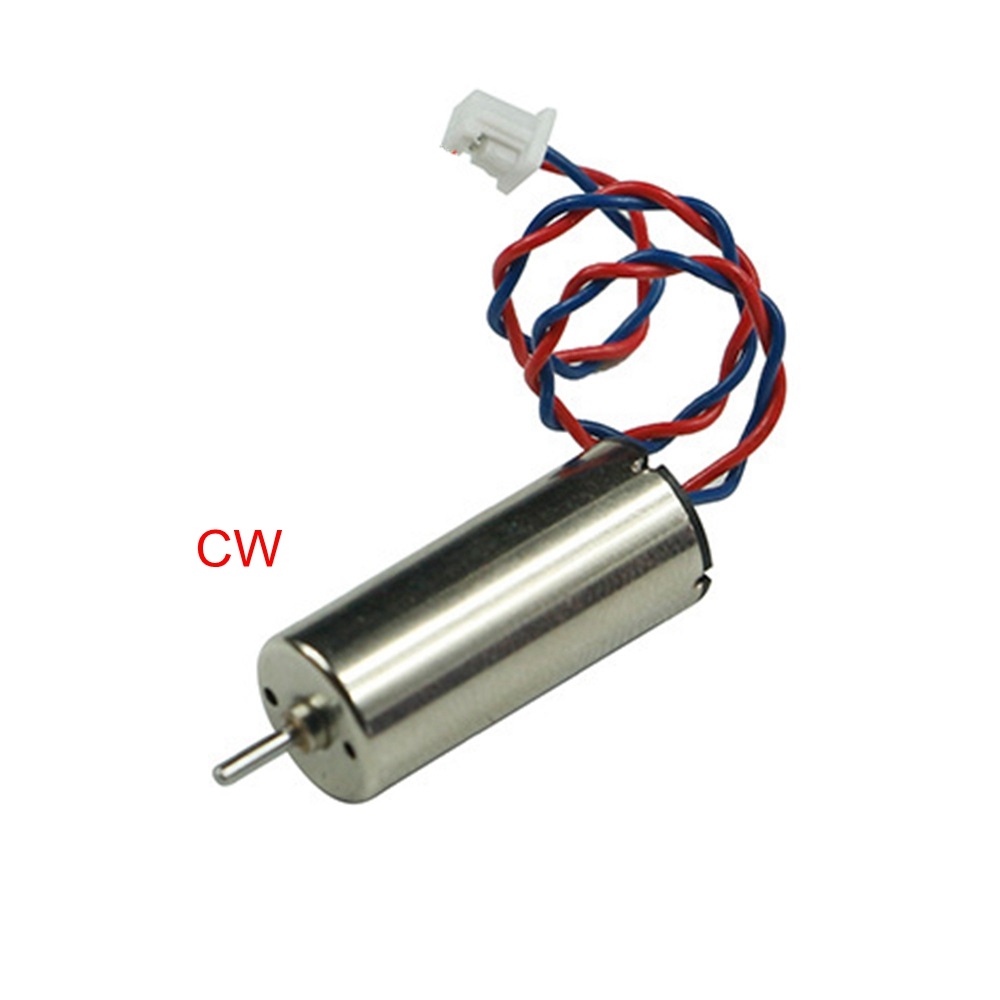

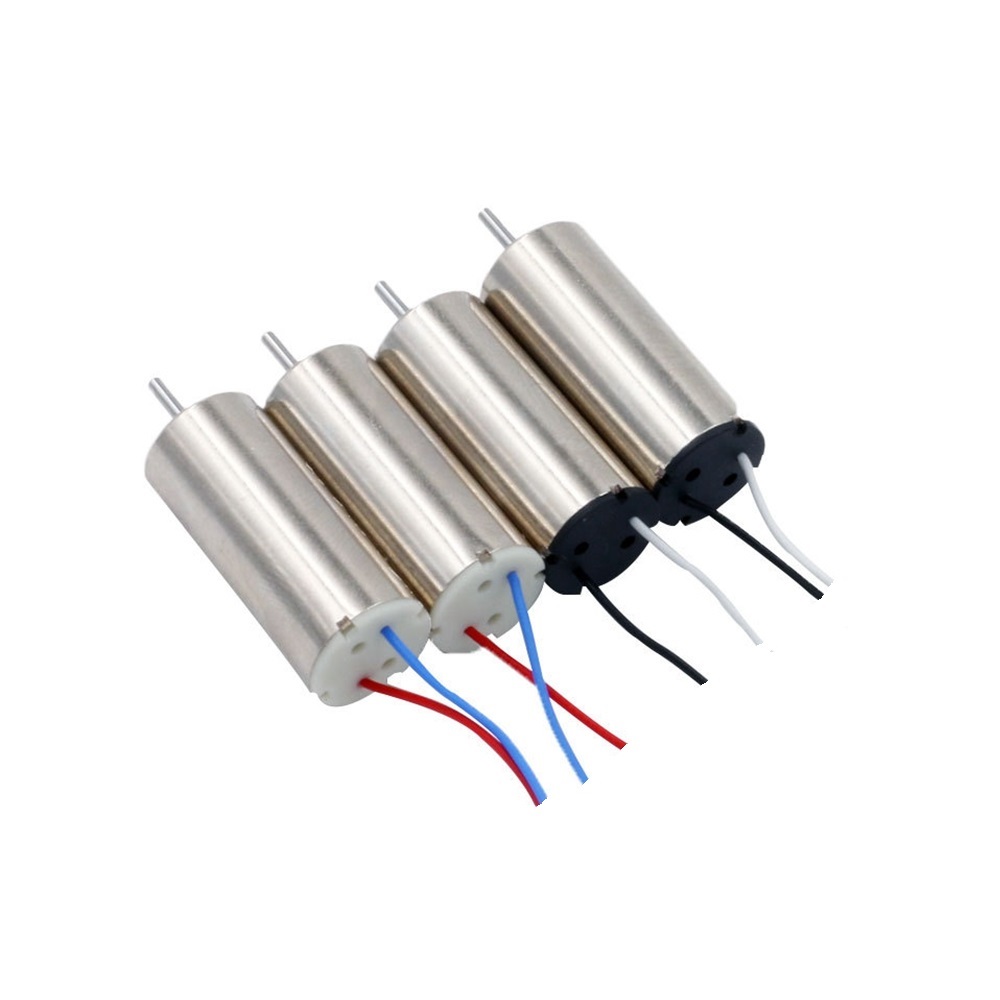

8mm DC 3V 3.7V 5V 6V 7.4V 9V 50000 Rpm CW/CCW Brush Coreless Dc Motor for Mini Drone
Product Description
Specification
| Item | 8520 coreless mini drone dc motor |
|---|---|

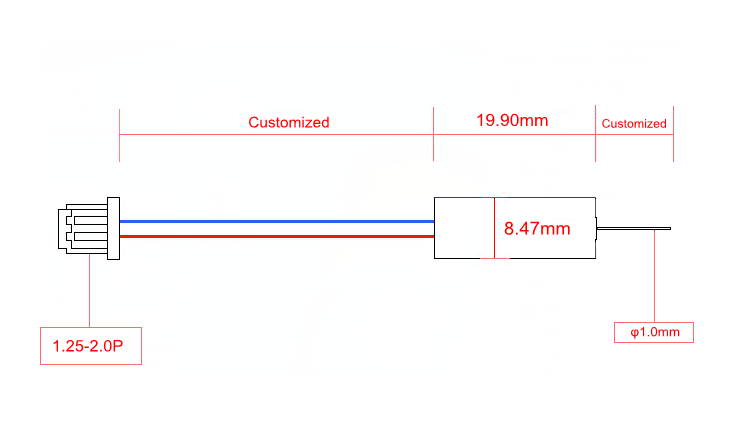

| Size | Diameter 8.5 mm, length 20mm |
| Voltage | DC 3V~9V |
| Speed | 15000-80000rpm Customized |
| Consume power | ≤5watt |
| Output Power | ≤3watt |
| Bearing | Oil bearing |
| Others | Wire and connector can be customized |
| Shaft | 0.8/1.0/1.2mm diameter with customized length |
| Application | Remote Control Toys, Aircraft, Mini Drone |
Product Description
Motor's voltage, speed, ratio, torque, shaft length can be customized
| Model | Size (mm) | Voltage (V) | Resistance (Ω) | Unload Speed (rpm) | Unload Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) |
|---|---|---|---|---|---|---|---|---|
| DCL-8520-20 | Φ8.5*20 | 3 | 0.7 | 31000 | 70 | 1 | 22900 | 1100 |
| DCL-8520-34 | Φ8.5*20 | 3 | 1.6 | 20500 | 40 | 1 | 12500 | 760 |
| DCL-8520-42 | Φ8.5*20 | 3 | 0.48 | 41000 | 150 | 1 | 31800 | 1550 |
| DCL-8520-45 | Φ8.5*20 | 3 | 0.4 | 42500 | 170 | 1 | 33700 | 1680 |
| DCL-8520-17 | Φ8.5*20 | 3 | 0.55 | 36500 | 130 | 1 | 27500 | 1280 |
| DCL-8520-55 | Φ8.5*20 | 3.7 | 0.75 | 36000 | 75 | 1 | 26000 | 4400 |
| DCL-8520-65 | Φ8.5*20 | 3.7 | 0.65 | 42000 | 280 | 1 | 25000 | 3400 |
| DCL-8520-75 | Φ8.5*20 | 7.4 | 0.65 | 56000 | 460 | 1 | 49000 | 5600 |

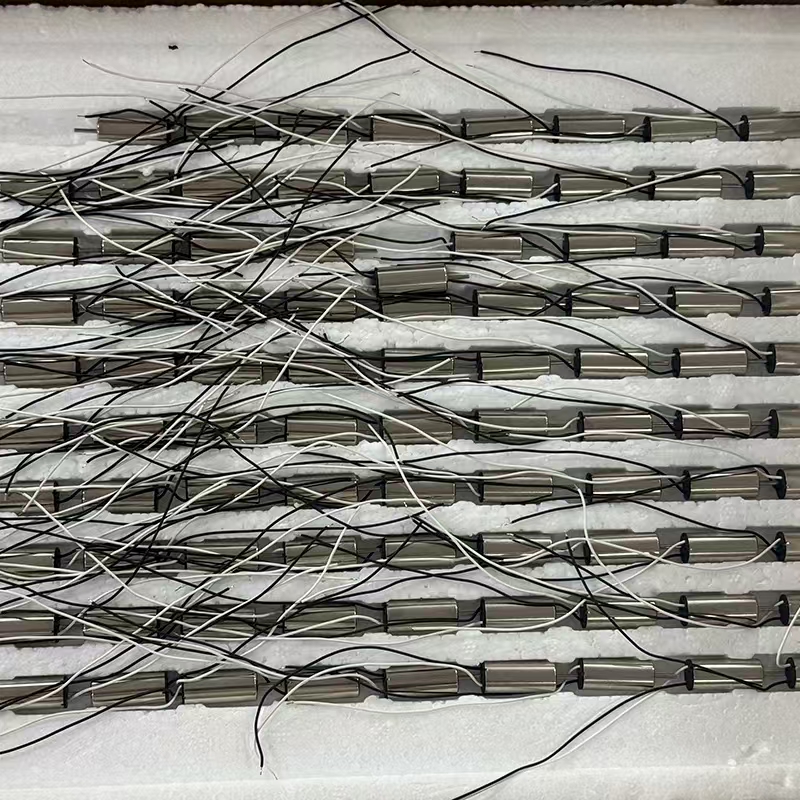

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Frequently Asked Questions
Q1: Can the voltage and speed parameters of the 8520 coreless motor be customized?
A1: Yes, absolutely. The motor's operating voltage, speed, reduction ratio, torque, as well as the shaft length can be fully customized according to your specific project requirements.
Q2: What are the main applications of this mini DC motor?
A2: The 8520 coreless mini DC motor is primarily designed for lightweight precision applications, including remote control toys, micro aircraft, and mini drones.
Q3: What customized options are available for the wire and connector?
A3: We can customize the lead wire length, wire gauge (AWG), and terminate them with various types of micro-connectors to fit your control board design.

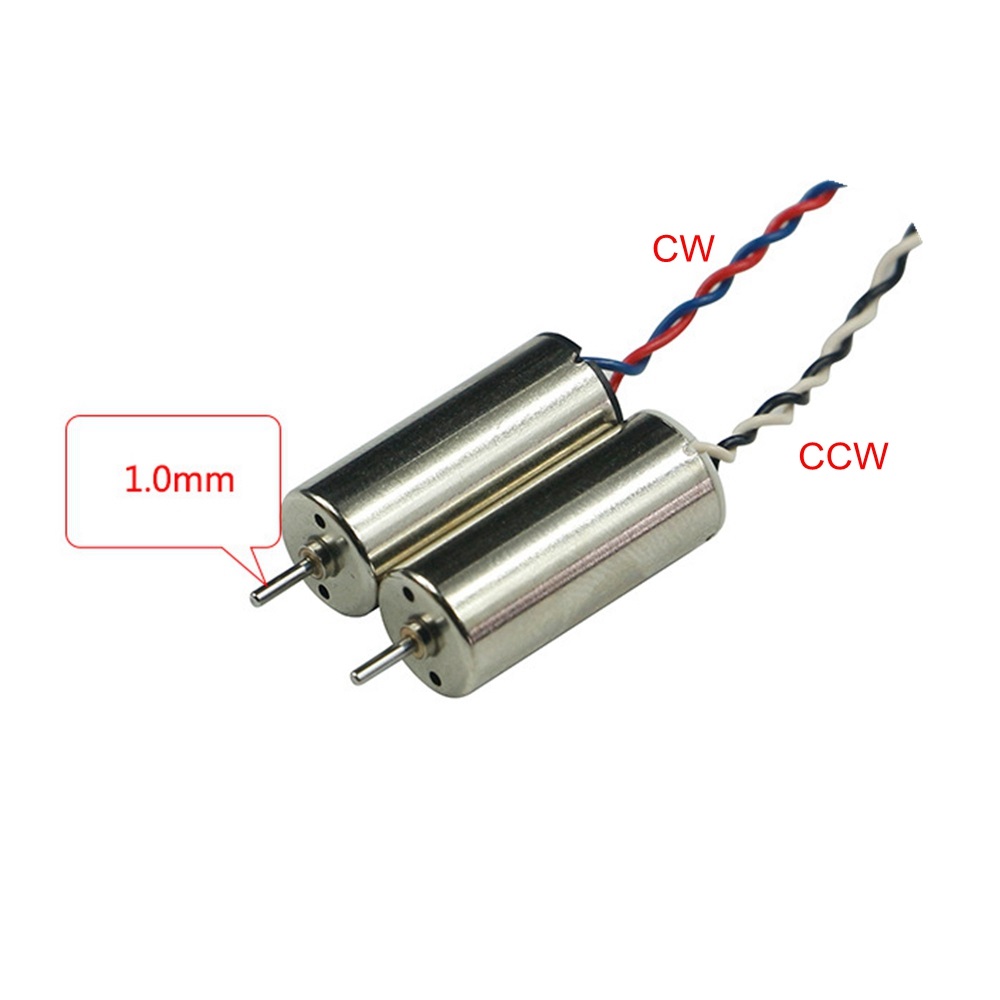

Q4: What range of shaft sizes do you offer for the 8.5mm motor?
A4: The standard shaft diameters available are 0.8mm, 1.0mm, and 1.2mm, with the length customized to suit your props or gears.
Q5: What type of bearing is used in this motor, and what is its benefit?
A5: This motor utilizes high-quality oil bearings, which offer a cost-effective, self-lubricating, and reliable solution for high-speed operation up to 80,000 rpm.
