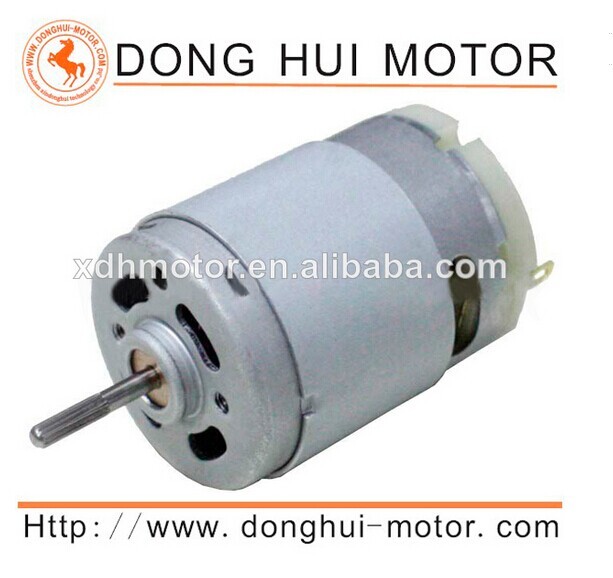

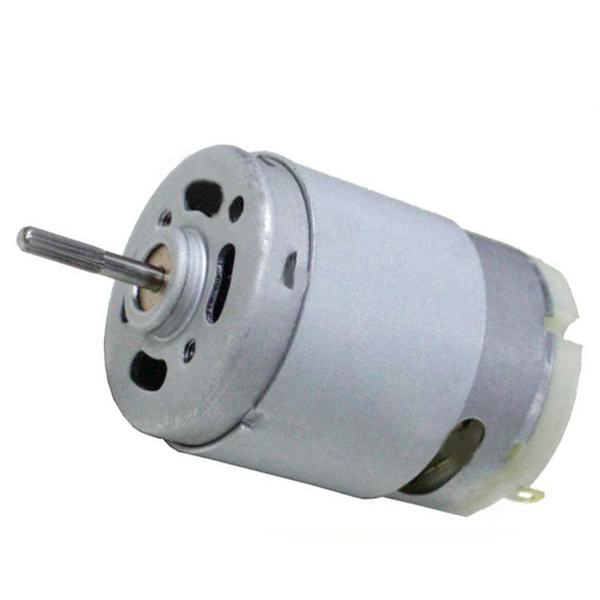

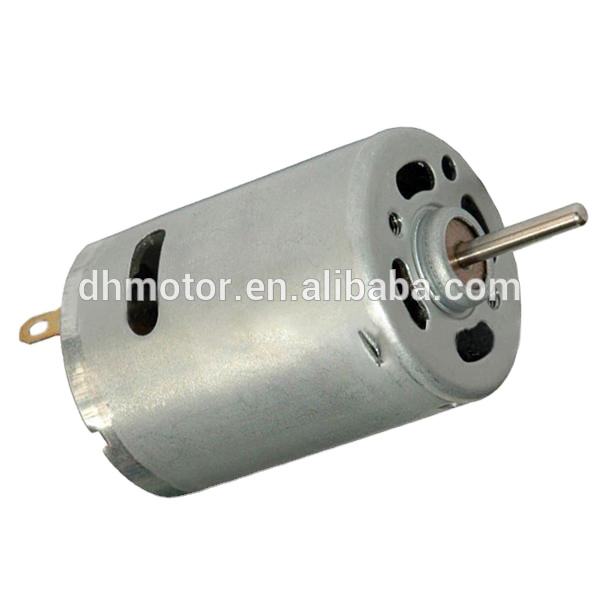

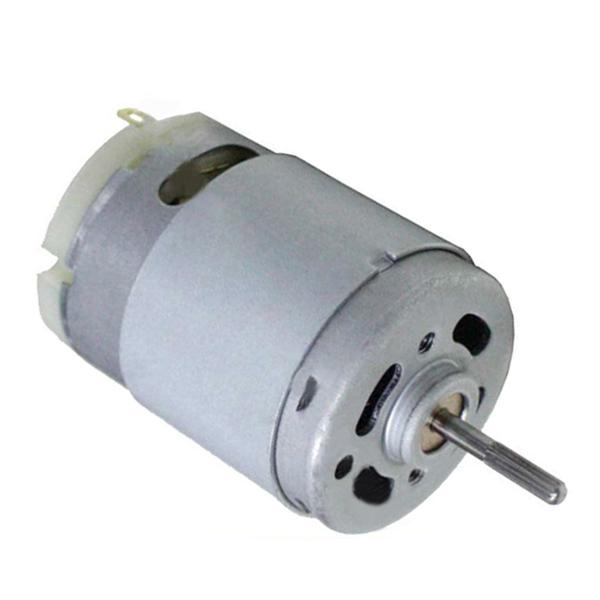

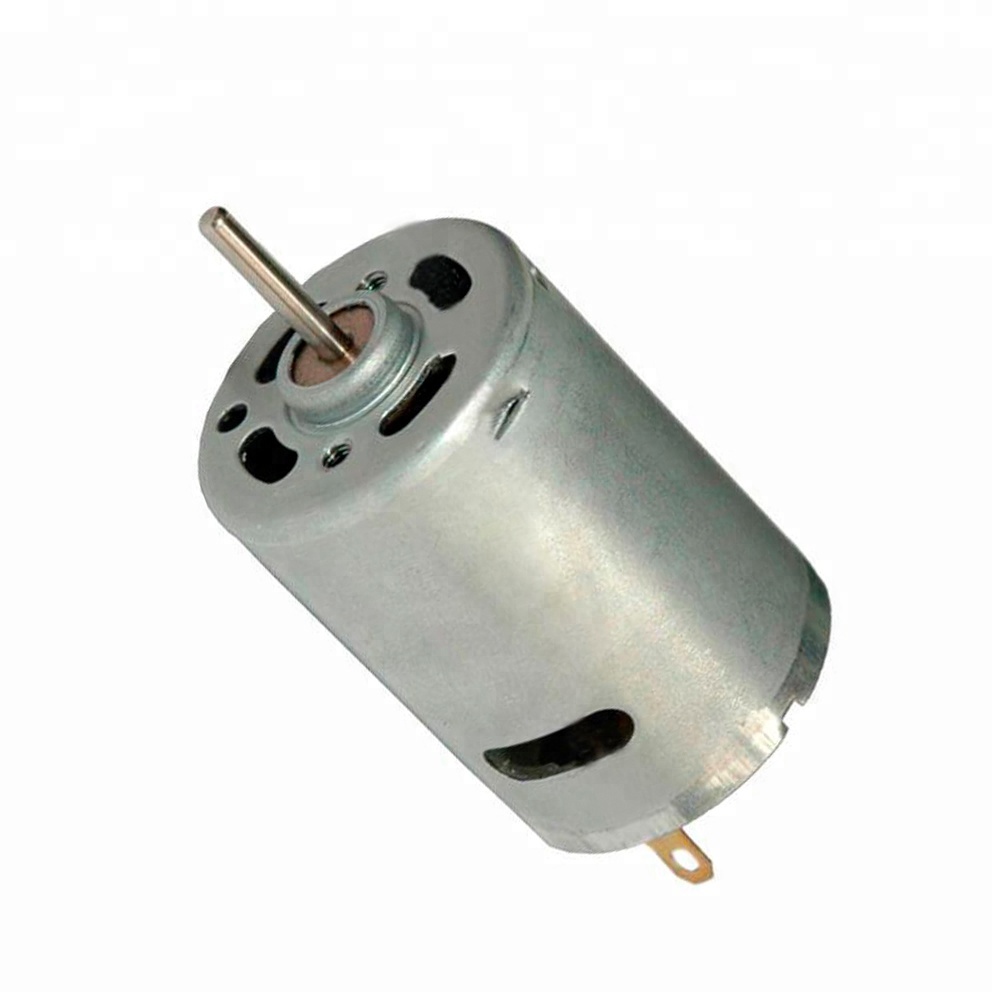

Rs-385 12v 24v Dc Electric Motor for Water Pump Motor, 12v 24v Water Pump Motor
Product Description
Product Description
| Place of Origin: | Guangdong China (Mainland) | Model Number: | RS-385 |
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Certification: | ROHS |
| Type: | Micro Motor | Torque: | 220 G.cm |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | drip-proof | Speed(RPM): | 4250 rpm |
| Continuous Current(A): | 0.5A | Output Power: | 2W |
| Voltage(V): | 12-24v | Efficiency: | IE 1 |
| Shaft: | 2.3MM D-cup shaft | Weight: | 80g |
| no load speed: | 5460rpm | max efficiency: | 53.3% |
| Application: | Kitchen Utensil, Household Appliance | Brush: | Carbon brushes |
| Style: | motor RS-385 | ||
Specifications
rs-385 12v 24v dc electric motor for water pump motor, 12v 24v water pump motor
- Low noise, high torque, long-life
- Motor Voltage: 3v-12v RS 385 DC MOTOR 12v dc pump motor
- The shaft: dia 2.3mm

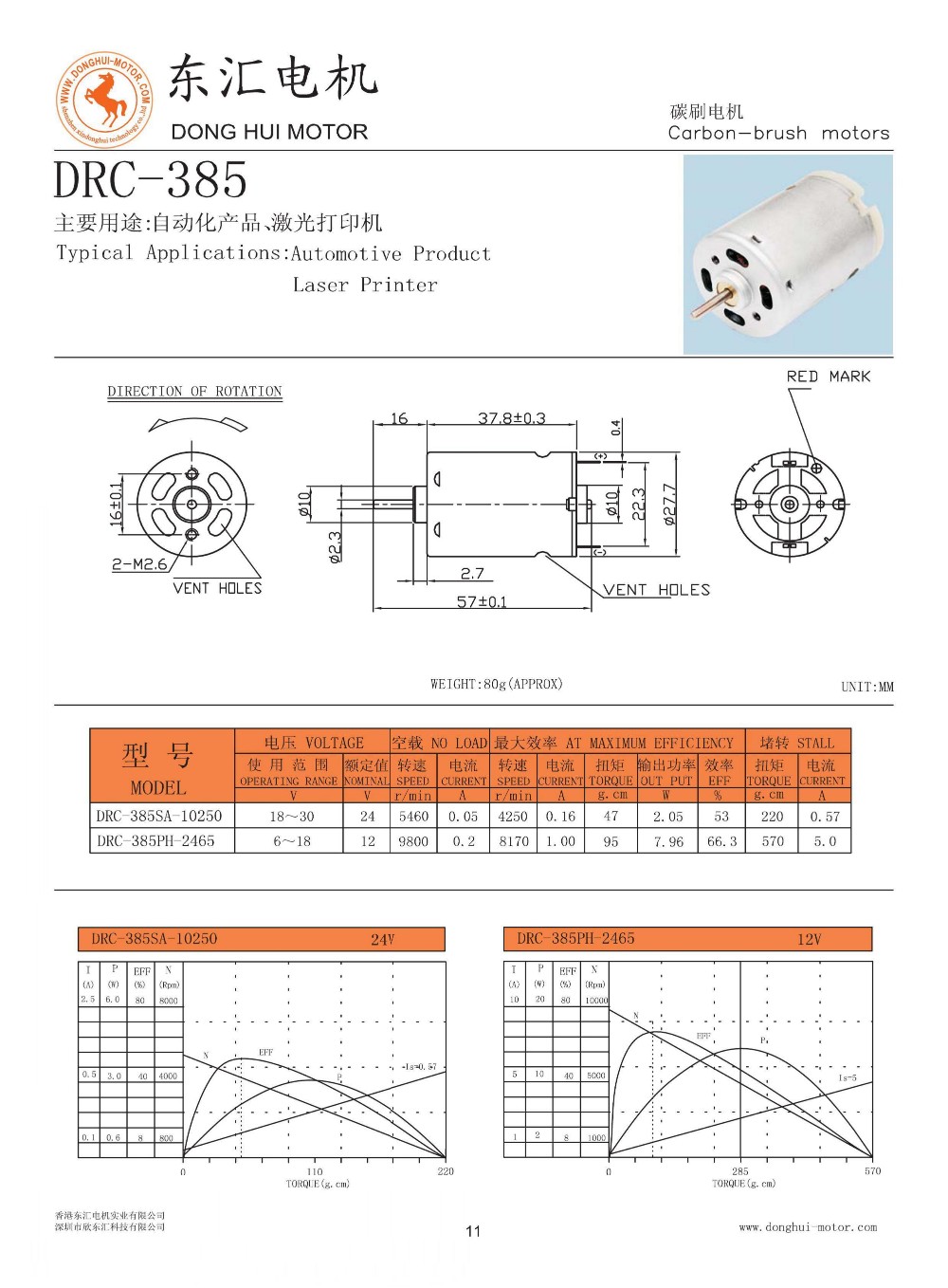

- Motor Diameter: 27.7mm, length: 38mm (Tube structure)
- Output power: approx 1W~35W
- Certification: CE, ROHS ISO9001:2000
- Carbon-brush motors
- Motor weight: 80g (Approx)
- Motor direction of rotation: CW & CCW
- Typical Applications: household appliances, massager, vibrator, air compressor
- Motor specification and shaft length can be tailor-made according to requirements
Packaging & Shipping
| Packaging Detail: | 1. International standard packaging 2. Standard packaging 3. Customers' standard packaging |
| Delivery Detail: | less than 30 days |
Our Services
Micro dc motor, dc gear motor, dc brushless motor
Product Capabilities
1. Main Products
Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
2. Products Size Range
Diameter: 4-100mm
3. DC Voltage Range
1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
4. Performance Range
Speed range: 1 RPM-30,000RPM | Stall torque: 1g.cm-30kg.cm
Applications: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Quality Assurance
Frequently Asked Questions
What is the operating voltage range for the RS-385 DC motor?
The RS-385 DC motor supports a flexible voltage range from 12V to 24V, and can be customized to operate between 3V to 12V depending on your application requirements.
Can the motor shaft dimensions and technical specifications be customized?
Yes. Motor specifications, performance characteristics, and shaft length/configurations can be tailor-made according to customer requirements.
What are the typical applications of the RS-385 micro motor?
It is widely used in household appliances, kitchen utensils, water pump systems, air compressors, massagers, electric toys, and office automation devices.
What certifications do these micro motors possess?
Our micro DC motors are certified compliant with CE, ROHS, and ISO9001:2000 standards to ensure international quality and environmental safety.
What is the standard delivery timeframe for orders?
The typical delivery detail is less than 30 days, using standard international packaging or customized packaging requests.
Does the RS-385 motor support bidirectional rotation?
Yes, this carbon-brush DC motor supports both CW (Clockwise) and CCW (Counter-Clockwise) directions of rotation.
