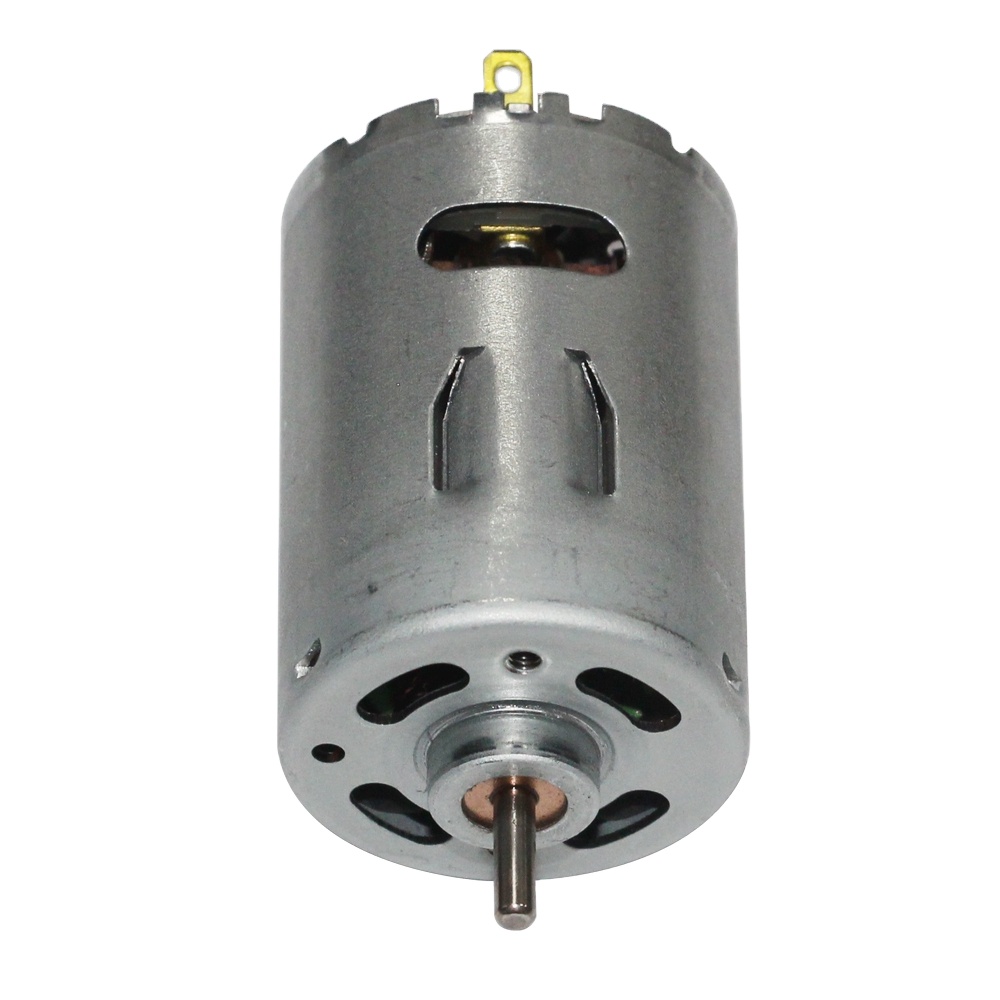

High-Speed RS540 Brush Micro Permanent Magnet DC Motor 10W 60W 6V/12V/24V for Vacuum Pump Air Compressor Boat Fan ROHS Plastic
Product Description
Product Description
Place of Origin
Guangdong China (Mainland)
Model Number
RS-540
Type
Micro Motor
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification
ROHS, ISO9001
Torque
880 G.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
drip-proof
Speed(RPM)
9600 rpm
Continuous Current(A)
4.1A
Output Power
15W
Voltage(V)
6-24v
Efficiency
IE 1
Shaft
3.175 MM shaft
Weight
80g
No Load Speed
11600 rpm
Max Efficiency
53.3%
Application
Kitchen Utensil, Household Appliance
Brush
Carbon brushes
Style
motor RS-540
Specifications
High speed brush micro dc motor rs540, rs 540 6v 12v dc motor for vacuum pump, air compressor
- Low noise high torque long-life
- Motor Voltage: 3v-24v RS 540 DC MOTOR
- The shaft: dia 3.175 mm
- Motor Diameter: 35.8mm, length: 50mm (Tube shape)
- Output power: approx 1W~35W
- Certification: CE, ROHS ISO9001:2000
- Carbon-brush motors
- Motor weight: 150g (Approx)
- Motor direction of rotation: CW & CCW
- 3v-24v mini dc Motor Typical Applications: household appliances, massager, vibrator, air compressor
- Motor specification and shaft length can be tailormade according to requirements
Packaging & Shipping
| Packaging Detail: | 1. International standard packaging 2. Standard packaging 3. Customers' standard packaging |
| Delivery Detail: | less than 30 days |
Our Services
RS540 Micro dc motor, dc gear motor, dc brushless motor

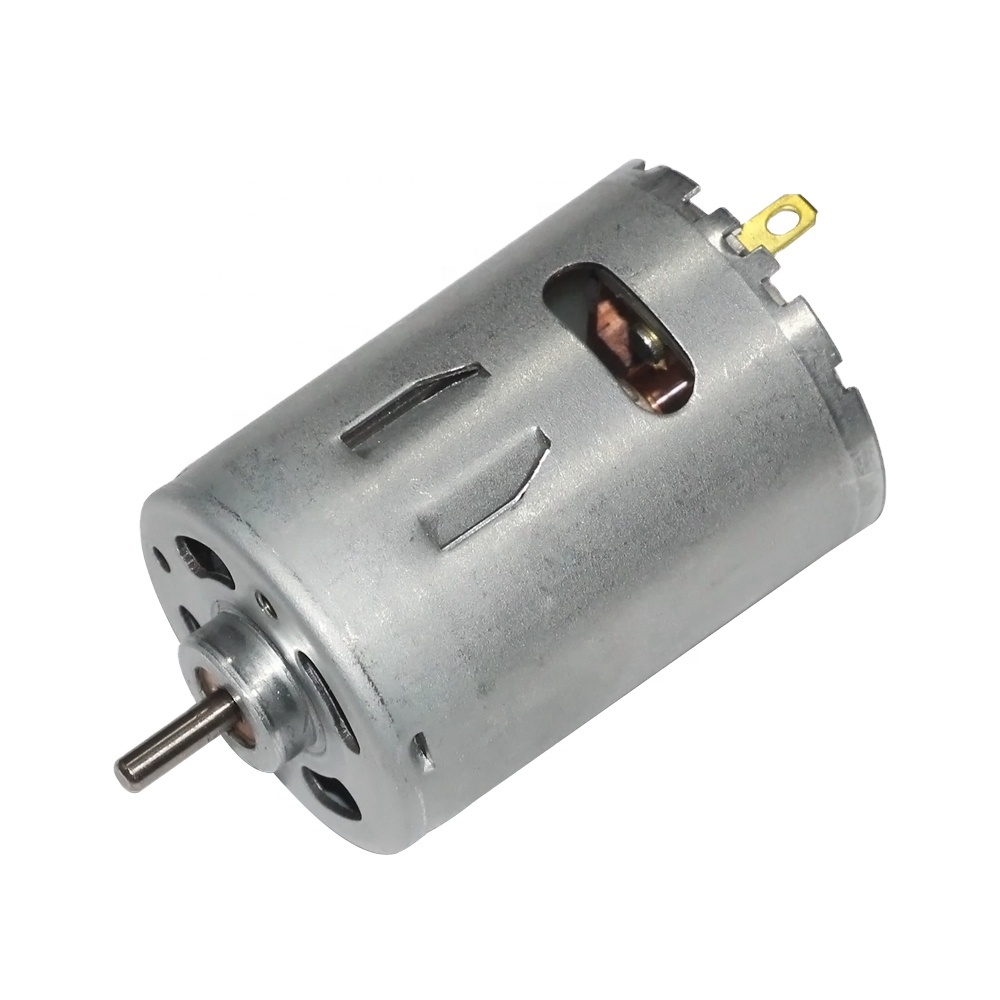

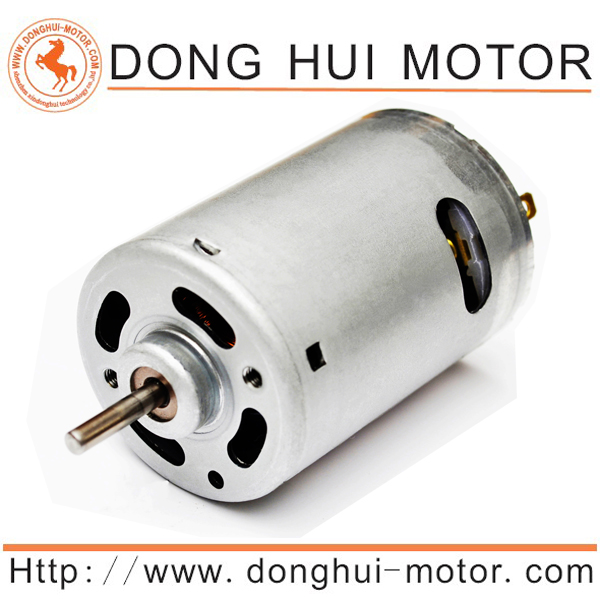

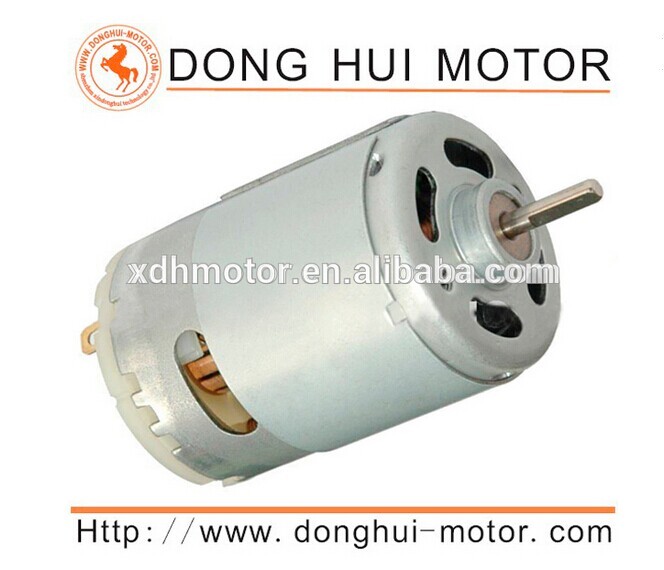

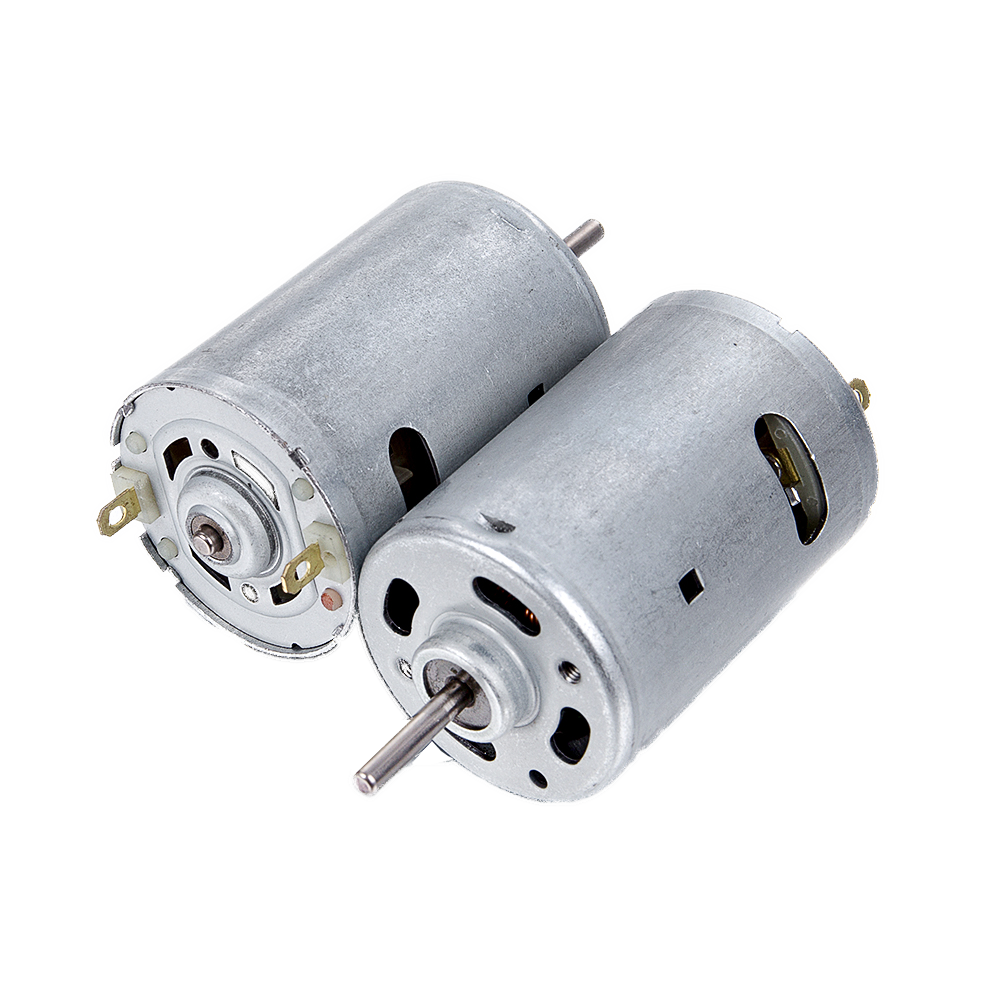

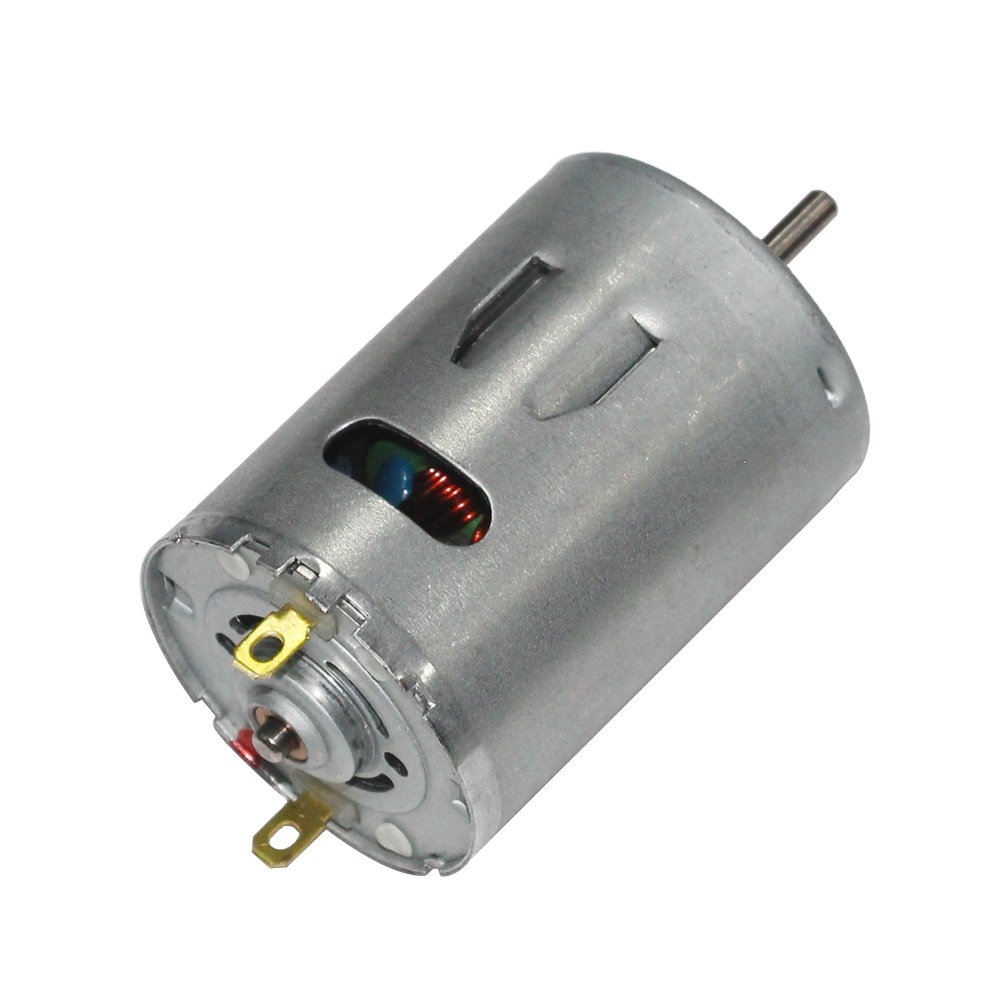

Motor photos (6V 12V 24V RS540 DC MOTOR):
Company Information
Since established in 2003, there has been a commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.

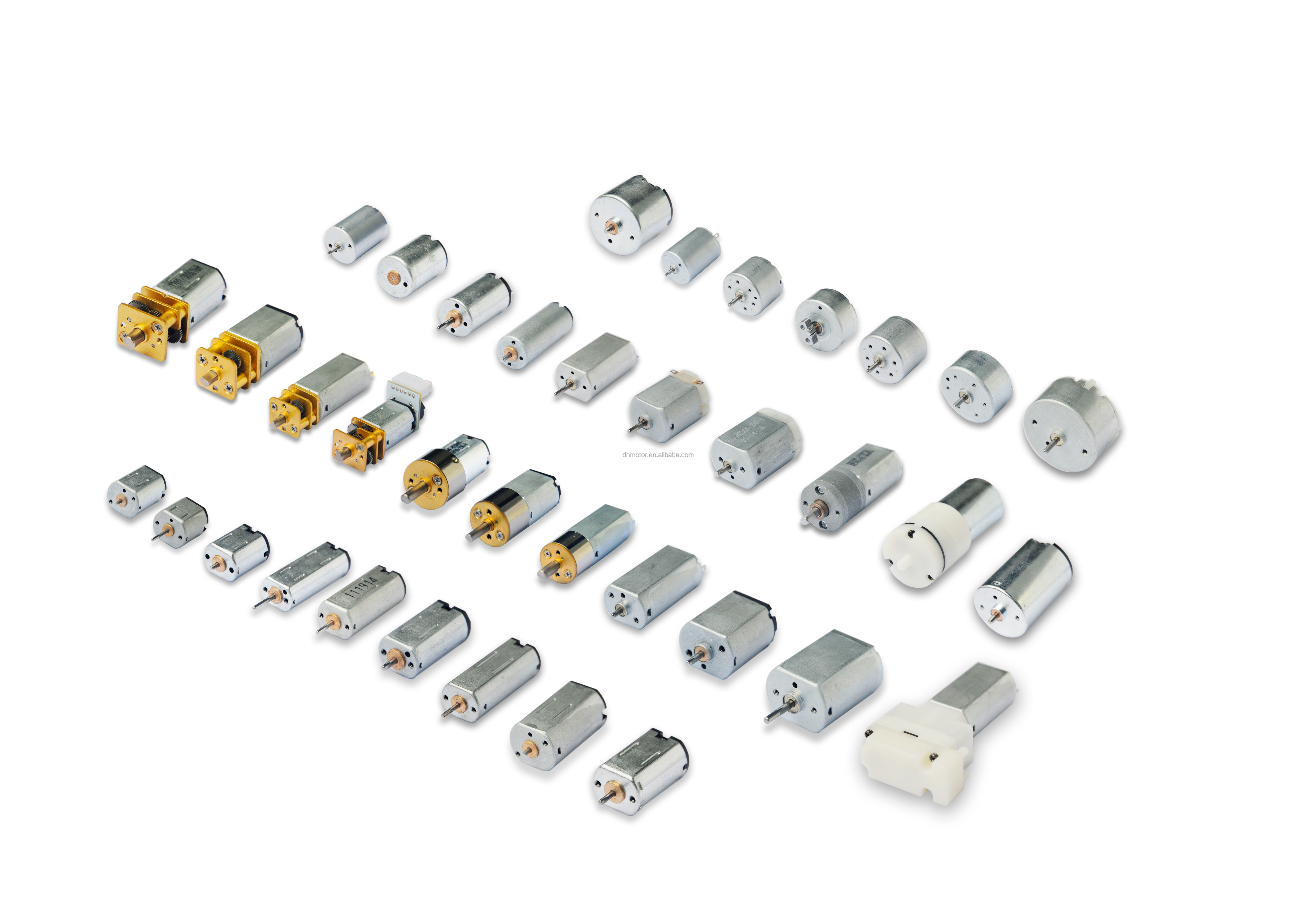

- Main products: Dia 4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor, etc.
- Products size range: Diameter: 4-100mm
- DC Voltage range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V, etc.)
- Speed range: 1 RPM - 30,000RPM
- Stall torque: 1g.cm - 30kg.cm
- Applications: Home appliances, Power Tools, Toys & Models, Precision Instruments, Office equipment, Personal care products, Automotive, Audio & Visual equipment, etc.
FAQ Images
Frequently Asked Questions
What is the voltage range of the RS540 DC motor?
The typical voltage range for the RS540 motor is between 3V and 24V, with common configurations supporting 6V, 12V, and 24V options.
What are the typical applications of the RS-540 motor?
It is widely used in household appliances, vacuum pumps, air compressors, boats, cars, electric bicycles, fans, massagers, vibrators, and kitchen utensils.
Can the shaft length and specifications be customized?
Yes, the motor specifications, output performance, and shaft configurations can be customized to meet specific customer requirements.
What certifications does the RS540 micro motor hold?
This motor series conforms to quality and safety standards, holding CE, ROHS, and ISO9001 certifications.
What are the key structural dimensions of this motor?
The motor features a tube shape structure with a diameter of approximately 35.8mm, a body length of 50mm, and a standard shaft diameter of 3.175mm.
Does this motor support bidirectional rotation?
Yes, the motor supports both Clockwise (CW) and Counter-Clockwise (CCW) rotation directions.
