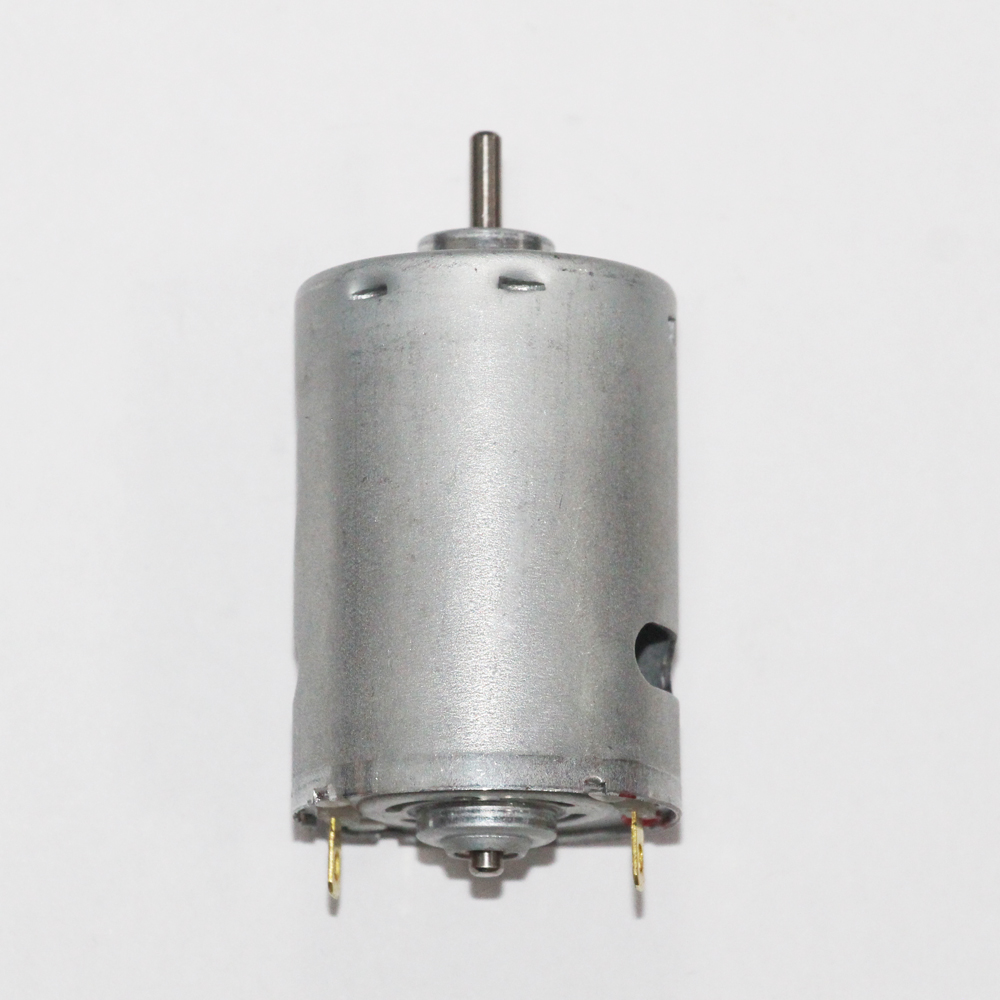

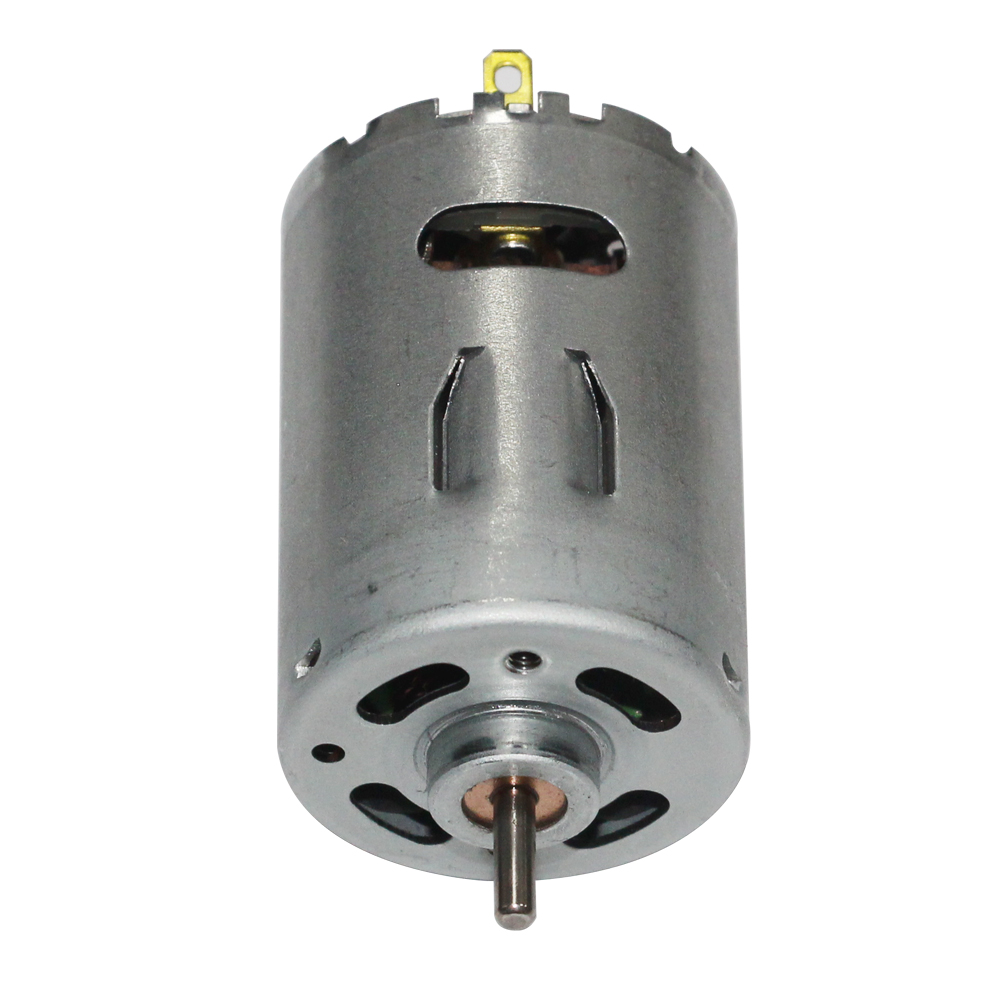

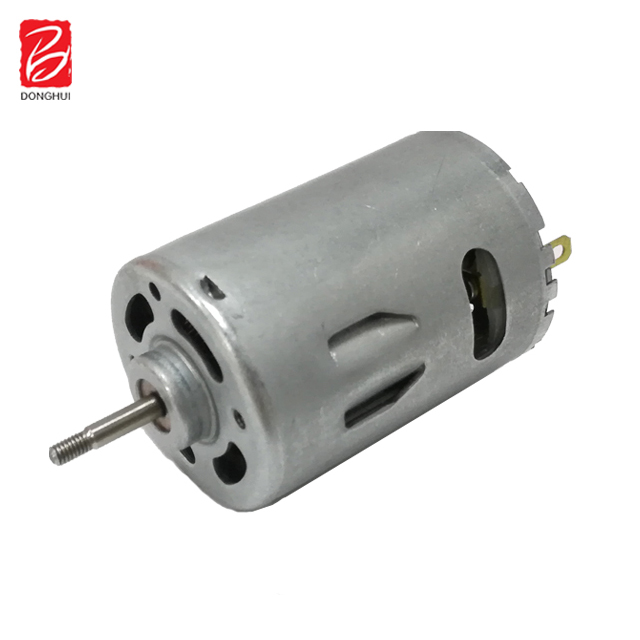

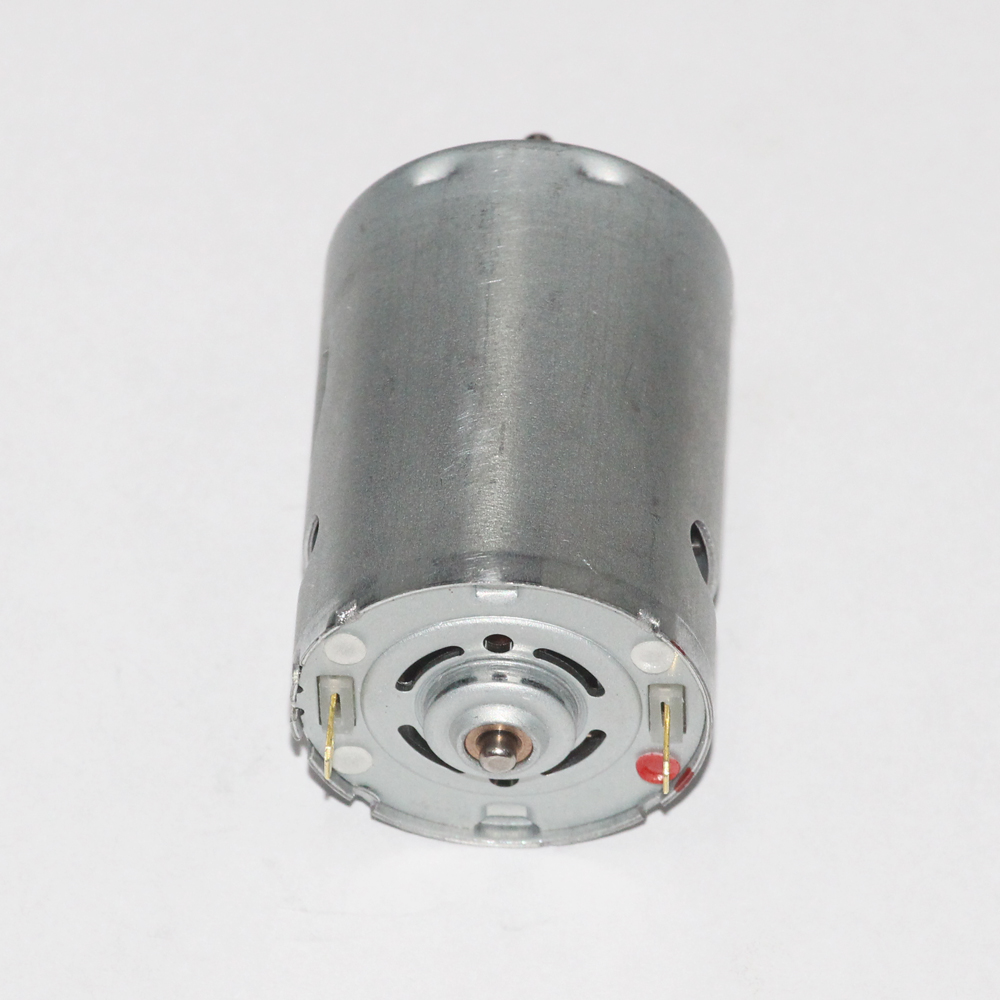

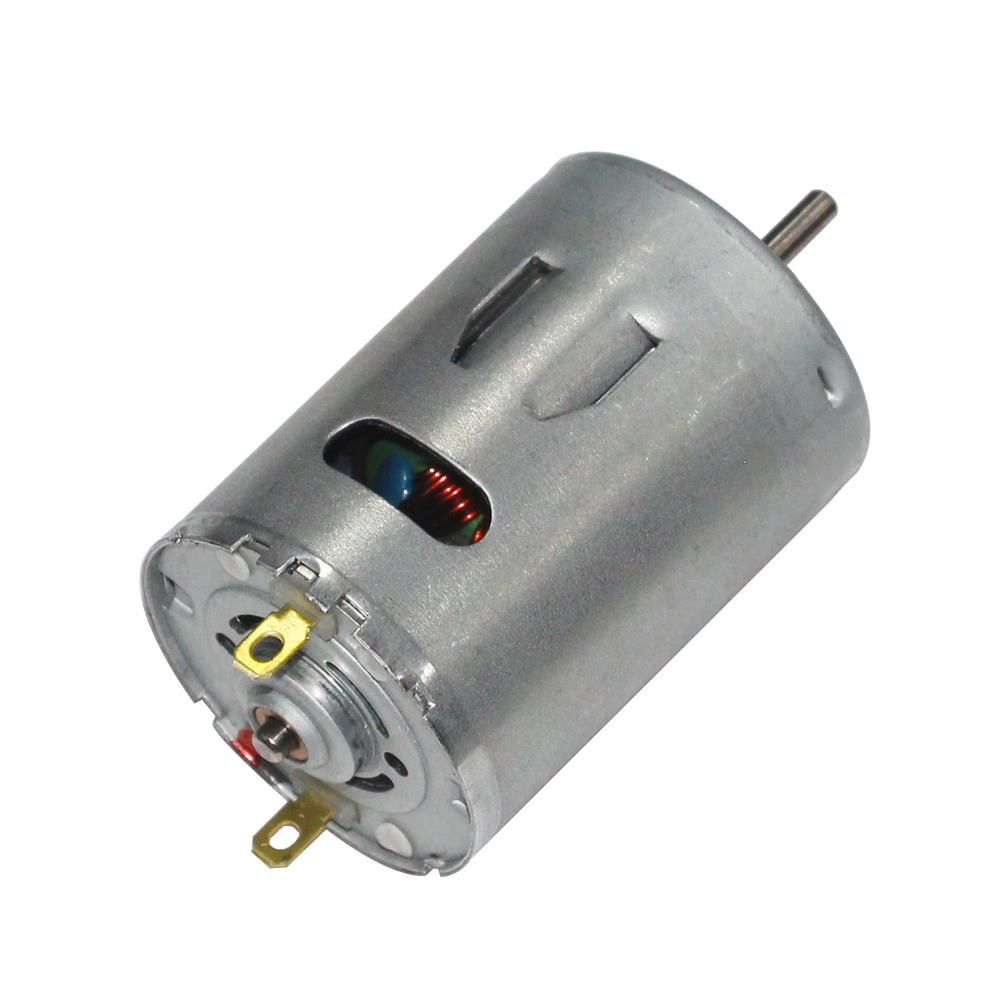

rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque

Product Description

Product Description
Place of Origin:Guangdong China (Mainland)
Model Number:RS-540
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:ROHS, ISO9001
Type:Micro Motor
Torque:1988 G.cm
Construction:Permanent Magnet
Commutation:Brush
Protect Feature:drip-proof
Speed(RPM):19600 rpm
Continuous Current(A):4.1A
Output Power:60W
Voltage(V):6-24v
Efficiency:IE 1
Shaft:3.175 MM shaft
Weight:150g
no load speed:23400 rpm
max efficiency:53.3%
Application:Kitchen Utensil, Household Appliance
Brush:Carbon brushes
Style:motor RS-540
RS 540 DC Motor 7.2V Micro Brush DC Motor for RC Car, High Speed 7.2V DC RC Motor with High Torque
Low noise, high torque, and long life
Motor Voltage: 3V - 24V RS 540 DC Motor
Shaft diameter: 3.175 mm
Motor Diameter: 35.8mm, Length: 50mm tube structure
Output power: approx 1W ~ 35W
Certification: CE, ROHS, ISO9001:2000
Carbon-brush motor technology
Motor weight: approx 150g
Direction of rotation: CW & CCW
Typical Applications: Household appliances, massager, vibrator, air compressor
Motors specifications and shaft length can be tailor-made according to requirements
Packaging & Shipping
Packaging Detail
  1. International standard packaging
  2. Standard packaging
  3. Customers' standard packaging
Delivery Detail

Less than 30 days

Our Services

RS540 Micro dc motor, dc gear motor, dc brushless motor

rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car

Motor photos (6V 12V 24V RS540 DC MOTOR):

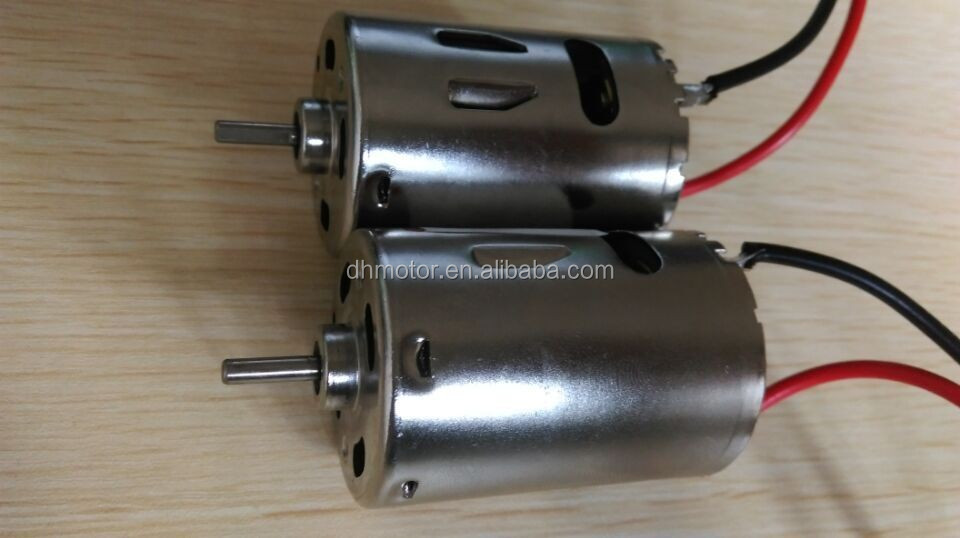

RS 540 DC Motor Angle View

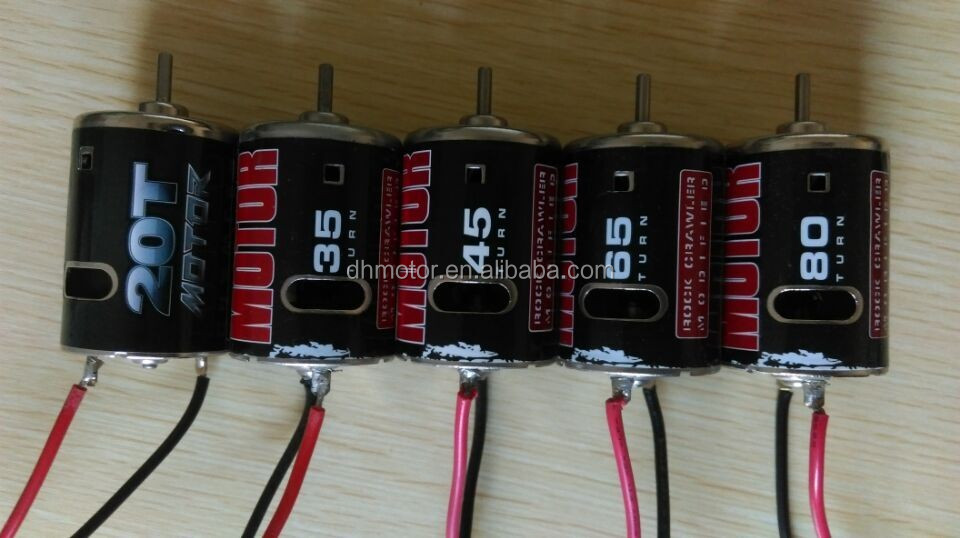

RS 540 DC Motor Back View

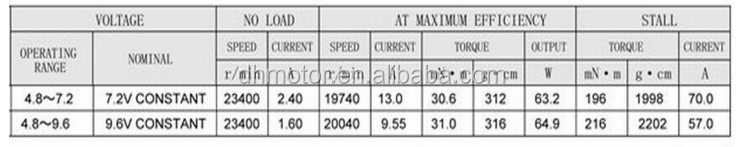

Motor specifications and sizes chart
Detailed Motor parameters graph
Company Information
Production line outline banner
Production equipment view
Testing laboratory facilities
Since established in 2003, there has been a commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields.
Main Products: Dia 4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, Spur Gear motor, Vibration motor etc.
Products Size Range: Outer Diameter ranging from 4mm to 100mm.
DC Voltage Range: 1.5V - 42V (AC rectify options: 100V, 110V, 220V, 230V, 240V etc.)
Speed Range Capability: High efficiency operation from 1 RPM to 30,000RPM.
Stall Torque Range: Spans from 1g.cm up to 30kg.cm.
Broad Application: Ideal for Power Tools, Toys, Precision Instruments, Office Equipment, Personal Care Products, and Audio-Visual Devices.
Frequently Asked Questions
FAQ banner image
1. What is the standard operating voltage range for the RS-540 motor?
The RS-540 motor operates over a flexible voltage range of 3V to 24V, and is commonly optimized for 6V, 7.2V, 12V, or 24V applications depending on your requirements.
2. What are the typical applications of the RS-540 DC motor?
It is widely used in RC cars, model toys, household appliances (such as kitchen utensils, massagers, and vibrators), fans, air compressors, and power tools.
3. Can the shaft length and specifications be customized?
Yes. The motor output specifications, performance specs, and shaft lengths can all be custom-tailored to meet specific customer requirements.
4. What type of commutation does the RS-540 motor use?
The RS-540 uses mechanical brush commutation featuring durable carbon brushes to deliver high torque and a long operational lifespan.
5. What is the size and weight of the RS-540 motor?
The motor diameter is 35.8mm, body length is 50mm, and it features a 3.175mm diameter shaft. The total weight of the motor is approximately 150g.
6. Does the motor support bi-directional rotation?
Yes, the RS-540 motor is designed to support both Clockwise (CW) and Counter-Clockwise (CCW) rotation directions.
FAQ support graphics
