Rs-545 rs 545 12v Dc Fan Motor for Electric Fan
Product Description
Product Description
| Place of Origin: | Guangdong China (Mainland) | Model Number: | RS-545 |
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Certification: | ROHS, ISO9001 |
| Type: | Micro Motor | Torque: | 447 G.cm |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | drip-proof | Speed(RPM): | 2000 rpm |
| Continuous Current(A): | 0.257A | Output Power: | 1.72 W |
| Voltage(V): | 6-24v | Efficiency: | IE 1 |
| Shaft: | 3.175 MM shaft | Weight: | 80g |
| no load speed: | 2500 rpm | max efficiency: | 55.8% |
| Application: | Kitchen Utensil, Household Appliance | Brush: | Carbon brushes |
| Style: | motor RS-545 | ||
Specifications
rs-545 12v dc fan motor for electric fan
✓
Low noise high torque long-life
✓
Motor Voltage: 3v-24v RS 545 DC MOTOR
✓
The shaft: dia 3.175 mm
✓
Motor Diameter: 35.8mm length: 5mm It is a tube
✓
Output power: approx 1W~35W
✓
Certification: CE, ROHS ISO9001:2000
✓
Carbon-brush motors
✓
The motor weight: 150g (Approx)
✓
Motor direction of rotation: CW & CCW
✓
Typical Applications: household appliances (massager/vibrator, air compressor)
✓
Motors specification and shaft length can be tailormade according to customer's requirements
Packaging & Shipping
| Packaging Detail: | 1. International standard packaging 2. Standard packaging 3. Customers' standard packaging |
| Delivery Detail: | less than 30 days |
Our Services

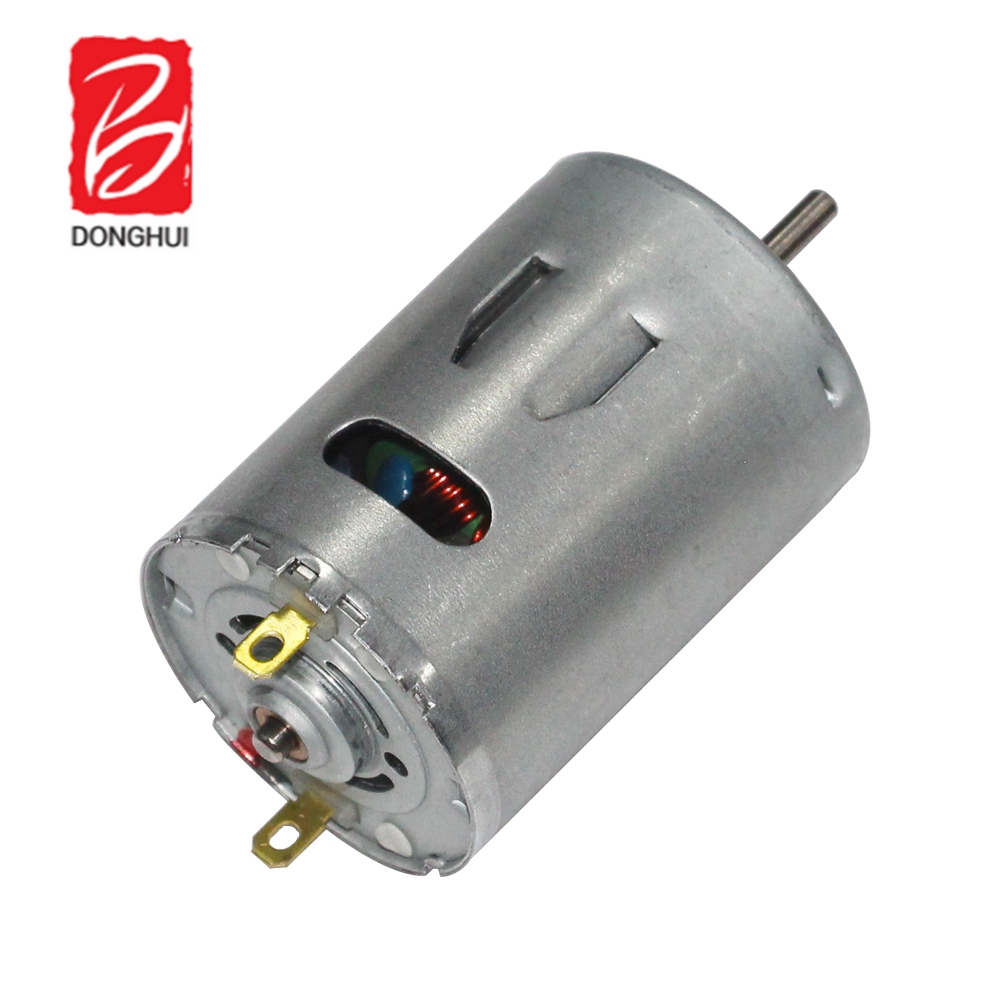

RS545 dc electric fan motor, 12v fan dc motor (Motor photos)

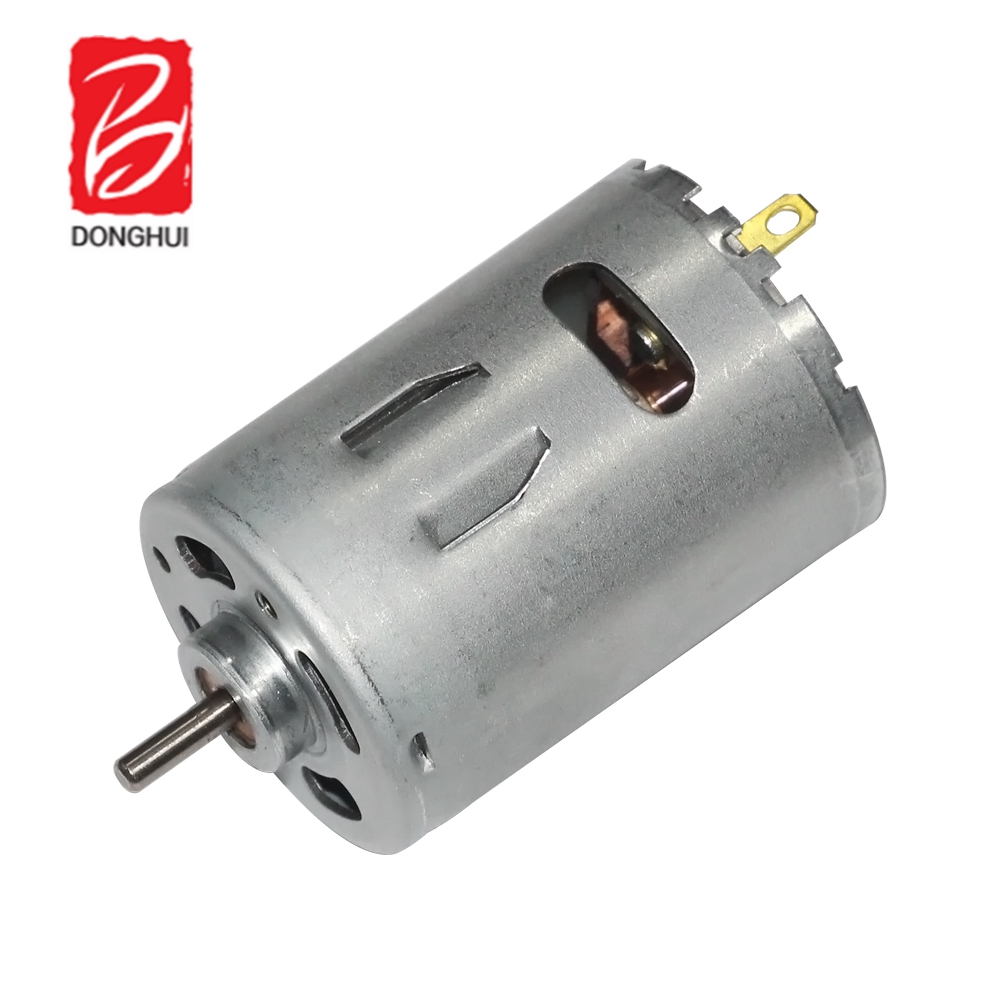

RS-545 DC motor view
Technical dimensions & side view

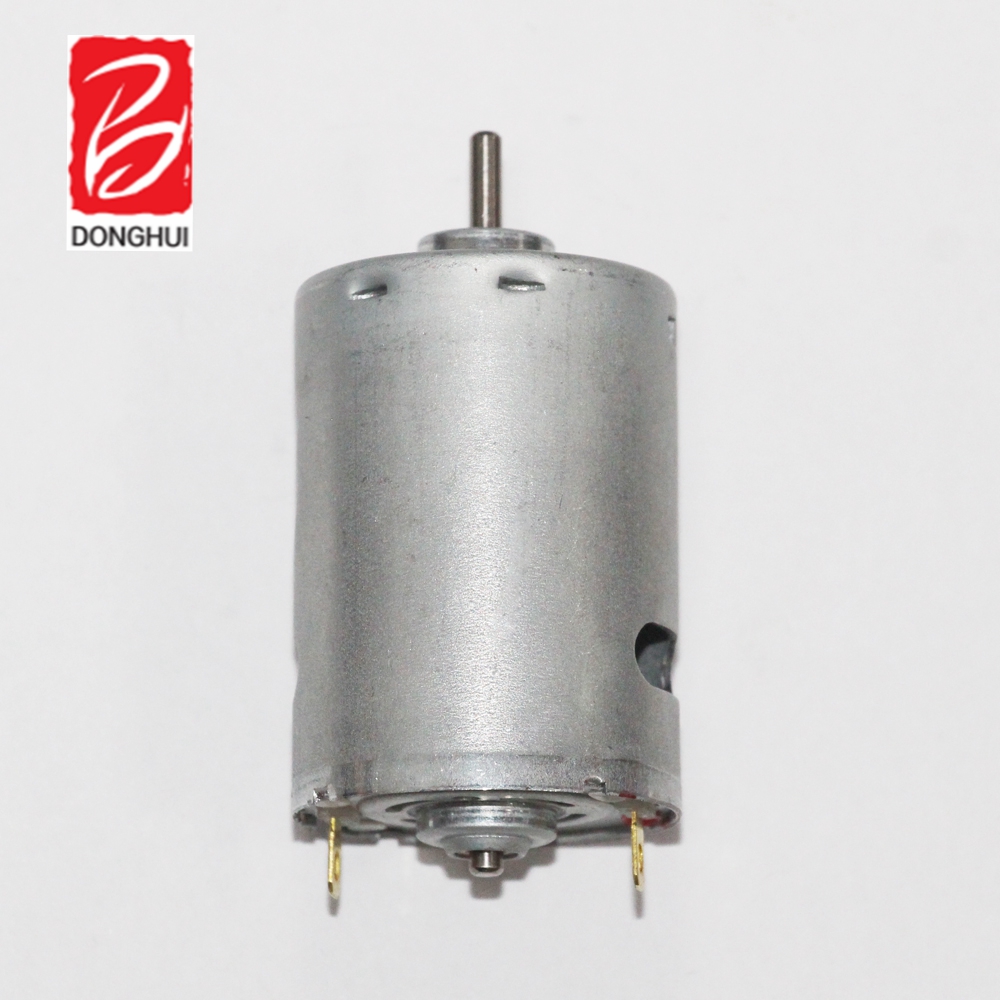

Front & rear details
Capabilities & Production
Committed to the development and production of micro motors since 2003, covering 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.
- Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Product Size Range: Diameter 4-100mm
- DC Voltage Range: 1.5V - 42V (AC Rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed Range: 1 RPM - 30,000 RPM
- Stall Torque: 1g.cm - 30kg.cm
- Applications: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
FAQ
What is the operating voltage range for the RS-545 motor?
The RS-545 DC motor operates within a voltage range of 6V to 24V, and can support voltages from 3V to 24V for micro motor configurations.
What are the typical applications of the RS-545 DC motor?
Typical applications include household appliances such as electric fans, massagers, vibrators, kitchen utensils, air compressors, and automotive components.
What is the standard shaft diameter and structure of this motor?
The motor features a standard shaft diameter of 3.175 mm. It is built as a permanent magnet type with carbon brushes.
Can the motor speed and shaft specifications be customized?
Yes, the motor specifications, performance details, and shaft lengths can be tailormade to meet specific customer requirements.
What certifications does the motor hold?
The micro DC motor is certified under CE, ROHS, and ISO9001 standards, ensuring international quality compliance.
What is the average lead time for delivery?
The delivery detail is typically less than 30 days depending on the packaging and shipping requirements.
