RS 545 12V Dc Motor for Fan, 12v 540 545 Dc Fan Motor for Rechargeable Fan
Product Description
Product Description
Place of Origin:
Guangdong China (Mainland)
Model Number:
RS-545
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:
ROHS, ISO9001
Type:
Micro Motor
Torque:
447 G.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
drip-proof
Speed(RPM):
2000 rpm
Continuous Current(A):
0.257A
Output Power:
1.72 W
Voltage(V):
6-24v
Efficiency:
IE 1
Shaft:
3.175 MM shaft
Weight:
80g
no load speed:
2500 rpm
max efficiency:
55.8%
Application:
Kitchen Utensil, Household Appliance
Brush:
Carbon brushes
Style:
motor RS-545
Specifications
RS545 12V Dc Motor For Fan, 12v dc fan motor for rechargeable fan and fan
- Low noise high torque long-life
- Motor Voltage: 3v-24v RS 545 12v DC MOTOR For Fan
- The shaft: dia 3.175 mm
- Motor Diameter: 35.8mm length: 50mm It is a tube
- Output power: approx 1W~35W
- Certification: CE, ROHS ISO9001:2000
- Carbon-brush motors
- The motor weight: 150g (Approx)
- Motor direction of rotation: CW & CCW
- 3v-24v mini dc Motor Typical Applications: household appliances: massager/vibrator air compressor
- Motors specification and shaft length can be tailor-made according to requirements
Packaging & Shipping
Packaging Detail:
1. International standard packaging 2. Standard packaging 3. Customers' standard packaging
Delivery Detail:
less than 30 days
Our Services
RS545 Micro dc fan motor, 12v dc motor for fan

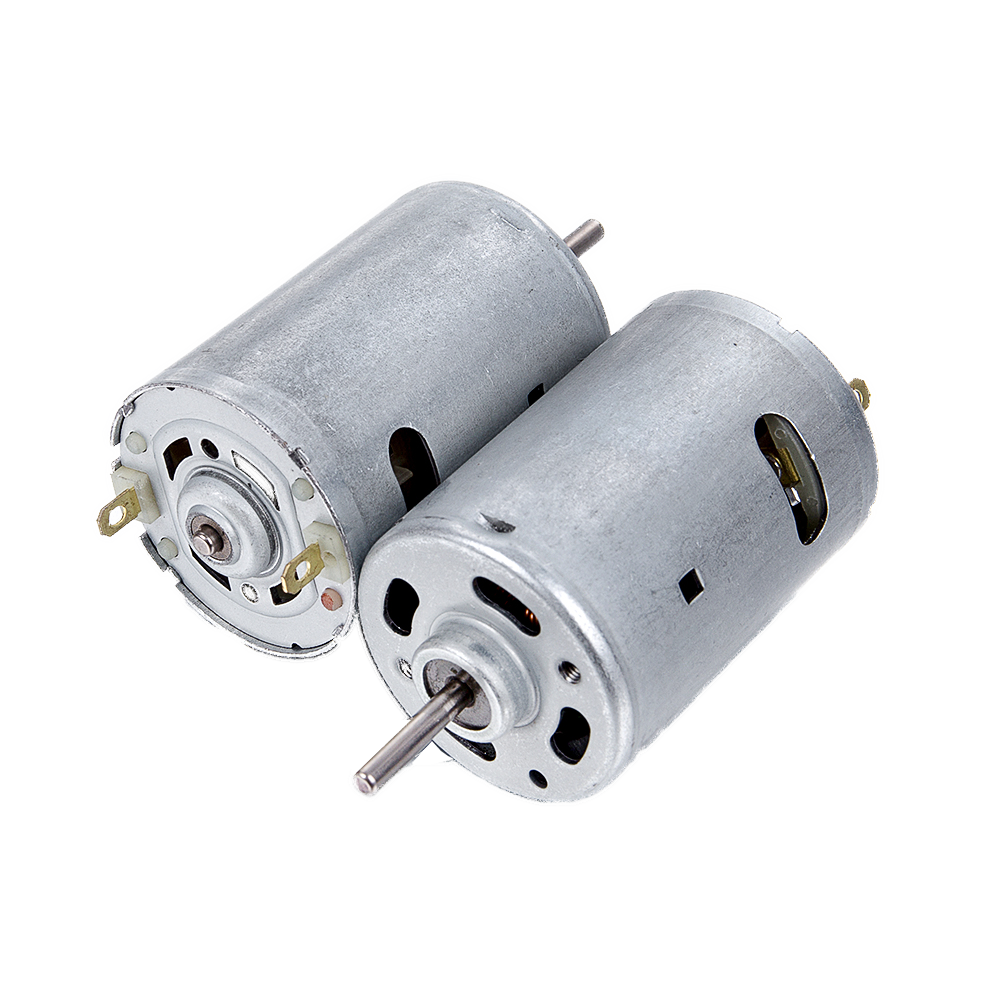

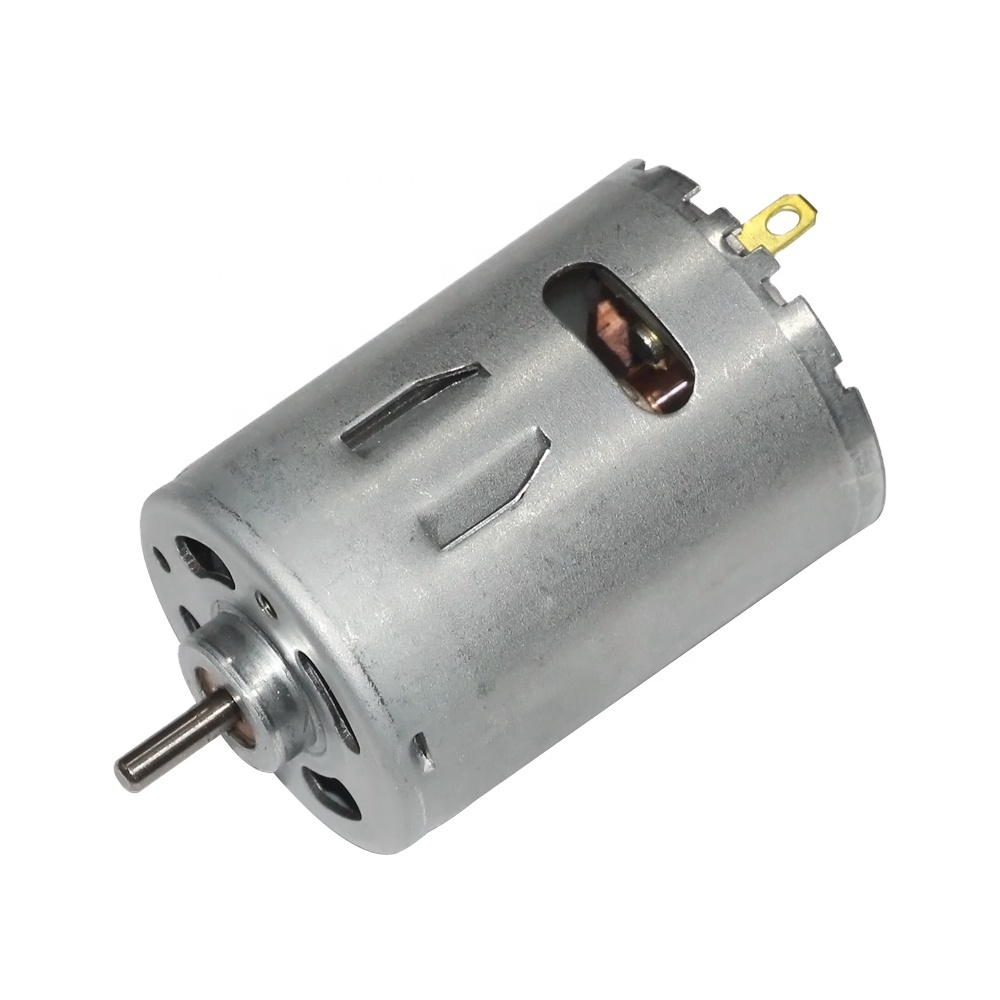

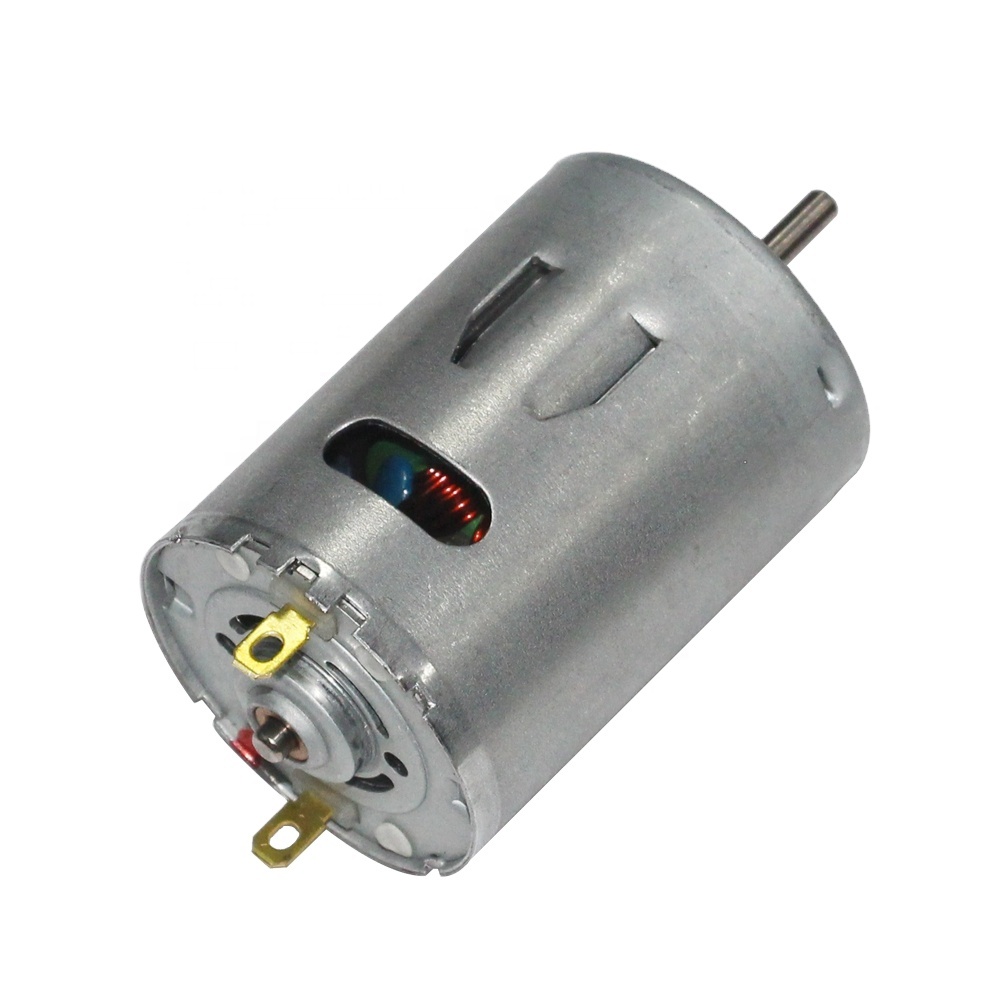

Motor photos:
RS545 12V Dc Motor For Fan, 12v fan dc motor
Technical Strength
Since established in 2003, there has been a commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliances, office automation equipment, medical equipment, power tools, automotive and other fields.
- Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products size range: Diameter: 4-100mm
- DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed range: 1 RPM-30,000RPM
- Stall torque: 1g.cm-30kg.cm
- Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
FAQ
Q1: What is the typical operating voltage range for the RS-545 motor?
A1: The RS-545 motor features a flexible DC voltage operating range of 6V to 24V, and it can be designed to work within 3V to 24V according to specifications.
Q2: What are the main applications of this DC motor?
A2: It is commonly used in household appliances such as massagers, vibrators, air compressors, boats, cars, electric bicycles, fans, rechargeable fans, and kitchen utensils.
Q3: Can the motor specifications and shaft dimensions be customized?
A3: Yes. The specifications and shaft length of the motor can be customized to match the unique requirements of your application.
Q4: What certifications does the RS-545 motor meet?
A4: The motor complies with international standards and holds certifications including ROHS, CE, and ISO9001 (ISO9001:2000).
Q5: What are the dimensions and weight of the RS-545 fan motor?
A5: It has a motor diameter of 35.8mm, a length of 50mm, a shaft diameter of 3.175mm, and weighs approximately 150g.
Q6: What is the standard packaging and delivery time for shipments?
A6: Orders are shipped using international standard, general standard, or custom packaging options, and are typically delivered in less than 30 days.
