Rs-545 Dc Motor, Rs545 12v 24v Dc Motor, 12v 24v Dc Micro Motor RS 545

Product Description

Product Description
Place of Origin: Guangdong China (Mainland)
Model Number: RS-545
Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification: ROHS, ISO9001
Type: Micro Motor
Torque: 447 G.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: drip-proof
Speed(RPM): 2000 rpm
Continuous Current(A): 0.257A
Output Power: 1.72 W
Voltage(V): 6-24v
Efficiency: IE 1
Shaft: 3.175 MM shaft
Weight: 80g
no load speed: 2500 rpm
max efficiency: 55.8%
Application: Kitchen Utensil, Household Appliance
Brush: Carbon brushes
Style: motor RS-545
Specifications

rs-545 dc motor, 12v 24v dc micro motor RS 545 for vacuum pump and fan

  • Low noise high torque long-life
  • Motor Voltage: 3v-24v RS 545 DC MOTOR
  • The shaft: dia 3.175 mm
  • Motor Diameter: 35.8mm length: 50mm It is a tube
  • Output power: approx 1W~35W
  • Certification: CE, ROHS ISO9001:2000
  • Carbon-brush motors
  • The motor weight: 150g (Approx)
  • Motor direction of rotation: CW & CCW
  • 3v-24v mini dc Motor Typical Applications: household appliances: massager/vibrator air compressor
  • Motors specification and shaft length can be tailor-made according to customer's requirements
Packaging & Shipping
Packaging Detail: 1. International standard packaging 2. Standard packaging 3. Customers' standard packaging
Delivery Detail: less than 30 days
Our Services

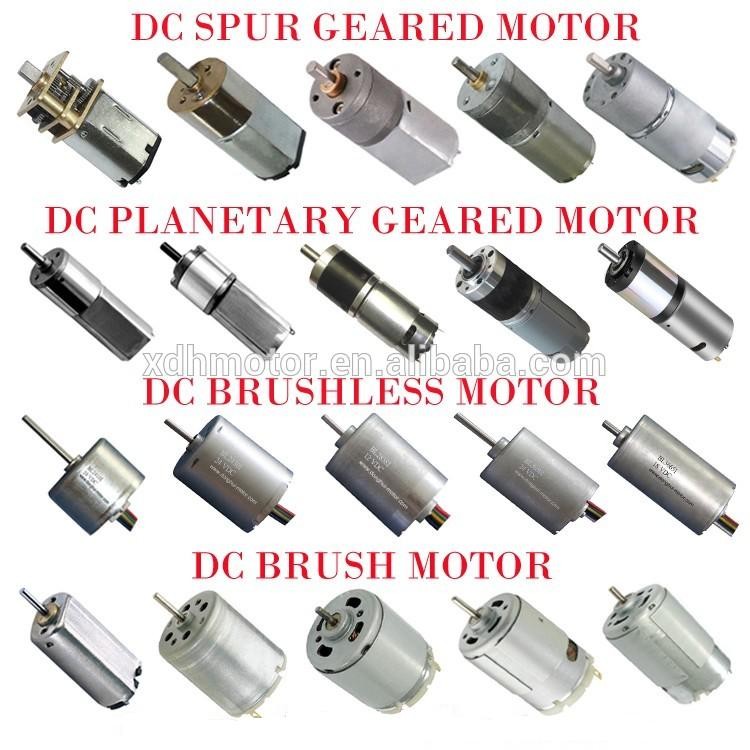

RS545 Micro dc motor, dc gear motor, dc brushless motor

Rs-545 Dc Motor, Rs545 12v 24v Dc Motor, 12v 24v Dc Micro Motor RS 545

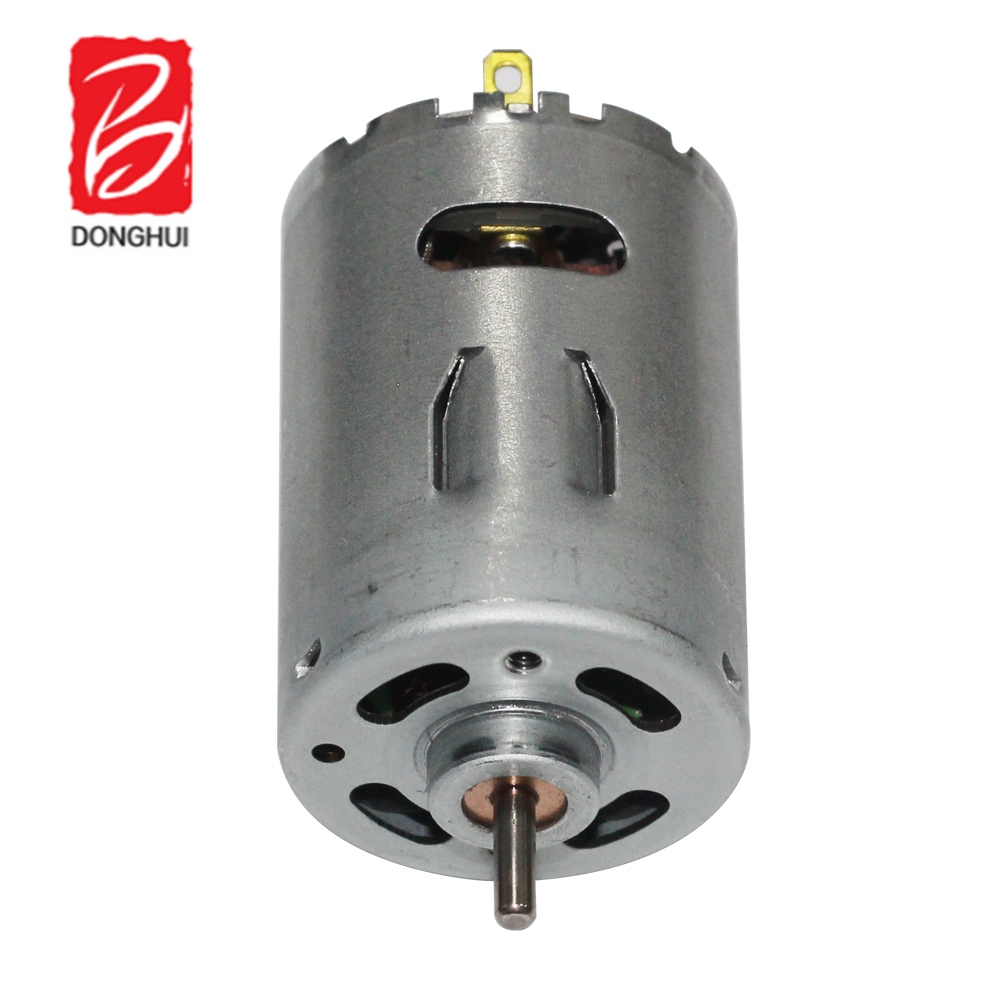

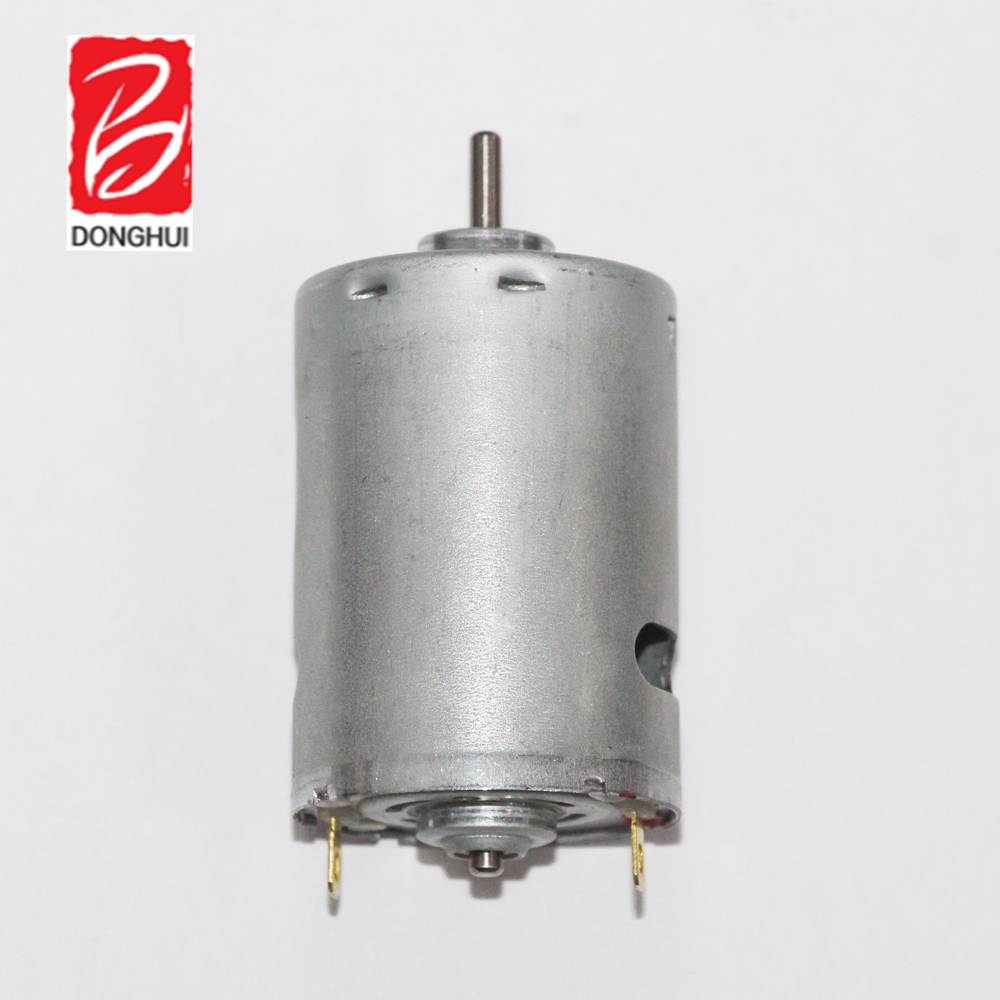

rs545 12v 24v dc motor view
Rs-545 Dc Motor, Rs545 12v 24v Dc Motor, 12v 24v Dc Micro Motor RS 545

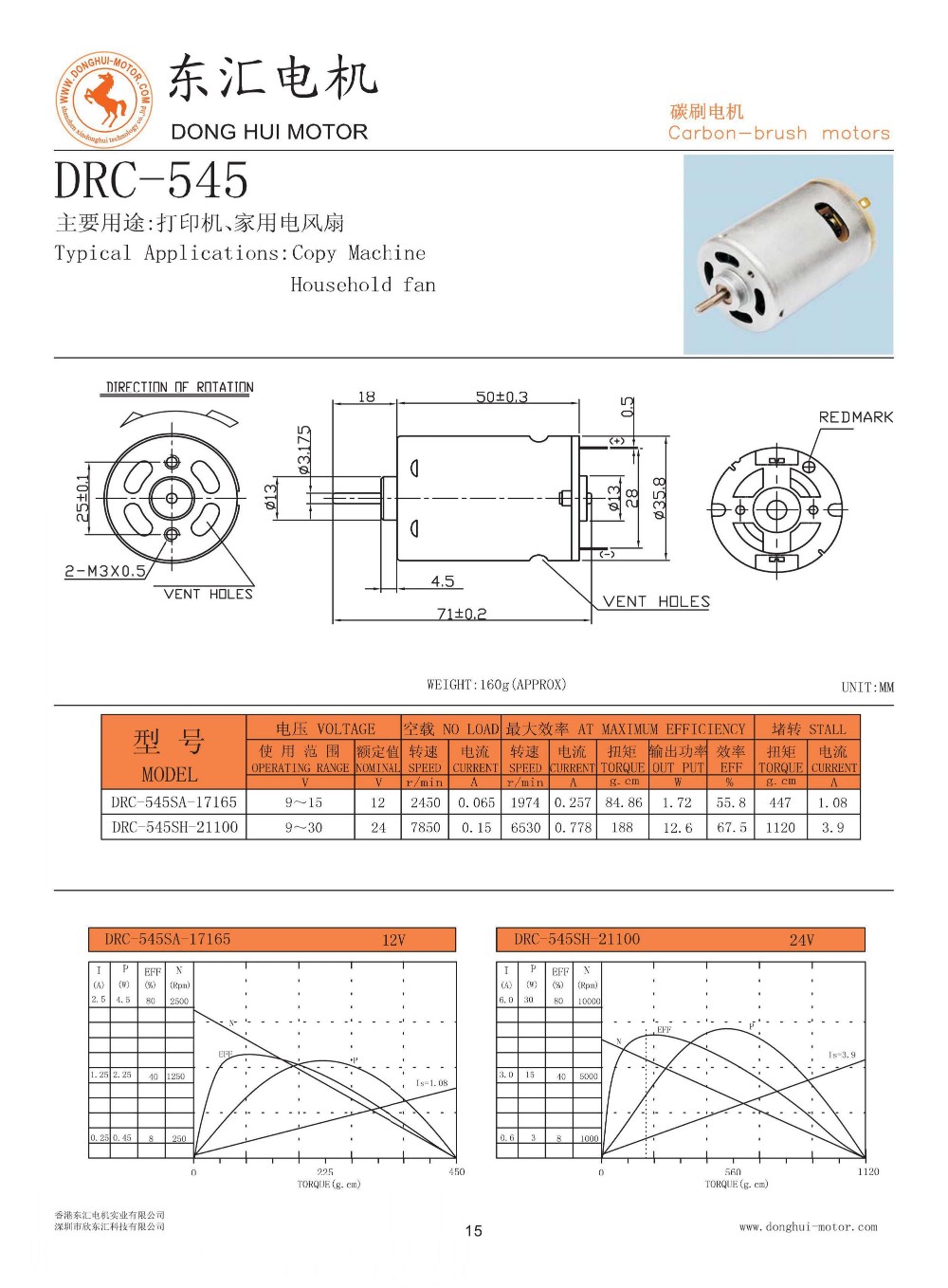

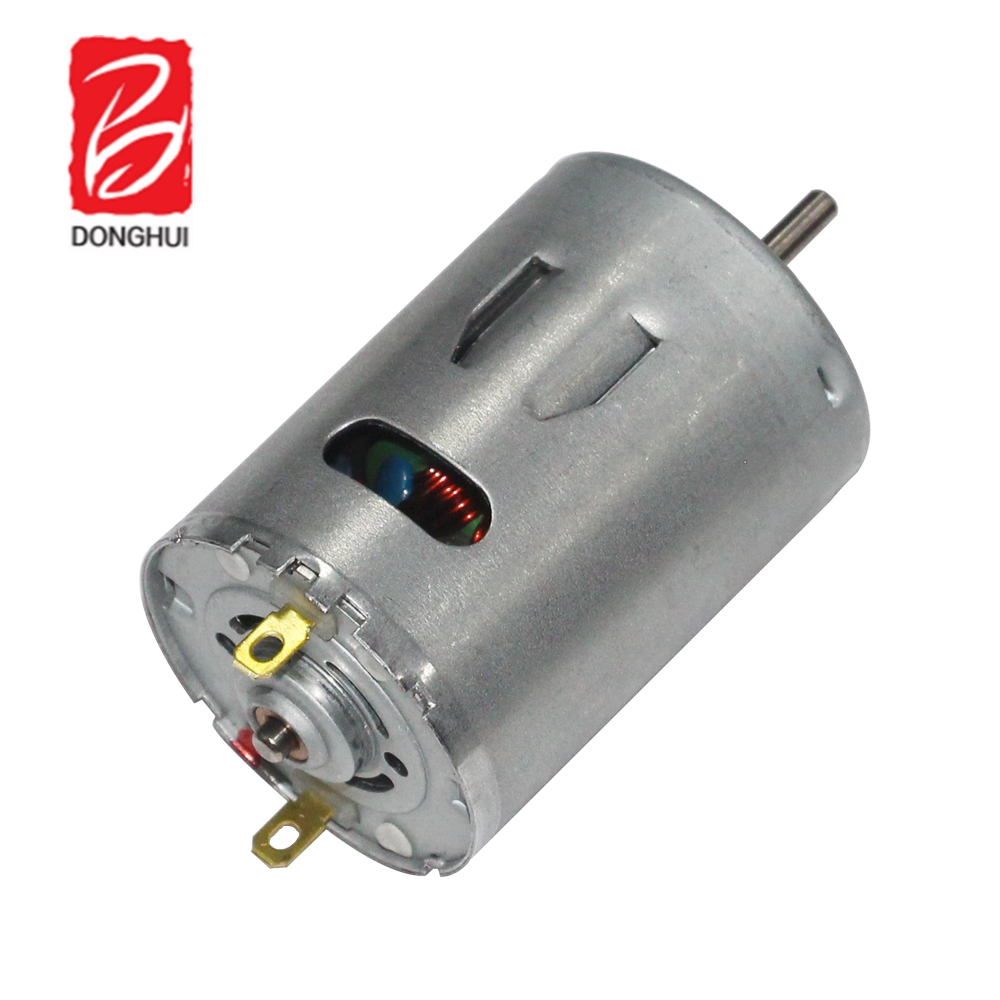

Motor photos dimensions
Rs-545 Dc Motor, Rs545 12v 24v Dc Motor, 12v 24v Dc Micro Motor RS 545

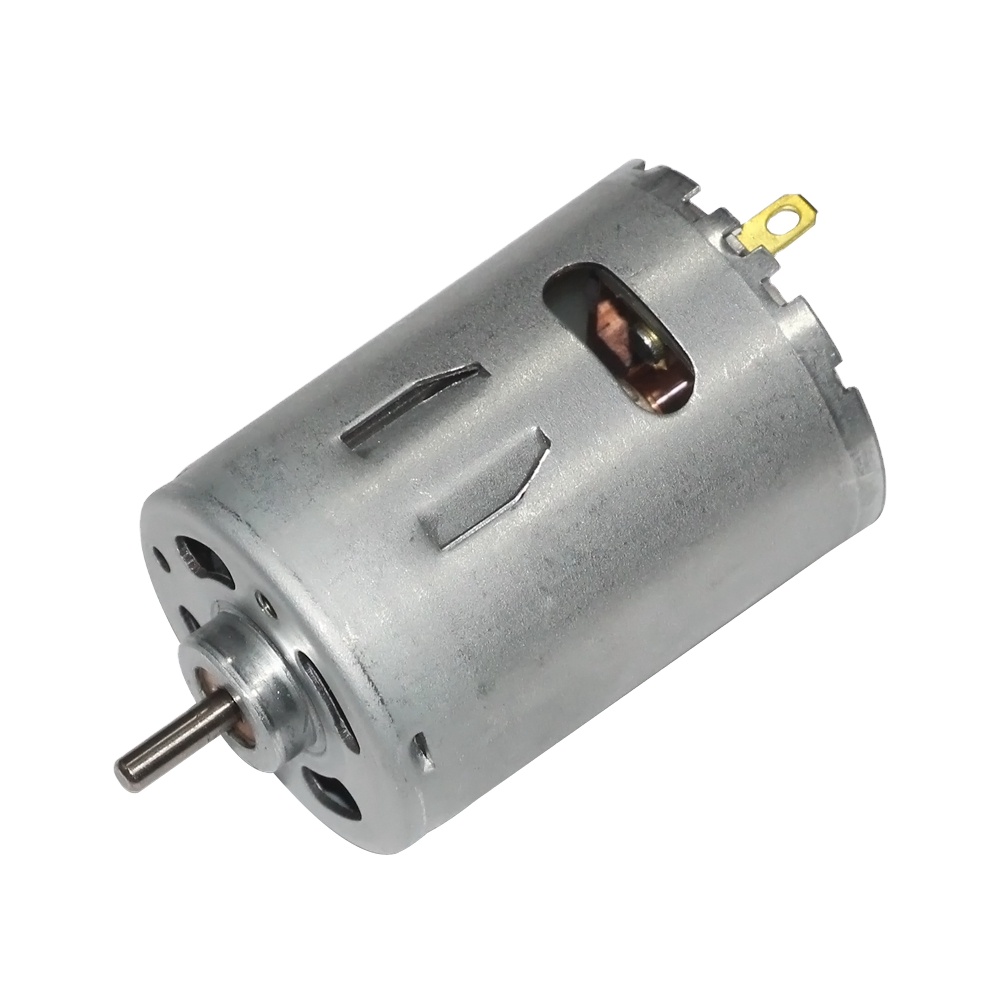

Motor technical details
Company Information
Production facility banner

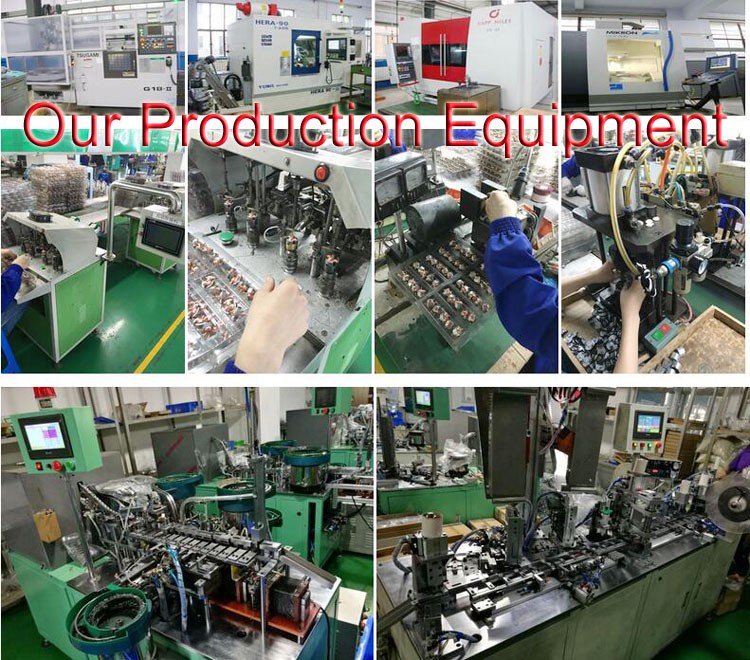

Production department and equipment

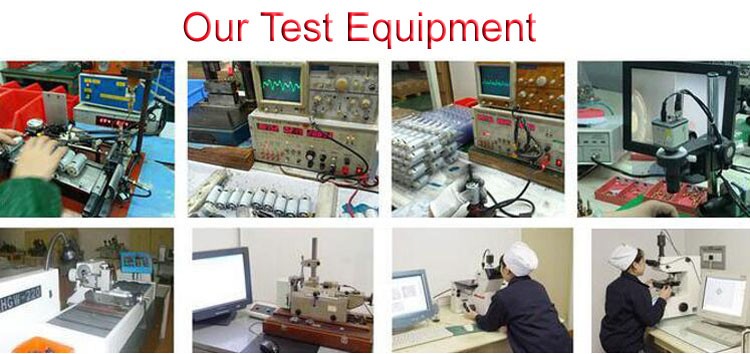

Testing systems and quality control

Since established in 2003, there has been a commitment to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:

  • Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
  • Products size range: Diameter: 4-100mm
  • DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
  • Speed range: 1 RPM-30,000RPM
  • Stall torque: 1g.cm-30kg.cm
  • Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
FAQ
Factory layout and machinery
Testing certificate and standard details
What is the voltage range of the RS-545 DC motor?
The RS-545 DC motor operates within a voltage range of 3V to 24V (with standard specified performance configurations typically at 6V-24V).
What are the typical applications for this micro DC motor?
This motor is widely used in household appliances, kitchen utensils, massagers, vibrators, vacuum pumps, fans, electric bicycles, boats, and cars.
Can the motor specifications and shaft dimensions be customized?
Yes, the motor specifications, performance characteristics, and shaft length can be tailor-made according to specific customer requirements.
Does the motor support bi-directional rotation?
Yes, this motor supports both Clockwise (CW) and Counter-Clockwise (CCW) rotation directions.
What packaging and delivery methods are available?
Standard options include international packaging standards, manufacturer standards, and customized options based on specific customer requirements. Delivery is typically completed in less than 30 days.
