Zelt Motor
Brushless Low Noise Micro DC Vibration Motor 3-24V 6W Max Power for Sex Toy Neck Massager Healthcare/Personal Care
Product Description
| ITEM | VALUE |
|---|---|
| Motor Type | Vibration Motor |

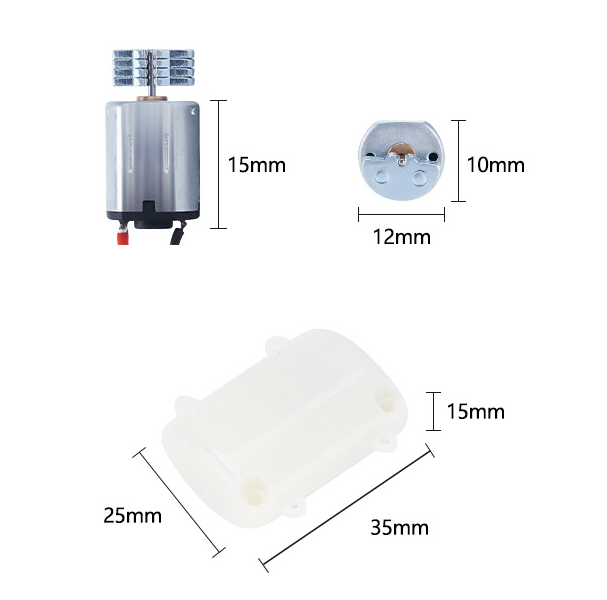

| Motor Model No | DFF-N20 |
| Size(Dimensions) | D12*L30mm |
| Operating Voltage | 3V~30V DC |
| Speed RPM | 2000~15000 r/min-No Load |
| Motor Power Output | Approx 0.5W~1W |
| Typical Application | Sex Toy Neck Massager Healthcare & Personal Care Products |
| Shaft Length | Customized |
| Driver PCBA |
| ITEM | VALUE |
|---|---|
| Motor Type | Vibration Motor |

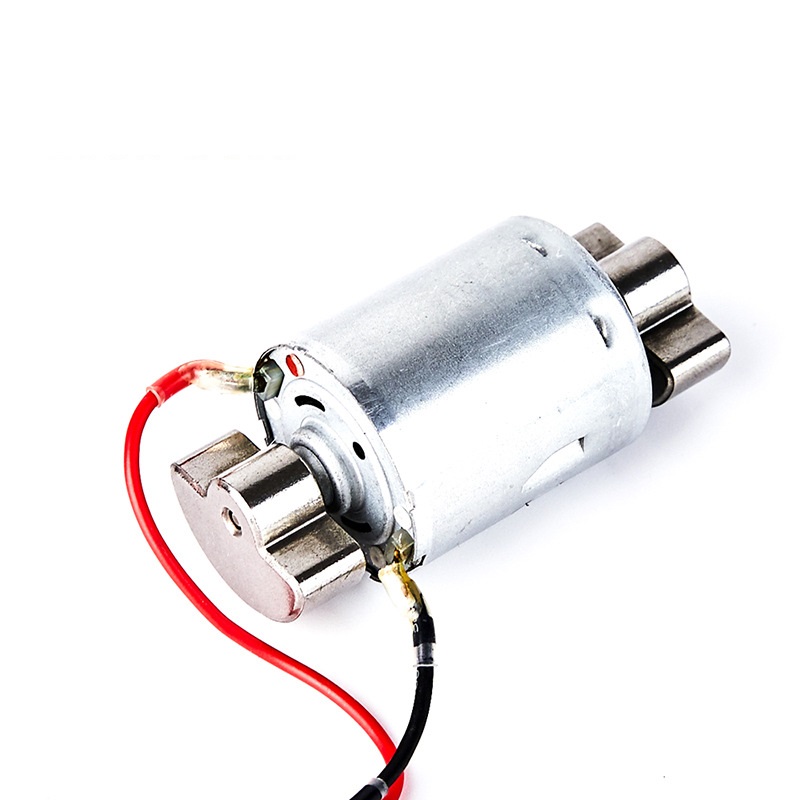

| Motor Model No | RS550 |
| Size(Dimensions) | D36*L57mm |
| Operating Voltage | 3V~24V DC |
| Speed RPM | 2000~10000 r/min-No Load |
| Motor Power Output | Approx 2W~10W |
| Typical Application | Sex Toy Neck Massager Healthcare & Personal Care Products |
| Shaft Length | Customized |
| Driver PCBA |
These motors are designed for high-efficiency vibration alerts and mechanical movement, commonly used in sex toys, neck massagers, healthcare equipment, and other personal care products.
Yes, the shaft length of both the DFF-N20 and RS550 vibration motors can be customized to match the unique mechanical structure of your final product.
The DFF-N20 motor operates on a DC voltage range of 3V to 30V and reaches a no-load speed range of 2000 to 15000 r/min, with an approximate output power of 0.5W to 1W.
The RS550 features a size of D36*L57mm, operates at 3V to 24V DC, provides a speed of 2000 to 10000 r/min (no load), and offers a stronger output power of approximately 2W to 10W.
Driver PCBA options can be arranged depending on your specific system specifications and project design demands.
