High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
Product Description
Quick Details
Place of Origin:
Guangdong China
Model Number:
DGA25-370
Usage:
Home Appliance
Certification:
ROHS
Type:
Gear Motor
Torque:
2 kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
19 rpm
Continuous Current(A):
0.147A
Output Power:
1.1W
Voltage(V):
12V
Efficiency:
IE 1
NO LOAD SPEED:
22 rpm
Packaging Details:
240PCS/CTN, CARTON DIMENSION: 415*315*210 MM
Delivery Detail:
Within 25 days
high torque 25mm 12v dc motor gear motor, 12v 60 rpm 100 rpm dc gear motor 100: 1 gear ratio
Specifications
12v high torque dc motor gear motor
- 3V 5V 6V 12V 24V dc motor with encoder

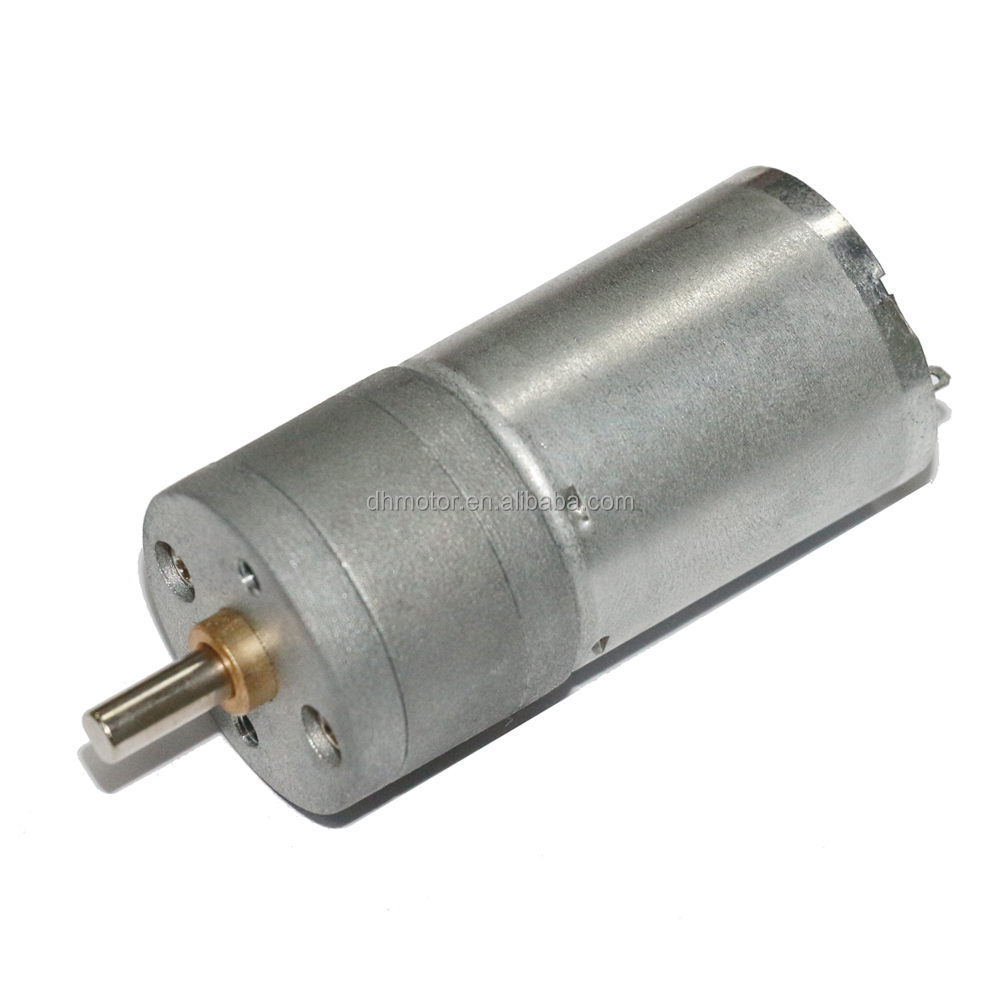

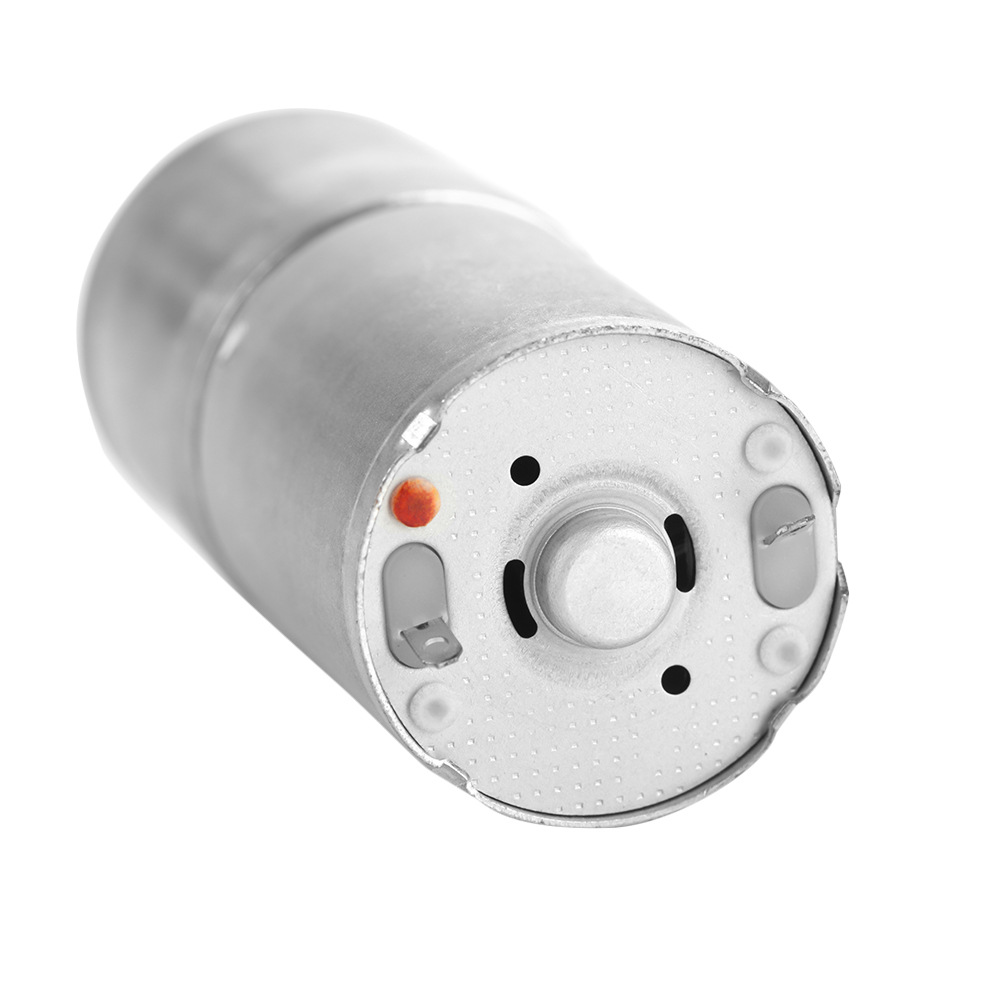

- RF370 motor + 25mm dc spur gearbox

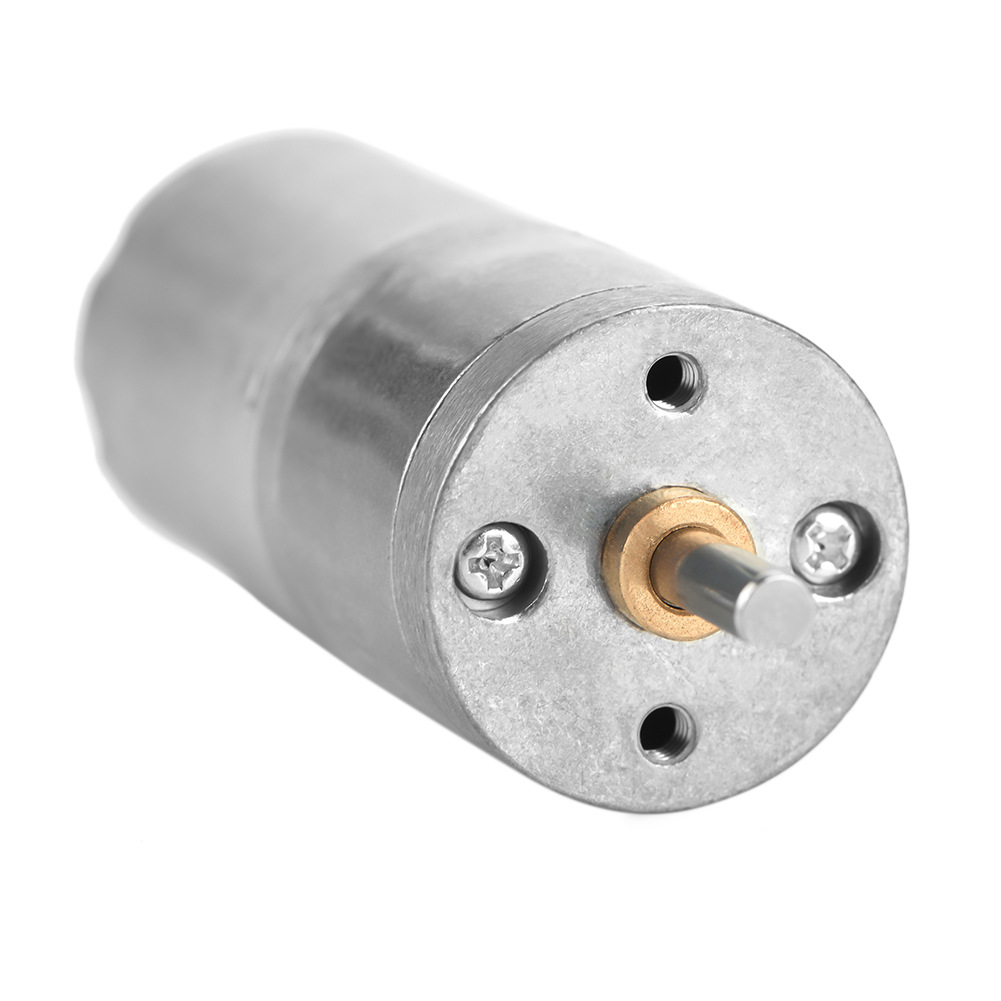

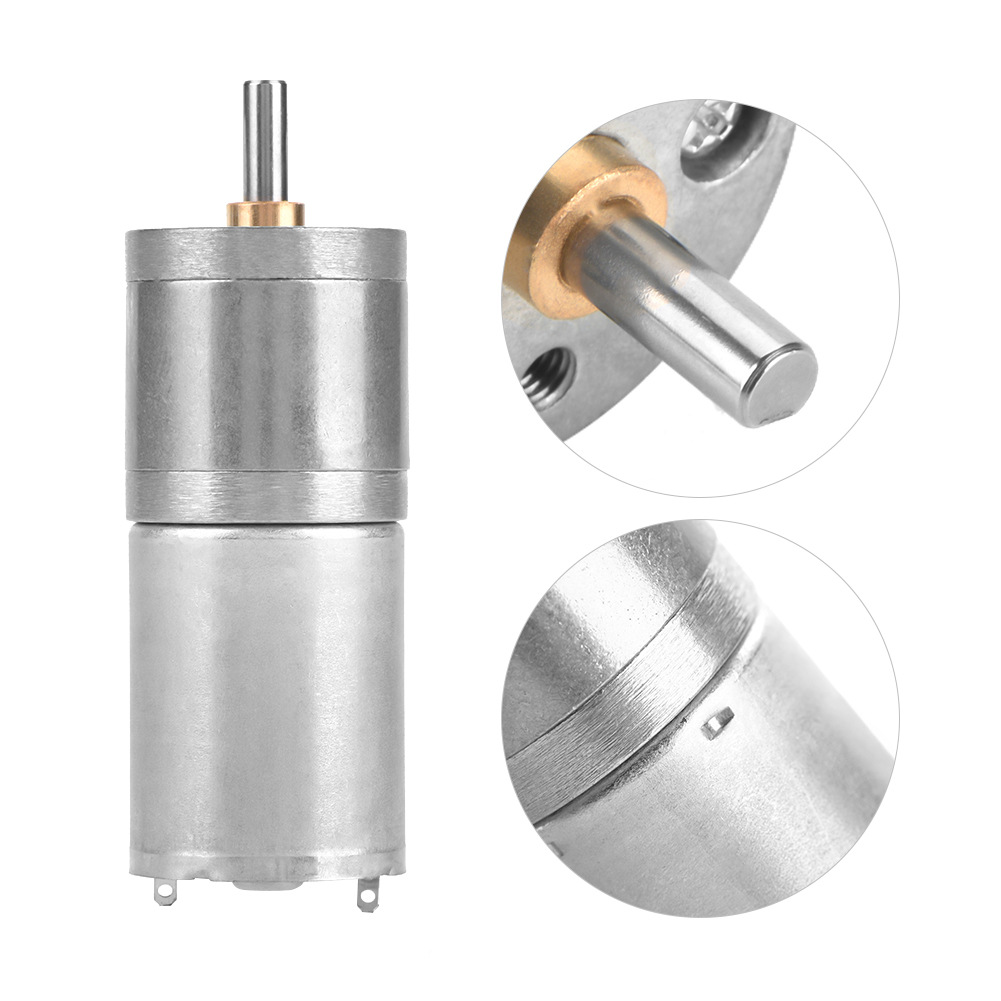

- 4mm D shape output shaft
- Reduction Ratio can be customized.
🎯 Typical Applications
Safe box, Storage box, Perfume sprayer, Ad equipment, Sanitary equipment, Automatic window curtain, Electronic game machine, Robot, Measuring instrument, Audio equipment.
🔢 Reduction Ratio Options
1/15, 1/20, 1/26, 1/34, 1/45, 1/57, 1/75, 1/98, 1/125, 1/165, 1/217, 1/275, 1/362, 1/478
Characters
- Size: 25*54 mm, just 54 mm length mini motor
- Voltage: 6V 12V 24V
- Speed: 5-410 RPM
- Torque: 0.05-5kg.cm
- Long Life time
- Low noise, low current no spark

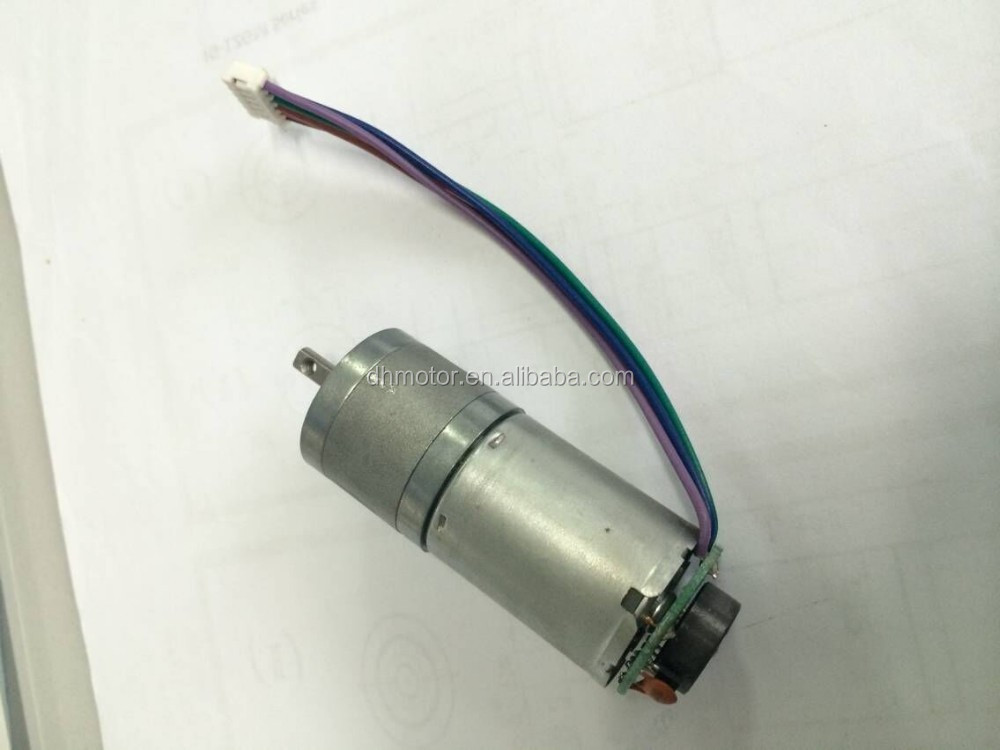

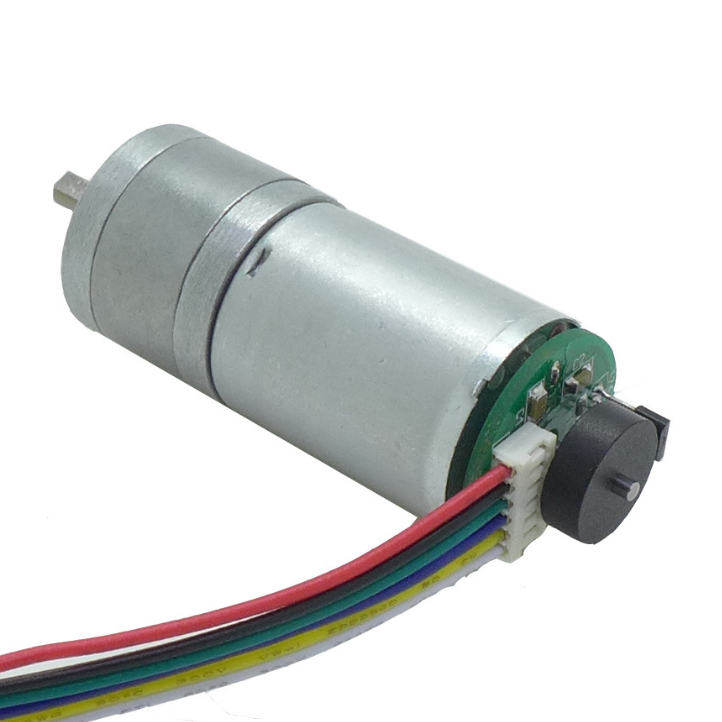

- Motor with encoder, 16 pulse signal
- Reduction Ratio: 15-1051
- Can be equipped with encoder
- Samples can be sent first. The MOQ is 100 pieces and the delivery time is 20-25 days.

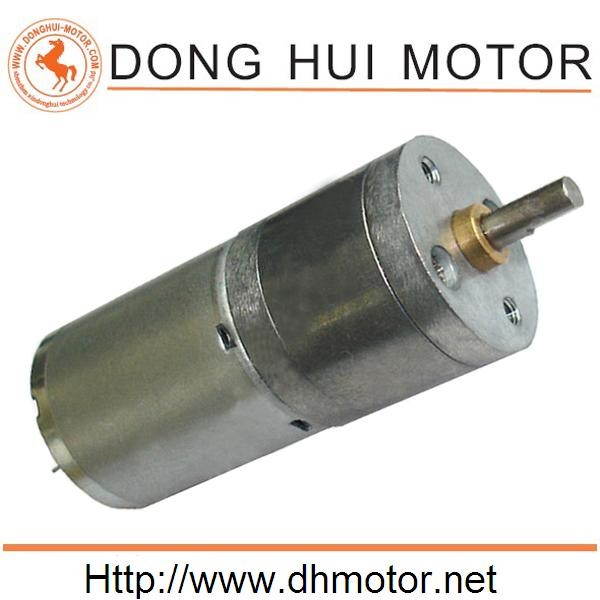

Photos
high torque 25mm 12v dc motor gear motor, 12v 60 rpm 100 rpm dc gear motor 100: 1 gear ratio
Since established in 2003, there has been a strong commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive components, and other fields.
- Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products size range: Diameter: 4-100mm
- DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed range: 1 RPM - 30,000RPM
- Stall torque: 1g.cm - 30kg.cm
- Applications: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
What is the typical operating voltage for the DGA25-370 gear motor?
The motor operates typically at 12V DC, but it supports a versatile voltage range from 1.5V to 42V depending on specific customization options.
Can the reduction ratio of the gearbox be customized?
Yes. Standard options range from 1/15 up to 1/478, and general reduction ratio ranges can support customized ratios from 15 to 1051.
Is this micro motor available with feedback sensors?
Yes, this gear motor can be equipped with a built-in encoder offering a 16-pulse signal for speed and position tracking.
What applications are best suited for this gear motor?
Typical applications include safe boxes, storage boxes, perfume sprayers, sanitary facilities, automatic window curtains, robotics, measuring instruments, and audio equipment.
What is the Minimum Order Quantity (MOQ) and sample lead time?
The standard minimum order quantity (MOQ) is 100 pieces. Samples can be provided first for testing and valuation, with a typical production lead time of 20 to 25 days.
What are the motor's protection and durability features?
The motor is built with a permanent magnet construction and features a drip-proof protection design, ensuring low noise, low current consumption, and spark-free long-life performance.
