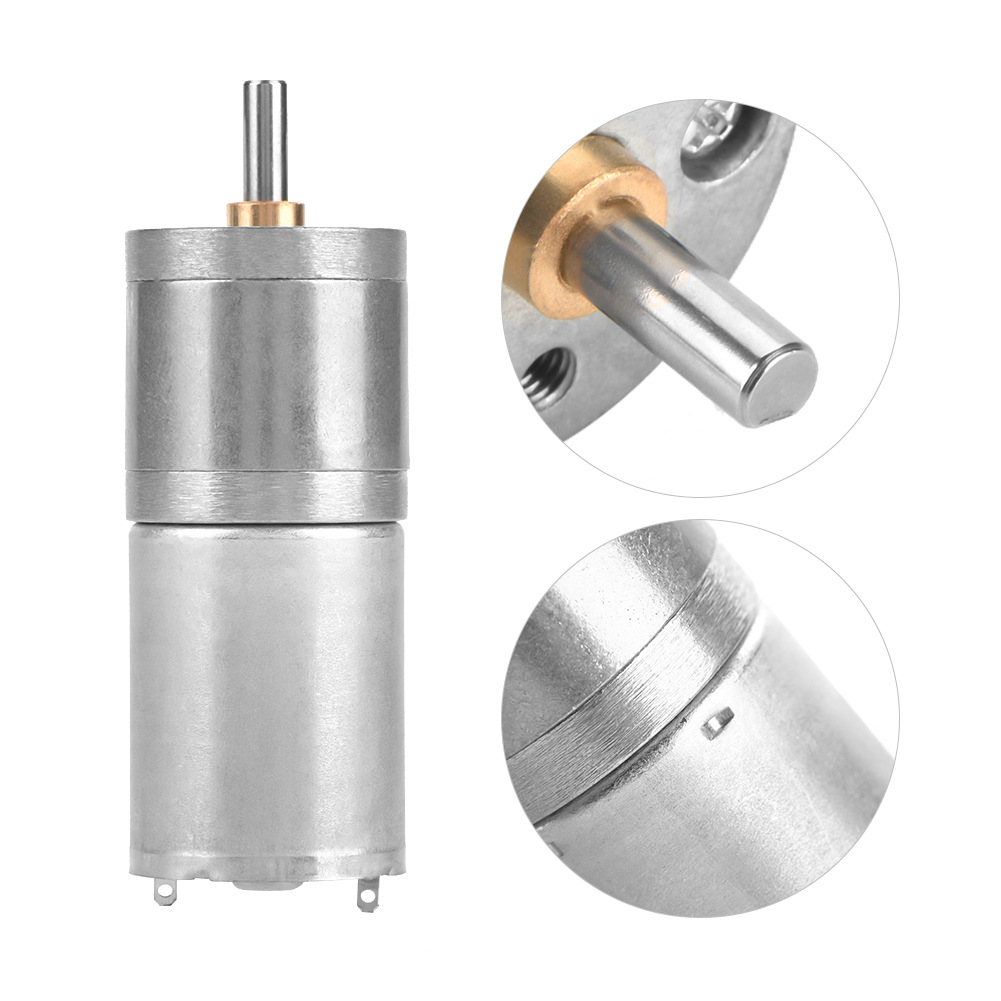

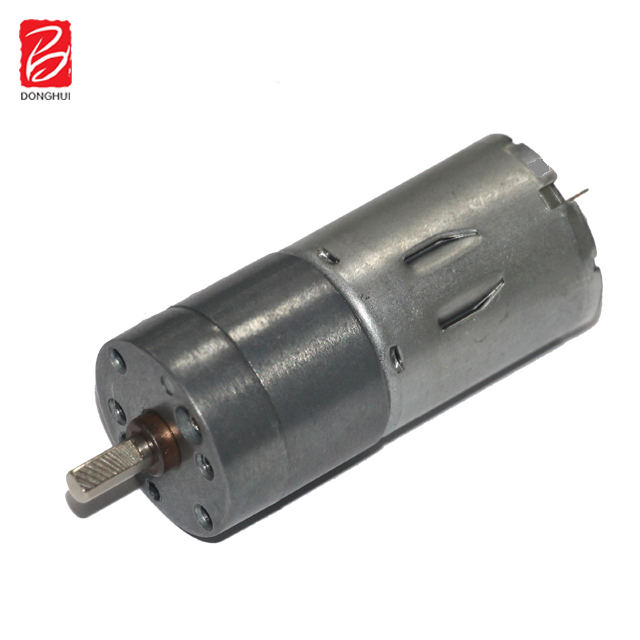

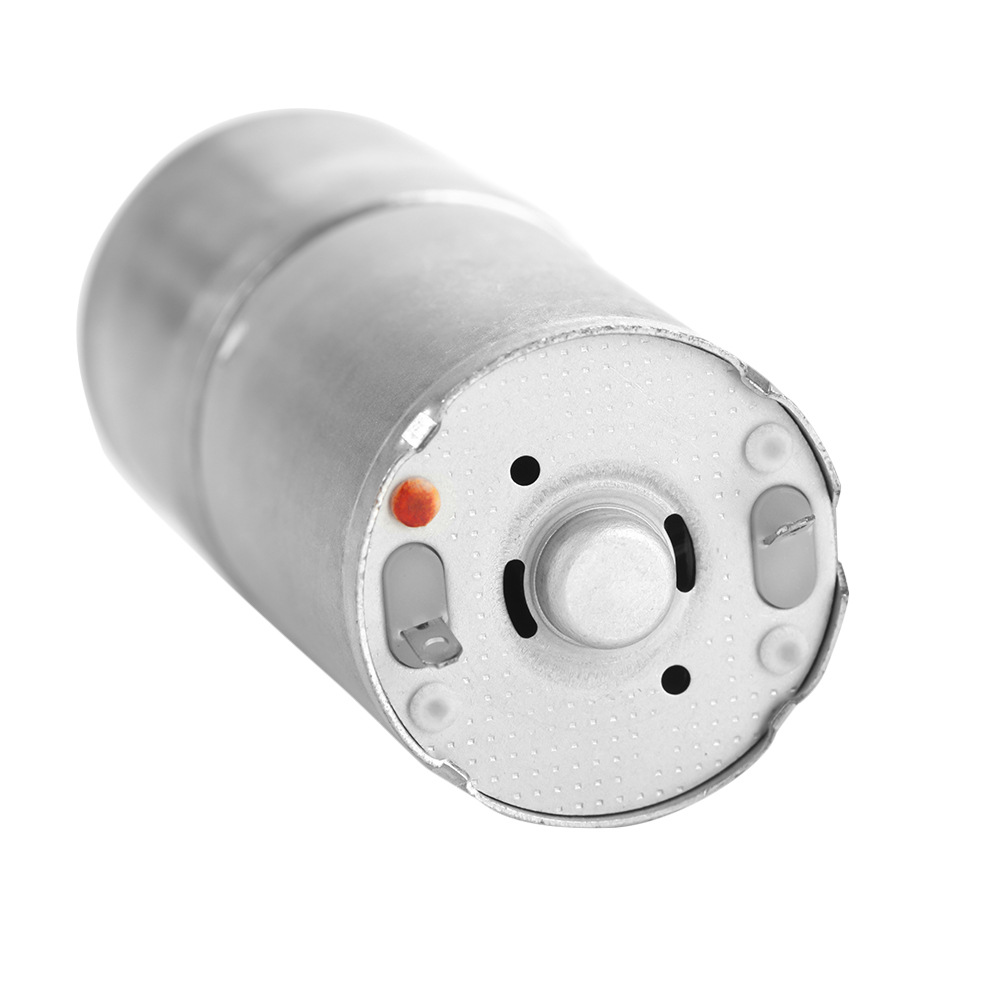

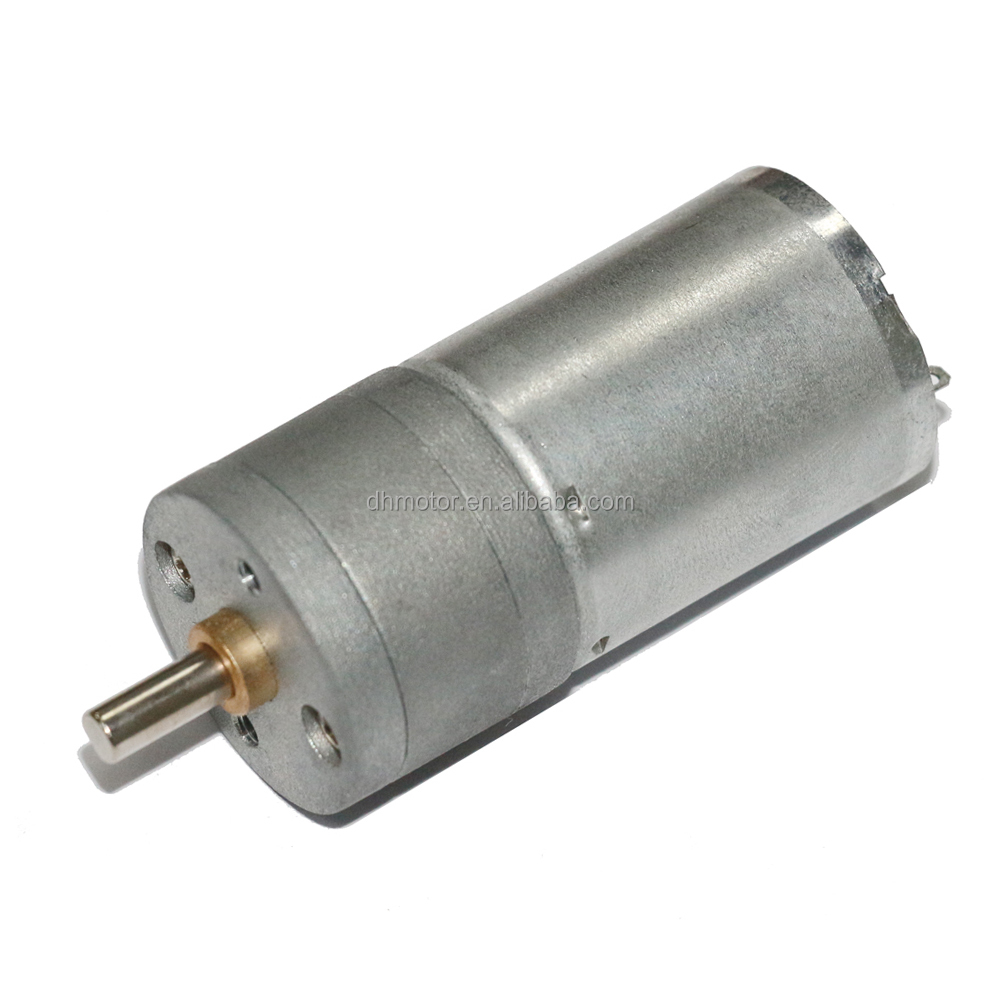

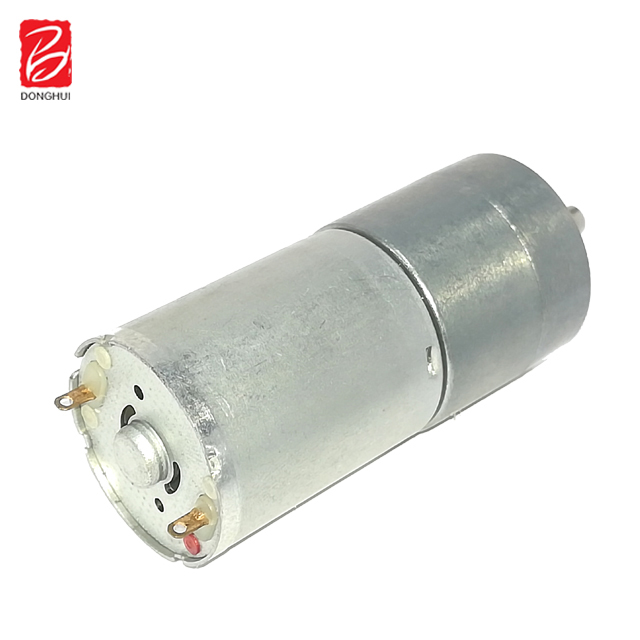

High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
Product Description
Packaging Details: 240PCS/CTN, CARTON DIMENSION: 415*315*210 MM
Delivery Detail: Within 25 days
high quality 25mm 12v 24v dc gear motor with gear reduction
- dc motor with encoder
- RF370 motor +25mm dia gear head

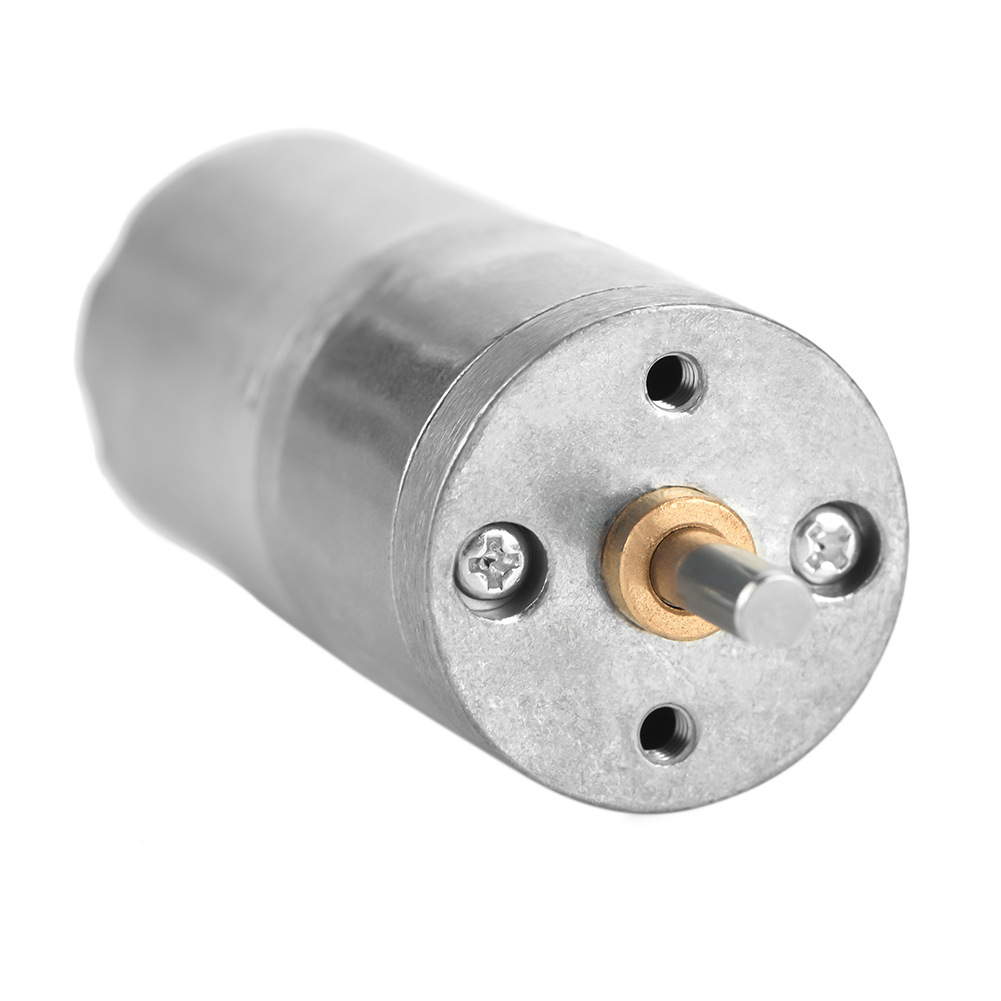

- 4mm D shape output shaft
- Reduction Ratio can be customized.
| Typical Applications | Description |
|---|---|
| Safe box, Storage box, Perfume sprayer, Ad equipment, Sanitary equipment, Automatic window curtain, Electronic game machine, Robot, Measuring instrument, Audio equipment |

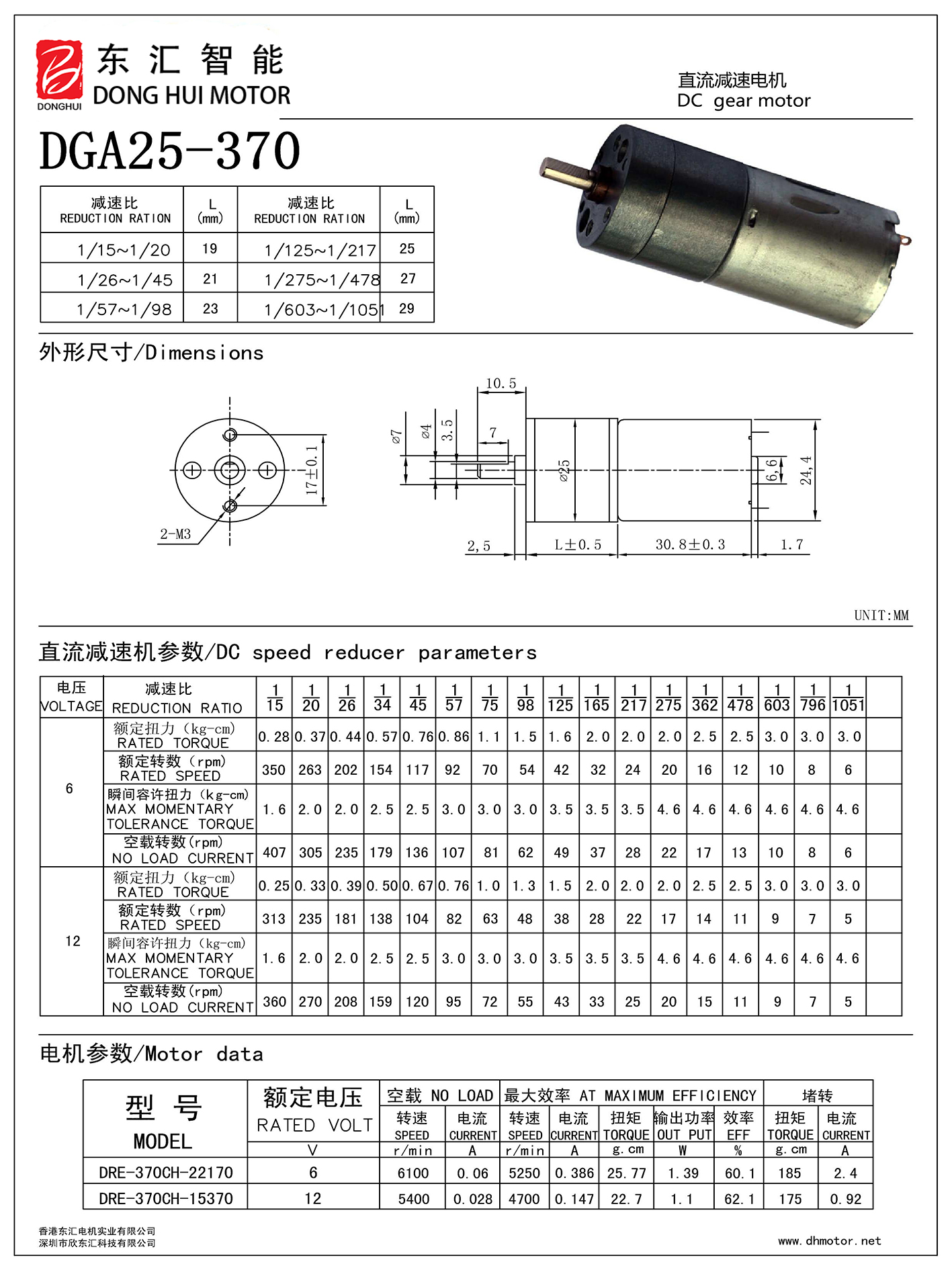

Reduction Ratio: 1/15, 1/20, 1/26, 1/34, 1/45, 1/57, 1/75, 1/98, 1/125, 1/165, 1/217, 1/275, 1/362, 1/478 |
- Size: 25*54 mm, just 54 mm length mini motor
- Voltage: 6V 12V 24V
- Speed: 5-410 RPM
- Torque: 0.05-5kg.cm
- Life time: 2500H
- Low noise, low current no spark
- Motor with encoder, 16 pulse signal
- Reduction Ratio: 15-1051
- Can be equipped with encoder
- Samples can be sent first. The MOQ is 100 pieces and the delivery time is 20-25 days.
Since established in 2003, there has been a commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields.

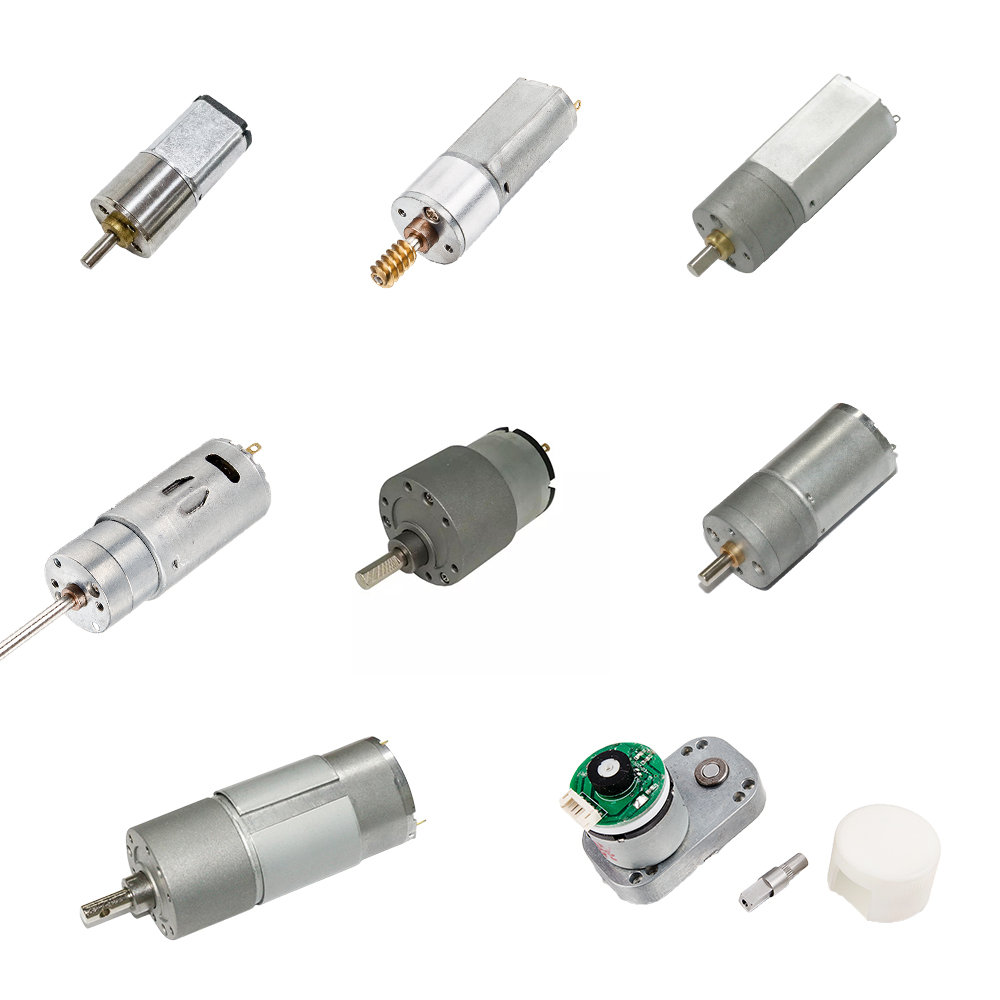

- Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products Size Range: Diameter: 4-100mm
- DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed Range: 1 RPM - 30,000RPM
- Stall Torque: 1g.cm - 30kg.cm
- Applications: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
What are the available voltage options for this gear motor?
This DC gear motor supports a broad voltage range from 1.5V up to 42V, with standard configurations available in 3V, 6V, 12V, and 24V.
Can the gear reduction ratio be customized?
Yes, the reduction ratio is fully customizable. Typical standard ratios range from 1/15 up to 1/478, and can go up to 15-1051 depending on your requirements.
What is the minimum order quantity (MOQ) and sample lead time?
The minimum order quantity (MOQ) is 100 pieces. Samples can be prepared and sent first for evaluation, with standard delivery times within 20 to 25 days.
What are the main application areas for this mini motor?
It is highly suitable for safe boxes, storage boxes, perfume sprayers, advertising displays, sanitary equipment, automatic window curtains, game machines, robotics, audio systems, and measuring instruments.
Does the motor support encoder integration?
Yes, the motor can be equipped with an encoder that provides a 16-pulse feedback signal for precise control and feedback.
What is the expected operating life of this motor?
This high-quality permanent magnet brush motor is designed to deliver a long service life of up to 2,500 hours, featuring low noise, low current consumption, and no spark commutation.
