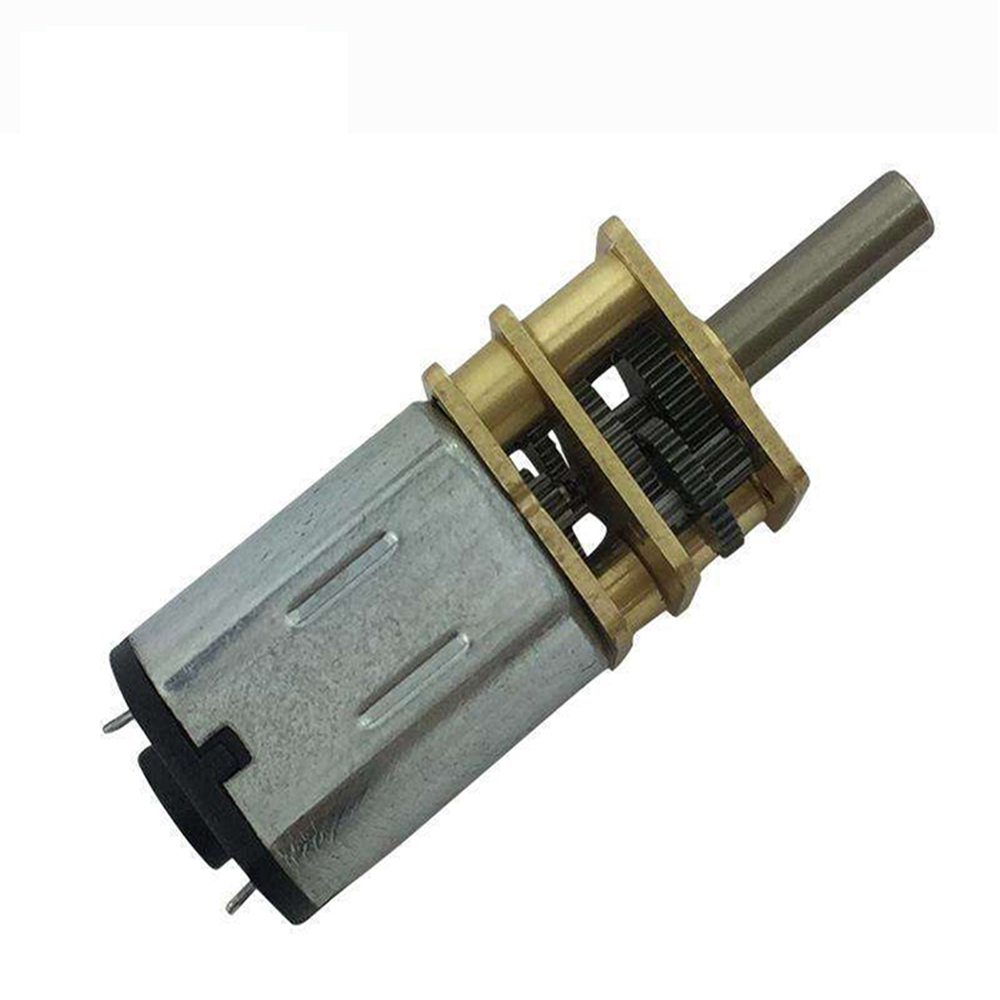

3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20
Product Description
Product Description - Quick Details
| Place of Origin | Guangdong, China (Mainland) | Model Number | DGA12-N20 |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Certification | ROHS, ISO |
| Type | Micro Motor | Torque | 500 G.cm |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Drip-proof | Speed(RPM) | 34 RPM |
| Continuous Current(A) | 0.12A | Output Power | 0.3 W |
| Voltage(V) | 6 v | Efficiency | IE 1 |
| Shaft | Dia 2.0mm | Weight | 10g |
| No Load Speed | 10500 | Max Efficiency | 68.3% |
| Brush | Carbon brushes | Style | 12mm n20 mini gear motor |
Packaging & Shipping
| Packaging Details | 80PCS/TRAY, 1200PCS/CTN, CARTON DIMENSION: 11*9*6.75 INCH |
| Delivery Detail | Within 25 days |

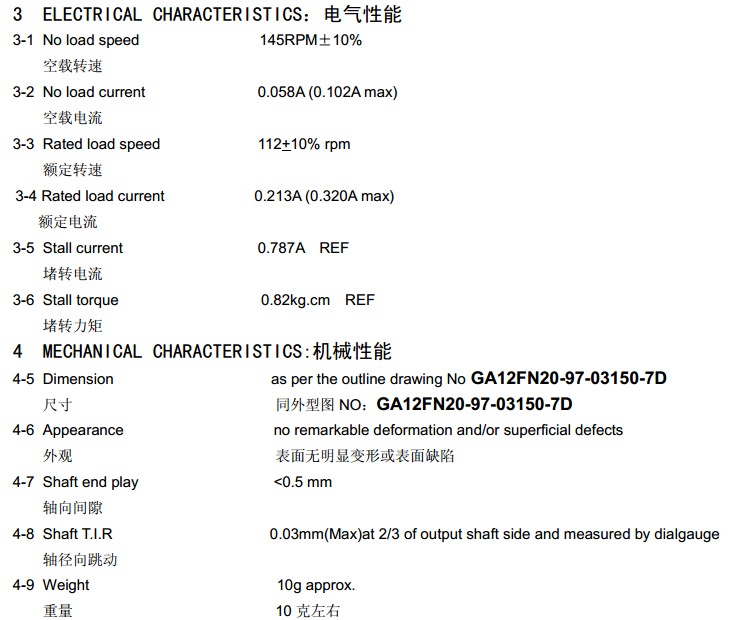

Specifications & Features
DC Motor, DC Gear Motor, DC Brushless Motor
Specifications: 3 Volt 6 Volt 12mm N20 Mini Gear Motor
- Model: DGA12-N20
- Rated Voltage: 1.5-12V
- Speed: 10-2000RPM

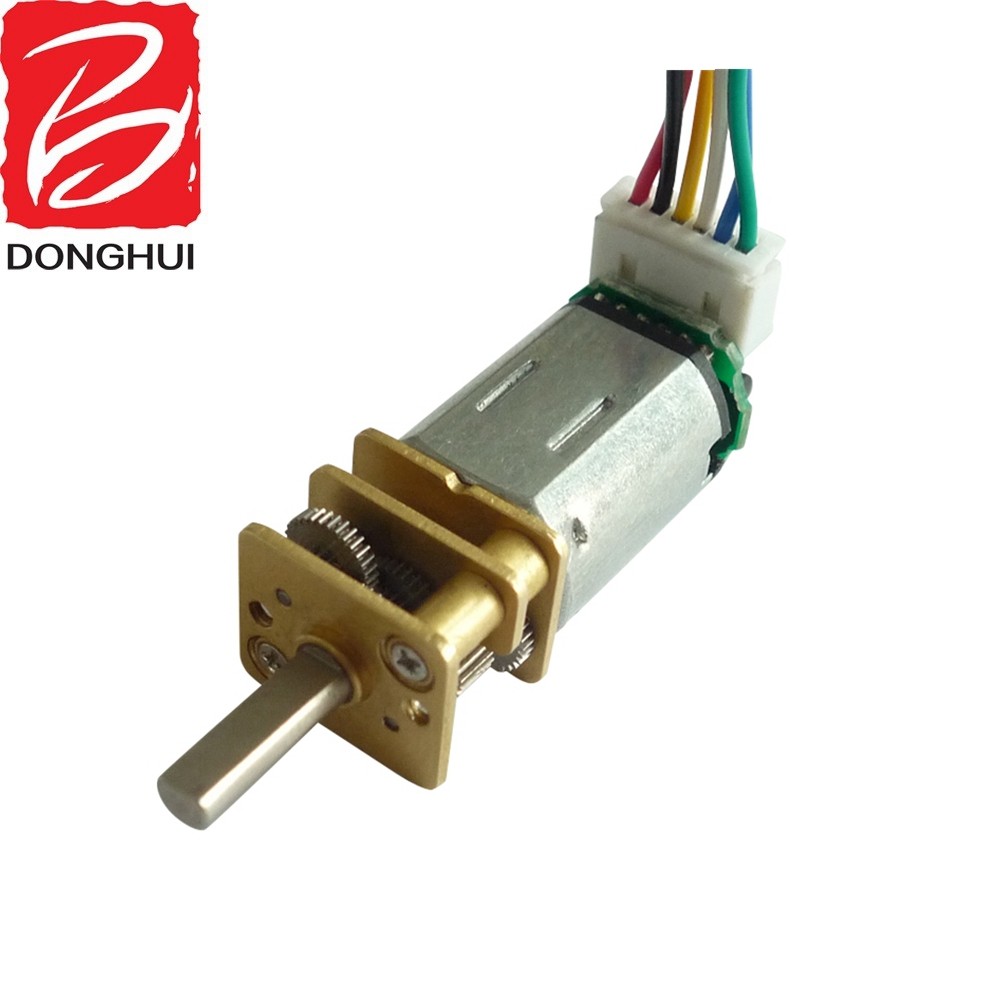

- Encoder Option: Can be equipped with encoder
- Applications: Widely used in robot, lock
12mm Mini Gear Motor Details
3V 5V 6V mini DC gear motor for electric lock:
- Wide Range of Applications: Used in robots, locks, auto shutters, USB fans, slot machines, money detectors, coin refund devices, currency counting machines, towel dispensers, automatic doors, peritoneal machines, automatic TV racks, office equipment, household appliances, etc.
- Performance: Low noise, low current, and no spark.
- Reduction Ratio: 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000.

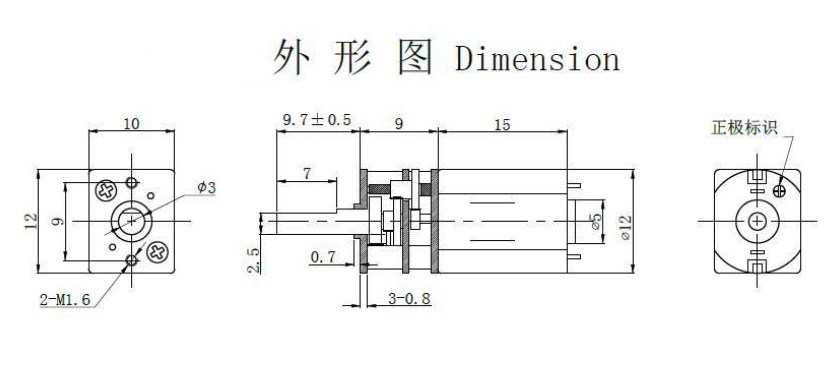

- Compact Size: 12.0 * 24.0 * 10.0mm (just 24mm length micro motor).
- Samples & MOQ: Samples available, MOQ is 100 pieces, delivery time is 15-20 days.

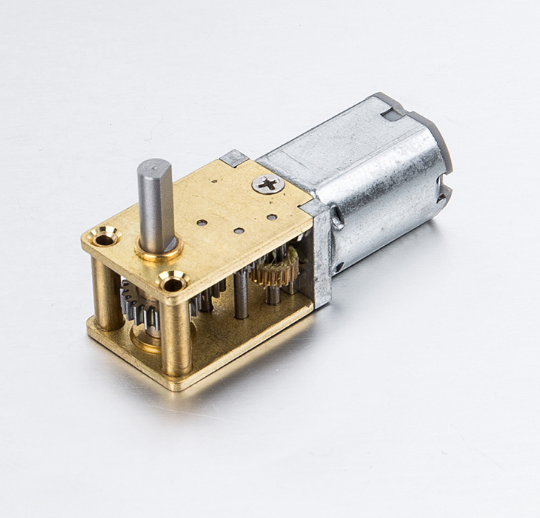

Product Photos

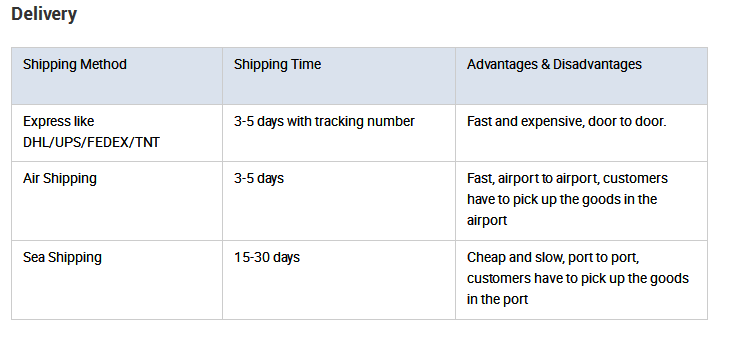

Packaging & Delivery
Certifications & Quality

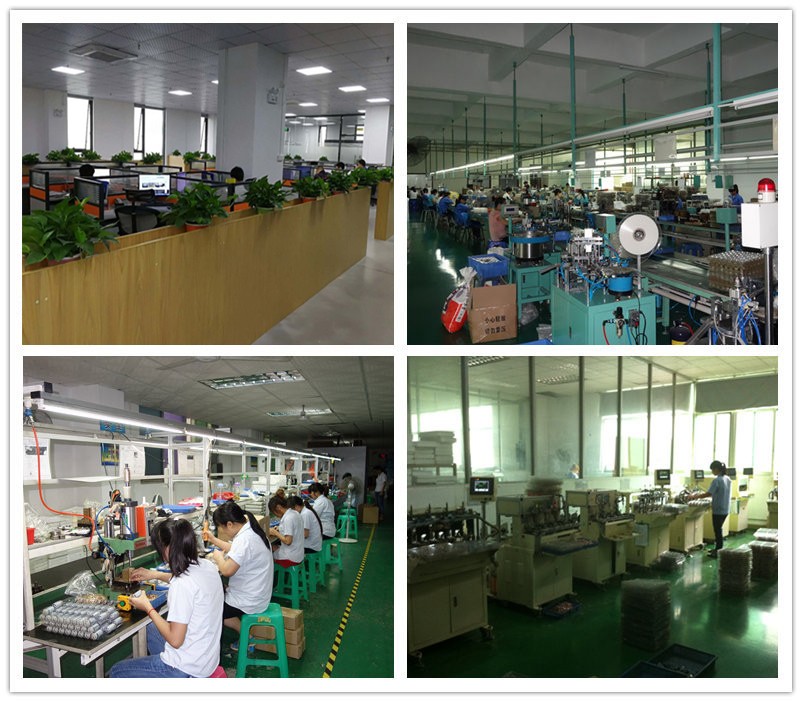

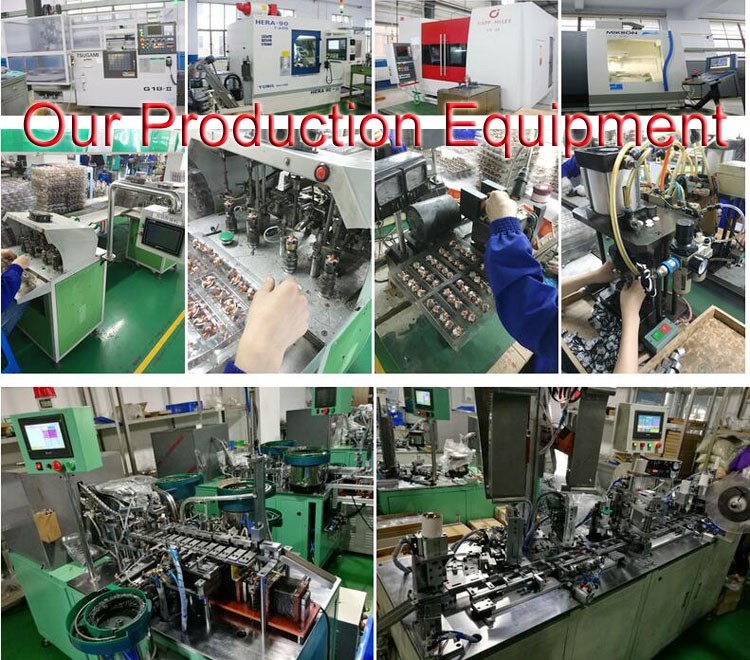

Manufacturing Capabilities & Overview
Established in 2003, commitment has been dedicated to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.
Product Line Scope:
- Main Products: Dia 4~100mm DC Micro Motor, Auto DC motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor, etc.
- Size Range: Diameter 4 - 100mm
- DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V, etc.)
- Speed Range: 1 RPM - 30,000RPM
- Stall Torque: 1g.cm - 30kg.cm
- Applications: Home appliances, Power Tools, Toys & Models, Precision Instruments, Office equipment, Personal care products, Automotive, Audio & Visual equipment, etc.
Frequently Asked Questions
What are the main applications of the N20 micro gear motor?
The N20 mini gear motor is widely used in intelligent devices such as robots, electronic locks, auto shutters, USB fans, currency counters, coin refund devices, towel dispensers, automatic doors, and household appliances.
What voltage options are supported by the micro DC motors?
The micro DC motors support a wide voltage range from 1.5V up to 42V. Standard AC configurations (100V, 110V, 220V, 230V, and 240V) are also supported via rectification.

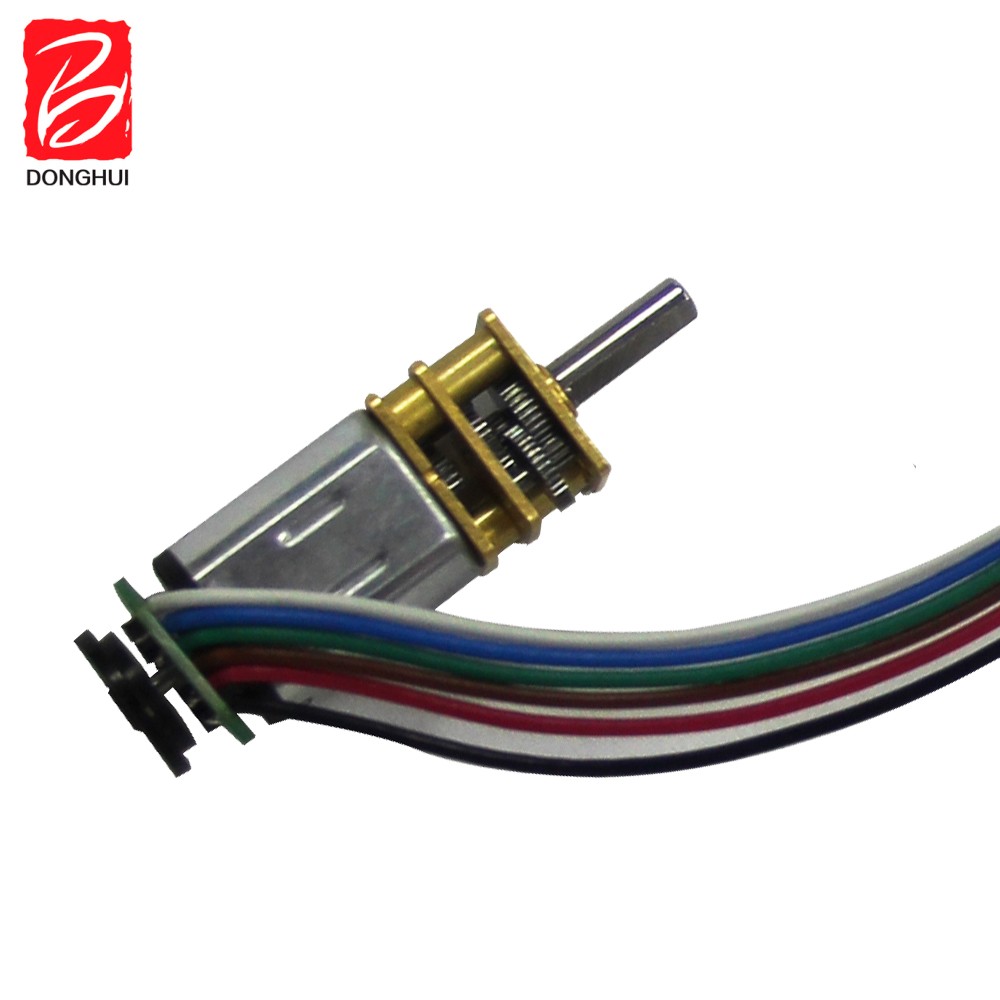

Can these motors be configured with an encoder?
Yes, the micro motors (such as the DGA12-N20 series) can be equipped with an encoder depending on your specific application requirements.
What range of reduction ratios do you offer for gear motors?
We offer a variety of standard reduction ratios, including 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000.
What is the minimum order quantity (MOQ) and sample lead time?
Samples can be provided first for testing. The standard minimum order quantity (MOQ) is 100 pieces, with a general delivery lead time of 15 to 20 days.

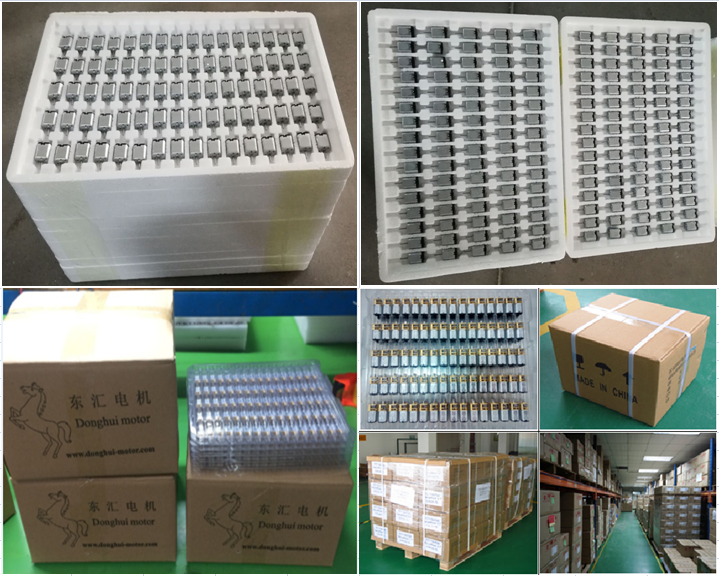

What are the standard packaging details for bulk shipments?
The standard bulk packaging consists of 80 pieces per tray, and 1200 pieces per carton. The standard carton dimension is 11 * 9 * 6.75 inches.
