Zelt Motor

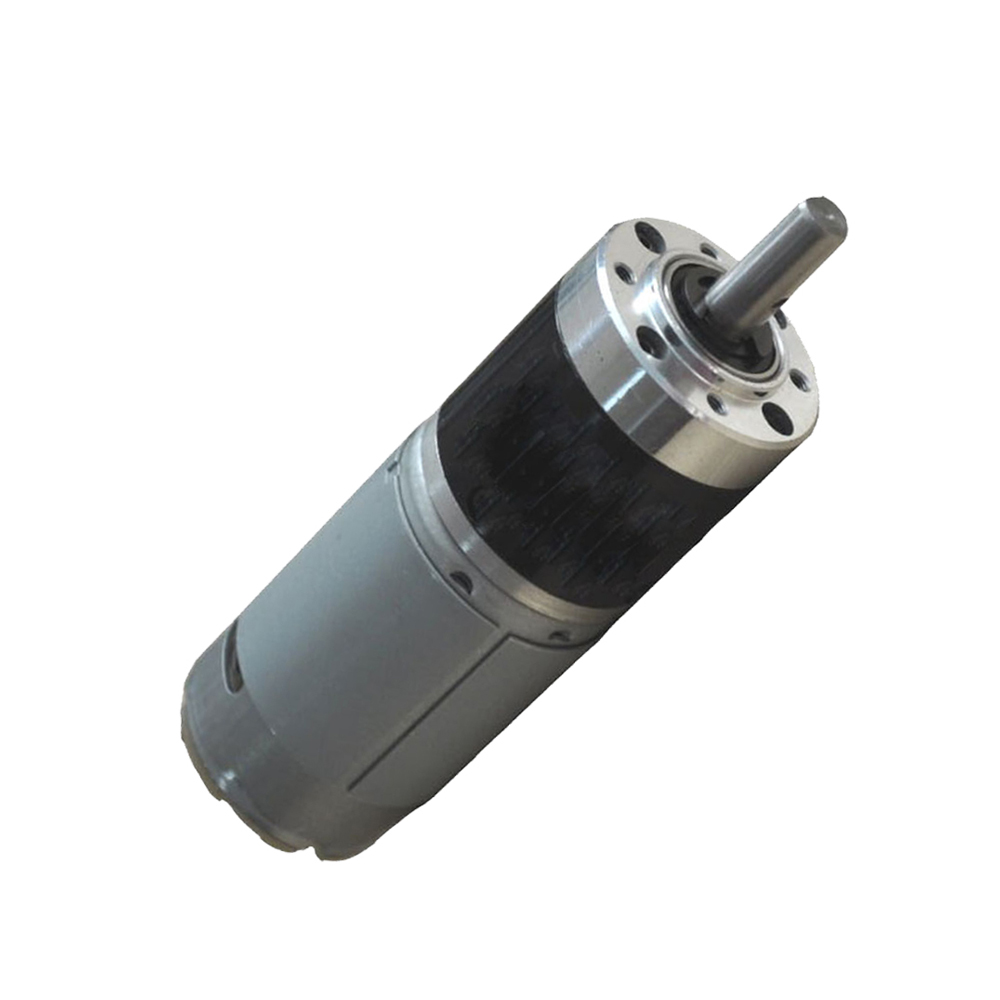

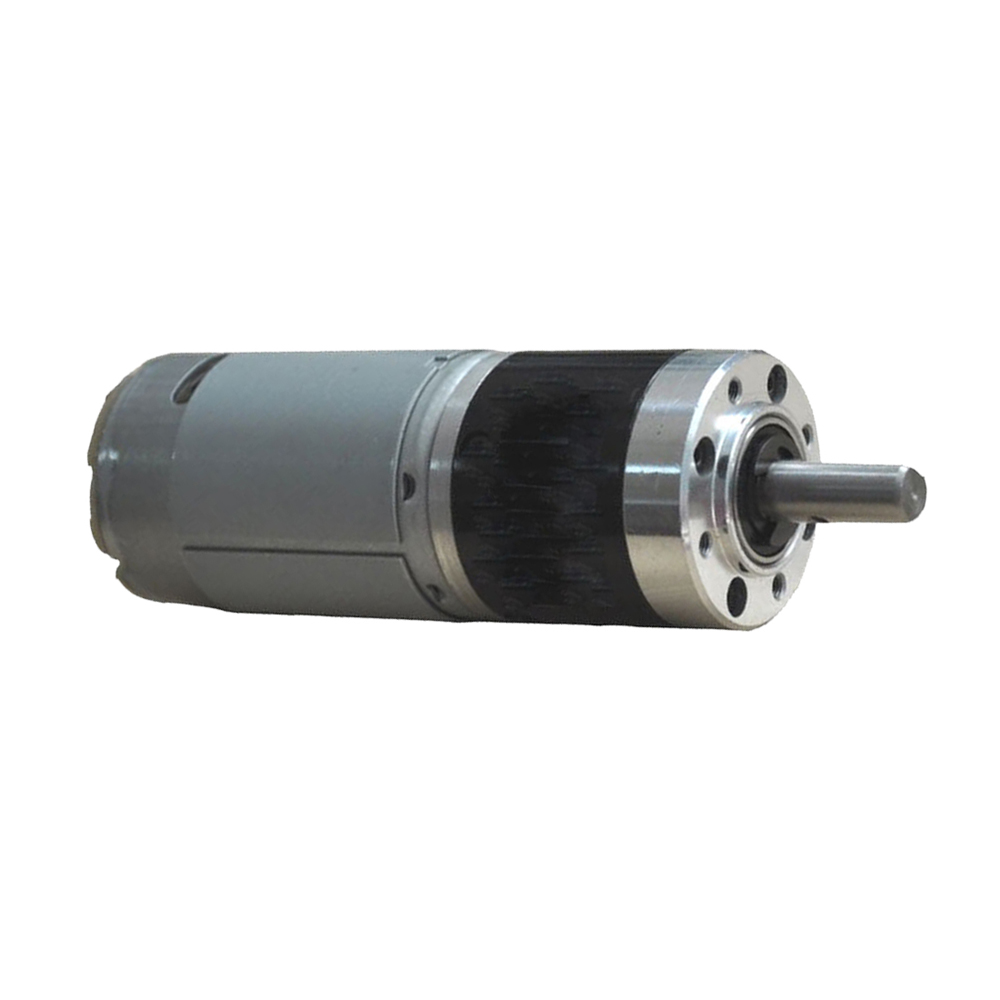

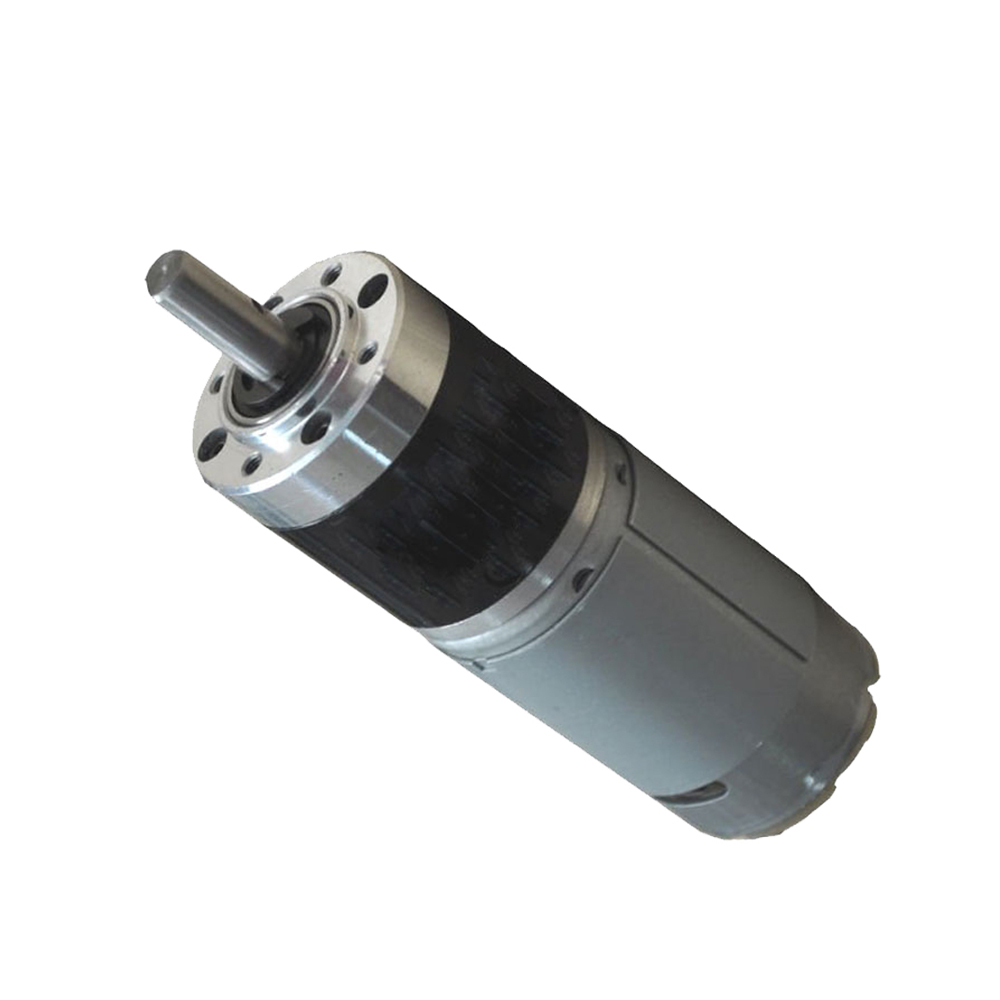

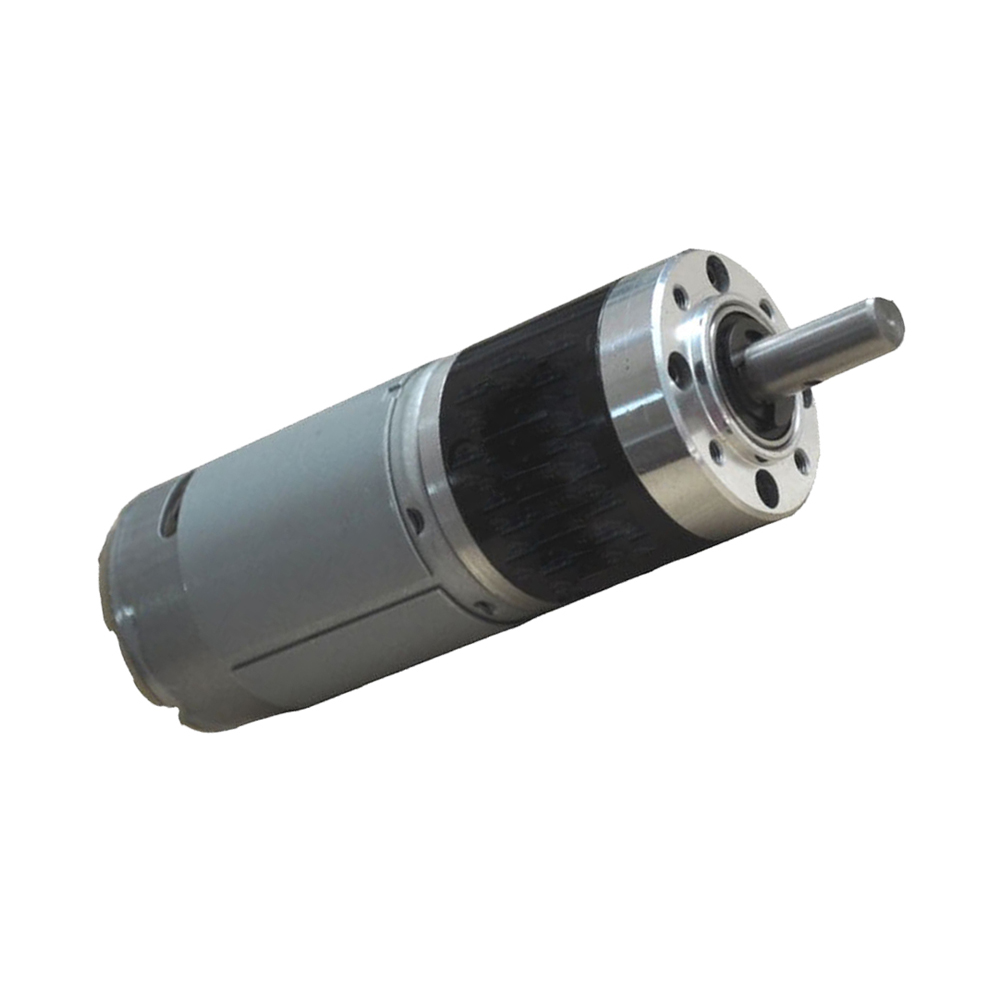

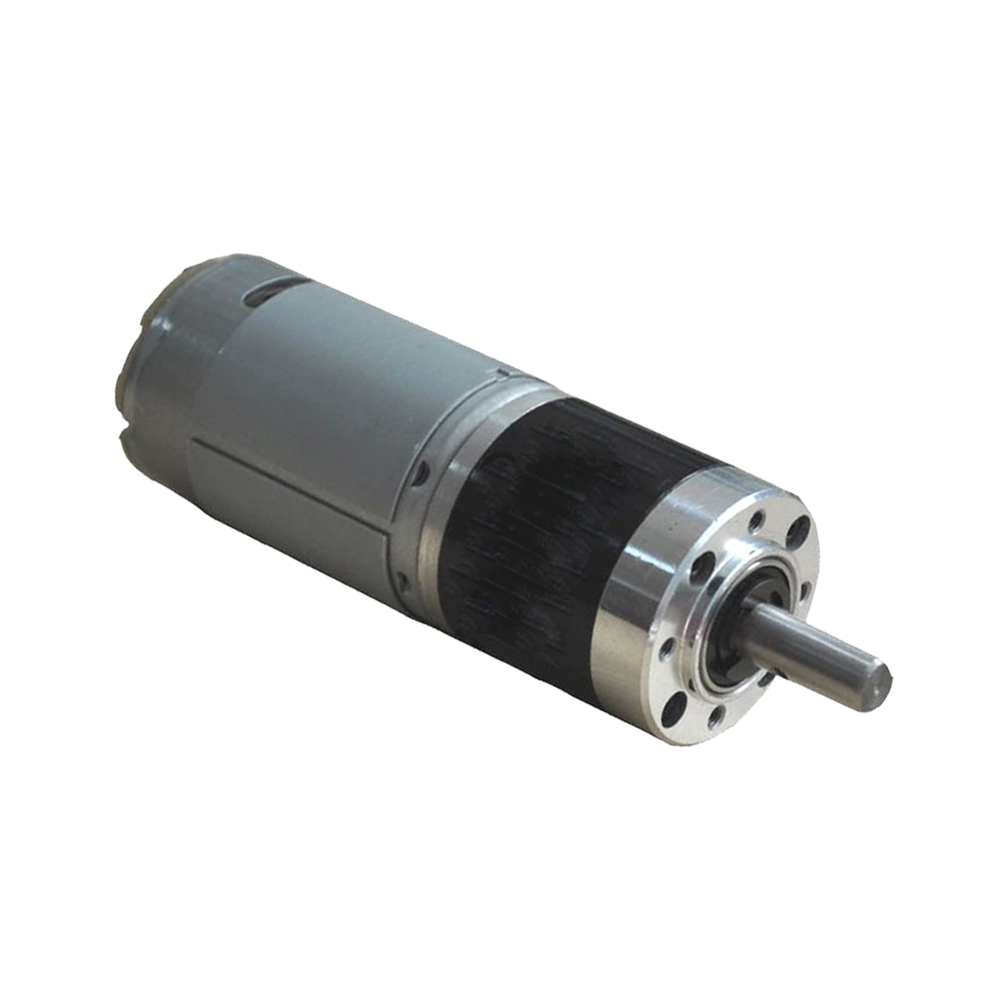

36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
Product Description
12 Volt 150W High Torque DC Gear Motor
- 1. Rated Voltage: DC12V
- 2. Speed No load: 30-50RPM
- 3. 20kg.cm Torque At Max Efficiency
- 4. Precious Metal-brush motors
- 5. Diameter 36mm, length 87mm, shaft 8.0mm
- 6. Weight: 500g Approx
- 7. Output power: 200W
- 8. Application: Robot, Home Appliance, Door Lock etc
- 9. Customized: Adjust performance freely (voltage, speed, torque, etc.)

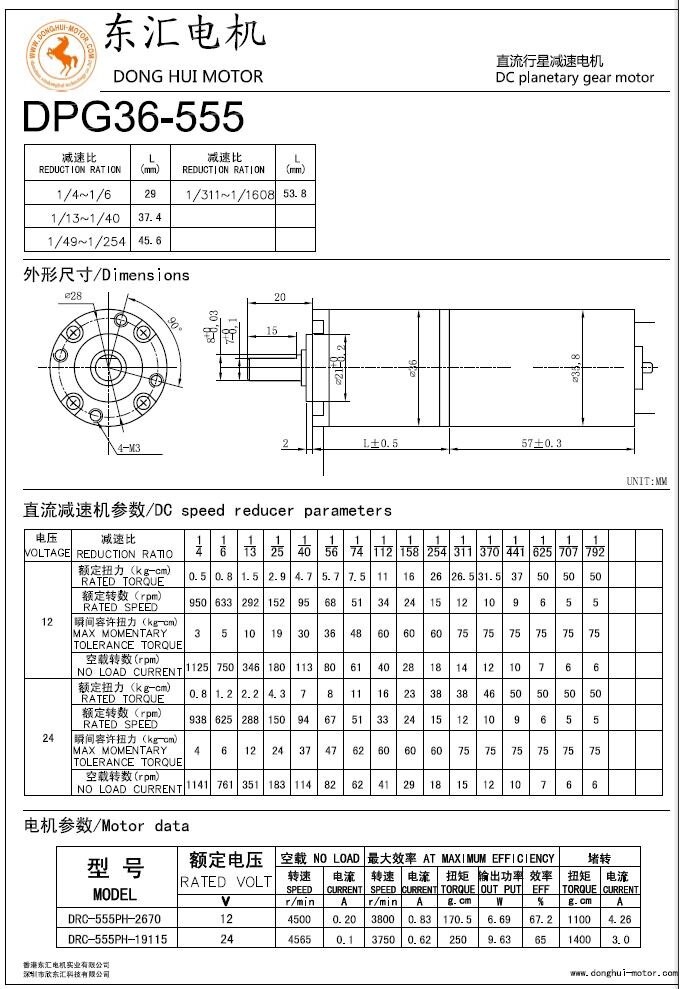

| Parameter | Specification Details |
|---|---|
| Model | Planetary gearbox |
| Reduction ratio | 5 / 14 / 19 / 27 / 51 / 100 / 140 / 188 / 264 / 369 / 516 / 721 |
| Gearbox length | 26.4 - 52.5mm |
| Rated torque | 3 - 30kg |
Founded in 2003, we are a private high-tech enterprise, and mainly engaged in the design, development, production, sale and service of precision DC motors and gear motors. Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras and domestic appliances.
Question 1: What's your main products?
Answer: Dia10~52mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Question 2: What's the main usage of the micro dc gear motor?
Answer: Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipments, payment equipments, vending machines, power door lock, electric door lock.
Question 3: Do you accept customize?
Answer: Sure, as we have a strong design team, any problems will get our technical answer.
Question 4: What kind of data do I need to provide if I want to order?
Answer: Please kindly tell us your voltage, speed, torque and overall dimension.
Question 5: What if I don't know the above data?
Answer: Please contact our team to handle, we'll answer your questions patiently.
