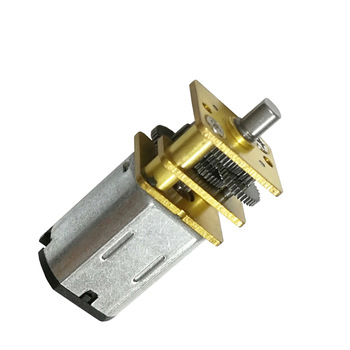

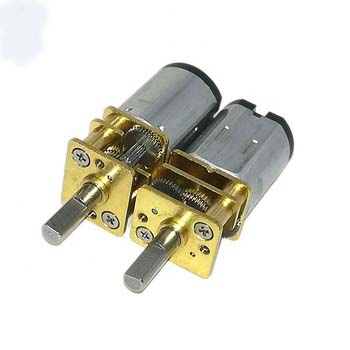

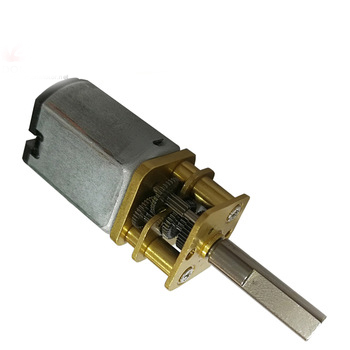

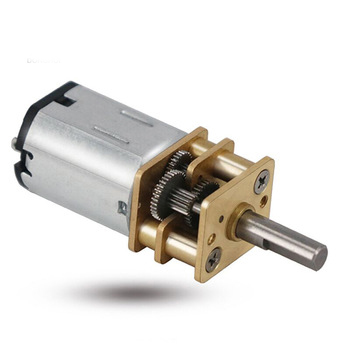

N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
Product Description
Product Description - Quick Details
Place of Origin:
Guangdong, China (Mainland)
Model Number:
DGA12-N20
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:
ROHS, ISO
Type:
Micro Motor
Torque:
300 G.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
56 RPM
Continuous Current(A):
0.12A
Output Power:
0.3 W
Voltage(V):
3 v
Efficiency:
IE 1
Shaft:
Dia 2.0mm
Weight:
10g
no load speed:
71 rpm
max efficiency:
68.3%
Brush:
Carbon brushes
Style:
12mm gear motor
Packaging & Shipping
Packaging Details
80PCS/TRAY, 1200PCS/CTN, CARTON DIMENSION: 11*9*6.75 INCH
Delivery Detail
Within 25 days
Our Services
N20 12mm geared motor 3v 60 rpm, 12mm gear motor dc motor for door lock, 12mm dc gear motor with Encoder

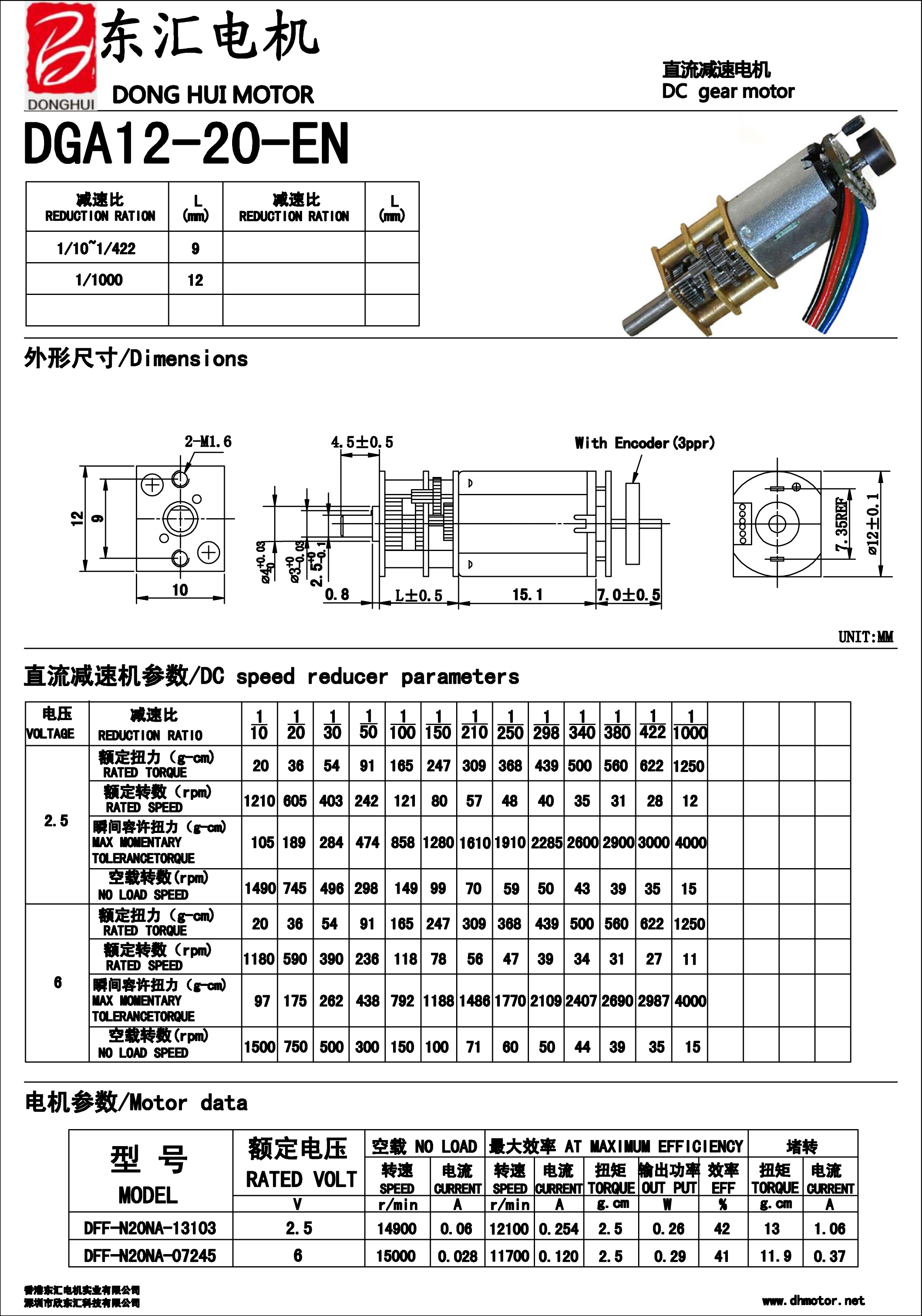

Specifications:
Gear Motor, DGA12-N20
- Rated Voltage: 1.5-12V
- Speed: 10-2000RPM
- Can be equipped with encoder
- Widely used in robot, lock
12mm small dc gear motor 12v:
- Widely used in robot, lock, Auto shutter, USB fan, Slot machine, Money detector, Coin refund devices, Currency count machine, Towel dispensers, Automatic doors, Peritoneal machine, Automatic TV rack, Office equipment, Household appliances, Automatic
- Electric motor, Low noise, low current and no spark
- Reduction Ratio: 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000
- Size: 12.0*24.0*10.0mm, just 24mm length micro motor
- We can offer the samples first, the MOQ is 100 pieces, and the delivery time is 15-20 days.

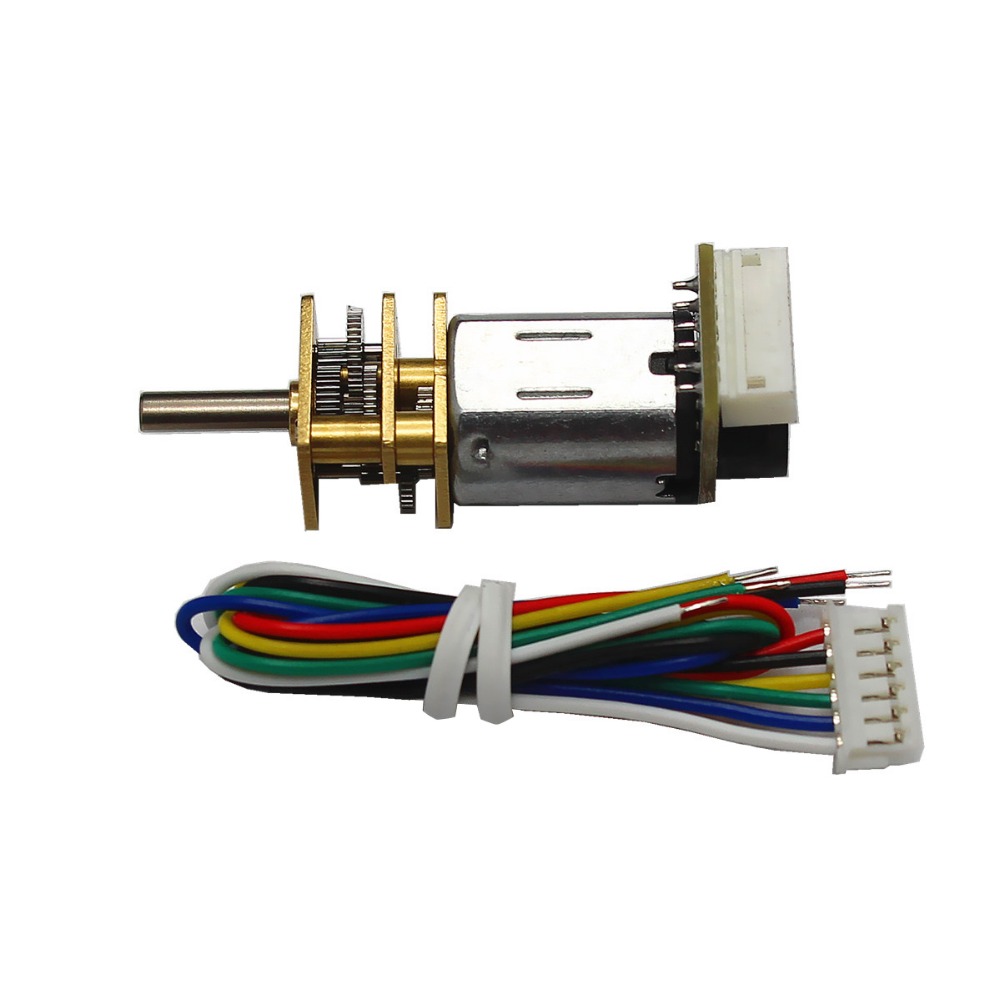

Photo: 12mm gear motor dc motor for door lock, 12mm dc gear motor with Encoder
Company Information
Since established in 2003, commitment to the development and production of micro motors has driven four major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliances, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More:
- Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products size range: Diameter: 4-100mm
- DC Voltage range: 1.5V - 42V
- AC rectify: 100V, 110V, 220V, 230V, 240V etc.
- Speed range: 1 RPM - 30,000RPM
- Stall torque: 1g.cm - 30kg.cm
- Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
1
What are the primary applications of the DGA12-N20 micro gear motor?
This motor is widely used in robots, smart locks, auto shutters, USB fans, slot machines, money detectors, automatic doors, office automation equipment, household appliances, and various other automatic systems.
2
What is the voltage range and typical speed configurations for this motor?
The DGA12-N20 has a rated voltage range of 1.5V to 12V DC (commonly operated at 3V). It supports a speed range from 10 RPM to 2000 RPM, with specific standard rated speeds like 56 RPM and a no-load speed of 71 RPM.
3
Does the DGA12-N20 motor support encoder configuration?
Yes, this 12mm DC gear motor can be equipped with an encoder for precise feedback and control in automated systems.
4
What are the dimensions and physical specifications of the gear motor?
The micro gear motor features a compact size of 12.0mm x 24.0mm x 10.0mm (with a 24mm length), a shaft diameter of 2.0mm, and a light weight of approximately 10g.
5
What is the Minimum Order Quantity (MOQ) and lead time?
The standard Minimum Order Quantity (MOQ) is 100 pieces. Sample delivery and initial production typically ship within 15 to 20 days.
6
What reduction ratios are available for this model?
Available reduction ratios include 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000, allowing customization for different speed and torque needs.
