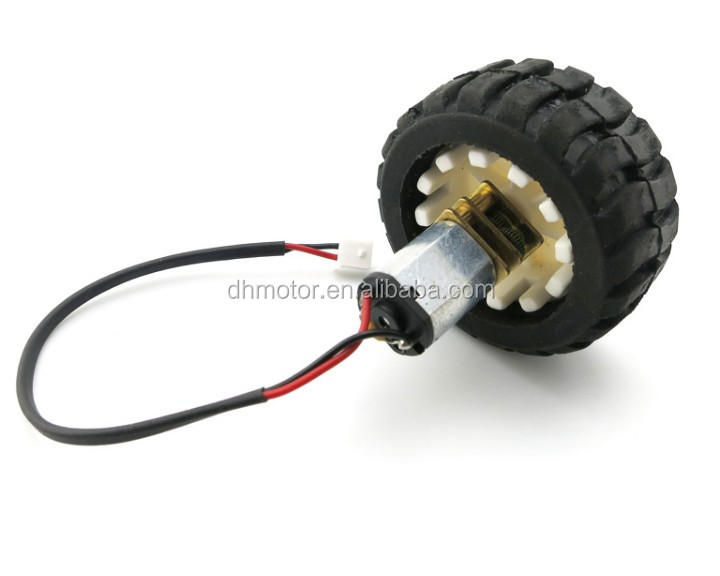

12mm 45/75 RPM 2.5v 3v 4.5v 6v 7.5v 12v DC Micro Gear Motor with Wheel for Toy Car DGA12-N20
Product Description

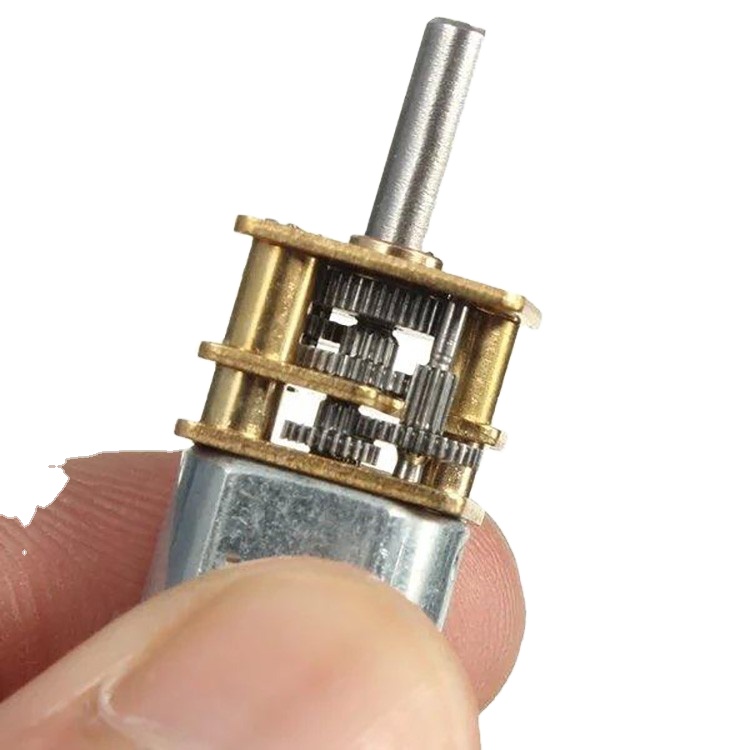

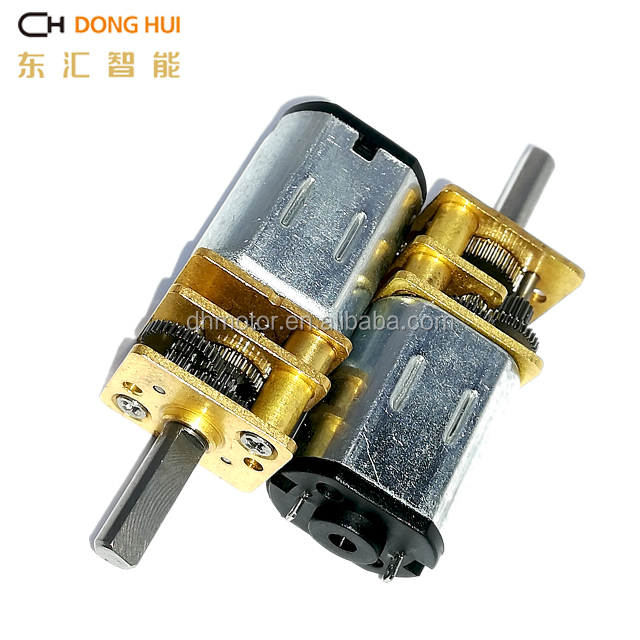

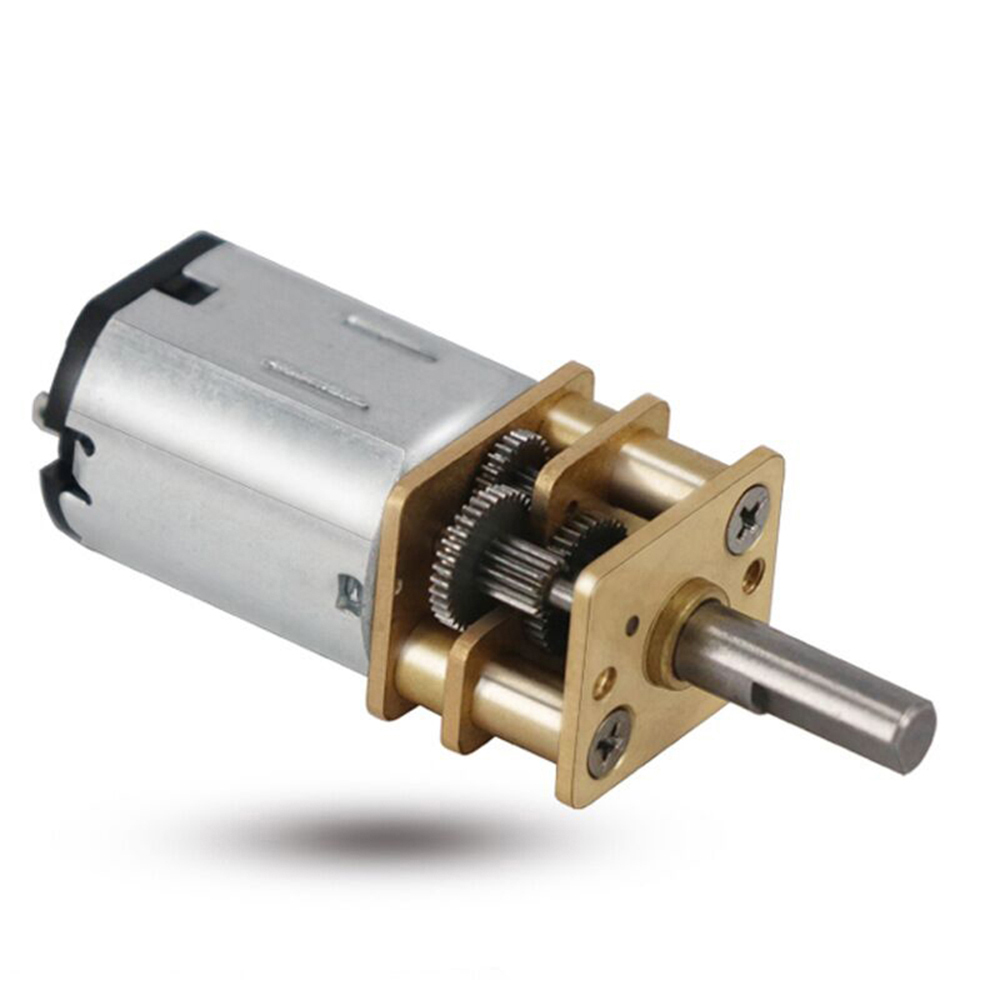

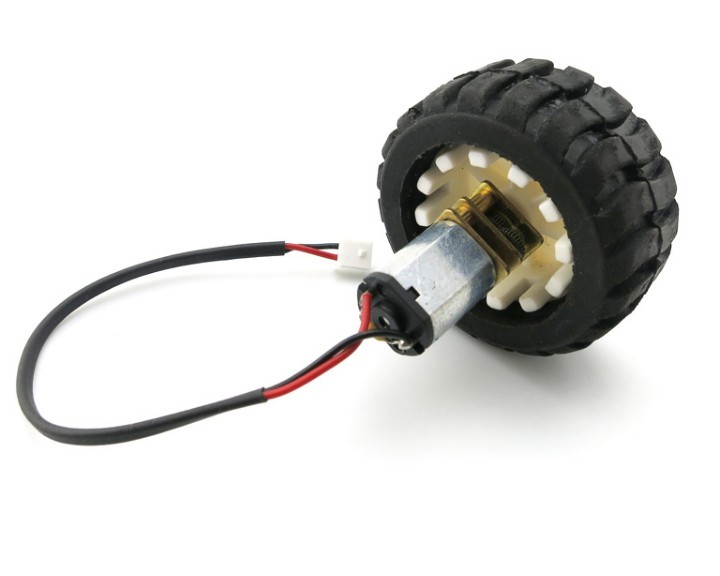

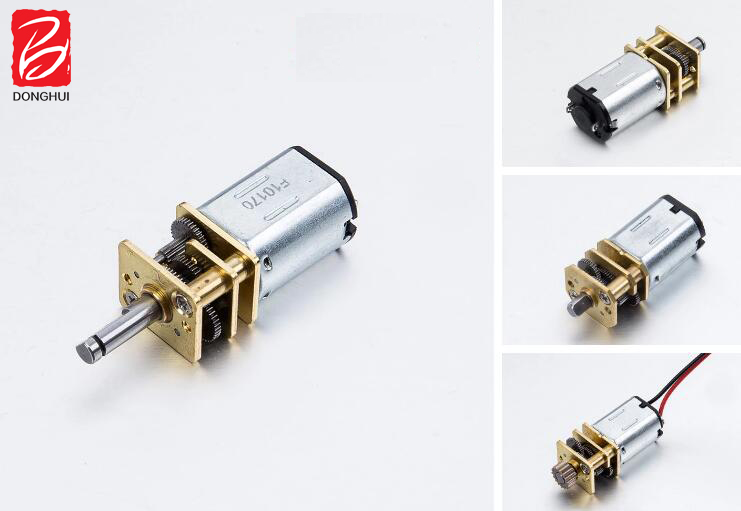

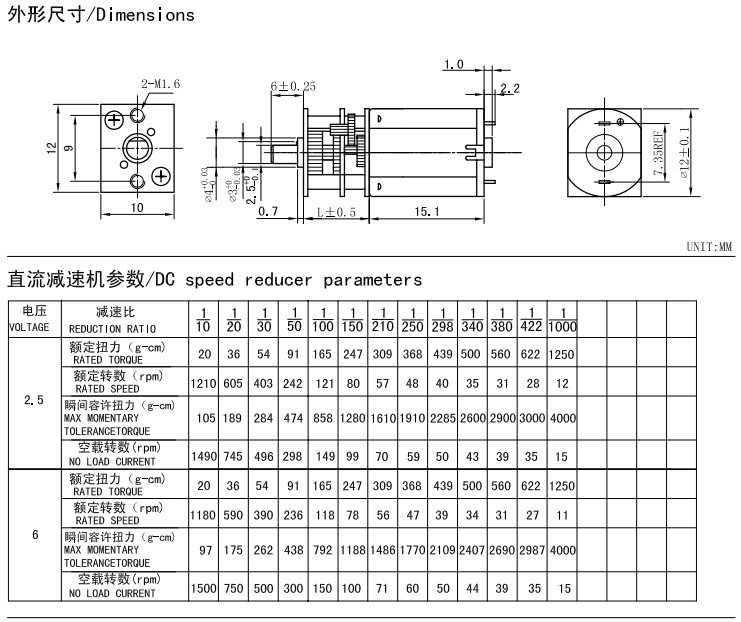

N20 GEAR MOTOR
Note: The voltage, speed, torque, current, shaft length can be adjustable for your request
Size: 12mm diameter, 24mm length
Motor Type: DC Brush Motor
Application: Personal care, Home application, Power tool, Business equipment, Medical equipment
| Product Name | DC GEAR MOTOR N20 |
| Rated Voltage | 3.0~12.0V |
| On Load Speed | 10~2000rpm |
| On Load Current | 0.02A~0.06A |
| Stall Torque | 50~5000g.cm |
| Stall Current | 3.5A Max |
| Life Span | 500hours Max |

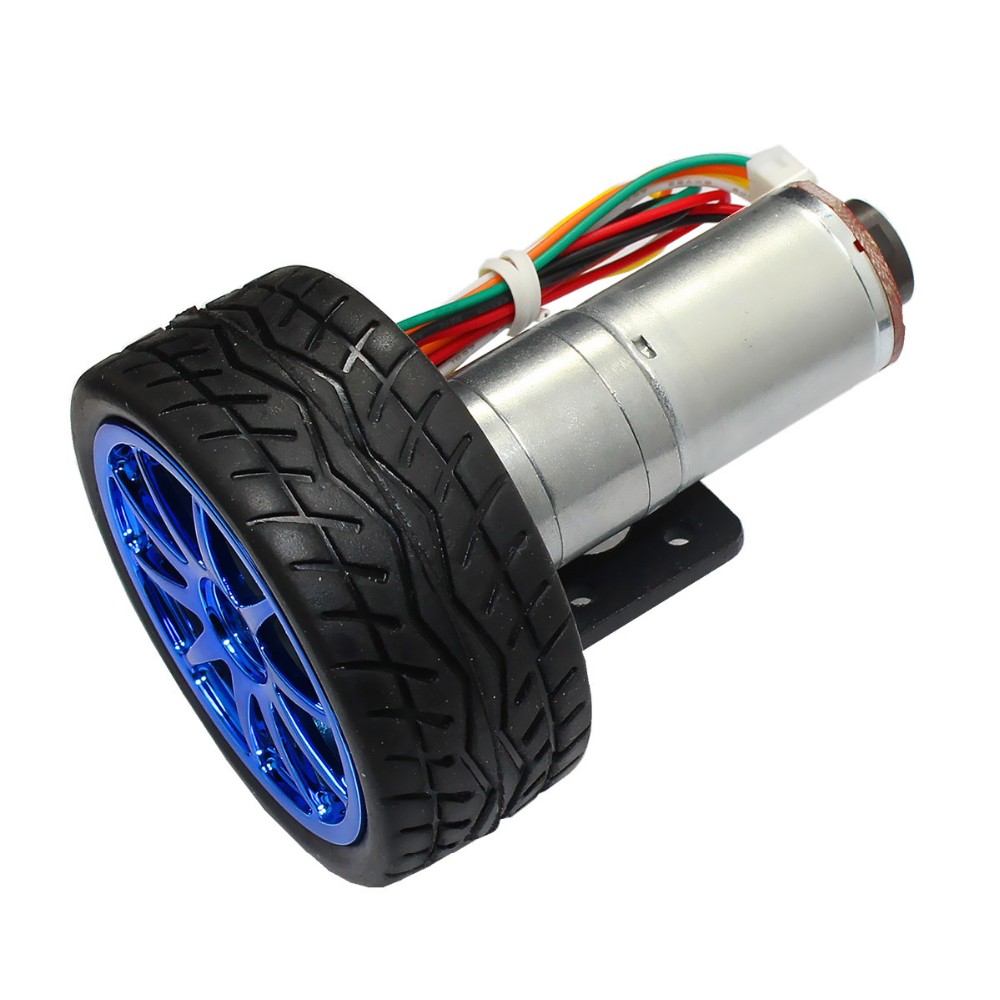

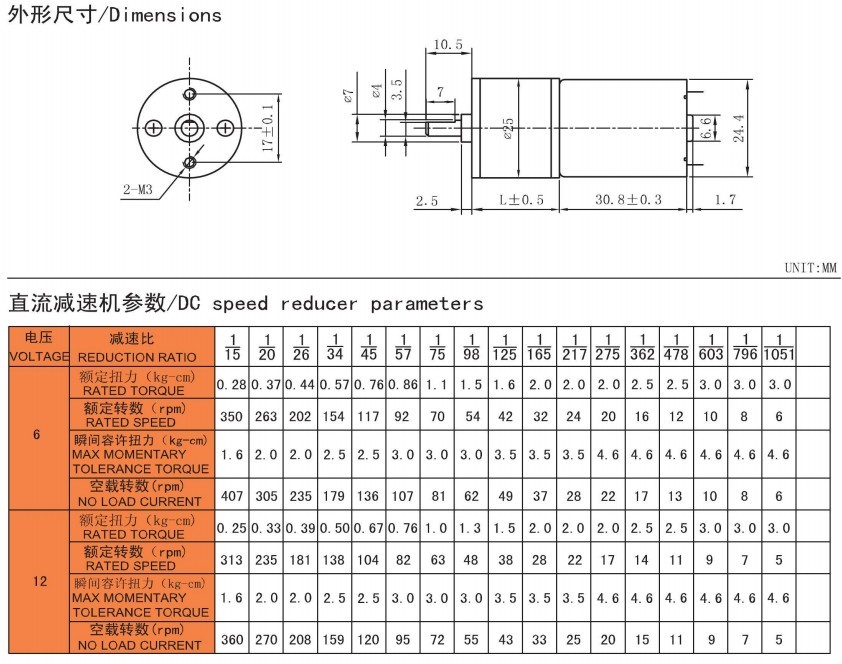

DGA25-370 GEAR MOTOR
Note: The voltage, speed, torque, current, shaft length can be adjustable for your request
Size: 24mm diameter, 39mm length
Motor Type: DC Brush Motor
Application: Personal care, Home application, Power tool, Business equipment, Medical equipment
| Product Name | DGA25-370 GEAR MOTOR |
| Rated Voltage | 3.0~24v |
| On Load Speed | 5000rpm |
| On Load Current | 0.6A |
| Stall Torque | 440g.cm |
| Stall Current | 3.5A |
| Life Span | 2000 hours |
Rated Products
Our Company
Founded in 2001, we are a private high-tech enterprise, and mainly engaged in the design, development, production, sale and service of precision DC motors and gear motors.
Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras and domestic appliances.
Our ADVANTAGES:
- 20 years experience to produce dc motor and dc gear motor.
- Military enterprise as quality assurance, gears from Military enterprise.
- Strong Production and R & D Ability.
- 14 Years Export Experience in Germany, Japan and USA.
Certifications
FAQ
Q1 What's your main products?
Dia10~52mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Q2 What's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipments, payment equipments, vending machines, power door lock, electric door lock.
Q3 Do you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
Q4 What kind of data do i neet to provide if i want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
Q5 What if i don't know the above data?
Please contact our representative to handle, we'll answer your questions patiently.
