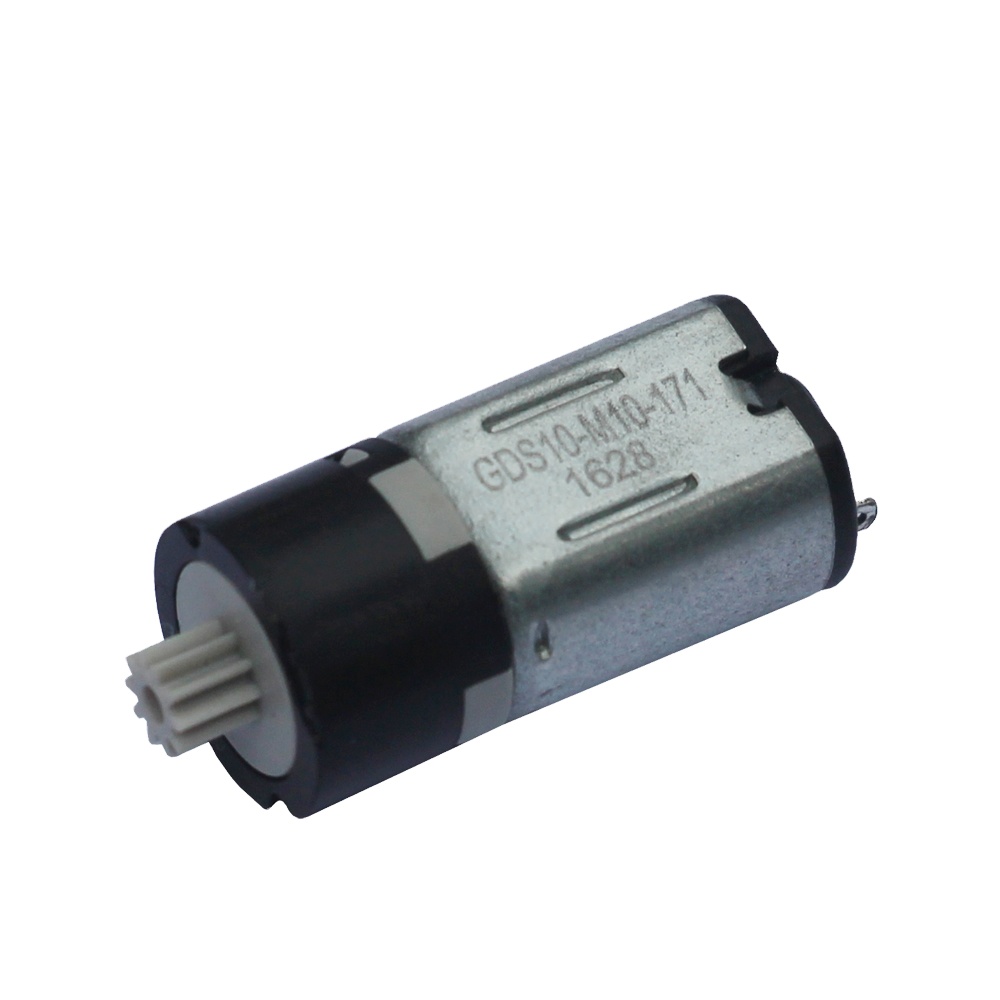

1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
Product Description
Product Description
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Model Number:
DH-M1012GA171
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:
ROHS, ISO
Type:
gear Motor
Torque:
165 G.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
40 RPM
Continuous Current(A):
0.12A
Output Power:
0.2 W
Voltage(V):
1.5 v
Efficiency:
IE 1
Shaft:
customized
Weight:
8g
no load speed:
45 rpm
max efficiency:
68.3%
Brush:
brushes
Style:
10mm dc gear motor
Packaging & Shipping
Packaging Details:
1000PCS/CTN, standard export packing.
Delivery Detail:
Within 25 days
Our Services
dc motor, dc gear motor, dc brushless motor

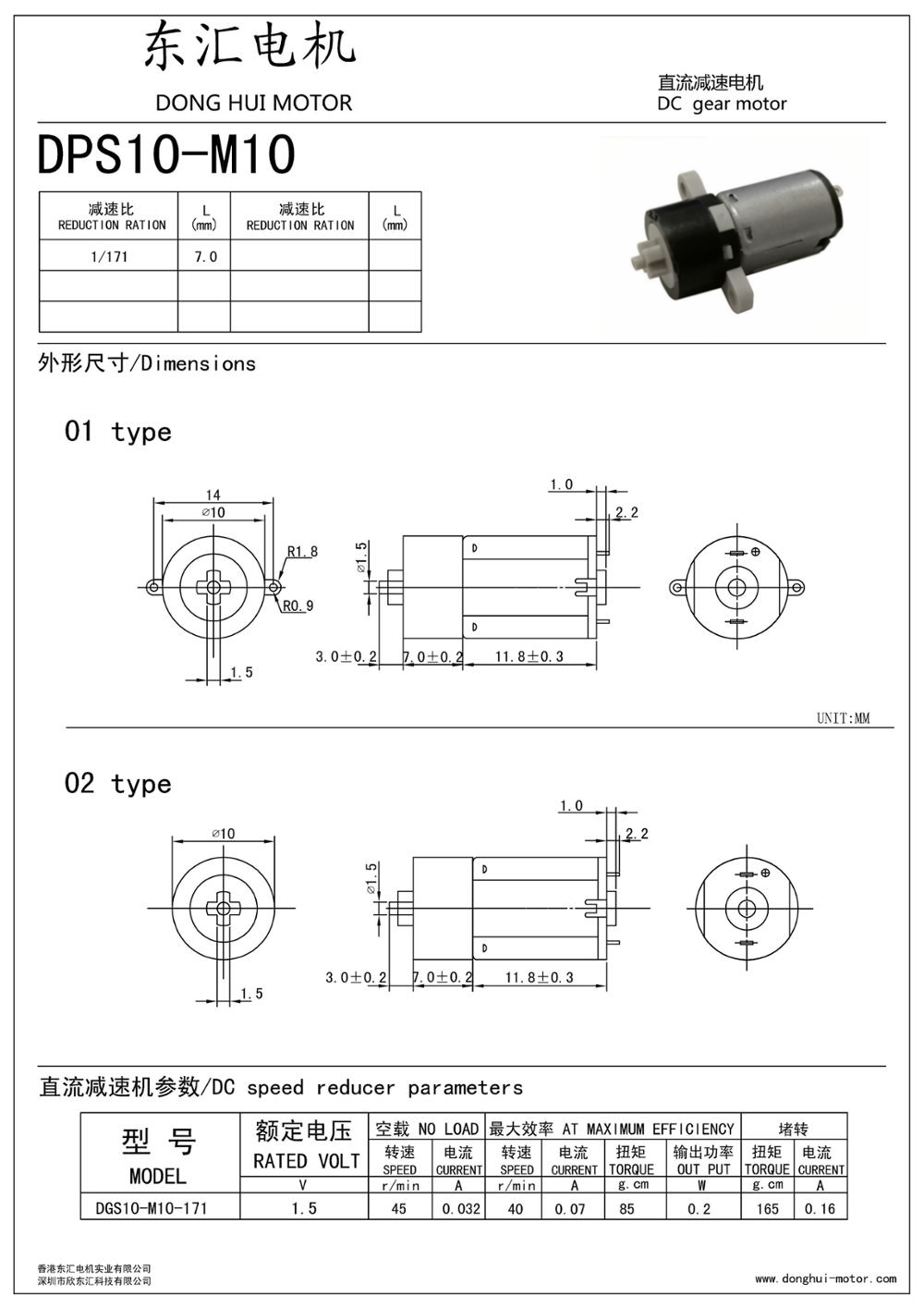

Specifications:
DH-M1012GA171 1.5v dc low rpm motor mini dc motor 10mm plastic gear motor
- Voltage: 1.5-24v
- Speed: 30-50rpm, Torque : 10-40g.cm
- 10mm diameter plastic gearbox
- ROHS
- Quiet, Long lifespan
Micro 1.5v 3v 10mm mini dc gear motor 10mm dc planetary gear motor
- 1. Applications: Audio and visual products, high-end toys, personal health care products and security equipment, massager, robot, mascara, camera
- 2. Operating Environment: -10~+60°C; 15~90%RH
- 3. Characteristics:
Note: It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized.

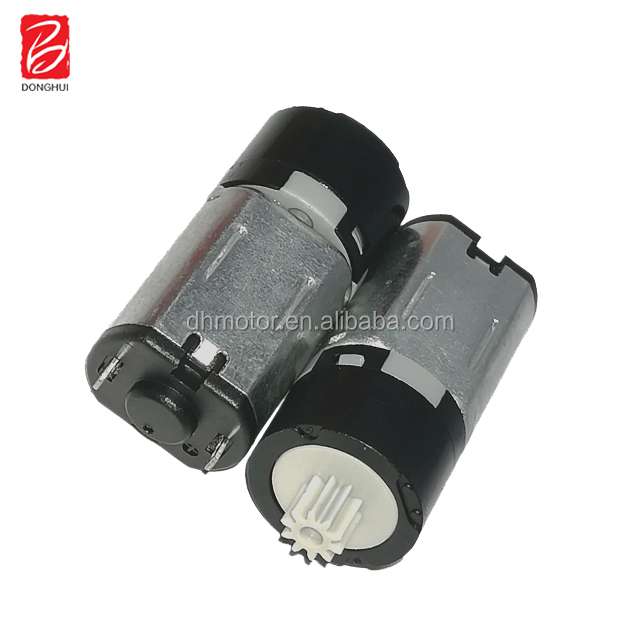

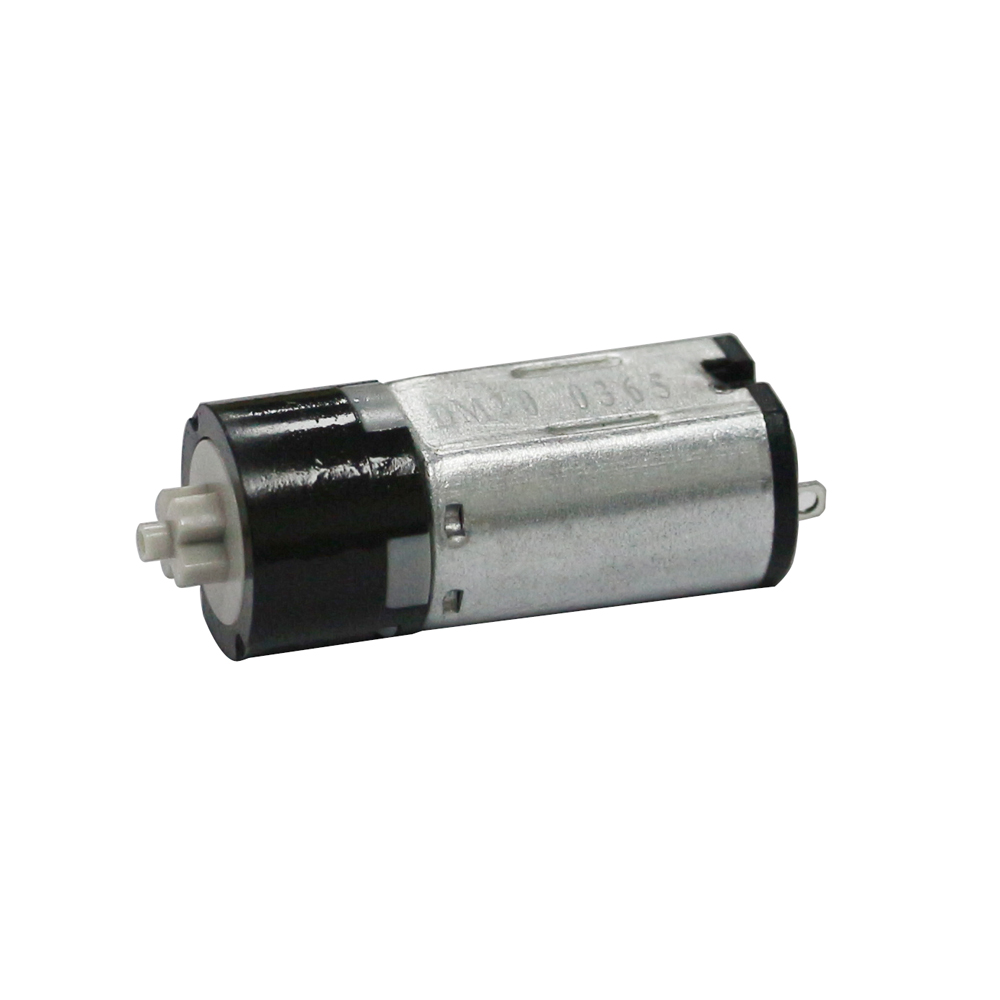

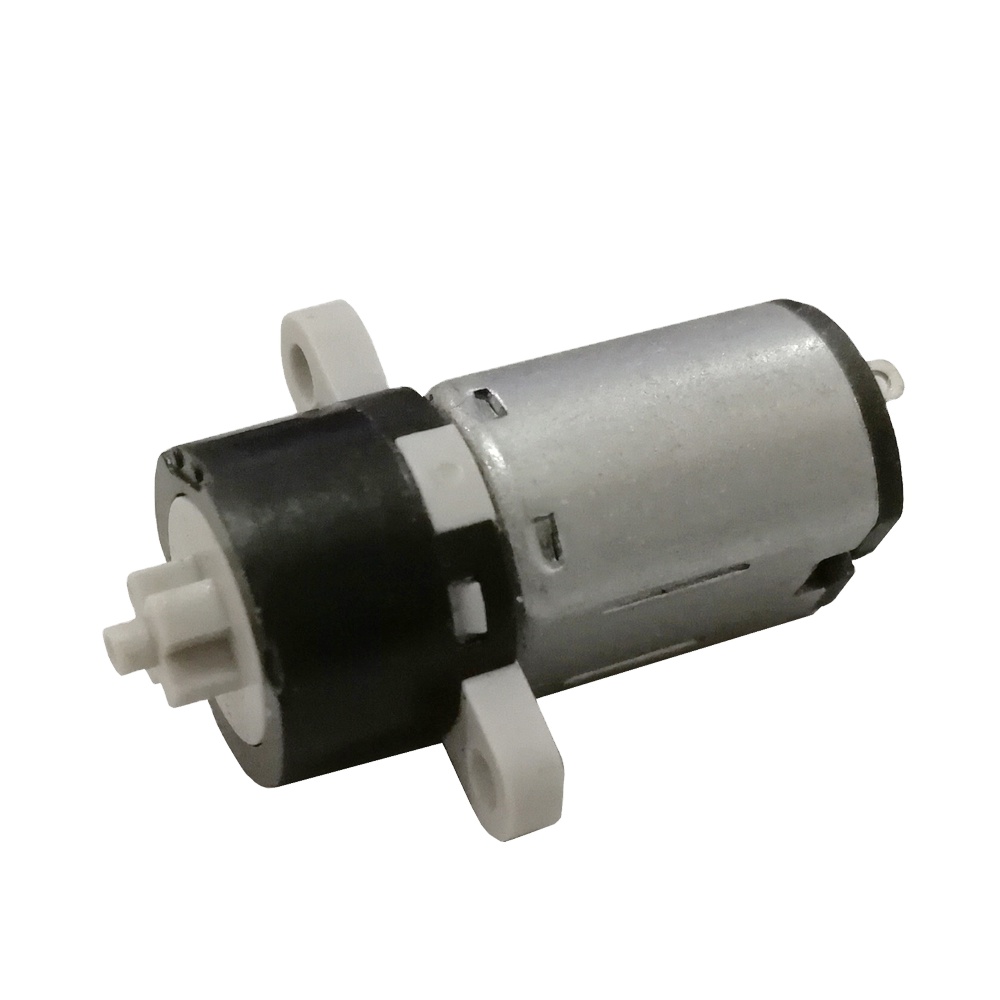

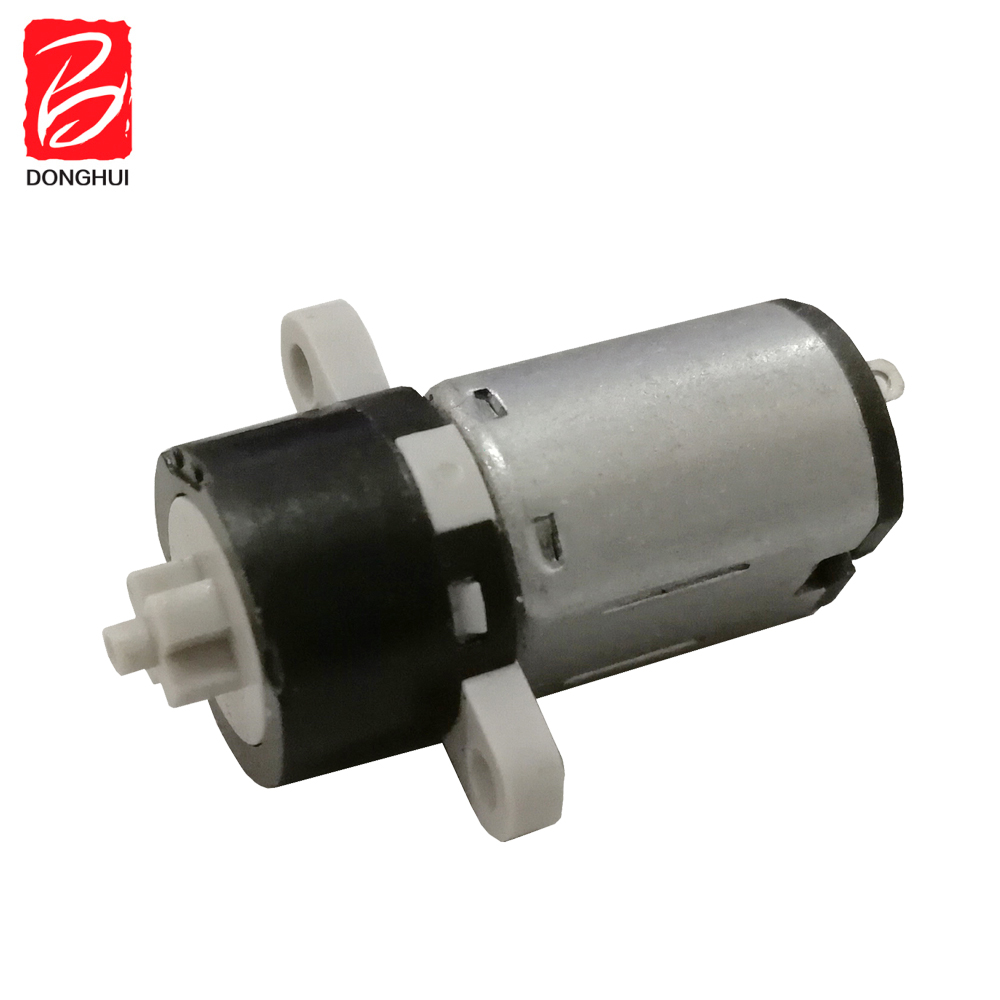

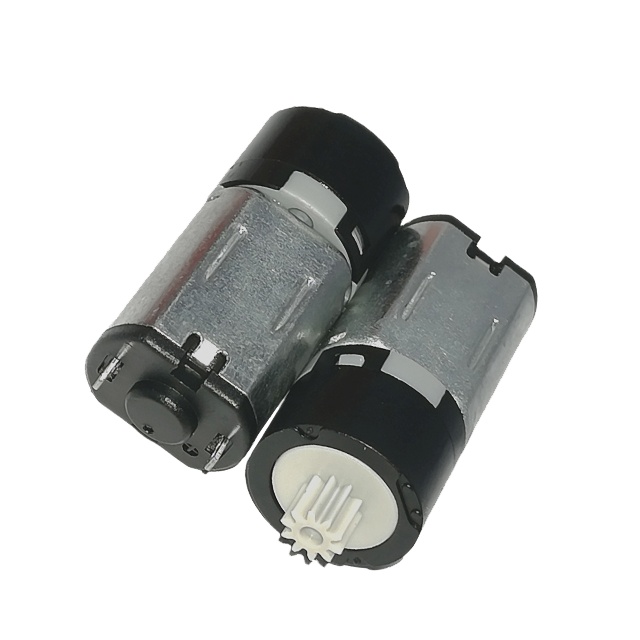

Photo:
1.5v 10mm mini dc motor
Company Information
Since established in 2003, there has been a commitment to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:
- 1. Our main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- 2. Products size range: Diameter: 4-100mm
- 3. DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- 4. Speed range: 1 RPM-30,000RPM
- 5. Stall torque: 1g.cm-30kg.cm
- 6. Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio& Visual equipment etc.
Frequently Asked Questions (FAQ)
What is the operating voltage range of this micro gear motor?
The standard voltage is 1.5V, but it can operate within a range of 1.5V to 24V DC depending on customization configurations.
Can specifications like speed, torque, and shaft dimensions be customized?
Yes, specifications such as voltage, speed, torque, and the shaft can be fully customized to meet your specific applications and needs.
What are the primary applications of this 10mm plastic gear motor?
It is widely used in audio and visual products, high-end toys, personal health care products, security equipment, massagers, robots, mascara applicators, and cameras.
What certifications does the product hold?
The motors are ROHS and ISO certified, ensuring high-quality standards and environmental safety.
What is the typical delivery timeframe and packaging size?
Orders are typically delivered within 25 days. The standard export packaging size is 1000 pieces per carton (1000PCS/CTN).
