24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
Product Description
Product Description
Quick Details
| Place of Origin: | Guangdong, China (Mainland) | Model Number: | DGA24-N20 |
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Certification: | ROHS, ISO |
| Type: | Micro Motor | Torque: | 100-3500 G.cm |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Drip-proof | Speed(RPM): | 6-1000 RPM |
| Continuous Current(A): | 0.12A | Output Power: | 1-5 W |
| Voltage(V): | 1.5-12 v | Efficiency: | IE 1 |
| Shaft: | Dia 2.0mm | Weight: | 10g |
| no load speed: | 100 rpm | max efficiency: | 68.3% |
| Application: | electric lock, robot | Brush: | metal brushes |
| Style: | 24mm dc gear motor | ||
Packaging & Shipping
| Packaging Details: | 80PCS/TRAY, 1200PCS/CTN, CARTON DIMENSION: 11*9*6.75 INCH |
| Delivery Detail: | Within 25 days |
Our Services

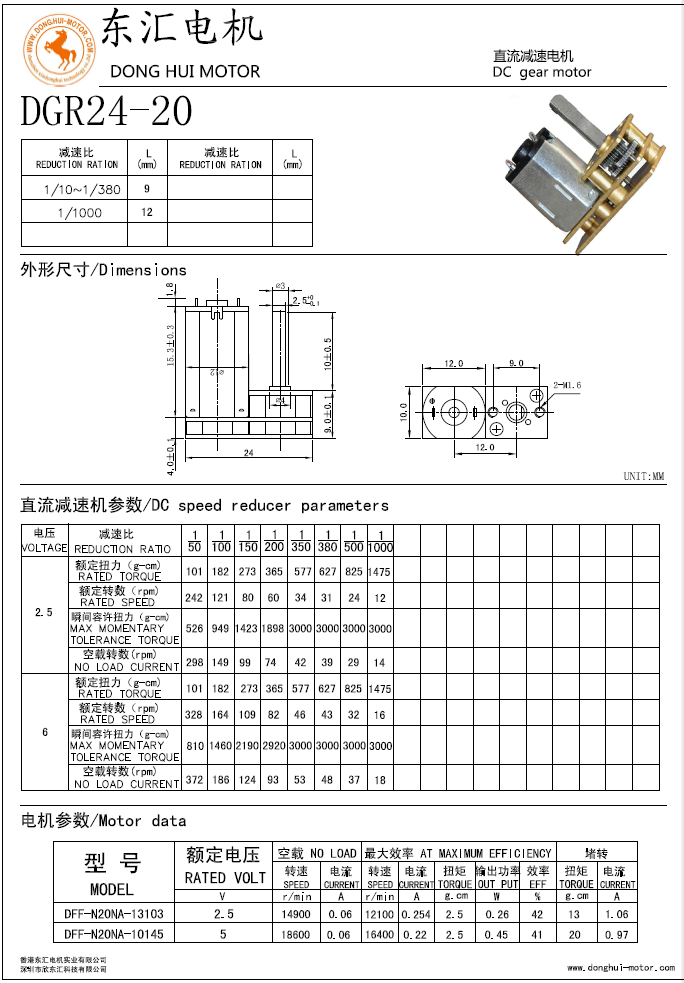

Specifications:
24mm gm24 dc gear motor, GM24-N20 gear motor right angle gear motor 90 degree
DC Gear Motor, DGA24-N20/N30
- 1.Rated Voltage: 1.5-12V,
- 2.Speed: 10-2000RPM
- 3.Can be equipped with encoder
- 4.Widely used in robot, lock
GM24-N20 gear motor right angle gear motor 90 degree dc gear motor
- 1.Widely used in robot, lock, Auto shutter, USB fan, Slot machine, Money detector, Coin refund devices, Currency count machine, Towel dispensers, Automatic doors, Peritoneal machine, Automatic TV rack, Office equipment, Household appliances, Automatic
- 2.electric motor, Low noise, low current and no spark
- 3.Reduction Ratio: 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000
- 4.size: 12.0*24.0*10.0mm, just 24mm length micro motor
- 5.We can offer the samples first, the MOQ is 100 pieces, and the delivery time is 15-20 days.
Photo:

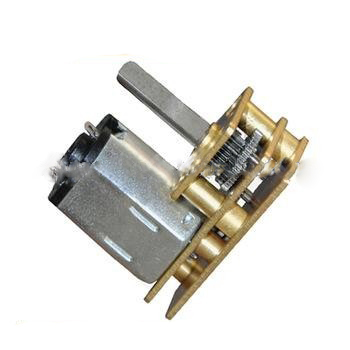

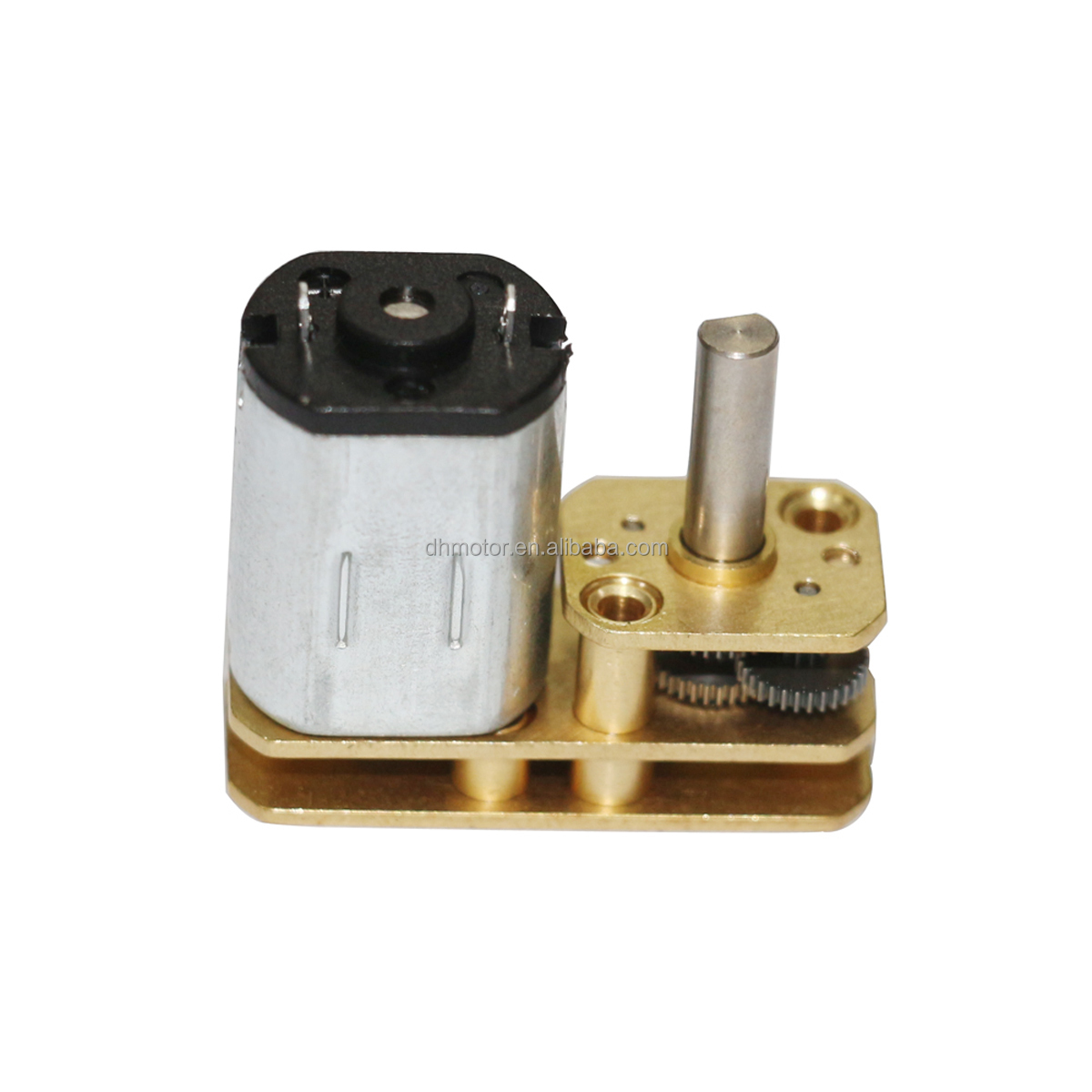

GM24-N20 gear motor right angle gear motor

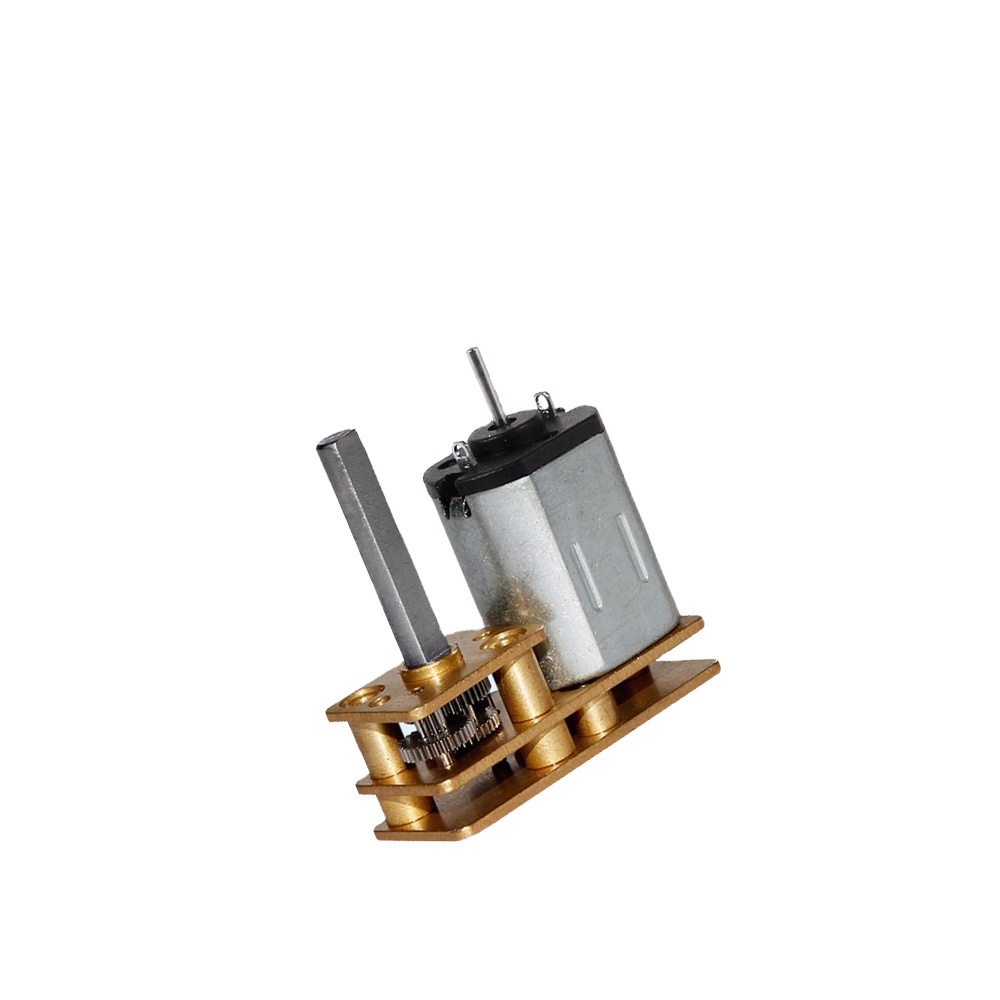

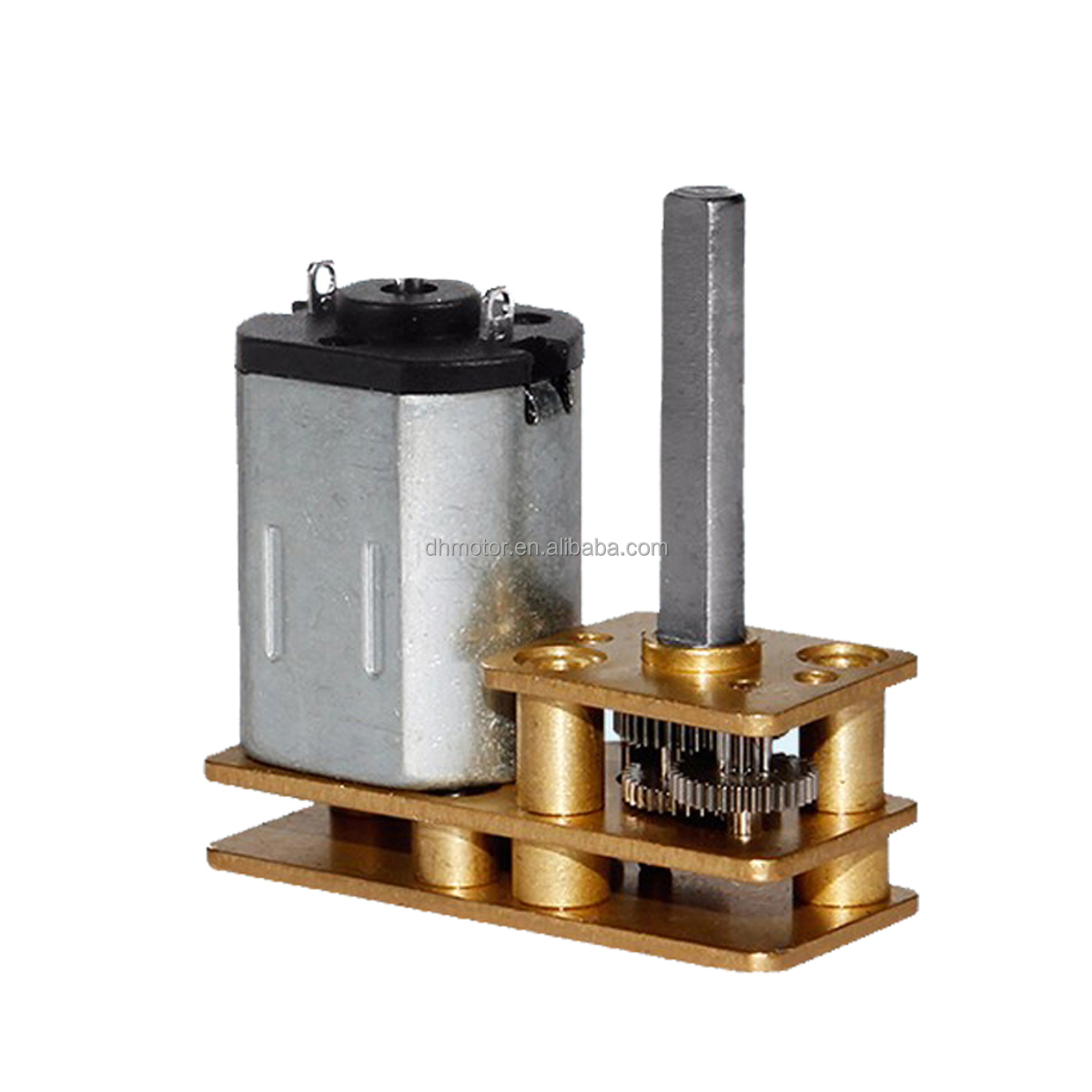

24mm micro dc brush gear motor
Company Information
Since established in 2003, there has been a commitment to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:

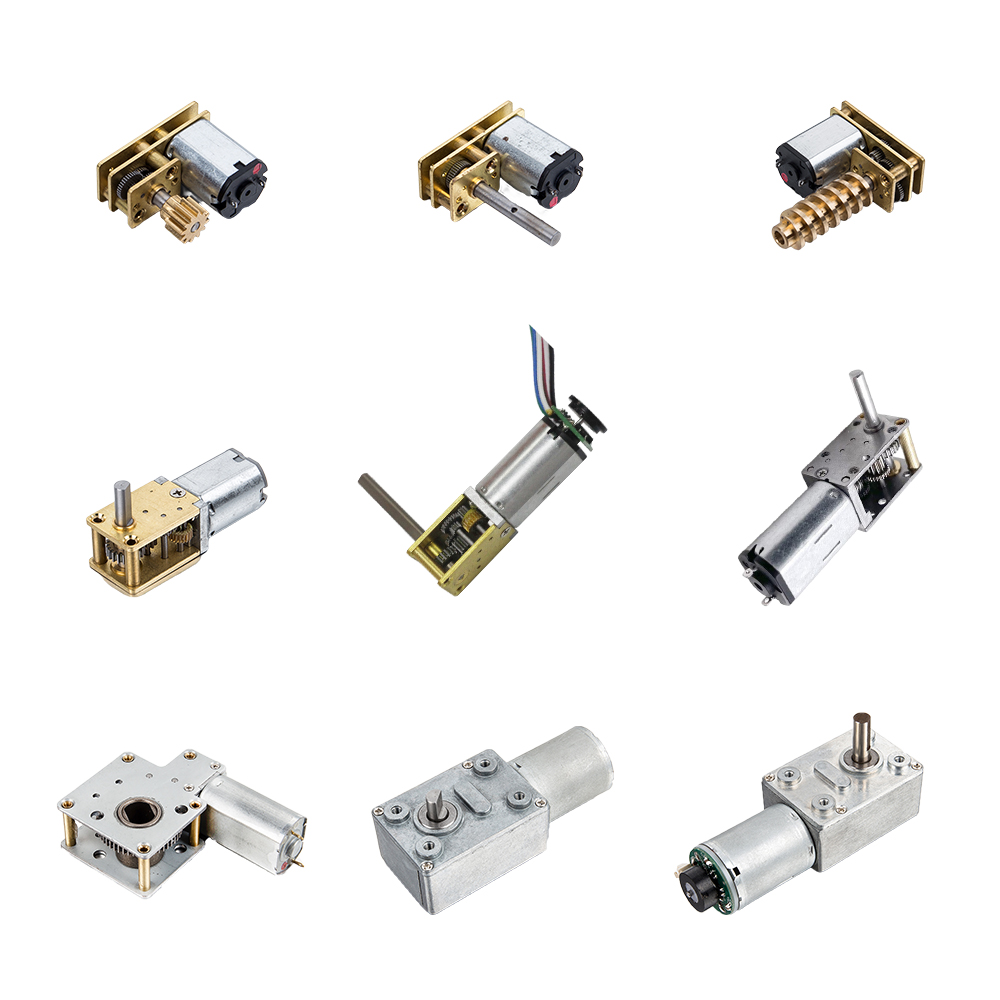

- 1. Our main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- 2. Products size range: Diameter: 4-100mm
- 3. DC Voltage range: 1.5V -42V / AC rectify: 100V, 110V, 220V, 230V, 240V etc.
- 4. Speed range: 1 RPM-30,000RPM
- 5. Stall torque: 1g.cm-30kg.cm
- 6. Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio& Visual equipment etc.
SHIPPING CHOICE:
Frequently Asked Questions
What is the voltage range for the DGA24-N20 micro DC gear motor?
The motor operates within a voltage range of 1.5V to 12V DC, making it highly versatile for various low-voltage applications.
What are the primary applications of this right-angle 90-degree gear motor?
This motor is widely used in robots, electronic locks, auto shutters, USB fans, currency counter machines, towel dispensers, automatic doors, medical equipment, and household appliances.
Can this micro motor be configured with an encoder?
Yes, this 24mm micro gear motor can be equipped with an encoder to satisfy high-precision speed and position feedback requirements.
What reduction ratios and speed outputs are available?
The available reduction ratios include 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000. It offers custom speeds ranging from 6 RPM up to 1000 RPM based on requirements.
What are the packaging specifications and standard delivery time?
Standard packaging is 80 pieces per tray and 1200 pieces per carton (carton dimensions: 11 x 9 x 6.75 inches). The delivery time is typically within 25 days, with a minimum order quantity (MOQ) of 100 pieces.
What range of customized sizes and motor types are available?
Customizations cover micro DC motors, gear motors, coreless motors, and brushless motors in diameter sizes ranging from 4mm to 100mm, with speed ranges from 1 to 30,000 RPM and stall torques from 1g.cm to 30kg.cm.
