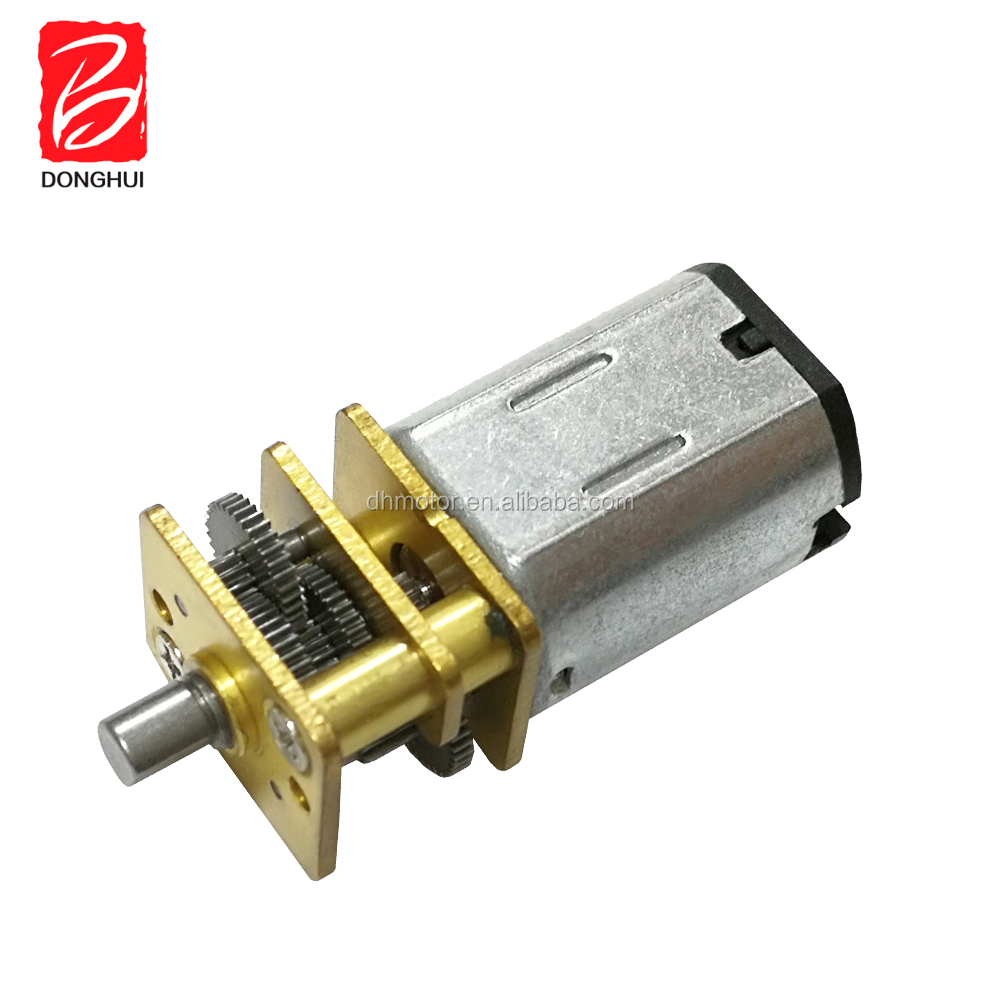

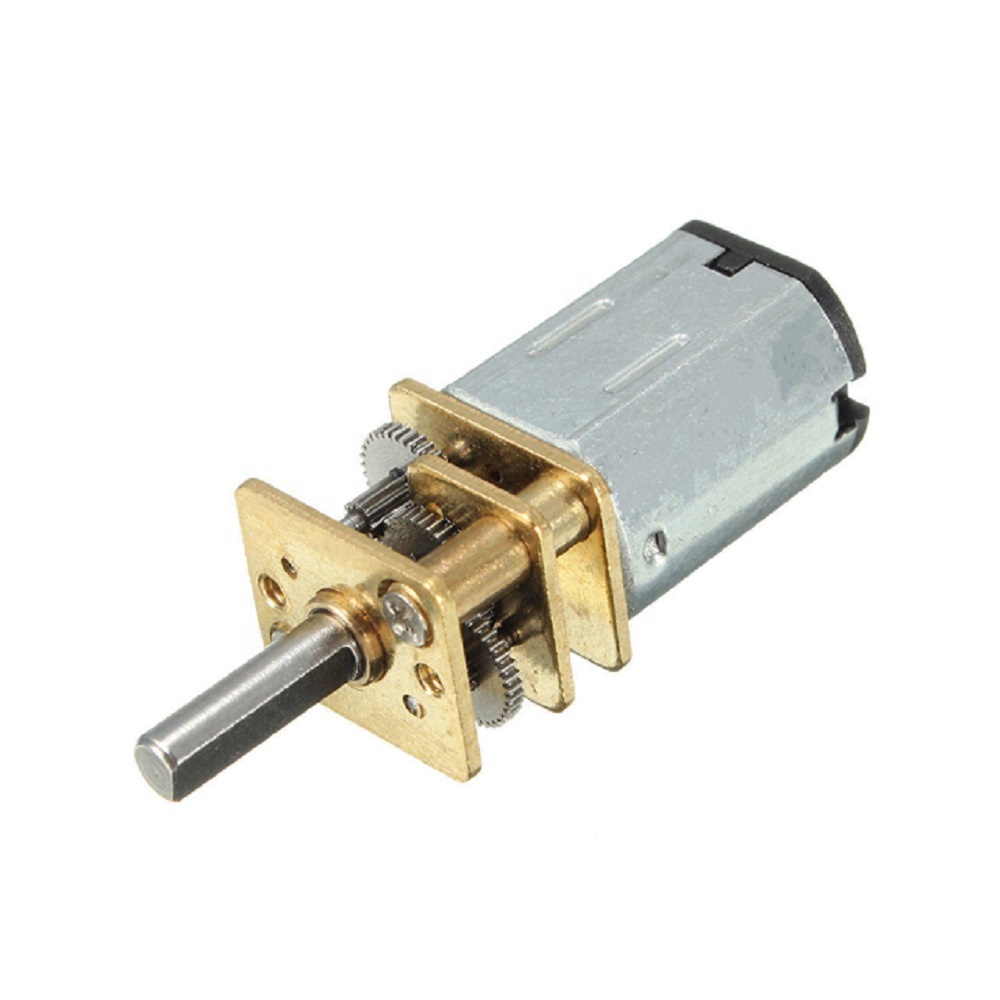

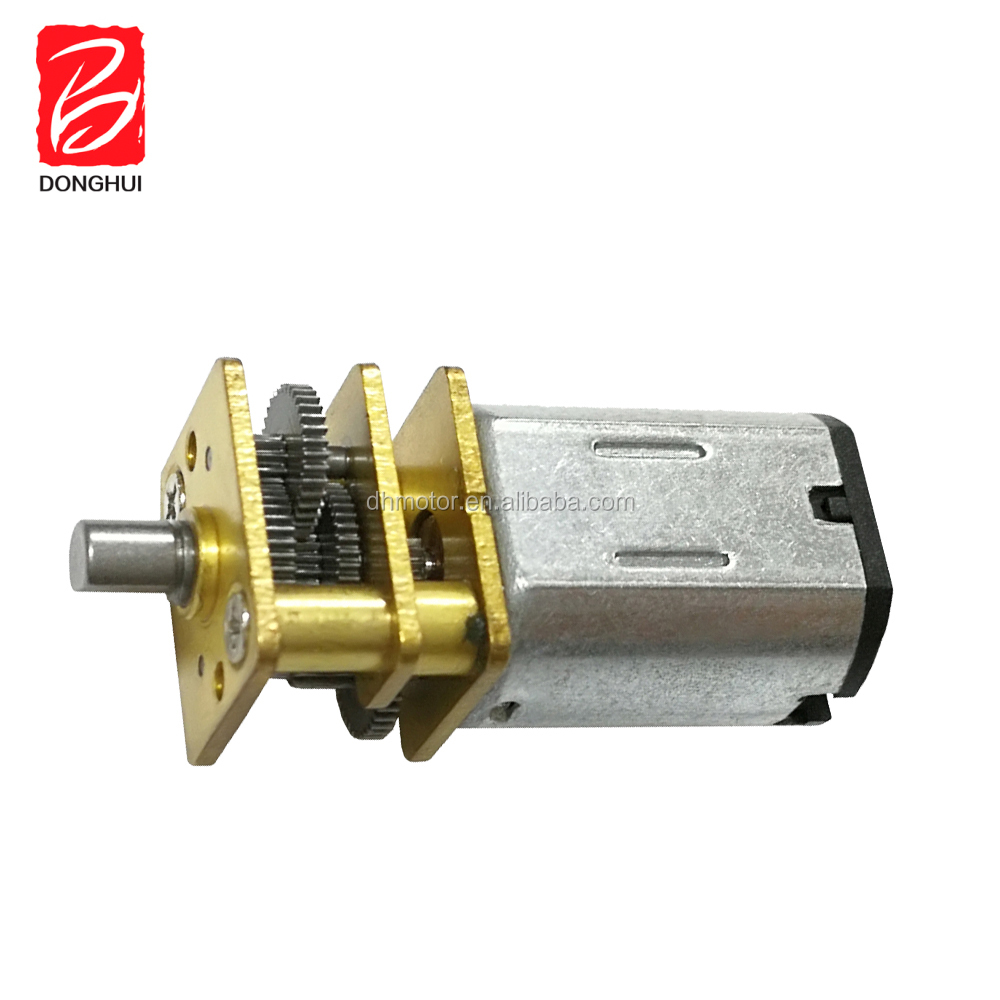

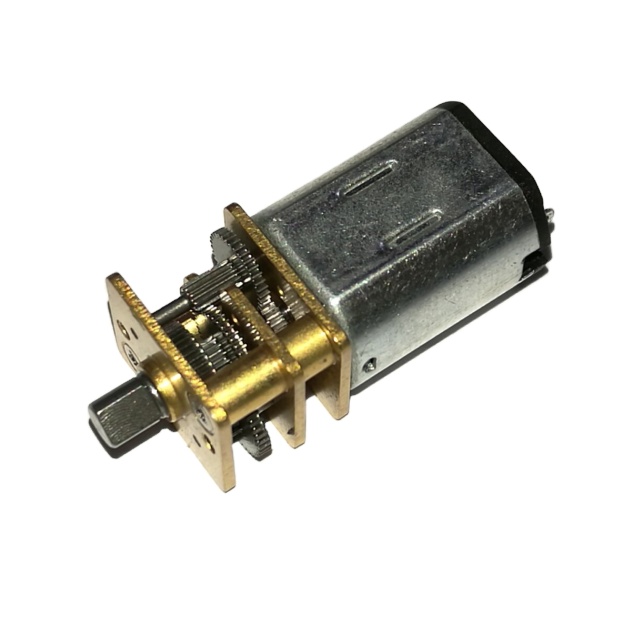

Cheap Price Customized Cheap Price DC 6/12V 75RPM Mini Electric Metal Boat Gear Motor with Gearwheel N20 Motor DGA12-N20
Product Description
Permanent Magnet gm12 dc gear 145rpm 3v 800g.cm 10mm shaft D2.5mm n20 door lock robot micro geared motor
This motor is stock offer for promotion only which have limited quantity.
Motor voltage, speed, torque, shaft specification please refer the following data, which can not change.
This motor MOQ 5 pcs, big order price can be discussed.
If the motor data not you want, please contact with me make custom data with normal price.

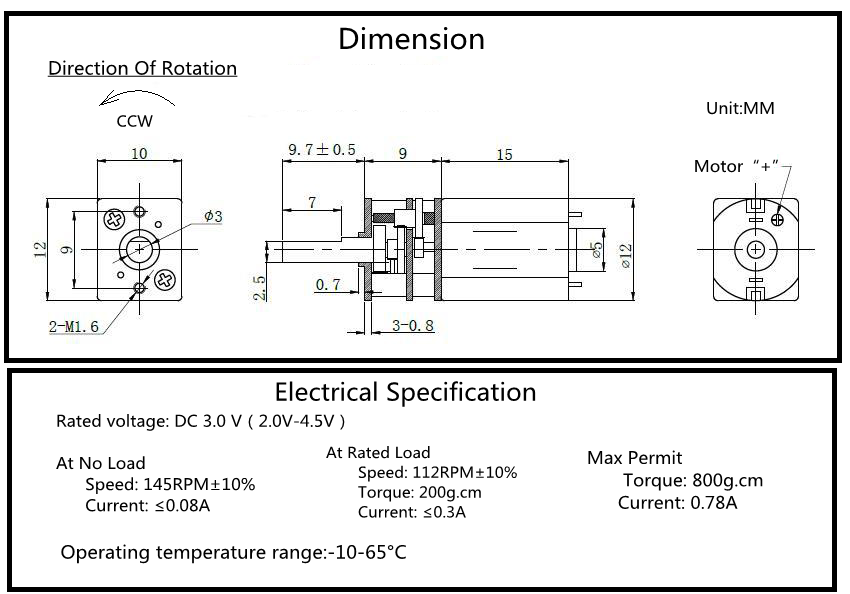

Specification
| Item | Micro Gear Motor |

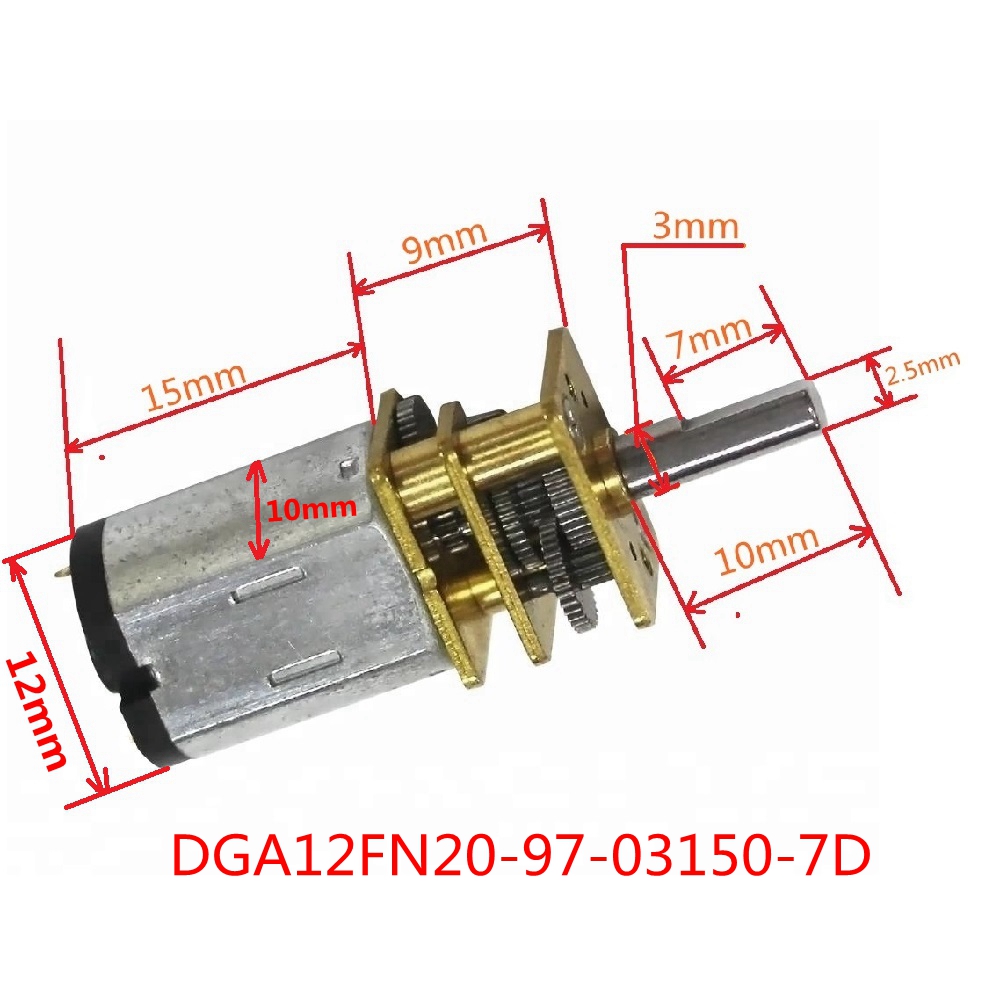

| Size | D10mm*12mm*L24mm |
| Rated Voltage | DC 3.0 V |
| Working Voltage Range | DC 2.0 V ~ DC 4.0 V |
| Unload Speed | 145 rpm ± 10% |
| Unload Current | 60mA |
| Rated Speed | 112 rpm ± 10% |
| Rated Torque | 200g.cm |
| Rated Current | ≤320mA |
| Max Current | ≤800mA |
| Max Torque | ≤3500g.cm |
| Wattage | 0.29watt |
| Application | Robot, Lock, toys, electric power tool |
Product Description
Rated Products

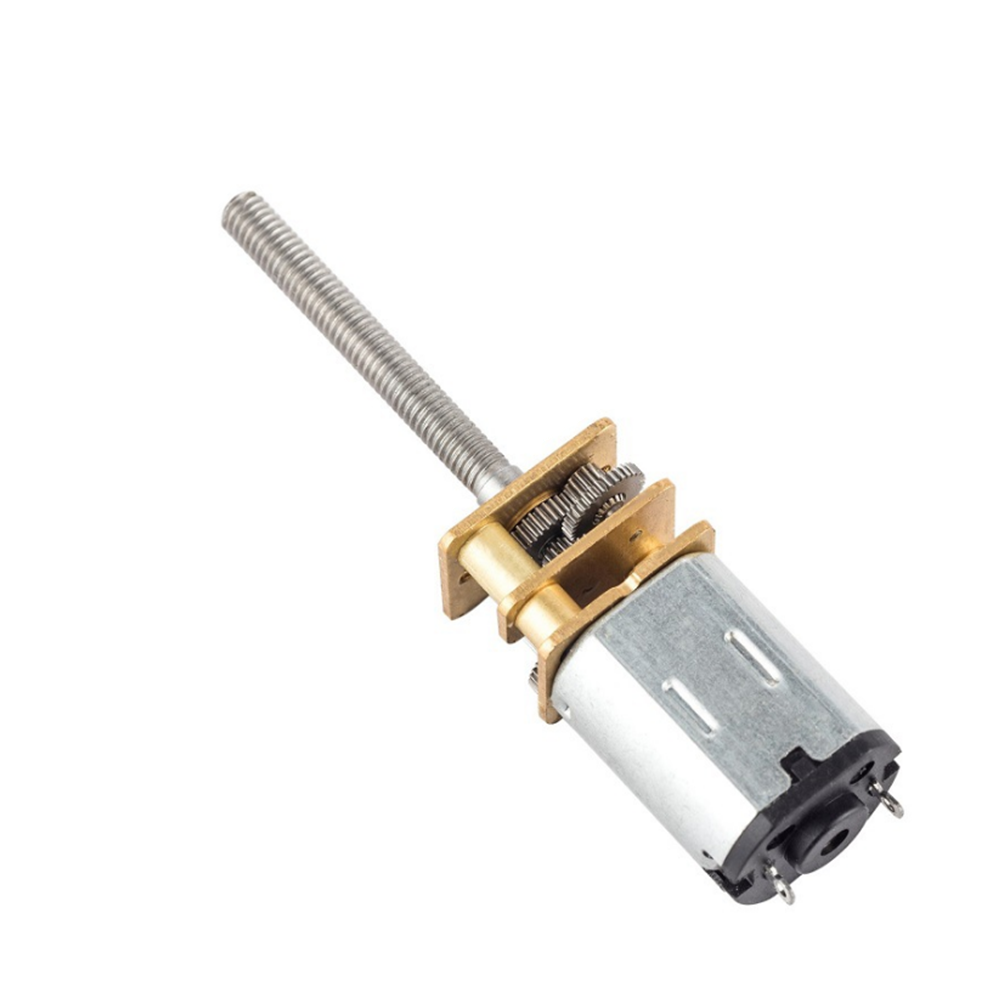

With M 3 / M 4 screw shaft
Length: 10 mm~45 mm
Length: 10 mm~45 mm

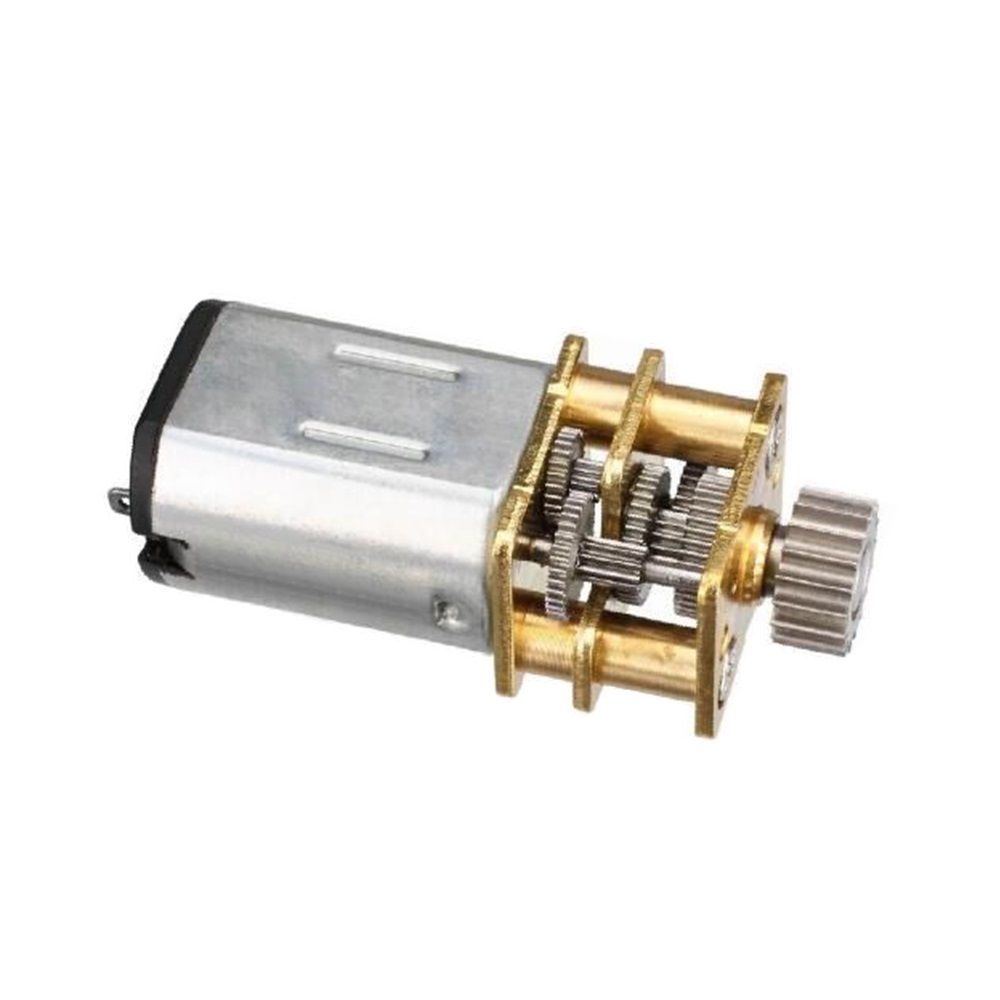

For 3D Pen Printer
Wheel size customized
Wheel size customized

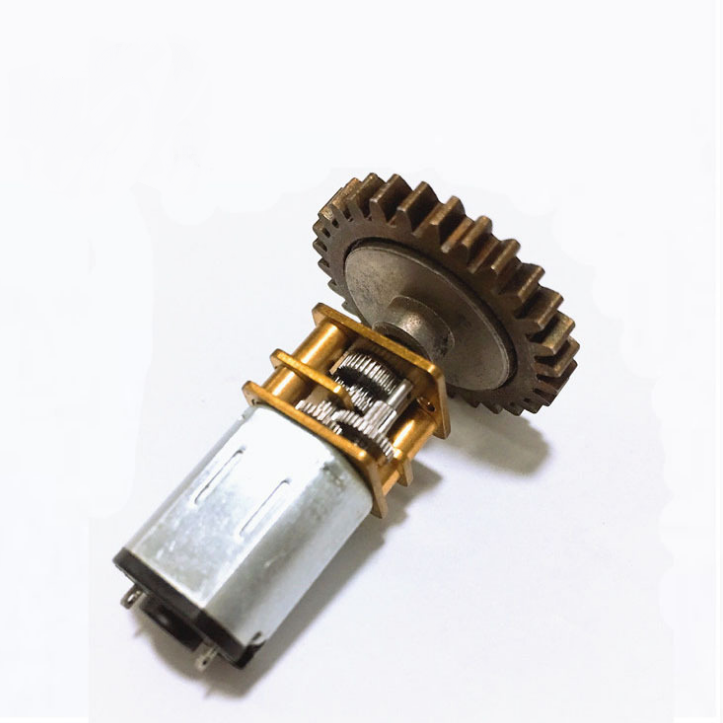

Big metal gear wheel for Door lock

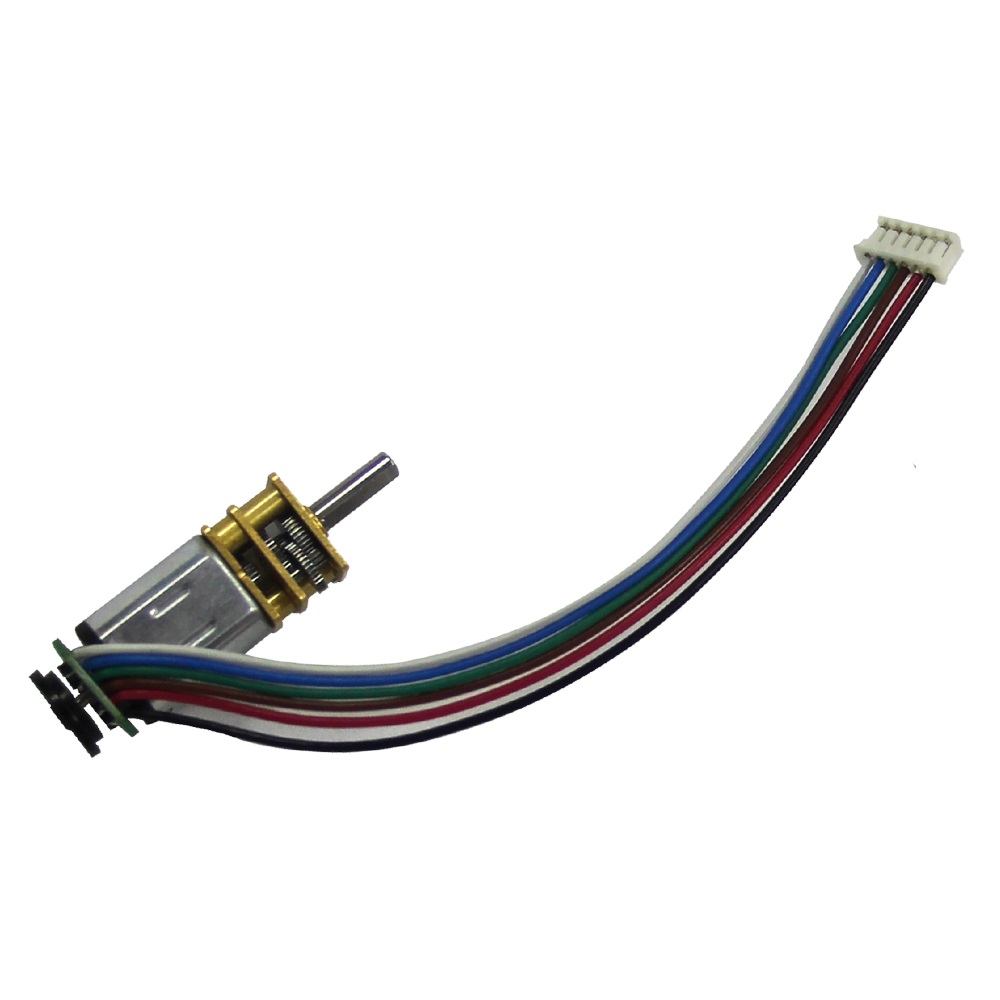

With Encoder for precise instrument

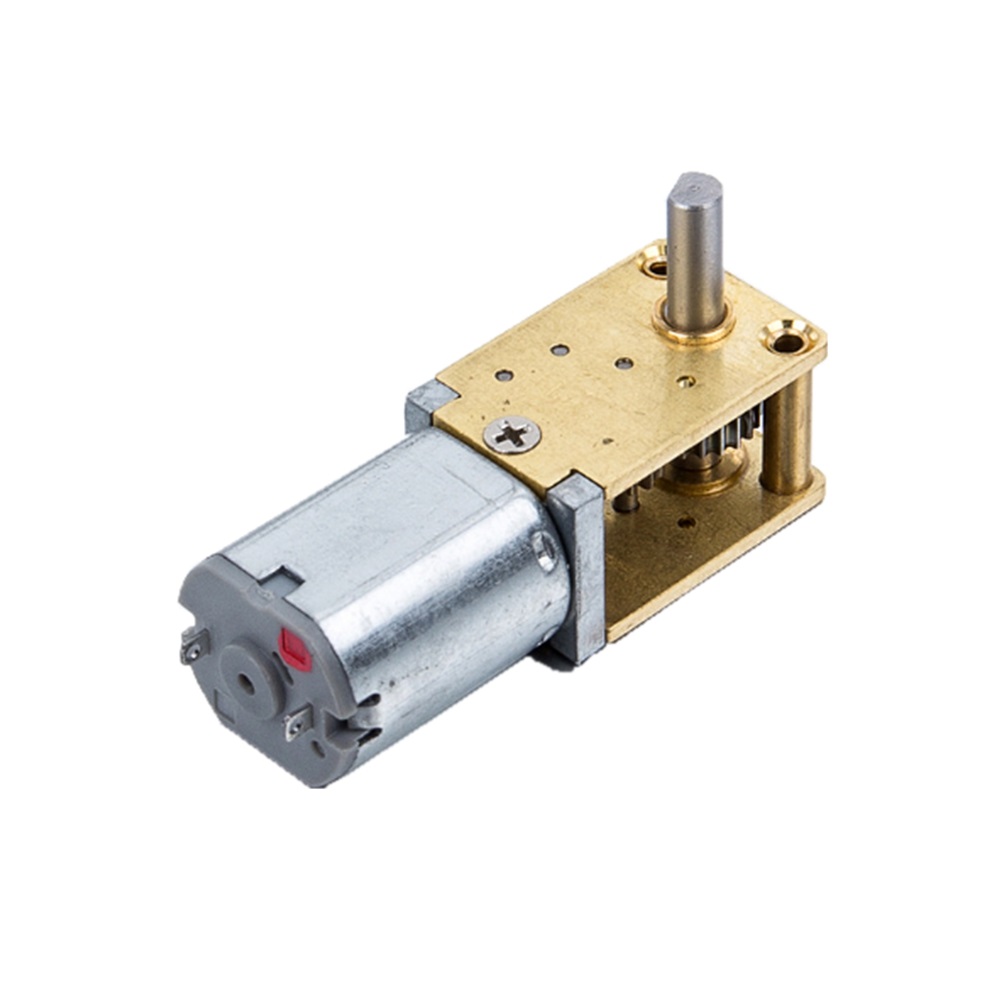

Right Angle for Robot and lock

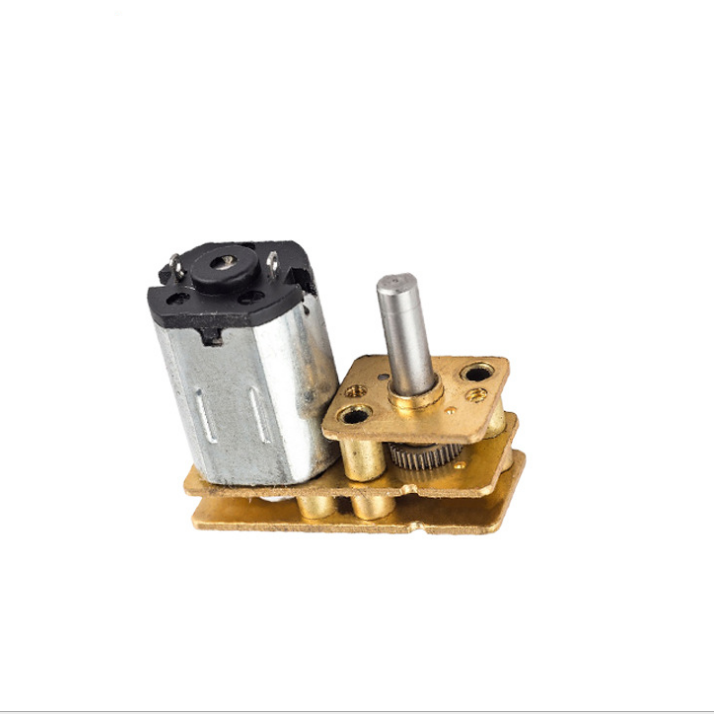

Back output shaft U type for toys

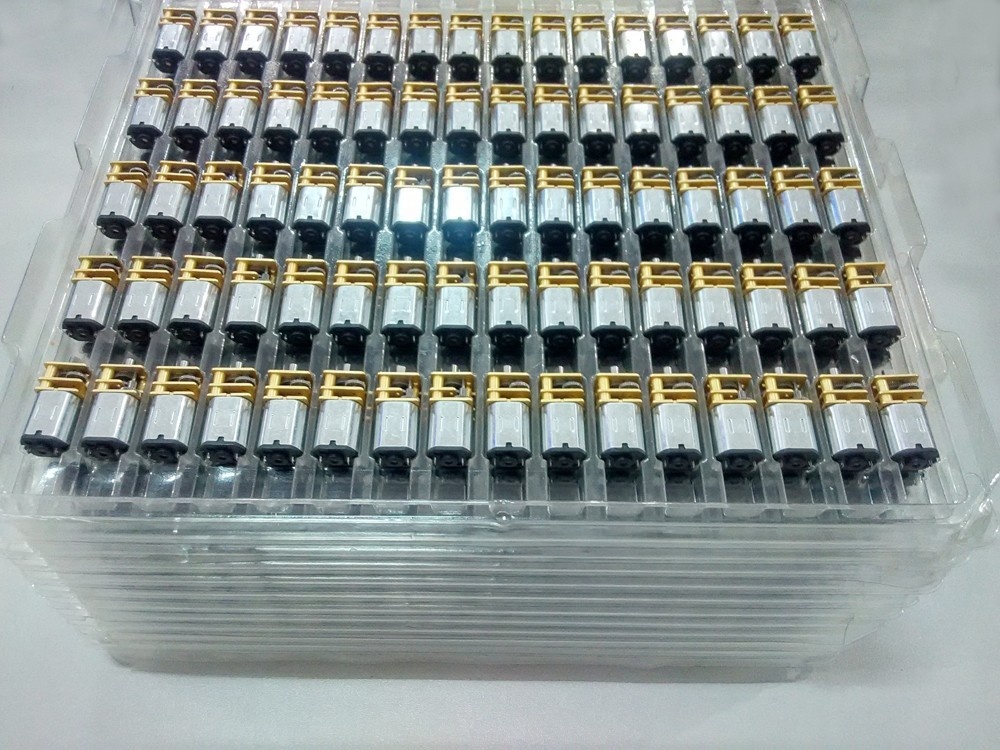

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Professional micro motor/engine manufacturer for 10 years.

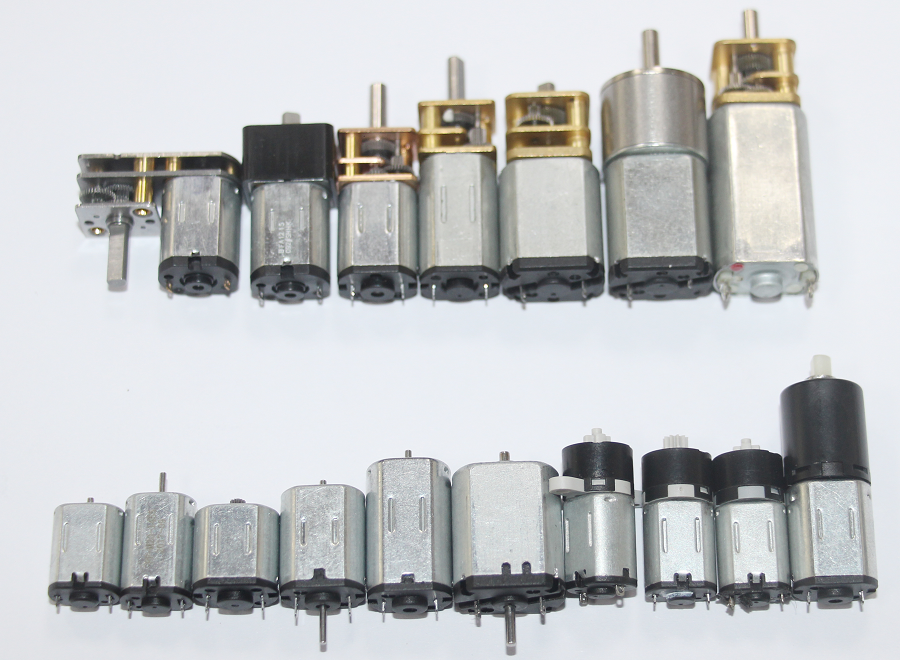

Brush Dc Motor: Φ6mm—Φ60mm
Brushless Dc Motor: Φ12mm-Φ42mm Coreless
Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
Stepper Dc Motor: Φ6mm—Φ24mm
Vibration Dc Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Shaft Length: 0.1-150mm
Gearbox Ratio: 1:4---1:5000
FAQ
Q
What's your main products?
Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Q
What's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.
Q
Do you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
Q
What kind of data do i need to provide if i want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
Q
What if i don't know the above data?
Please contact our salesman, tell us your requirement, we will recommend the best fit model.
