OEM China Cheap Price Supplier High Tprque Low Speed Parallel Shaft Gearbox 12v Worm Dc Micro Gear Motor Right Angle D4632-370
Product Description

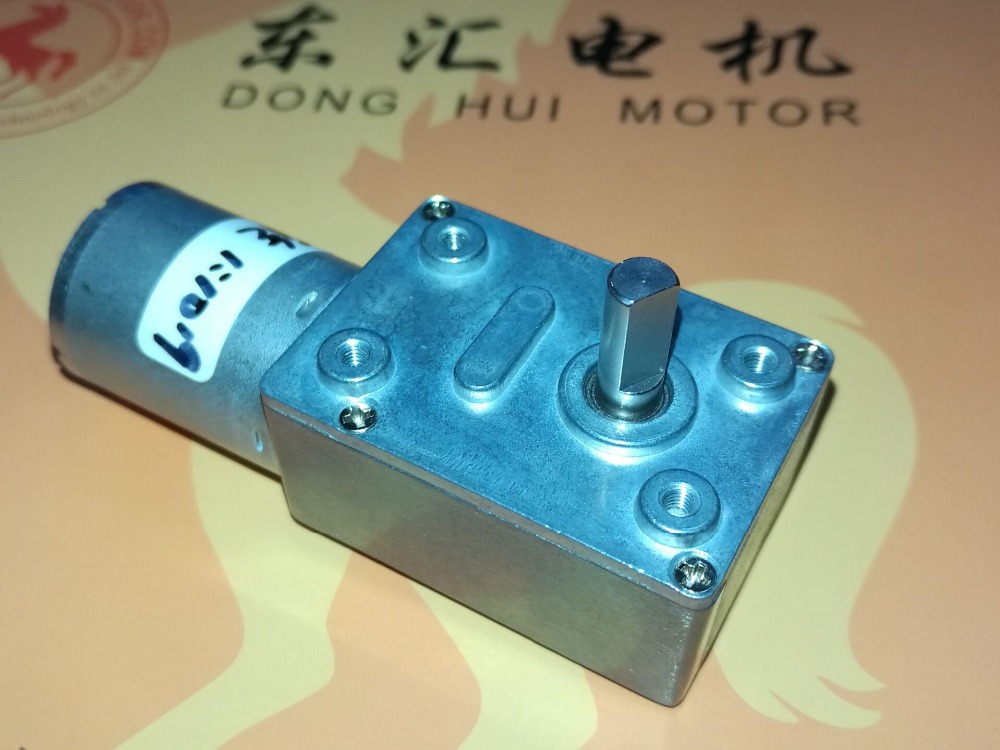

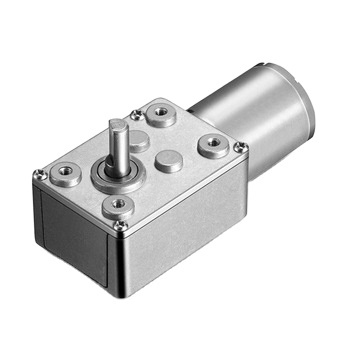

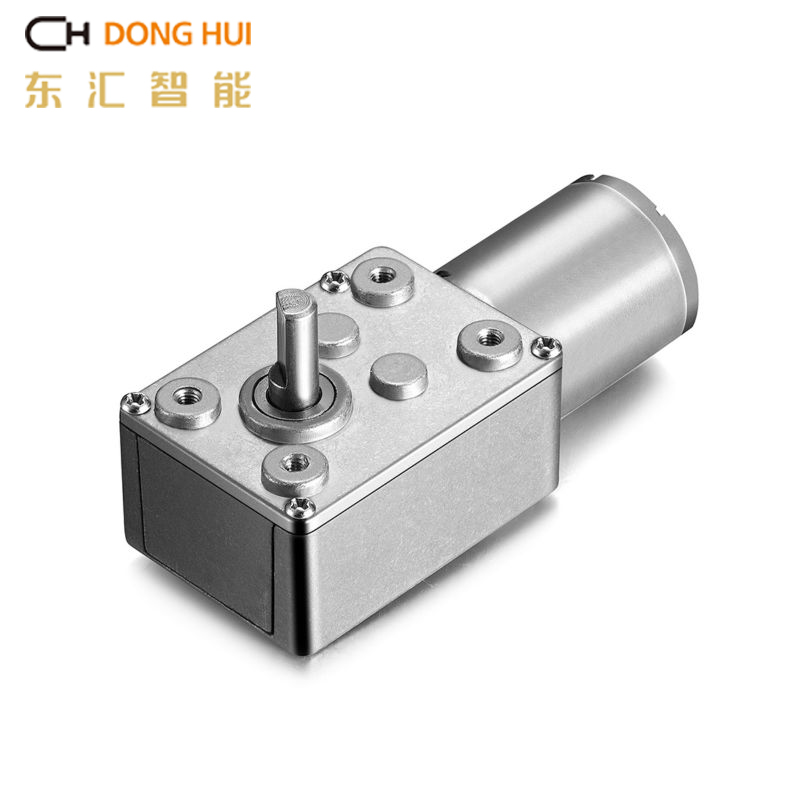

Parallel Shaft Gearbox BLDC 12V Worm Motor
Specification Summary
This gear motor is assembled by a BL2418 DC Brushless Motor and a 24mm worm gear box.
BL2418 DC Brushless Motor
- Rated Voltage: DC 12-24V
- Max No Load Speed: 6200 RPM
- Dimensions: Diameter 24mm, Length 18mm, Shaft 2.3mm
- Weight: Approx 85g
24mm Worm Gear Box
- Reduction Ratio: From 1/4 to 1/4000 (Customization available upon request)
- Shaft Diameter: 6mm (Customizable to fit your requirements)
- Optional Features: Can be equipped with an encoder
- Weight: Approx 80g
Manufacturing Capabilities
Founded in 2003, the manufacturing facility is a private high-tech enterprise mainly engaged in the design, development, production, sale, and service of precision DC motors and gear motors.
The products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras, and domestic appliances.
Key Advantages:
- 13+ years of professional experience producing DC motors and DC gear motors.
- High-quality standards featuring precision military-grade supplier gears.
- Robust manufacturing capacity and advanced R&D capabilities.
- 10+ years of reliable export experience serving Germany, Japan, and the USA.
Frequently Asked Questions
Question 1: What are your main products?

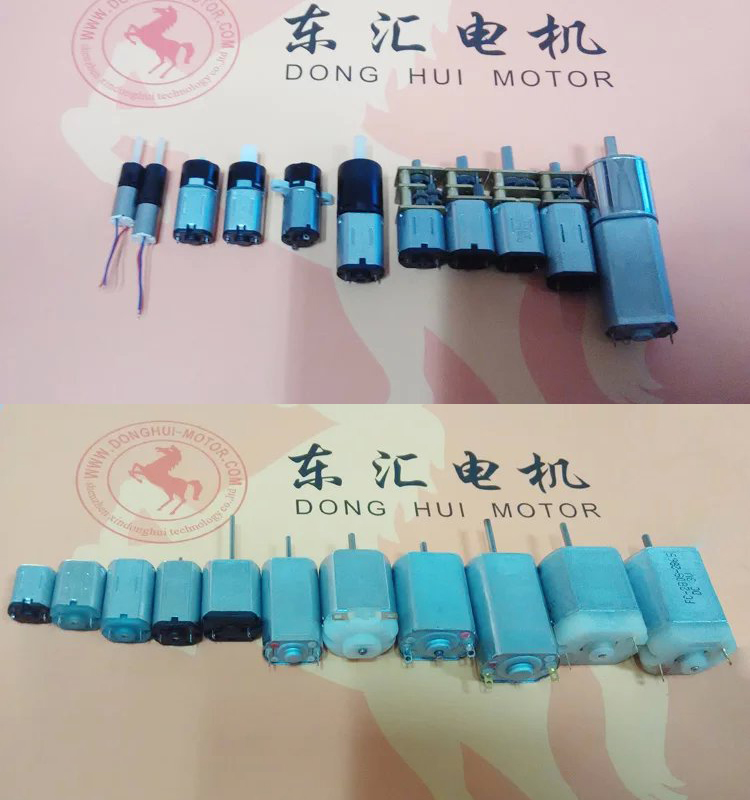

Answer: Dia 10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, electric motors, gear motors, brush DC motors, brushless DC motors, spur gear motors, micro motors, vibration motors, and more.
Question 2: What is the main usage of the micro DC gear motor?
Answer: Our motors are widely used in home appliances, office equipment, healthcare appliances, the sanitation industry, high-class toys, banking systems, electronic/electrical tools, automation industries, bank equipment, payment terminals, vending machines, power door locks, and electric door locks.
Question 3: Do you accept customization?
Answer: Yes, absolutely. With a strong design and engineering team, any custom technical requirement will receive a professional custom solution.
Question 4: What kind of data do I need to provide to order?
Answer: Please specify your required voltage, speed, torque, and overall dimension limits when ordering.
Question 5: What if I do not know the required technical specifications?
Answer: Please contact our technical sales team. We will guide you step-by-step and answer your questions to determine the right motor model.
