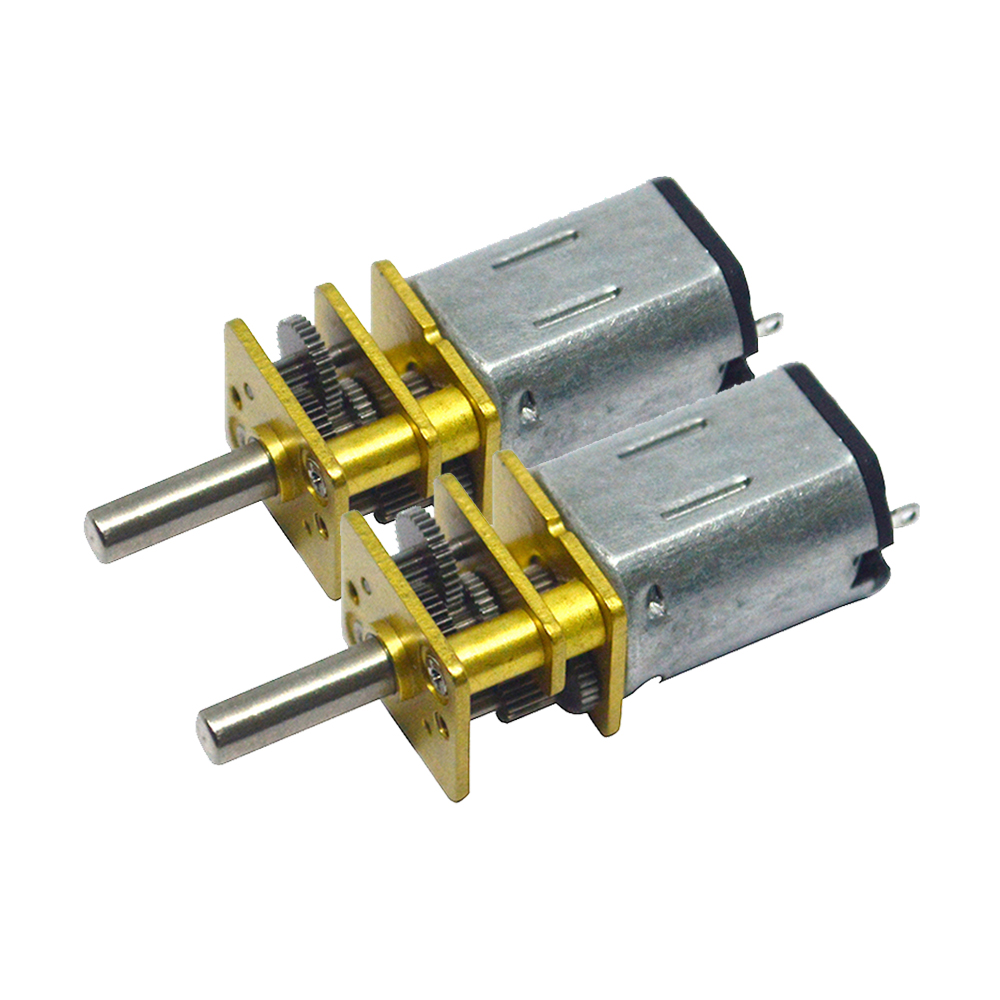

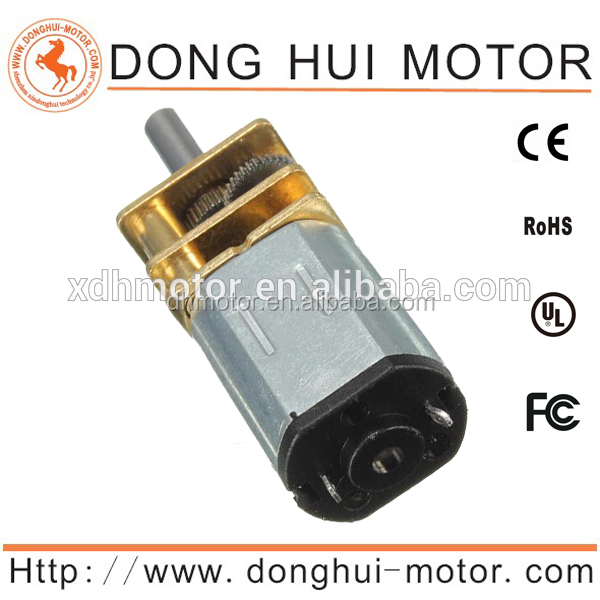

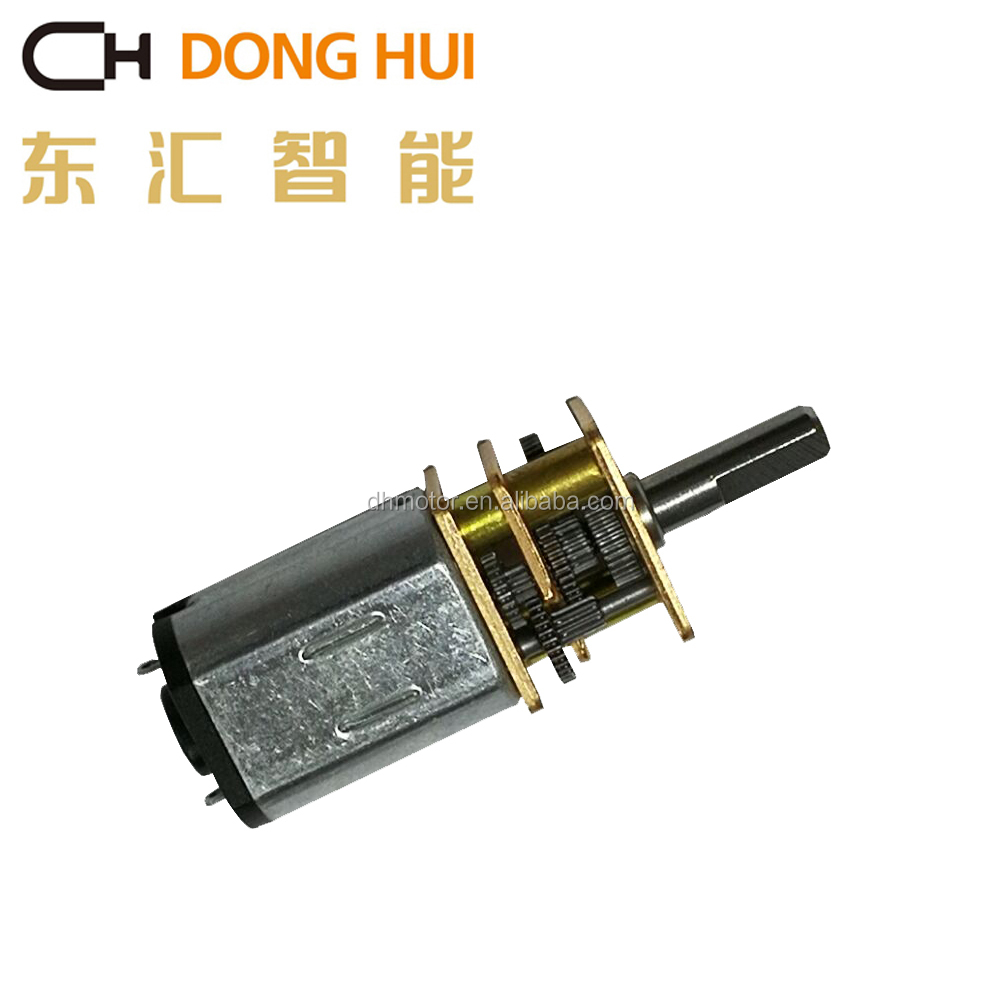

OEM Cheap Price China Supplier N20 DC Micro Gear Motor 6v 12v Battery Operated 12mm Metal Micro Geared Motor for Smart Lock
Product Description

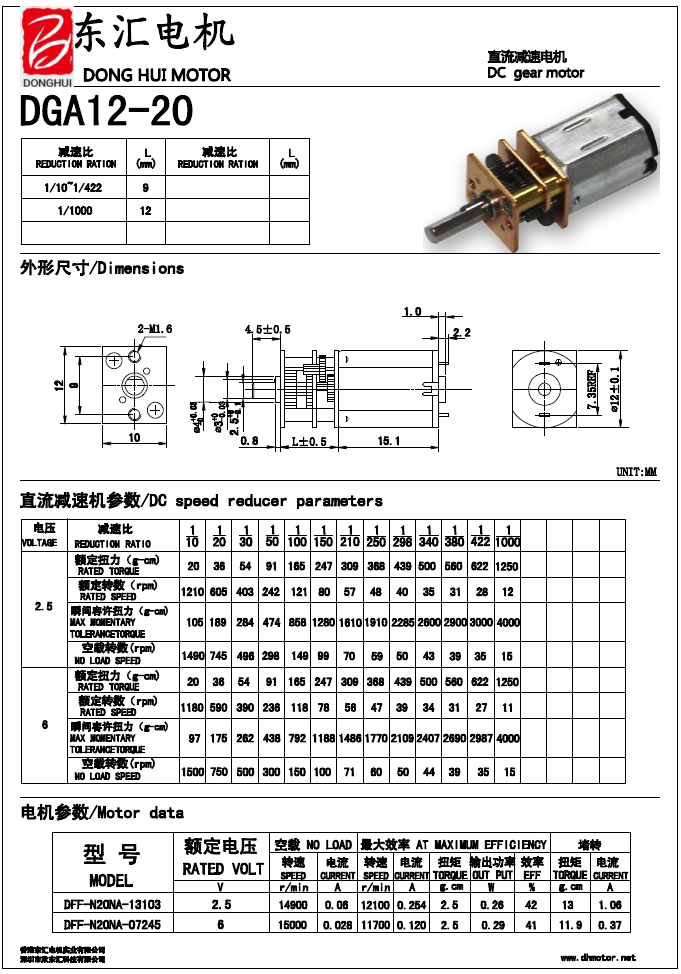

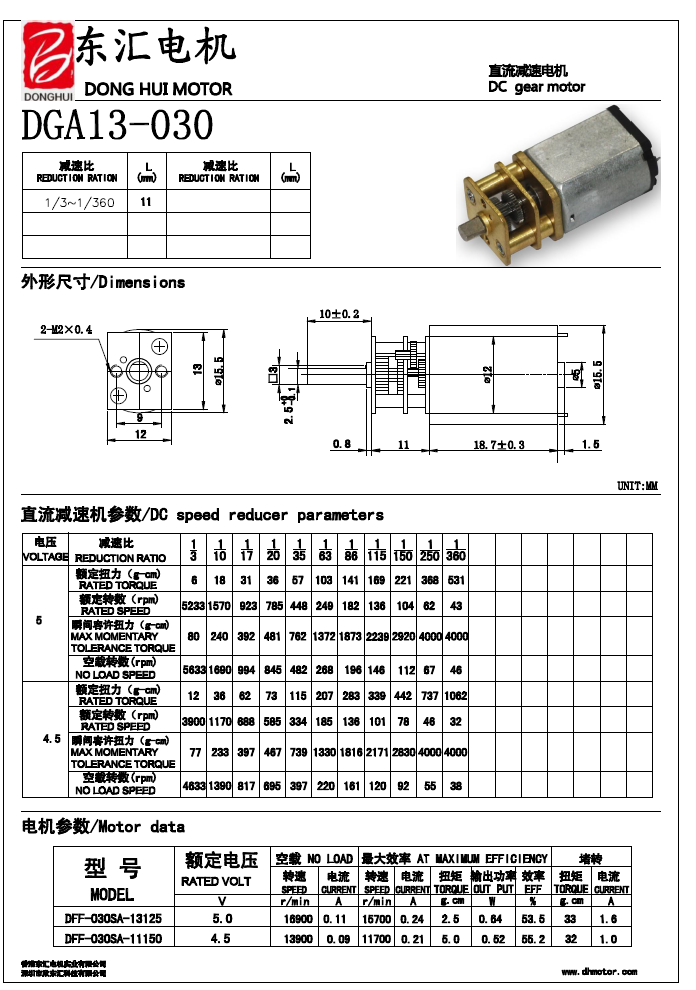

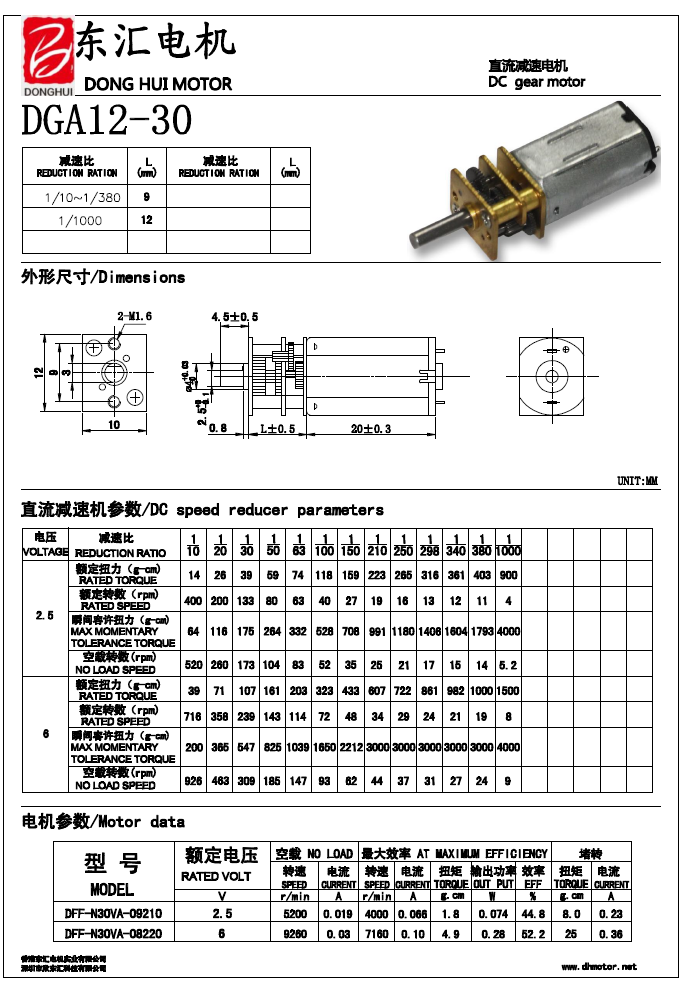

Specification
| Item | Mini Gear Motor |

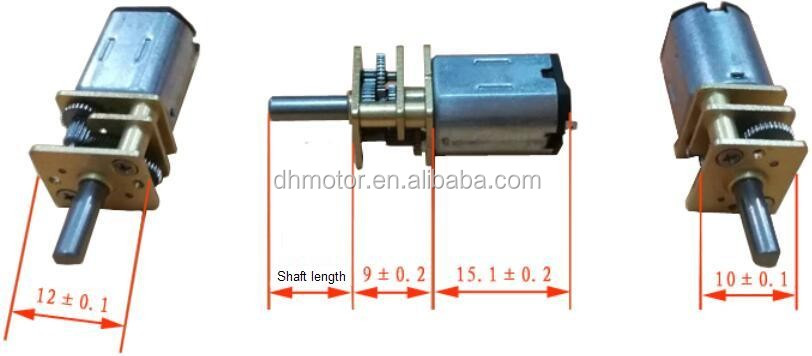

| Size | D10mm*12mm*L15mm+Gearbox Length |
| Voltage | 1.5V-24V |
| Unload Speed | 10-1000rpm |
| Rated Torque | ≤1000g.cm |
| Max Torque | ≤3500g.cm |
| Wattage | 0.2-0.8watt |
| Application | Robot, Lock, toys, electric power tool |
Product Description
Motor's voltage, speed, ratio, torque, screw length, shaft length can be customized.
Rated Products
With M 3 / M 4 screw shaft
Length:1 0 mm~45 mm
Length:1 0 mm~45 mm
For 3D Pen Printer
Wheel size customized
Wheel size customized
Big metal gear wheel for Door lock

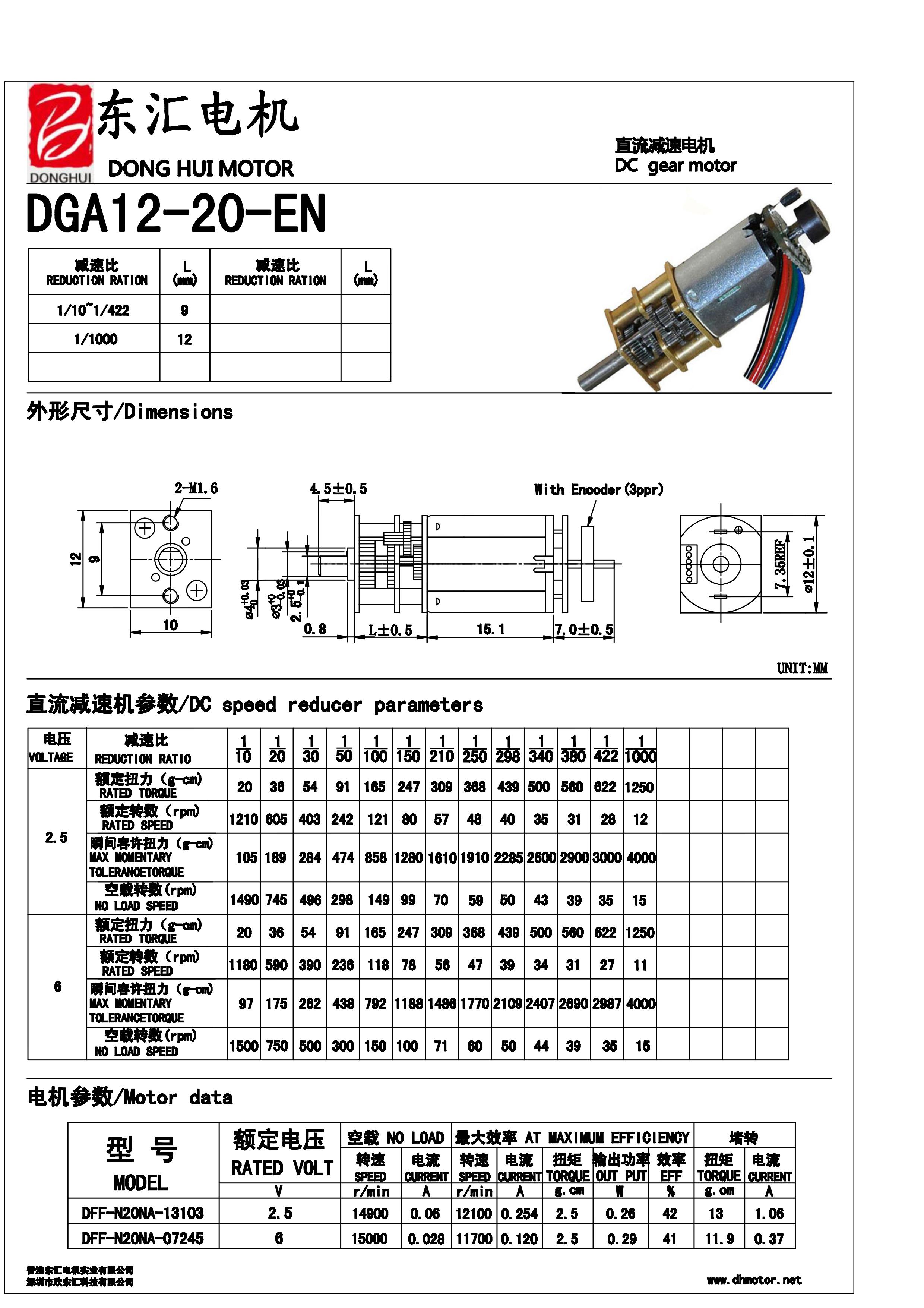

With Encoder for precise instrument
Right Angle for Robot and lock
Back output shaft U type for toys
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

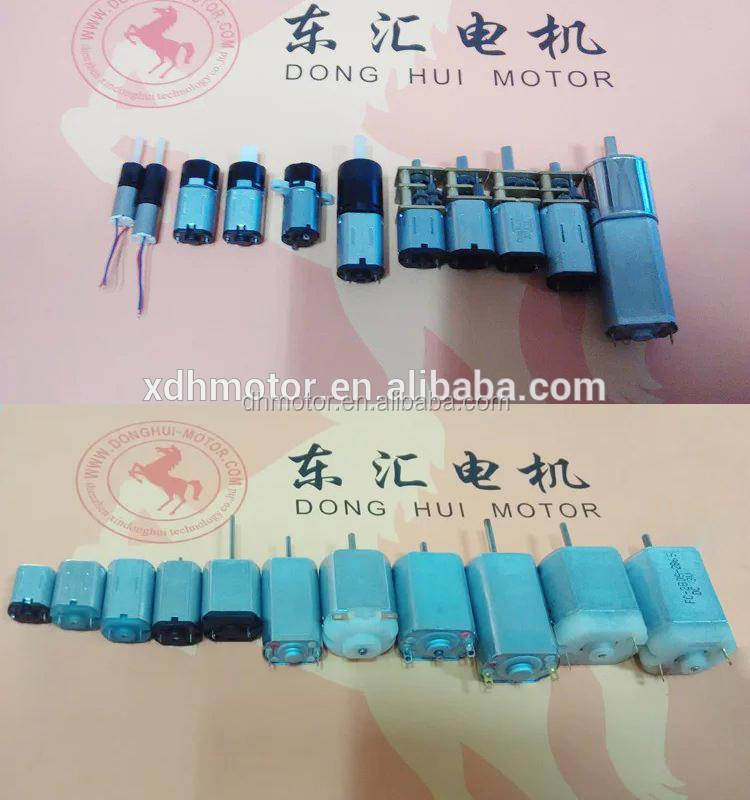

Professional micro motor/engine manufacturer for 10 years.
Brush Dc Motor
Φ6mm—Φ60mm
Brushless Dc Motor
Φ12mm-Φ42mm
Coreless Brush/Brushless DC Motor
Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor
Φ4mm—Φ60mm
Stepper Dc Motor
Φ6mm—Φ24mm
Vibration Dc Motor
Φ4mm—Φ45mm
Motor Voltage Range
DC1.5V-220V, AC 110V/220/230/240V
Speed Range
0.1-80,000RPM
Output Torque
0.01-500Kg.cm
Shaft Length
0.1-150mm
Gearbox Ratio
1:4---1:5000
FAQ
Question 1:
What's your main products?
Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Question 2:
What's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.
Question 3:
Do you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
Question 4:
What kind of data do I need to provide if I want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
Question 5:
What if I don't know the above data?
Please contact our salesman, tell us your requirement, we will recommend the best fit model.
