Zelt Motor
1 / 5

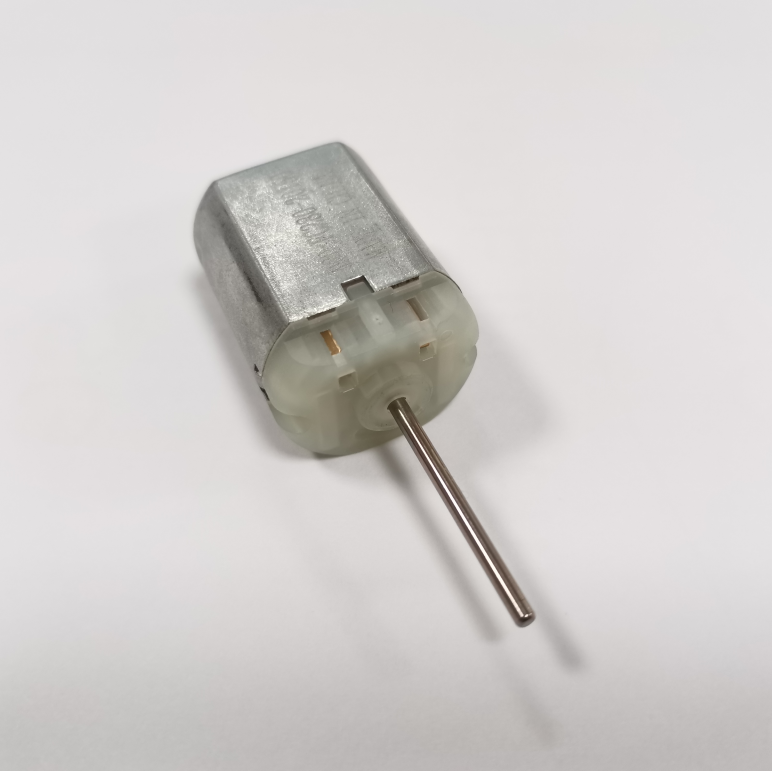

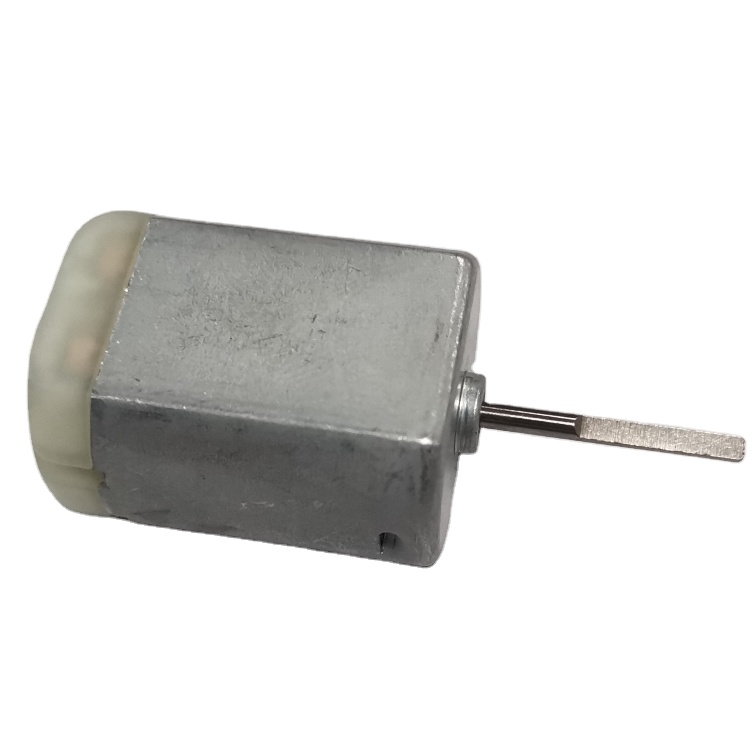

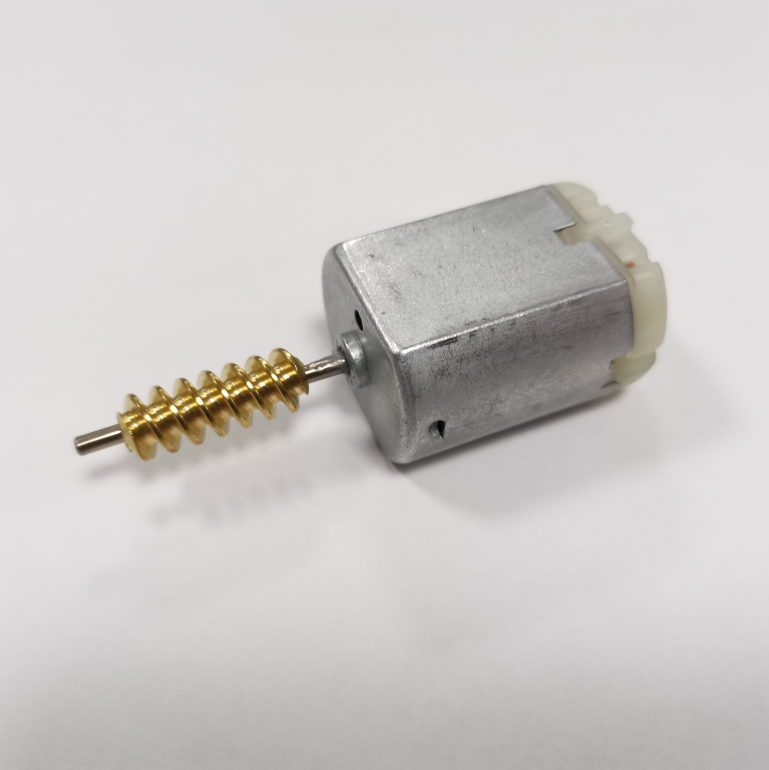

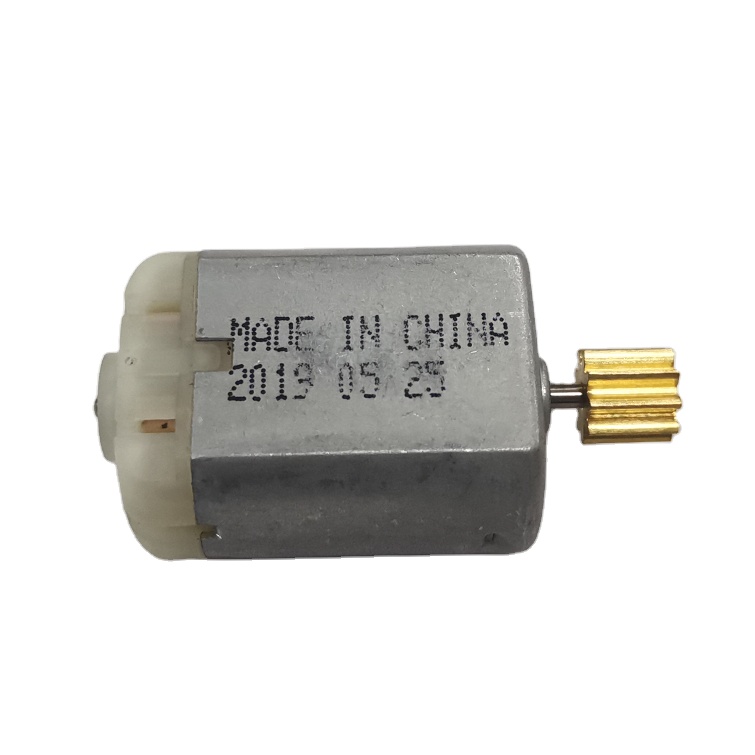

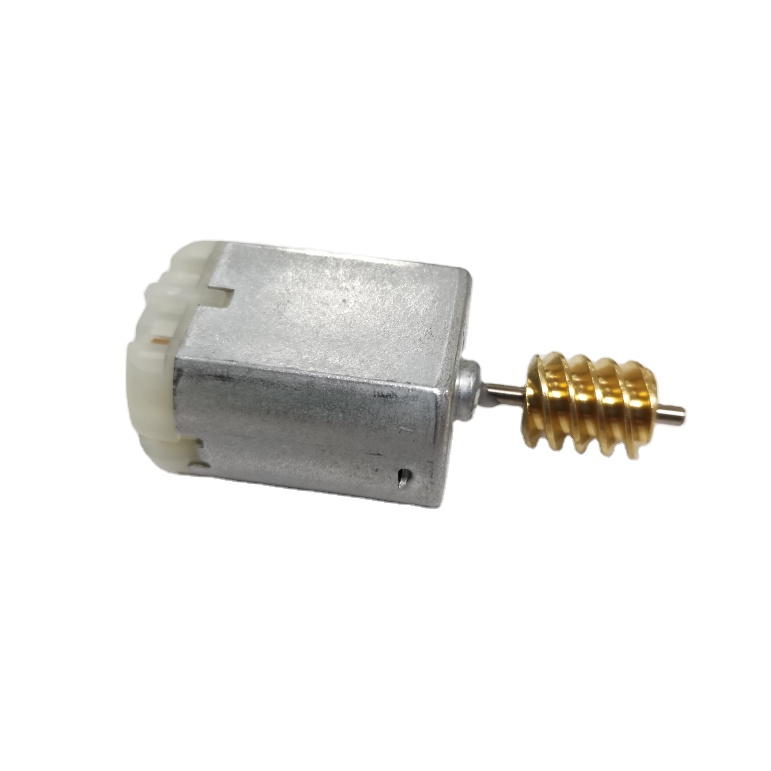

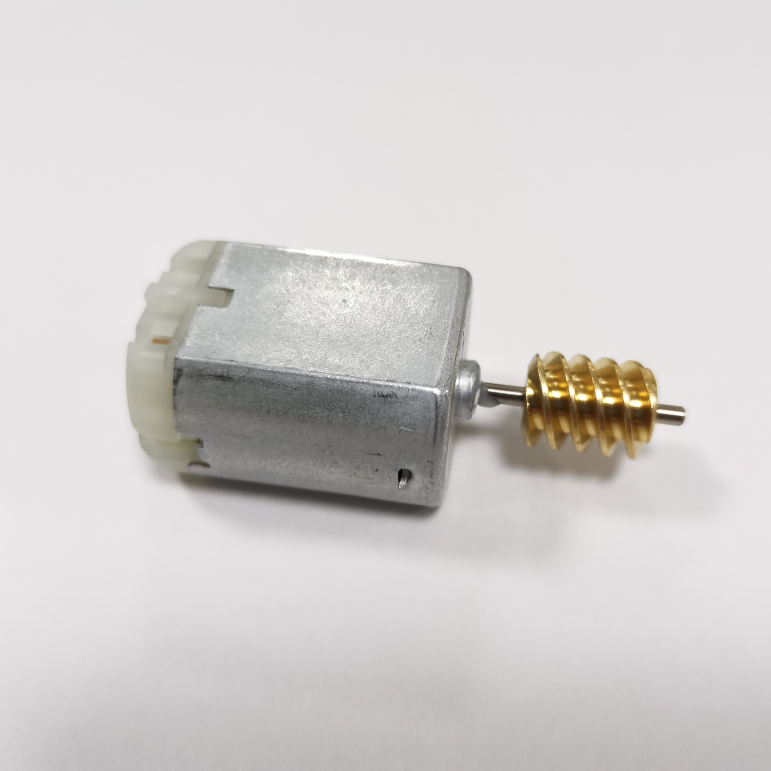

12v FC280 Dc Car Central Lock Motor, 13v 12v Car Door Lock Actuor Motor for Car
Product Description
Product Description
Place of Origin:
Guangdong China (Mainland)
Brand Name:
OEM
Model Number:
FC-280PC-22125
Usage:
Car, Scanner
Certification:
ROHS
Type:
Micro Motor
Torque:
48G.CM
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Closed
Speed(RPM):
12500rpm At No load Speed
Continuous Current(A):
0.1-5A
Output Power:
1-6W
Voltage(V):
12V
Efficiency:
IE 1
Bearing:
TBD
End Cap:
Plastic End Cap
Stator and Slots:
2-Pole stator and 3-Slot armature
Brush Type:
Carbon brushes
Bearing Type:
Oil-impregnated bearing
Rotation:
Reversible
Packaging & Shipping
| Packaging Details: | 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM |
| Delivery Detail: | Within 30 days |
Our Services
Specifications:
12v dc car central lock motor, 13v 12v car door lock actuor motor for car
- 12V car lock actuator motor
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
Application: Door lock Actuator, Automotive Product
Product Photo Gallery:
Outline Drawing and basic parameters (fc-280pc-22125)
Company Information
Since established in 2003, the manufacturer has been committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields.
Dia 4~100mm
Product Size Range
1.5V - 42V
DC Voltage Range
1 - 30k RPM
Speed Range
1g - 30kg.cm
Stall Torque
Main Products & Applications: Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc. Widely used in Home appliances, Power Tools, Toys & Models, Precision Instruments, Office equipment, Personal care products, Automotive, Audio & Visual equipment.
Frequently Asked Questions
What are the primary applications of the FC-280PC-22125 motor?
This micro DC motor is widely used for automotive central door lock actuators, scanners, household appliances, and other precision electronics.
What are the voltage and power specifications of this micro motor?
The motor operates at a standard voltage of 12V DC, with a continuous current range of 0.1-5A and an output power of 1-6W.
Does this micro motor support bidirectional rotation?
Yes, this permanent magnet brush DC motor features reversible rotation, making it perfect for actuator mechanisms.
What certifications does this product comply with?
This micro motor is fully ROHS certified, conforming to hazardous substance restriction standards for eco-friendly performance.
What are the standard packaging and delivery configurations?
The product is packed at 500 units per carton (carton dimension: 39x29x46 cm) and standard order delivery is fulfilled within 30 days.
Can you customize motor speed and torque specifications?
Yes, standard speed ranges from 1 to 30,000 RPM, and stall torque ranges from 1g.cm to 30kg.cm to fit custom project applications.
