W204 W207 W212 ESL / ELV Benz Car Lock Motor 12v Dc Power Steering Lock Motor
Product Description
Product Description
Quick Details
| Place of Origin: | Guangdong China (Mainland) | Model Number: | FC-280PC-2585 |
| Usage: | Car, Scanner | Certification: | ROHS |
| Type: | Micro Motor | Torque: | 550G.CM at stall |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Closed | Speed(RPM): | 18000rpm At No load Speed |
| Continuous Current(A): | 0.1-5A | Output Power: | 1-6W |
| Voltage(V): | 12V | Efficiency: | IE 1 |
| Bearing: | TBD | End Cap: | Plastic End Cap |
| Stator and Slots: | 2-Pole stator | Brush Type: | Carbon brushes |
| Bearing Type: | Oil-impregnated bearing | Rotation: | Reversible |
Packaging & Shipping
| Packaging Details: | 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM |
| Delivery Detail: | Within 30 days |
Our Services

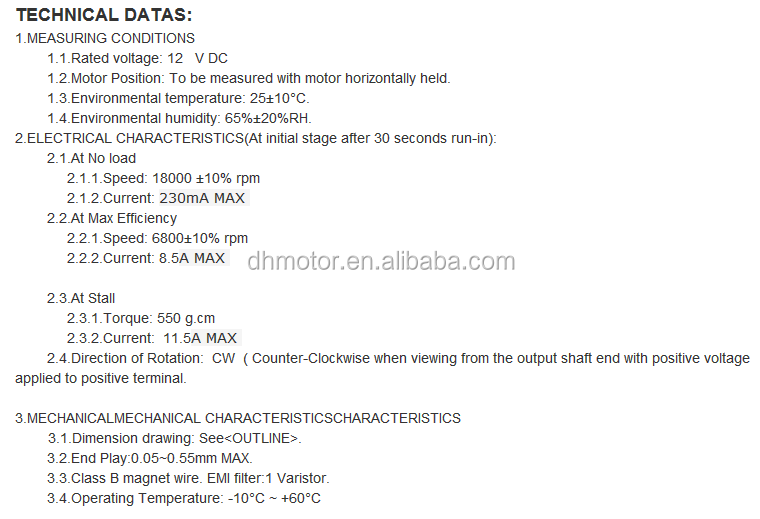

Specifications:
12v electric power car motor, dc electric power steering motor for Benz W204 steering lock
12V electric power car steering lock dc motor features:
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
Application: Door lock Actuator, Automotive Product

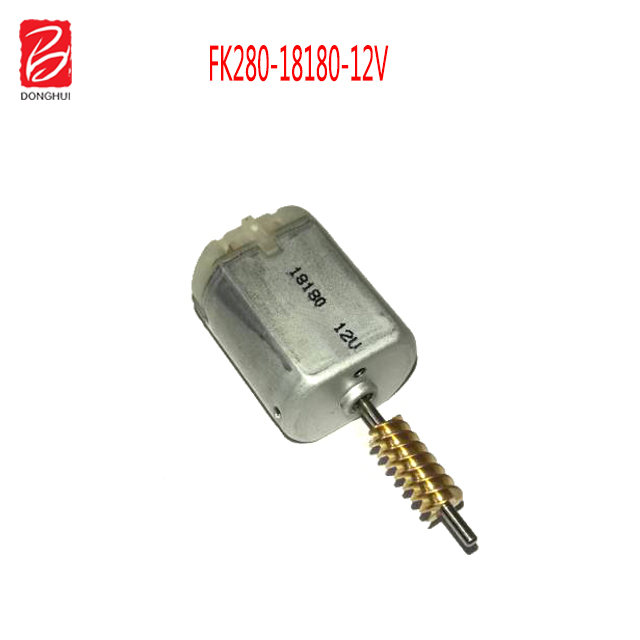

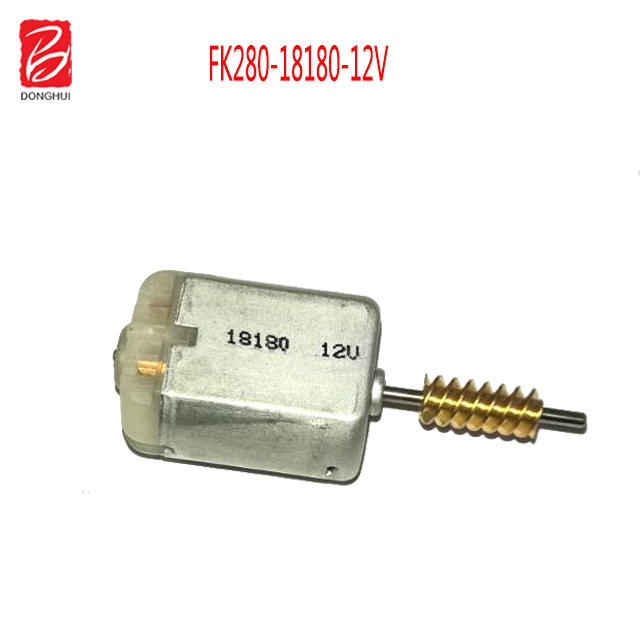

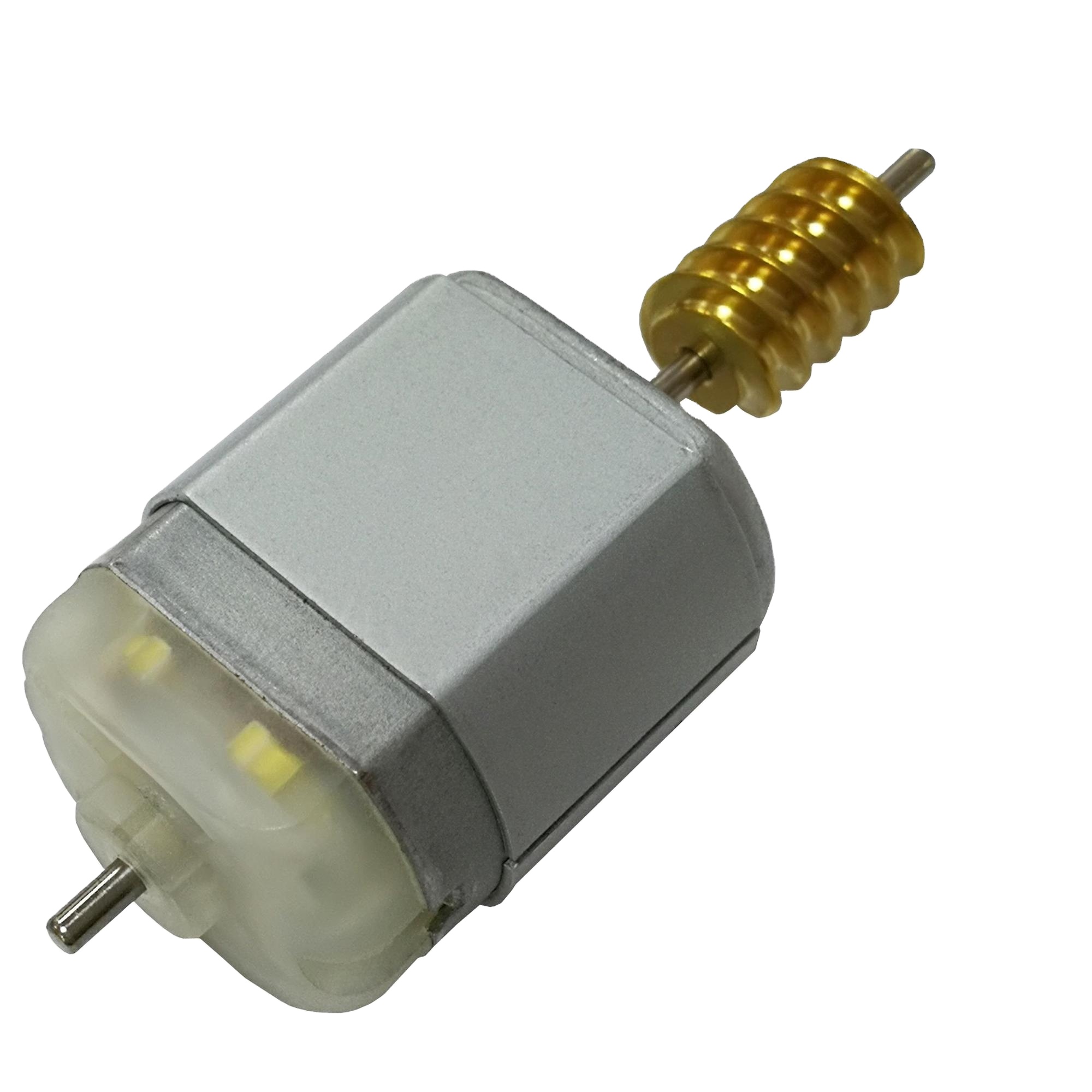

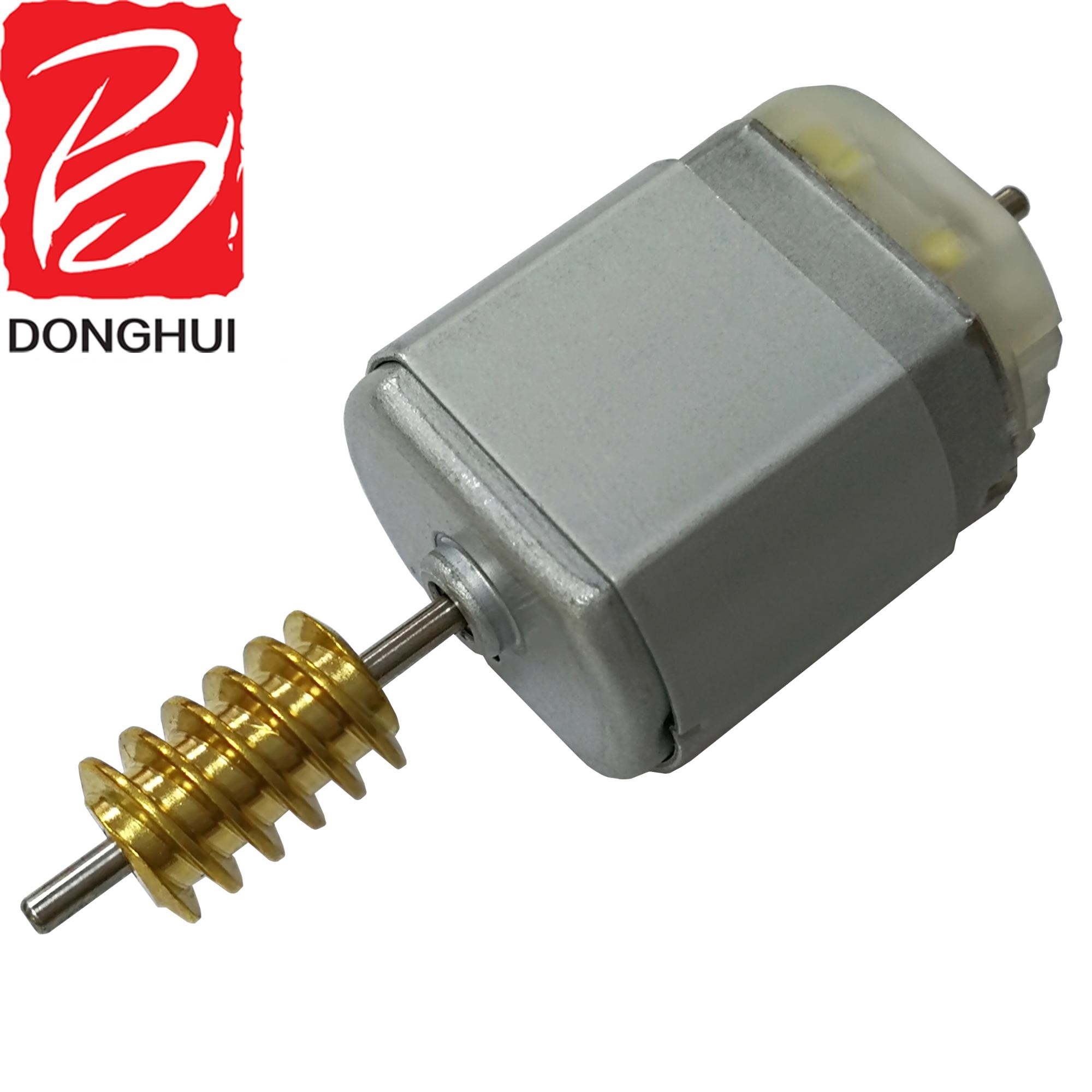

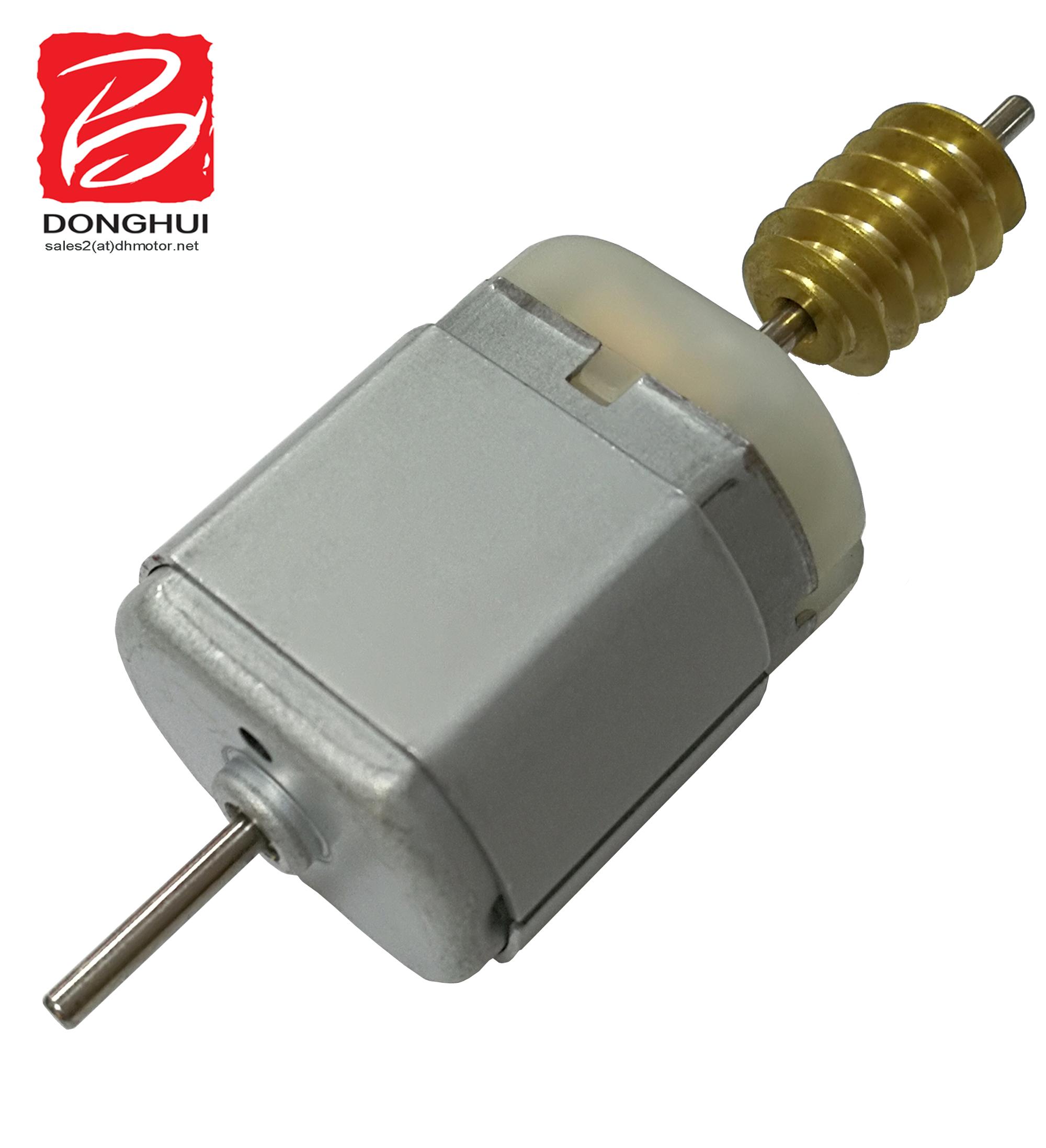

Product Photos

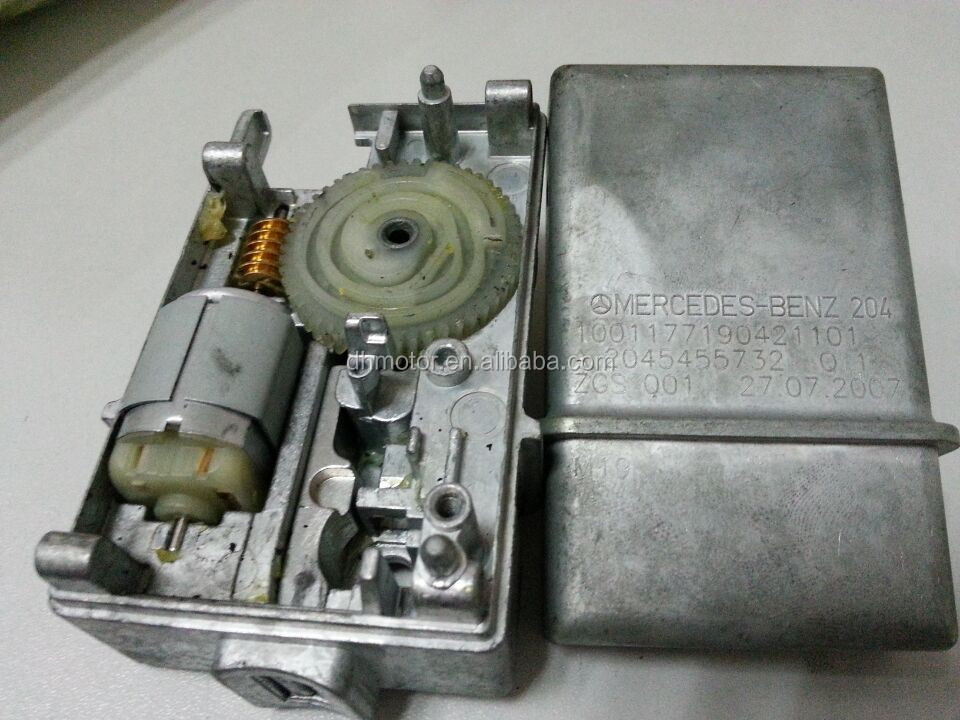

12V electric power car motor for car lock, dc electric power steering motor:

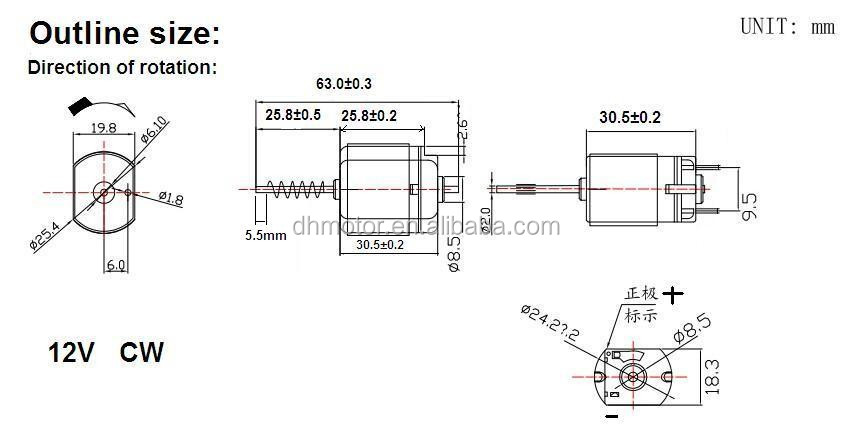

Outline Drawing (fc-280pc-2585)
Manufacturing Capabilities
Established in 2003, there has been a commitment to the development and production of micro motor configurations, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields.
Range Specifications:
- Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products Size Range: Diameter: 4-100mm
- DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed Range: 1 RPM - 30,000RPM
- Stall Torque: 1g.cm - 30kg.cm
- Application Scope: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions (FAQ)
What are the main applications for the FC-280PC-2585 micro motor?
This motor is primarily designed for automotive products, such as steering lock actuators (specifically compatible with Benz W204, W207, and W212 ESL/ELV systems) as well as scanners and other precision devices.
What is the operating voltage range for this micro DC motor?
The standard rated voltage is 12V DC. However, micro DC motors in this configuration can operate over a flexible voltage range to meet custom mechanical requirements.
Is this product certified for environmental and safety compliance?
Yes, this micro motor comes with full ROHS certification, ensuring it adheres to strict environmental standards regarding hazardous substances.
How is the product packaged and what is the standard delivery timeline?
The standard packaging is 500 units per carton (carton dimensions: 39x29x46 cm). Delivery is typically fulfilled within 30 days depending on order size and custom requirements.
What are the motor's performance characteristics regarding life span and noise?
Equipped with carbon brushes, a 2-pole stator, and oil-impregnated bearings, the motor is engineered to run with low operational noise while offering a long service life.
Can you customize the speed and torque parameters?
Yes, technical specifications such as speed range, stall torque, and shaft configurations can be adjusted to align with your specific device requirements. Please consult for custom inquiries.
