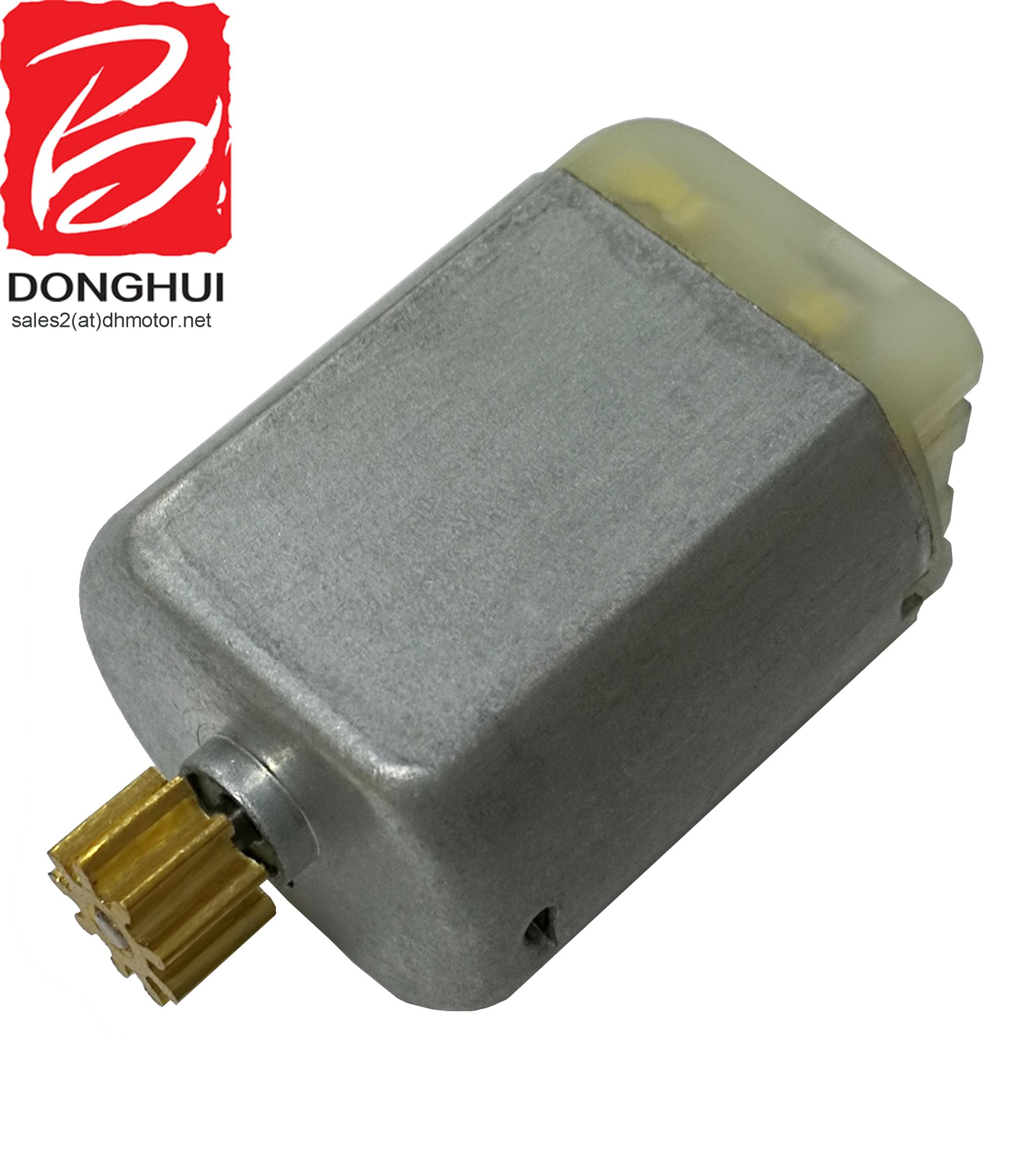

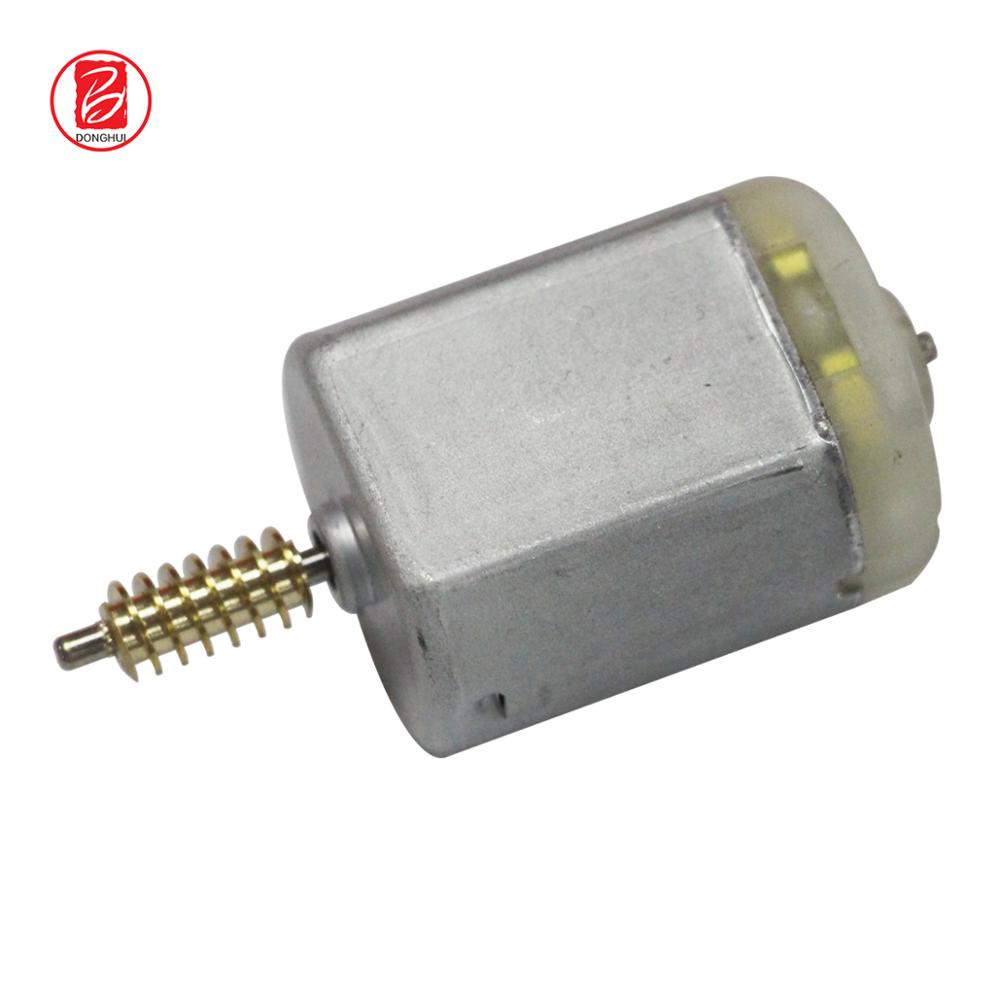

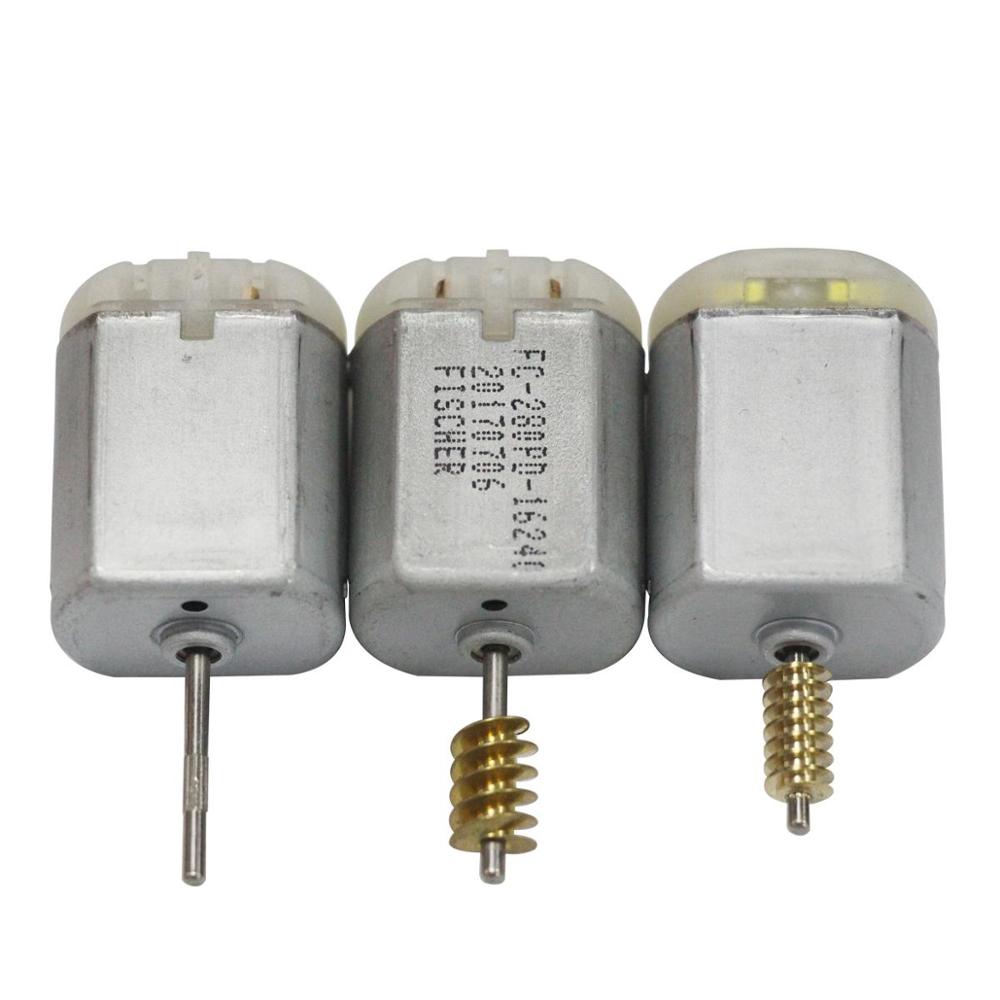

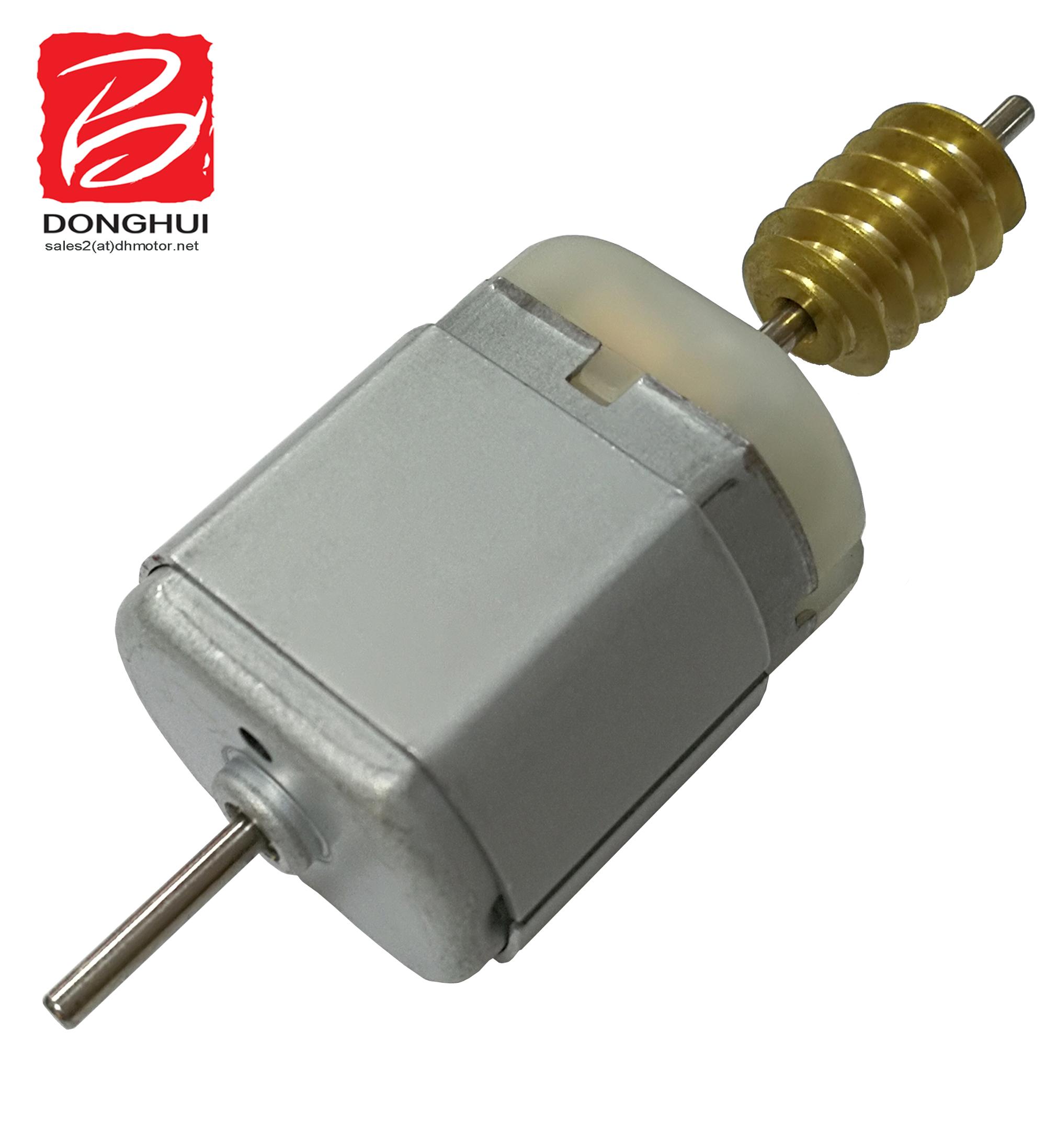

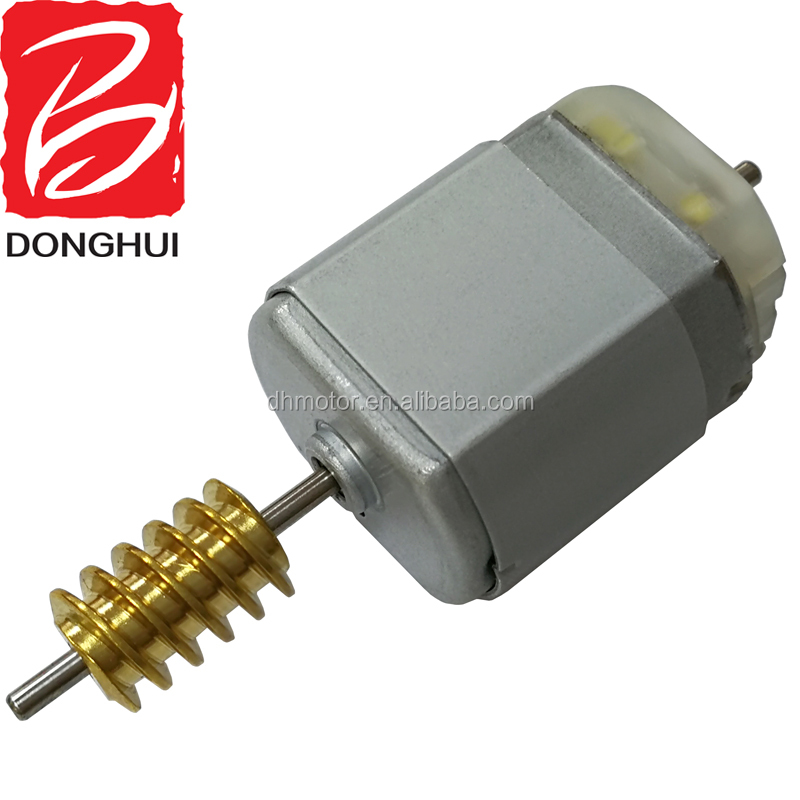

FC-280 12v 13v 24v Electric Car Motor Dc Car Door Lock Motor
Product Description
Product Description - Quick Details
Place of Origin:
Guangdong China (Mainland)
Model Number:
FC-280PC-22125
Usage:
Car
Certification:
ROHS
Type:
Micro Motor
Torque:
48G.CM
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Closed
Speed(RPM):
12500rpm At No load Speed
Continuous Current(A):
0.1-5A
Output Power:
1-6W
Voltage(V):
12V
Efficiency:
IE 1
Bearing:
TBD
End Cap:
Plastic End Cap
Stator and Slots:
2-Pole stator and 3-Slot armature
Brush Type:
Carbon brushes
Bearing Type:
Oil-impregnated bearing
Rotation:
Reversible
Packaging & Shipping
Packaging Details:
500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail:
Within 30 days
Specifications & Applications
FC-280 12v 13v 24v electric car motor dc car door lock motor
12V Car DC Motor car lock actuator motor
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
- Application: Door lock Actuator, Automotive Product

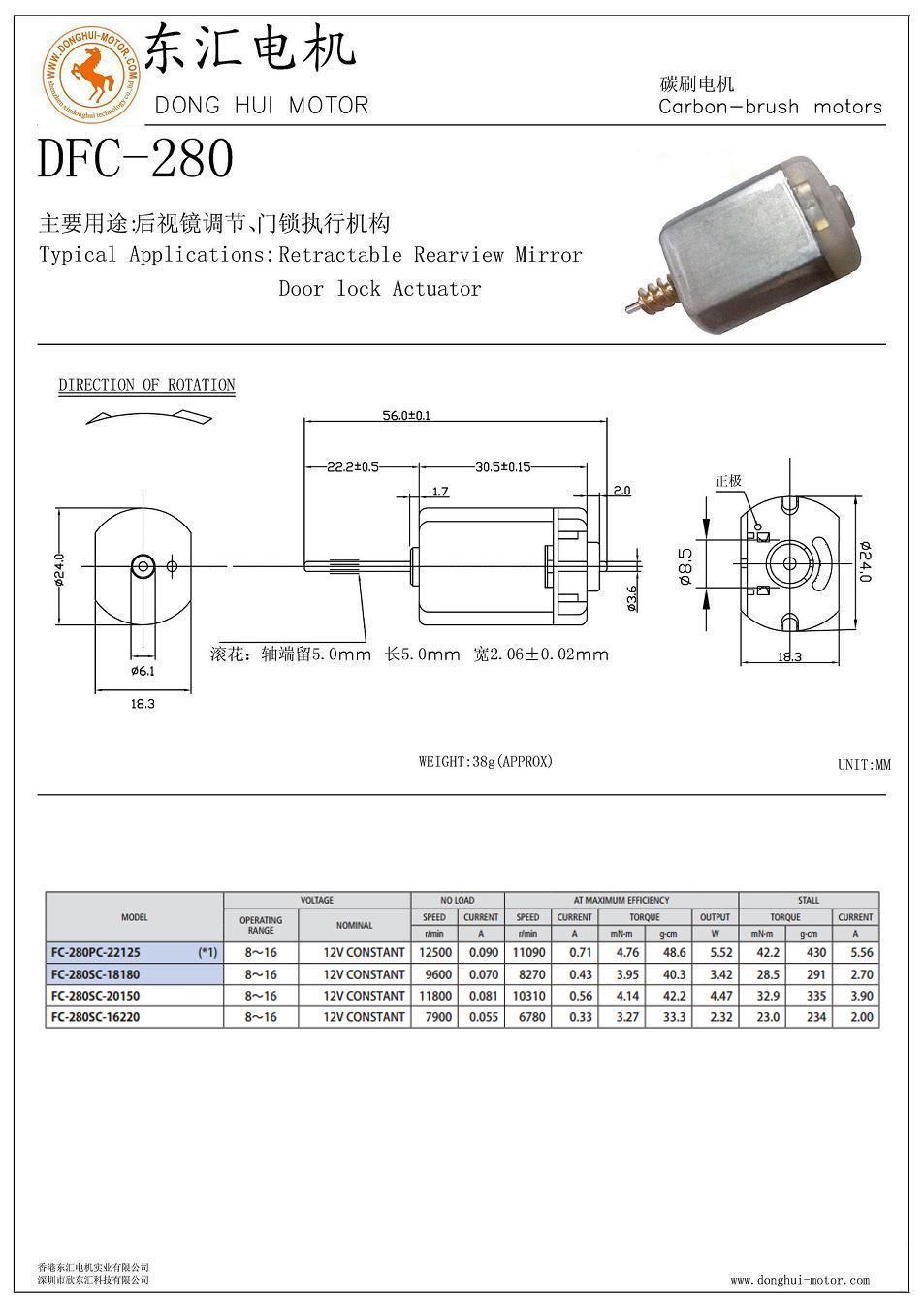

Outline Drawing and Basic Parameters
Manufacturing Capabilities & Development
Since established in 2003, there has been a continuous commitment to the development and production of micro motors, including four major product series: Micro DC motors, DC gear motors, coreless motors, and brushless motors. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.
-
Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Vibration motor, etc.
-
Product Size Range: Diameter: 4-100mm
-
DC Voltage Range: 1.5V - 42V (AC rectify options: 100V, 110V, 220V, 230V, 240V etc.)
-
Speed Range: 1 RPM - 30,000 RPM
-
Stall Torque: 1g.cm - 30kg.cm
-
Applications: Home appliances, Power Tools, Toys & Models, Precision Instruments, Office equipment, Personal care products, Automotive parts, Audio & Visual equipment, etc.
Frequently Asked Questions (FAQ)
What are the primary applications of the FC-280 micro motor?
The FC-280 micro motor is widely used in automotive components, especially as a car door lock actuator, as well as other vehicle accessories.
What are the voltage and power ratings for the FC-280 series?
The standard operating voltage is 12V, but models within the series support 12V, 13V, and 24V configurations, offering an output power range of 1W to 6W.
Does the FC-280 motor support reversible rotation?
Yes, the motor is designed for reversible rotation, allowing it to drive mechanisms in both clockwise and counter-clockwise directions.
What certifications and environmental standards does this motor meet?
The motor is fully compliant with ROHS environmental protection guidelines and features a high-durability design.
What type of bearings and components are used in the construction?
This micro DC motor is built using high-quality carbon brushes, a plastic end cap, and an oil-impregnated bearing setup for long service life and quiet operation.
What is the typical speed performance under no-load conditions?
Under no-load conditions, the motor reaches a nominal speed of 12,500 RPM with a continuous current range of 0.1-5A.
