Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Product Description
Product Description
Quick Details
Place of Origin:Guangdong China (Mainland)
Model Number:FC-280PD-16240
Usage:Car
Certification:ROHS
Type:Micro Motor
Torque:234G.CM at stall
Construction:Permanent Magnet
Commutation:Brush
Protect Feature:closed, Closed
Speed(RPM):8200rpm At No load Speed
Continuous Current(A):0.288A
Output Power:2.3 W
Voltage(V):13V
Efficiency:IE 1
Bearing:Oil-impregnated bearing
End Cap:Plastic End Cap
Stator and Slots:2-Pole stator and 3-Slot armature
Brush Type:Carbon brushes
Bearing Type:Oil-impregnated bearing
Rotation:Reversible
Packaging & Shipping
📦
Packaging Details
500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
⚡
Delivery Detail
Within 30 days
Our Services
Specifications:
Carbon brush FC-280 12v dc car door lock Motor, fc-280pd-16240 13v dc lock motor for car lock
- 13v dc motor for car lock
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
- Application: Door lock Actuator, Automotive Product

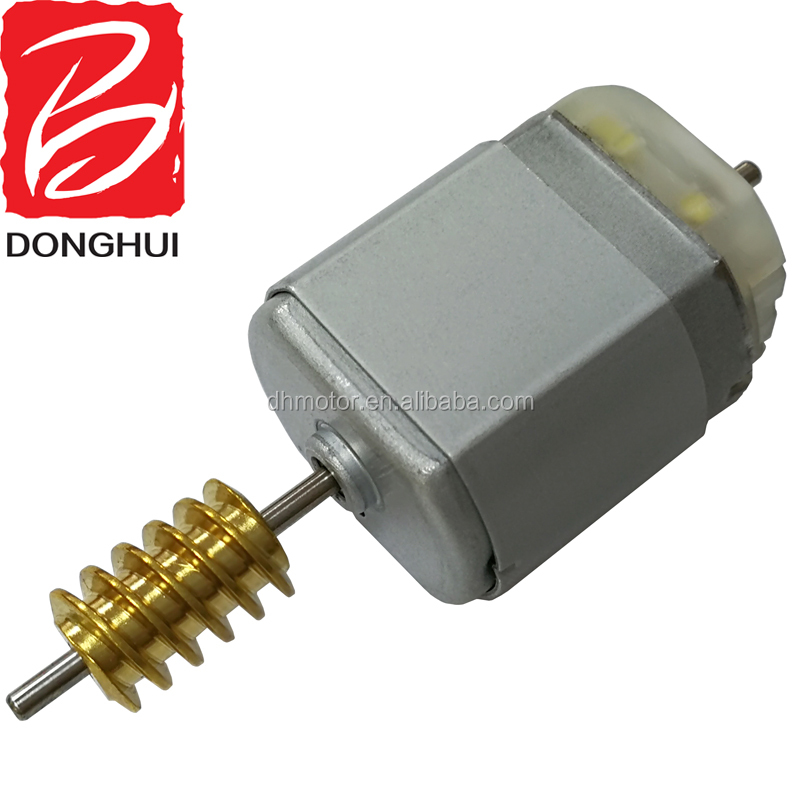

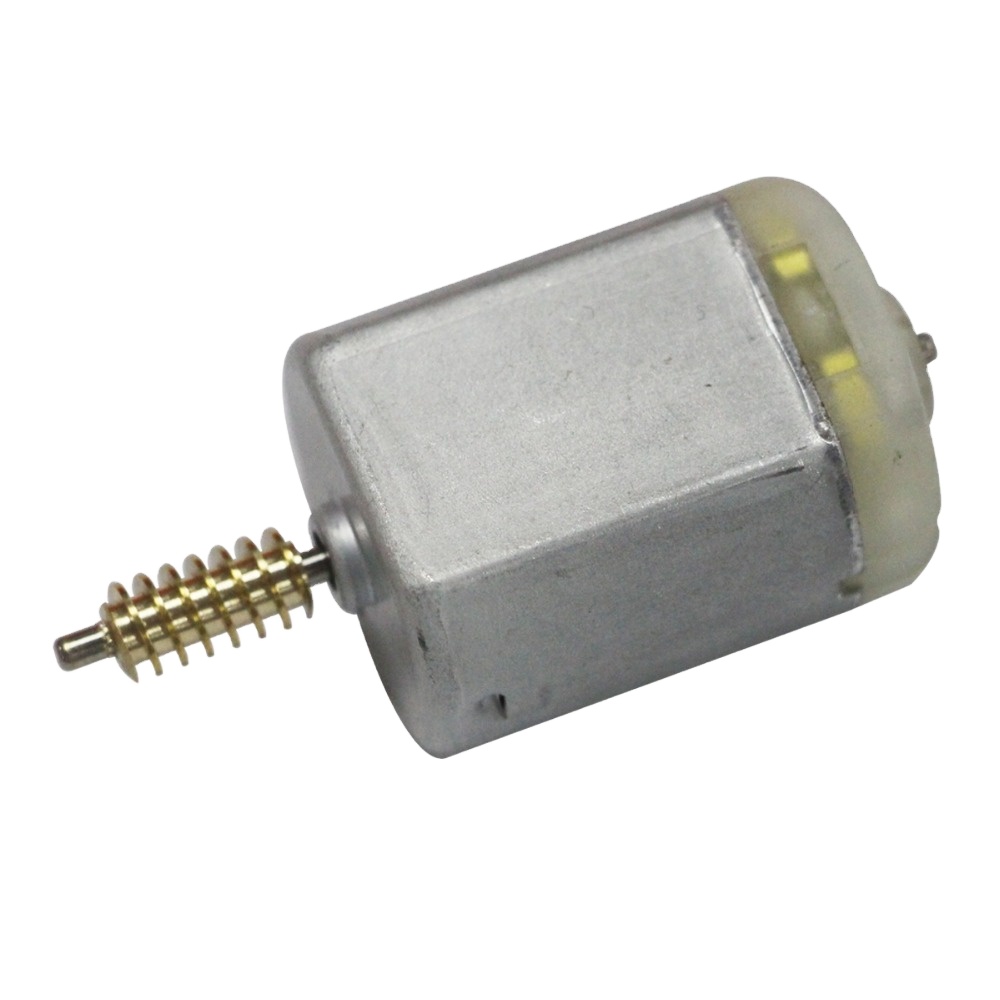

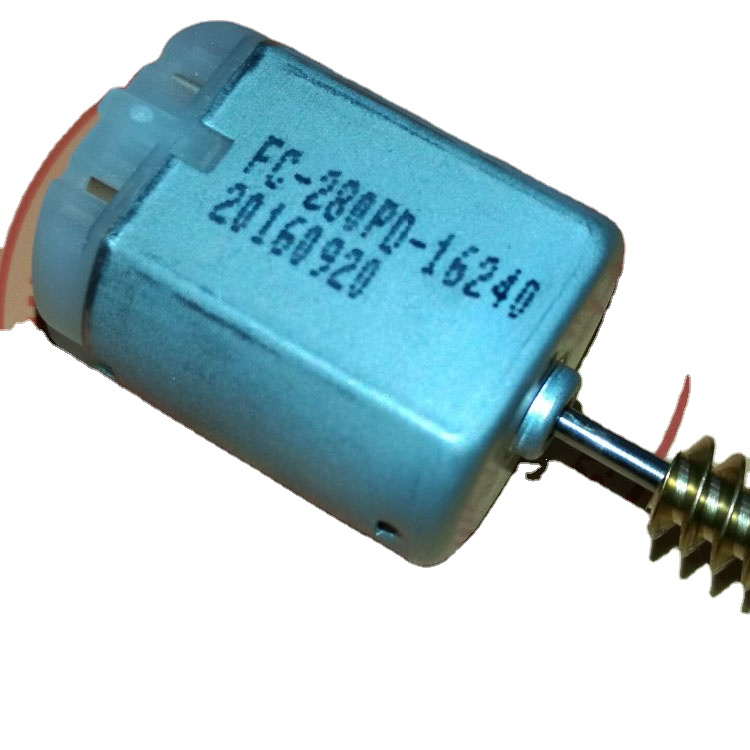

Photo: 13v dc car door lock motor fc-280pd-16240

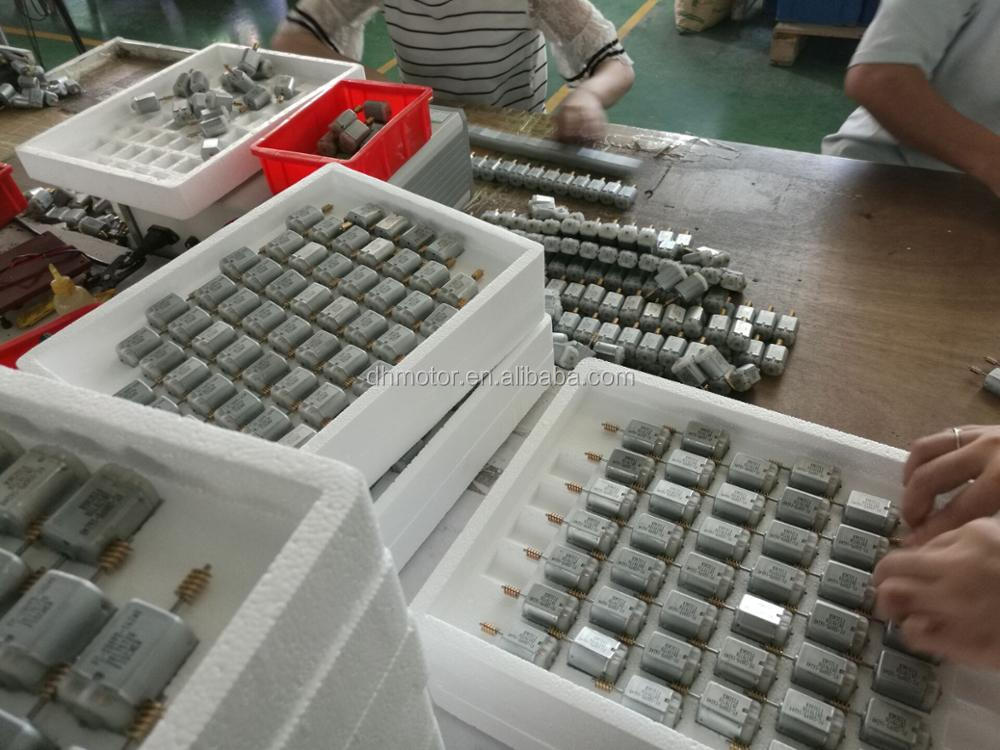

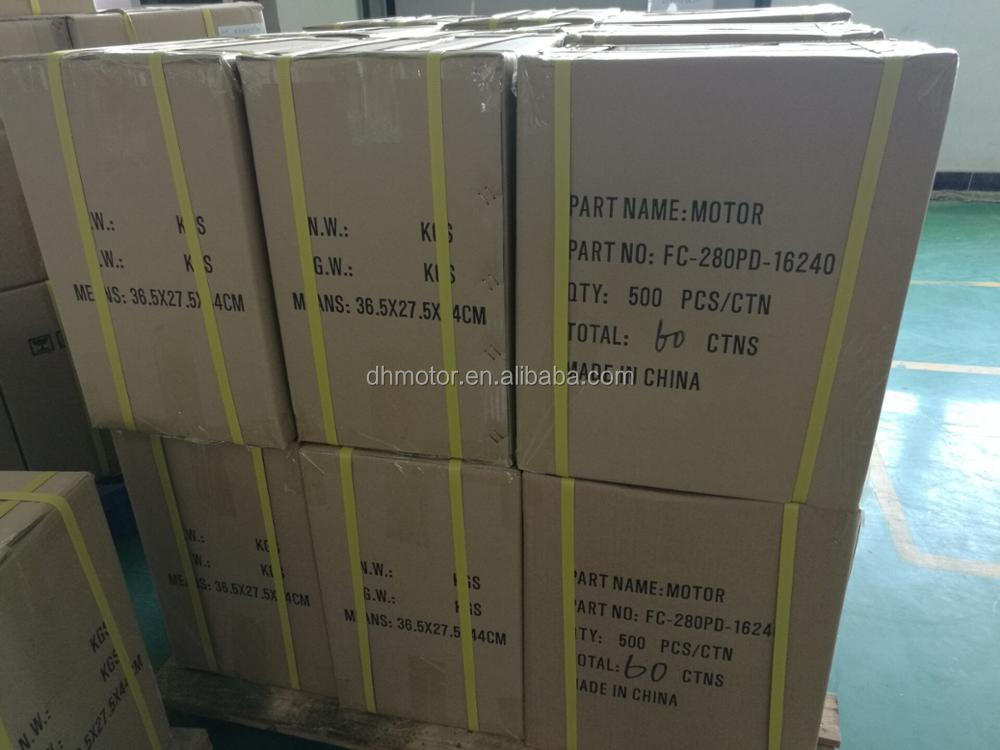

Packing:

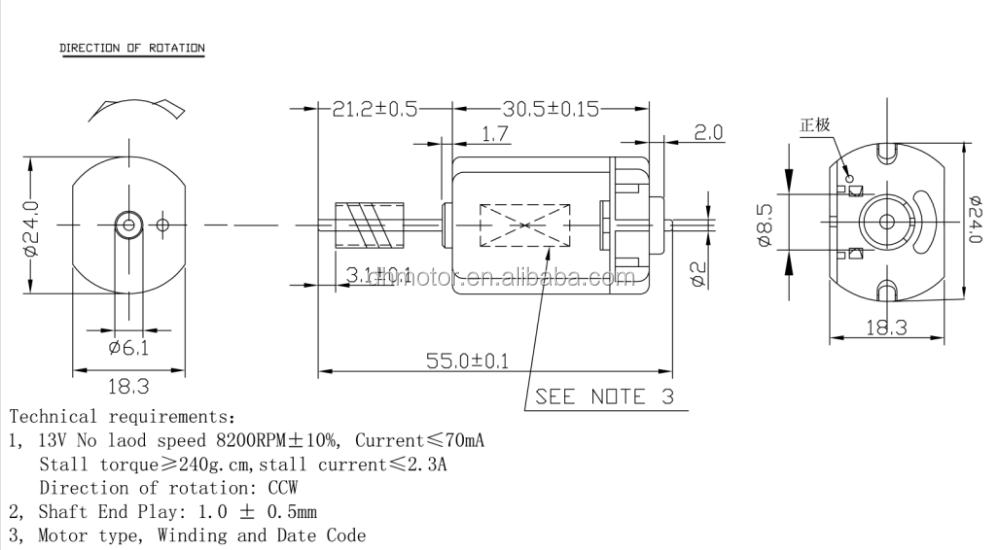

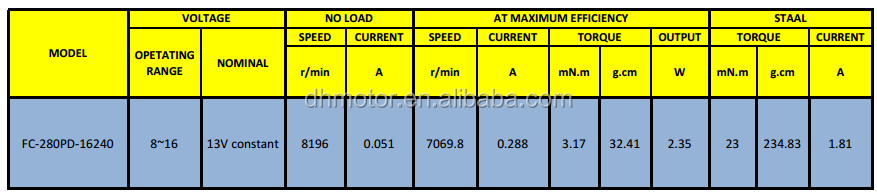

Drawings and specs:
Manufacturing Capabilities
Since established in 2003, commitment has been made to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields.
- Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products size range: Diameter: 4-100mm
- DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed range: 1 RPM-30,000RPM
- Stall torque: 1g.cm-30kg.cm
- Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
What is the rated voltage and typical application for the FC-280PD-16240 motor?
The motor operates on a 13V DC rated voltage (also compatible with 12V DC systems) and is primarily designed as a lock motor for automotive door lock actuators.
Does this micro DC motor support reversible rotation?
Yes, the rotation design of the FC-280PD-16240 is fully reversible, making it ideal for systems requiring two-way movement like locking and unlocking mechanism.
What are the certification standards of this micro motor?
The motor holds standard ROHS environmental protection certification, confirming it is free from hazardous materials.
What materials are used for the motor's brush and end cap?
The motor features high-durability carbon brushes and a robust plastic end cap, designed for low noise operation and prolonged service life.
What are the general packaging and delivery specs for bulk orders?
The standard packaging is 500 units per carton (carton size: 39x29x46 cm). Delivery is typically completed within 30 days.
What other micro motors do you manufacture?
Our capabilities range from Dia4mm to 100mm DC micro motors, including micro DC motors, gear motors, coreless motors, and brushless motors ranging from 1.5V to 42V and speeds up to 30,000 RPM.
