FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
Product Description
Product Description
Place of Origin:
Guangdong China (Mainland)
Model Number:
fc 280sc 18180
Usage:
Car, Scanner
Certification:
ROHS
Type:
Micro Motor
Torque:
291G.CM
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Closed
Speed(RPM):
9600rpm At No load Speed
Continuous Current(A):
0.1-5A
Output Power:
1-6W
Voltage(V):
12V
Efficiency:
IE 1
Bearing:
TBD
End Cap:
Plastic End Cap
Stator and Slots:
2-Pole stator and 3-Slot armature
Brush Type:
Carbon brushes
Bearing Type:
Oil-impregnated bearing
Rotation:
Reversible
Packaging & Shipping
| Packaging Details: | 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM |
| Delivery Detail: | Within 30 days |
Our Services
Specifications:
12v dc motor for Door Lock Actuator fc-280sc-18180, fc 280sc 18180 dc motor
12V Car DC Motor car lock actuator motor (12v 9600rpm)
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
Application: Door lock Actuator, Automotive Product

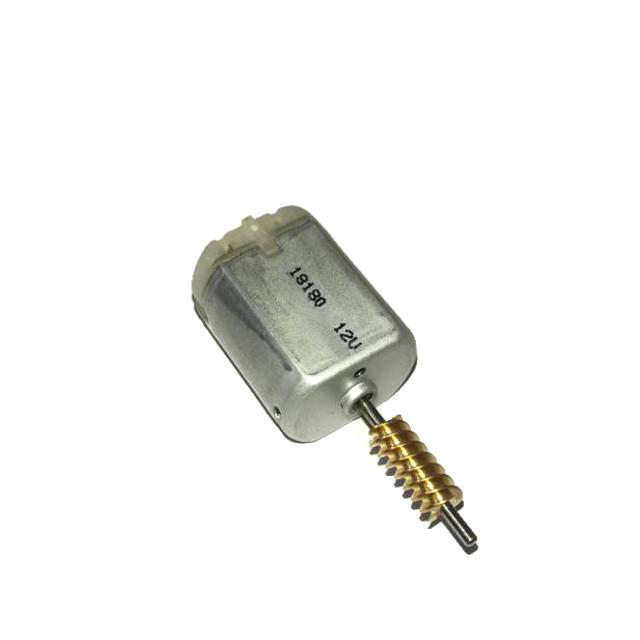

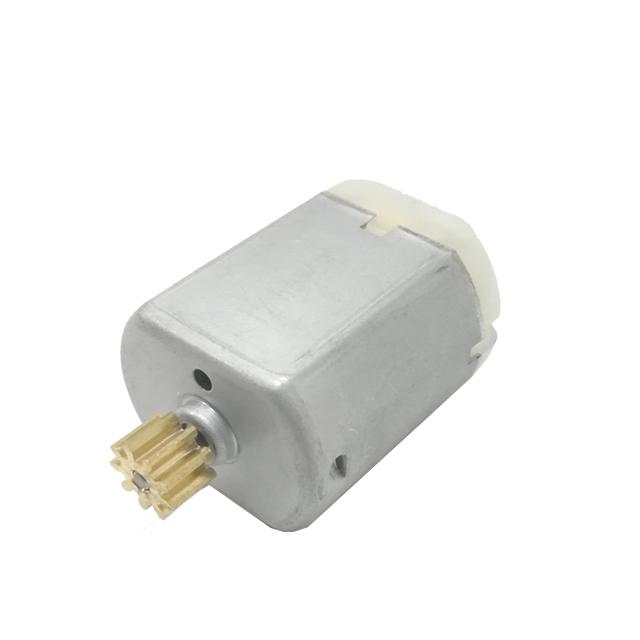

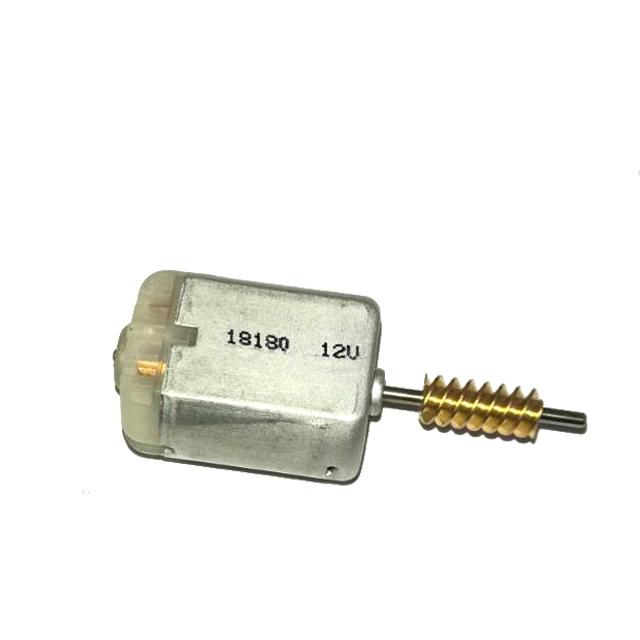

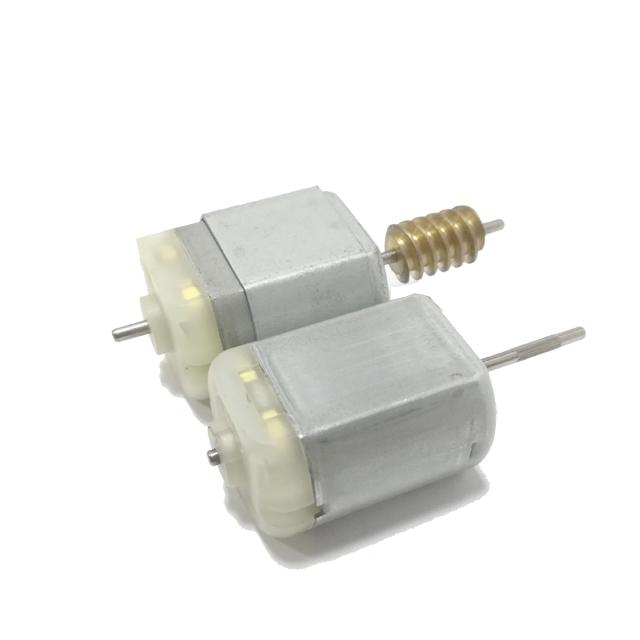

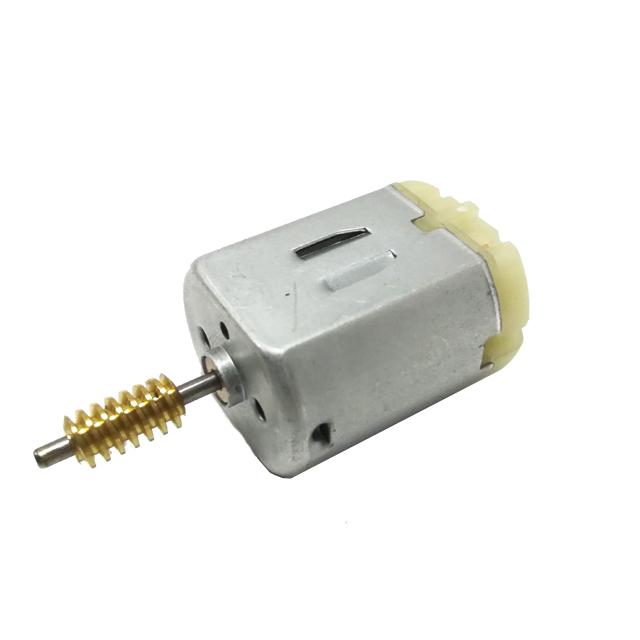

Photo: 12v dc car door lock motor fc 280sc 18180
Outline Drawing and basic parameters (fc-280sc-18180)
Manufacturing & Production Capability
Since established in 2003, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields.
- Our main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products size range: Diameter: 4-100mm
- DC Voltage range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed range: 1 RPM - 30,000 RPM
- Stall torque: 1g.cm - 30kg.cm
- Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions (FAQ)
What are the primary applications of the fc-280sc-18180 micro DC motor?
This motor is primarily designed for automotive products, particularly as a car central door lock actuator motor. It is also suitable for scanners and other precision micro-motor applications.
What is the rated voltage and no-load speed of this motor?
The motor operates on a nominal voltage of 12V DC, achieving a no-load speed of approximately 9600 RPM. Its general operating voltage range is customizable from 1.5V to 42V.
Does the motor support reversible rotation?
Yes, this micro motor features reversible rotation, allowing it to turn both clockwise and counter-clockwise by reversing the terminal polarity.
What certifications does this micro motor comply with?
The motor holds official ROHS certification, ensuring compliance with strict environmental standards for restricted substances in electronics.
What materials are used for the motor's internal construction?
It is built with a permanent magnet structure, a 2-pole stator, a 3-slot armature, carbon brushes for extended lifespan, an oil-impregnated bearing, and a durable plastic end cap.
What are the standard packaging and delivery terms?
Standard packaging is 500 pieces per carton, with carton dimensions of 39x29x46 cm. Production and delivery are completed within 30 days.
