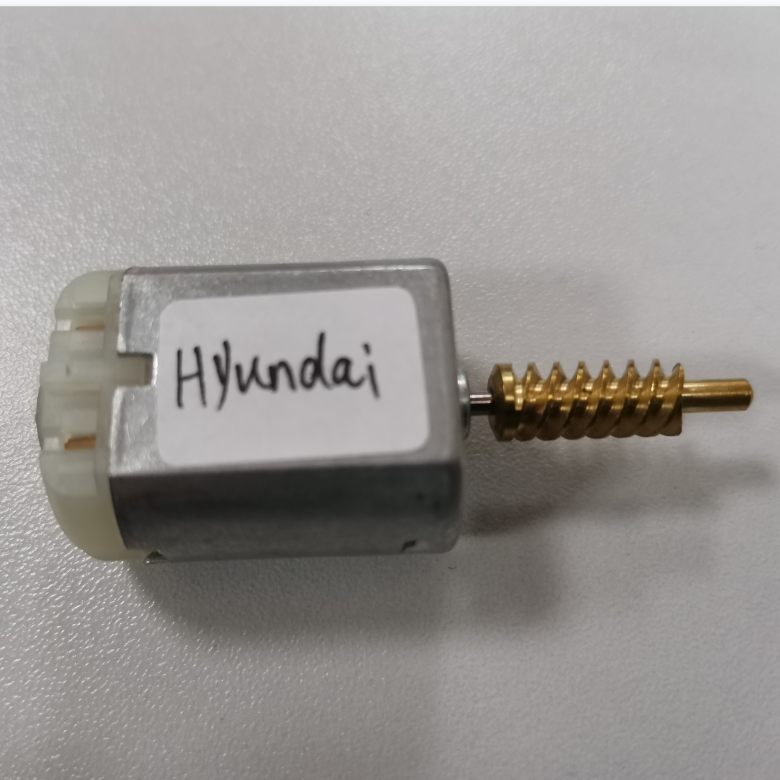

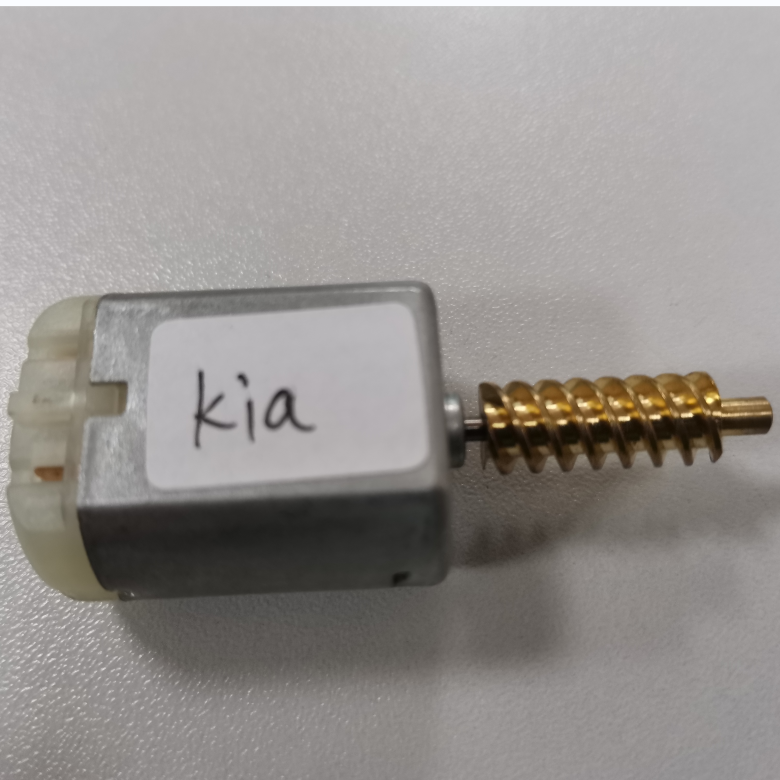

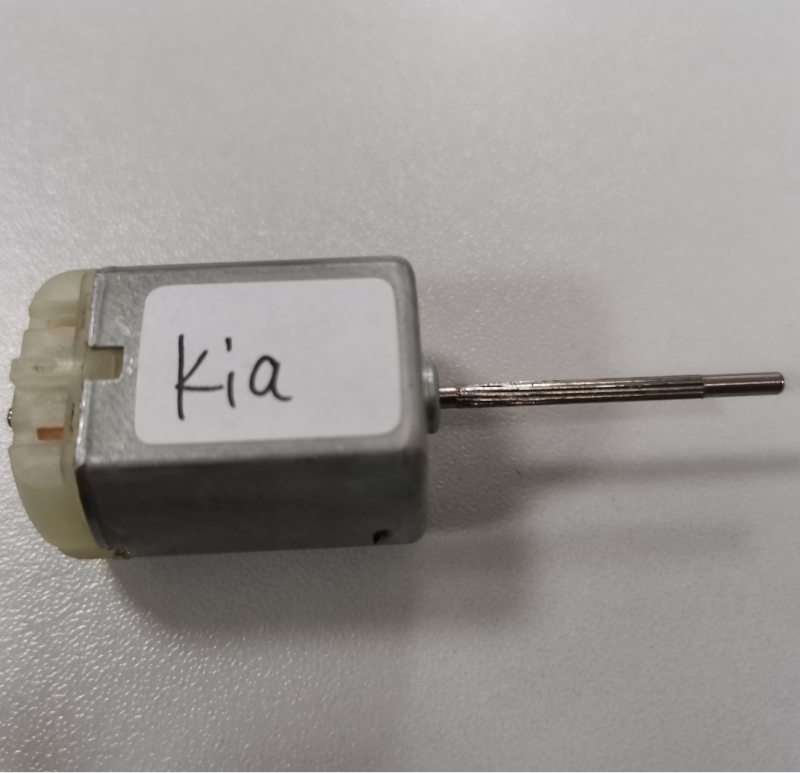

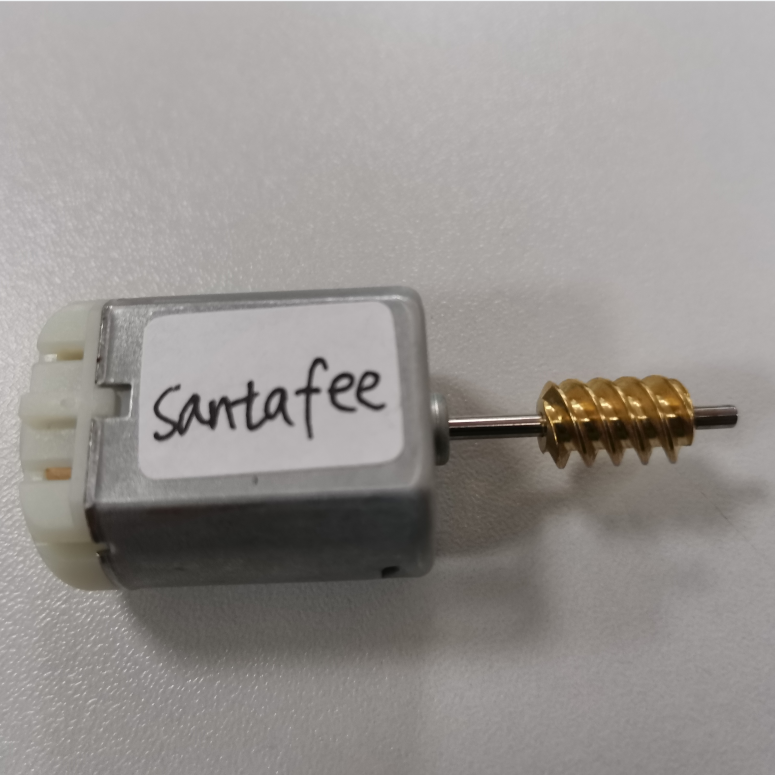

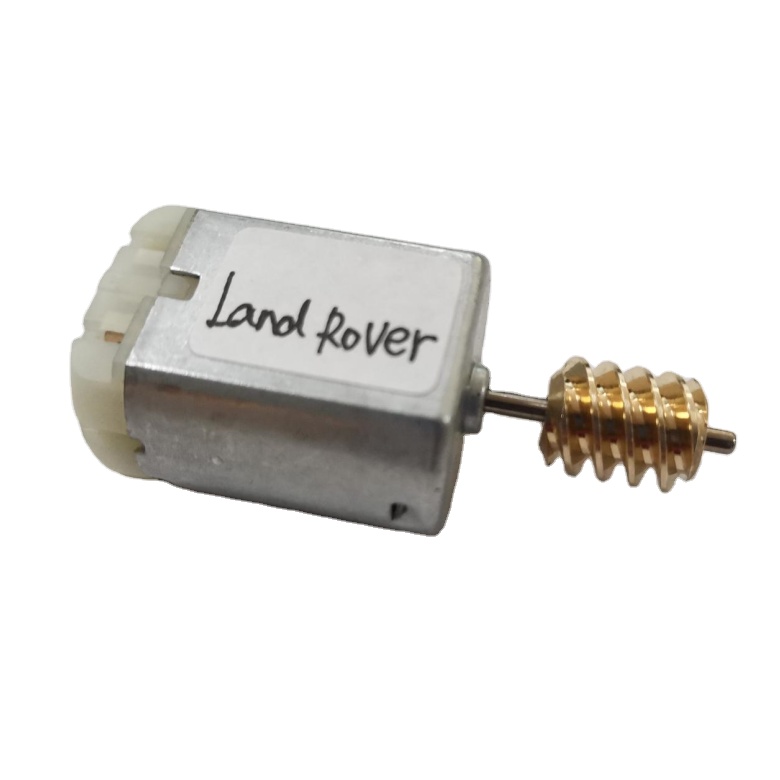

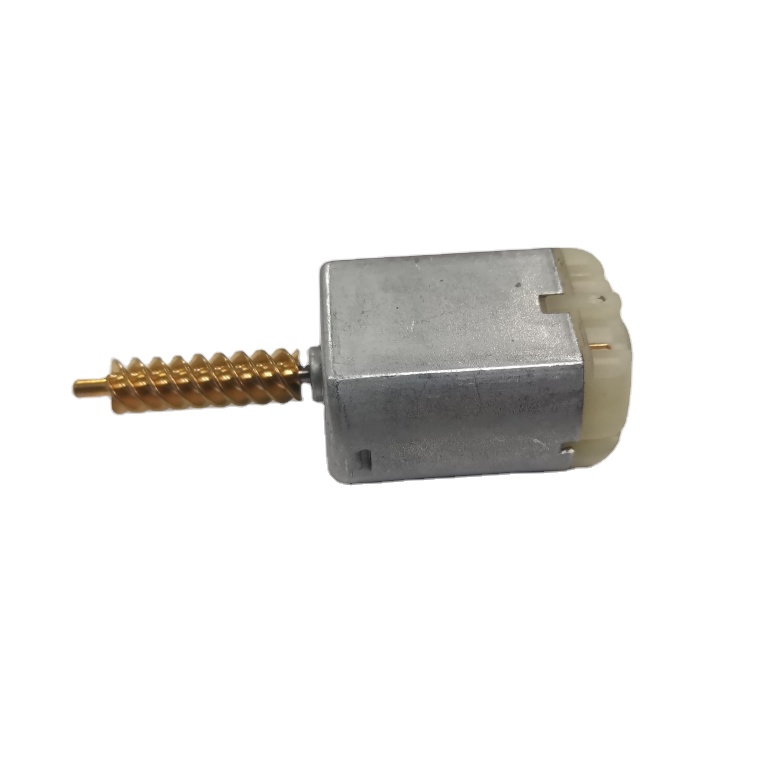

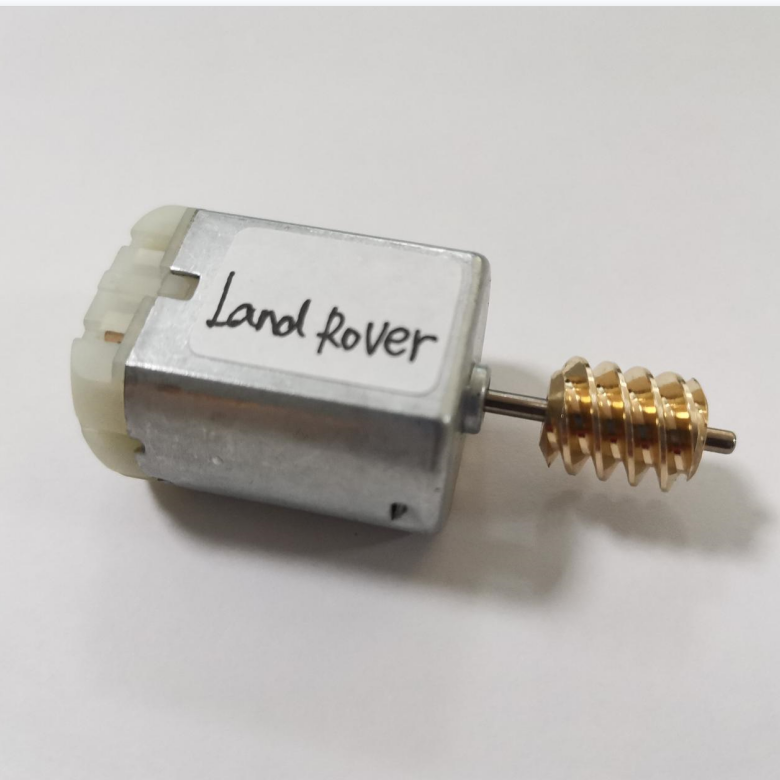

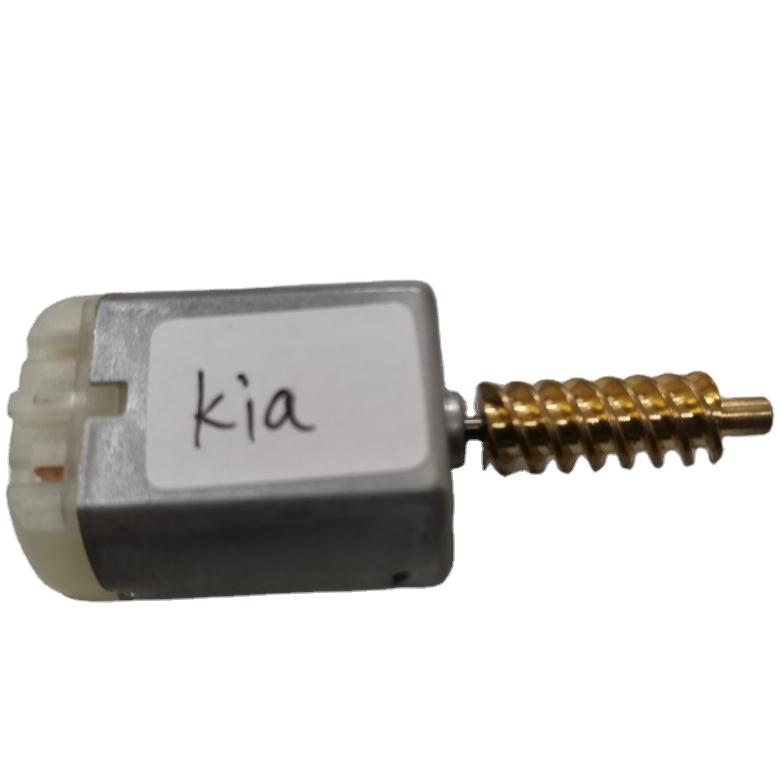

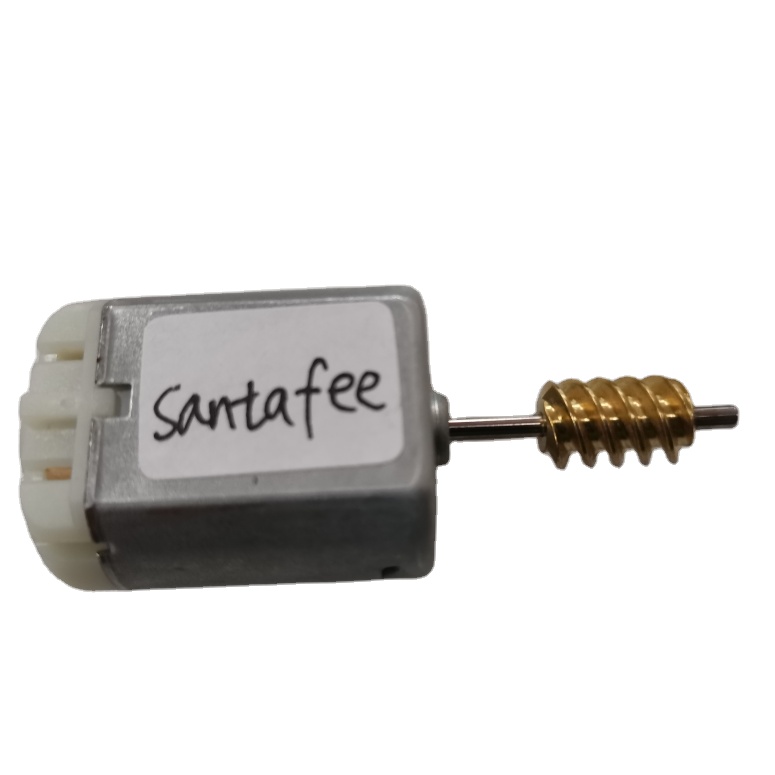

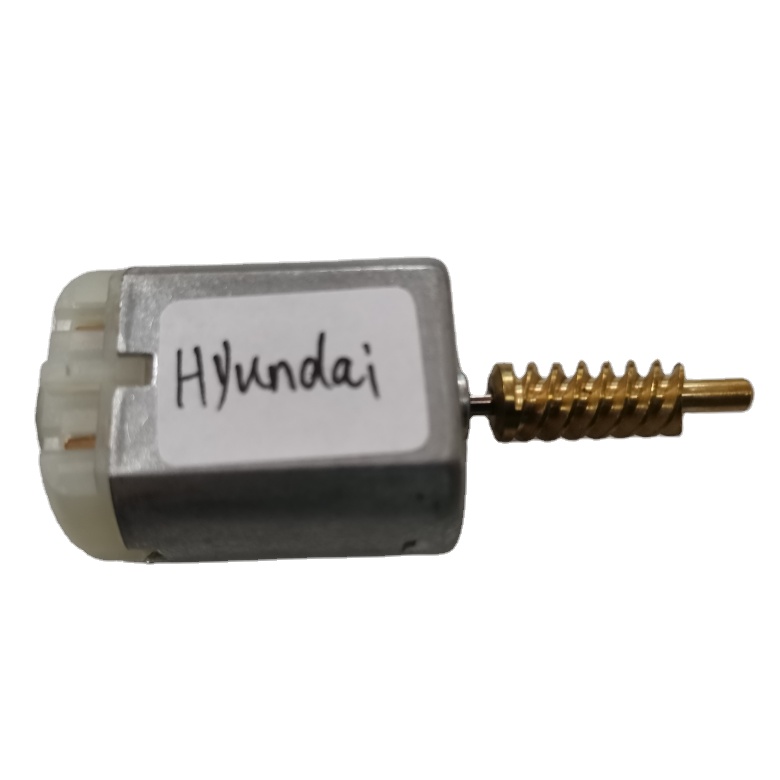

FC280 12v Car Lock Motor FC-280PC-22125 12v Door Lock Motor for Hyundai, Kia Door Lock Motor
Product Description
| Place of Origin | Guangdong China (Mainland) | Brand Name | OEM / Customized | Model Number | FC-280PC-22125 |
| Usage | Car, Scanner | Certification | ROHS | Type | Micro Motor |
| Torque | 48G.CM | Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Closed | Speed(RPM) | 12500rpm (At No load Speed) | Continuous Current(A) | 0.1-5A |
| Output Power | 1-6W | Voltage(V) | 12V | Efficiency | IE 1 |
| Bearing | TBD | End Cap | Plastic End Cap | Stator & Slots | 2-Pole stator and 3-Slot armature |
| Brush Type | Carbon brushes | Bearing Type | Oil-impregnated bearing | Rotation | Reversible |
| Packaging Details | 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM |
| Delivery Detail | Within 30 days |
FC280 12v car lock motor FC-280PC-22125 12v door lock motor for Hyundai, Kia door lock motor
12V Car DC Motor car lock actuator motor
- ✓ ROHS Certification
- ✓ Permanent Magnet
- ✓ Plastic End Cap
- ✓ Low noise and long life
Application: Door lock Actuator, Automotive Product

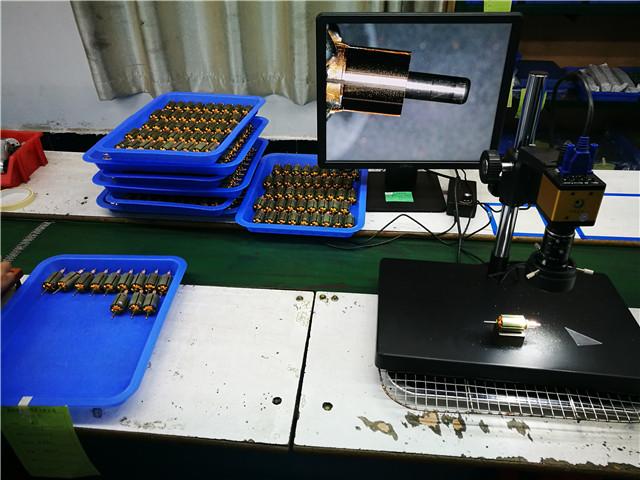

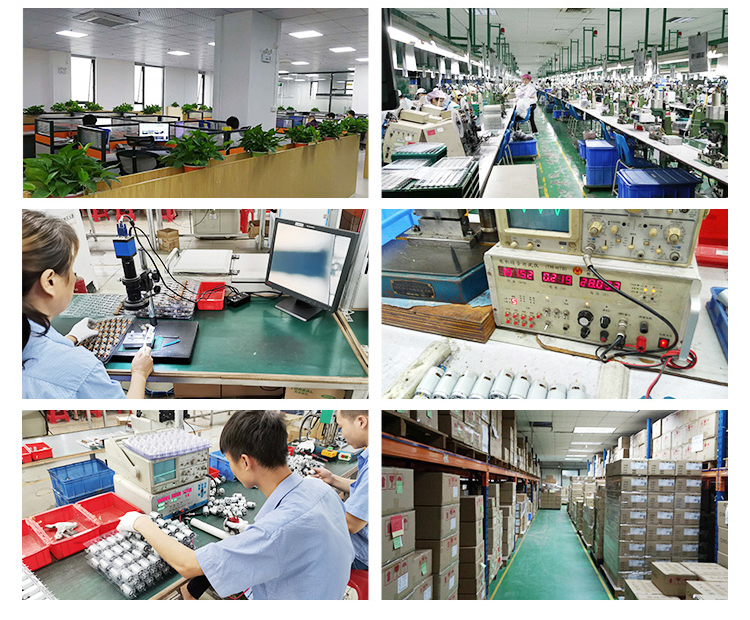

Since our manufacturing facility was established in 2003, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields. Learn More About us:

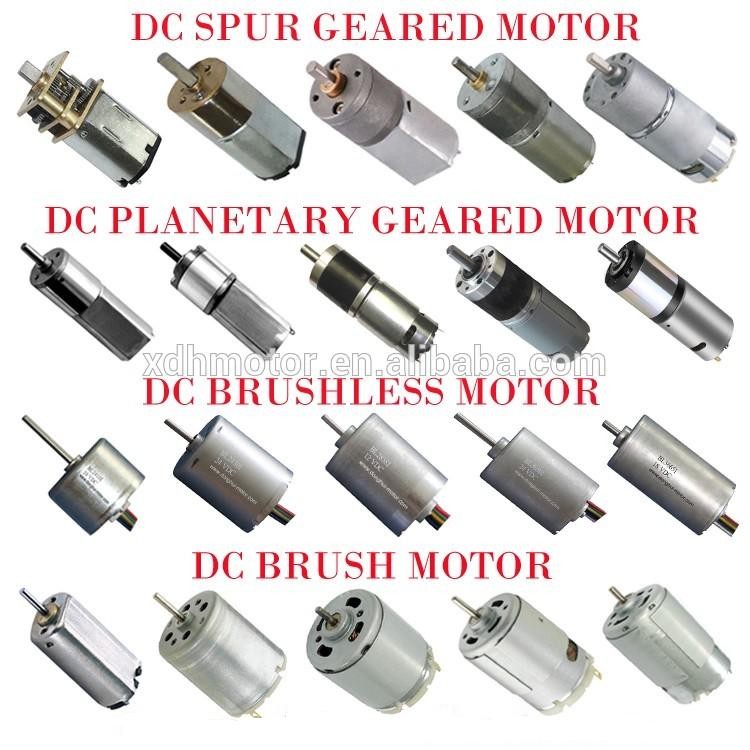

1. Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
2. Products size range: Diameter: 4-100mm
3. DC Voltage range: 1.5V - 42V
AC rectify: 100V, 110V, 220V, 230V, 240V etc.
4. Speed range: 1 RPM - 30,000RPM
5. Stall torque: 1g.cm - 30kg.cm
6. Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
What are the primary applications of the FC-280PC-22125 micro motor?
This motor is specifically designed for automotive products, mainly acting as a door lock actuator for vehicles such as Hyundai and Kia, as well as for scanners and other micro precision systems.
What is the operating voltage and speed of this motor?
The motor operates on a nominal 12V DC power source. It delivers an impressive no-load speed of 12,500 RPM, with a continuous current range of 0.1-5A.
Does this micro motor comply with environmental safety standards?
Yes, this micro motor comes with full ROHS certification, ensuring it meets strict environmental safety standards and regulations for electrical equipment.
What are the structural features of the FC-280PC-22125 model?
It features a permanent magnet construction with a plastic end cap, a 2-pole stator, a 3-slot armature, carbon brushes, and oil-impregnated bearings. It also supports reversible rotation.
What are the shipping and packaging options for bulk orders?
Standard packaging is 500 units per carton (carton dimension: 39x29x46 cm). Delivery is typically fulfilled within 30 days after order confirmation.
What other product categories do you specialize in?
Our manufacturing expertise includes a wide range of micro motors such as Micro DC motors, DC gear motors, coreless motors, and brushless motors, ranging in diameter from 4mm to 100mm.
