20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
Product Description
Product Description
Place of Origin:Guangdong China (Mainland)
Model Number:FC-280SC-20150
Usage:Car, Scanner
Certification:ROHS
Type:Micro Motor
Torque:335G.CM AT STALL
Construction:Permanent Magnet
Commutation:Brush
Protect Feature:Closed
Speed(RPM):11800rpm No load
Continuous Current(A):0.1-5A
Output Power:4.5W
Voltage(V):12V
Efficiency:IE 1
Bearing:TBD
End Cap:Plastic End Cap
Stator and Slots:2-Pole, 3-Slot
Brush Type:Carbon brushes
Bearing Type:Oil-impregnated
Rotation:Reversible
Packaging & Shipping
📦
Packaging Details
500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
⏱
Delivery Detail
Within 30 days
Specifications & Features
12V DC Electric Car Lock Motor DC Motor (Model: FC-280SC-20150)
- 12V Car DC Motor: Specifically optimized for car lock actuators.
- ROHS Certification: Guaranteed compliance with standard environmental requirements.
- Permanent Magnet Construction: Offers reliable performance and high efficiency.
- Plastic End Cap: Crafted with high quality materials for long-lasting operation.
- Low Noise & Long Life: Built for silent running and durability.
- Application: Perfect fit for door lock actuators and general automotive products.

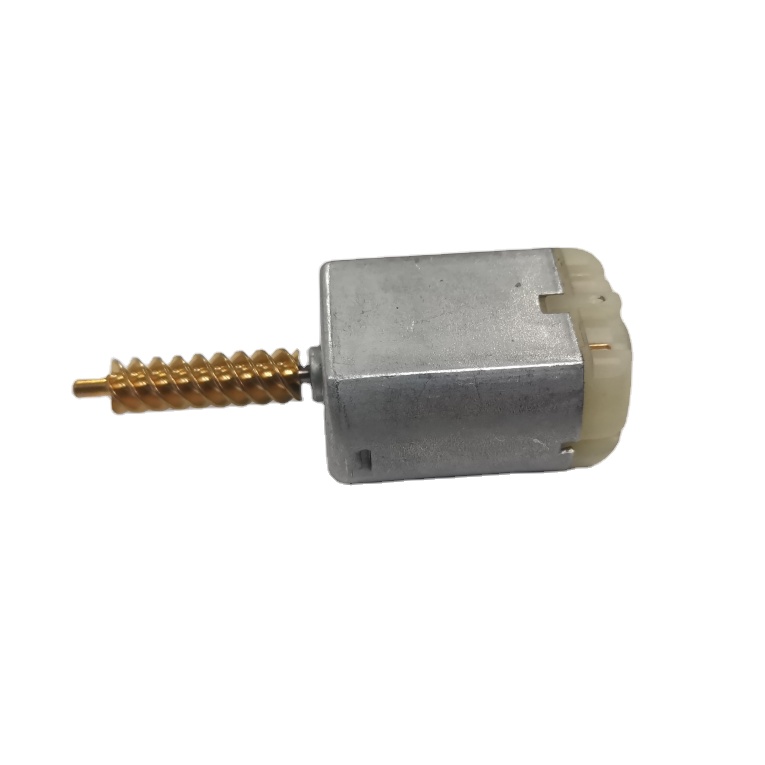

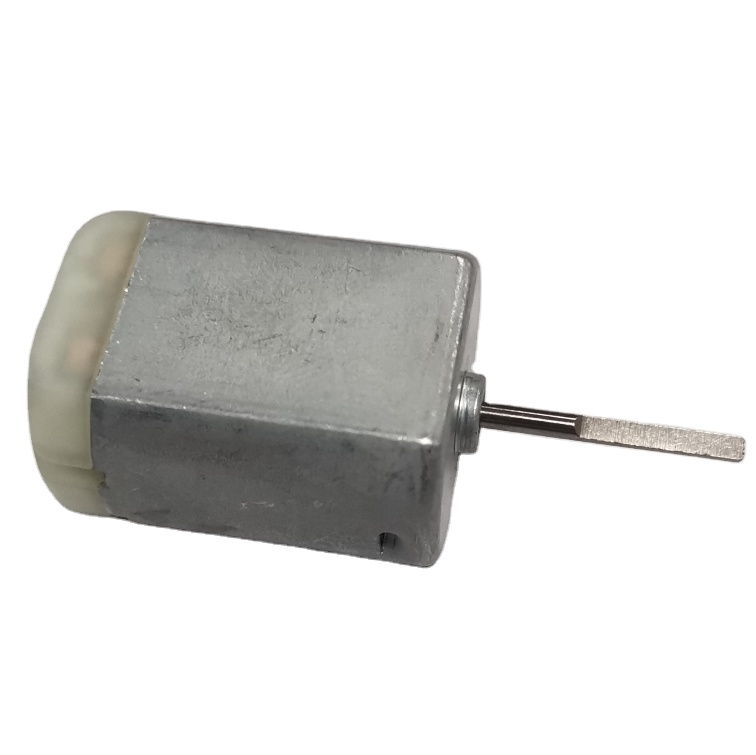

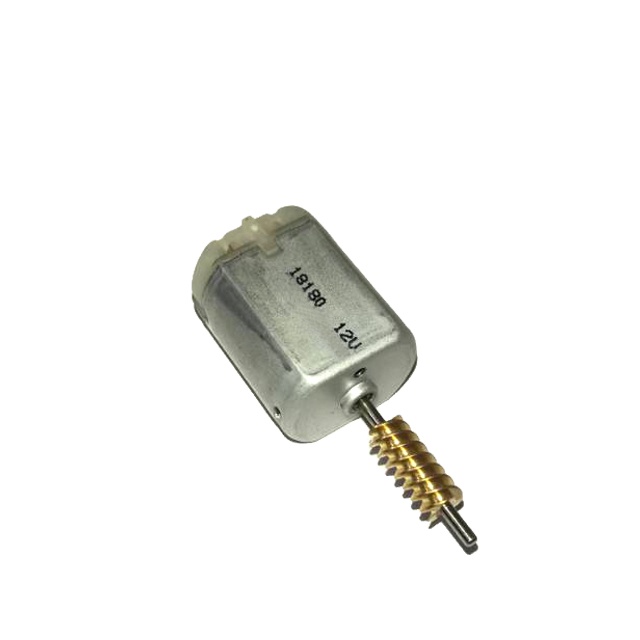

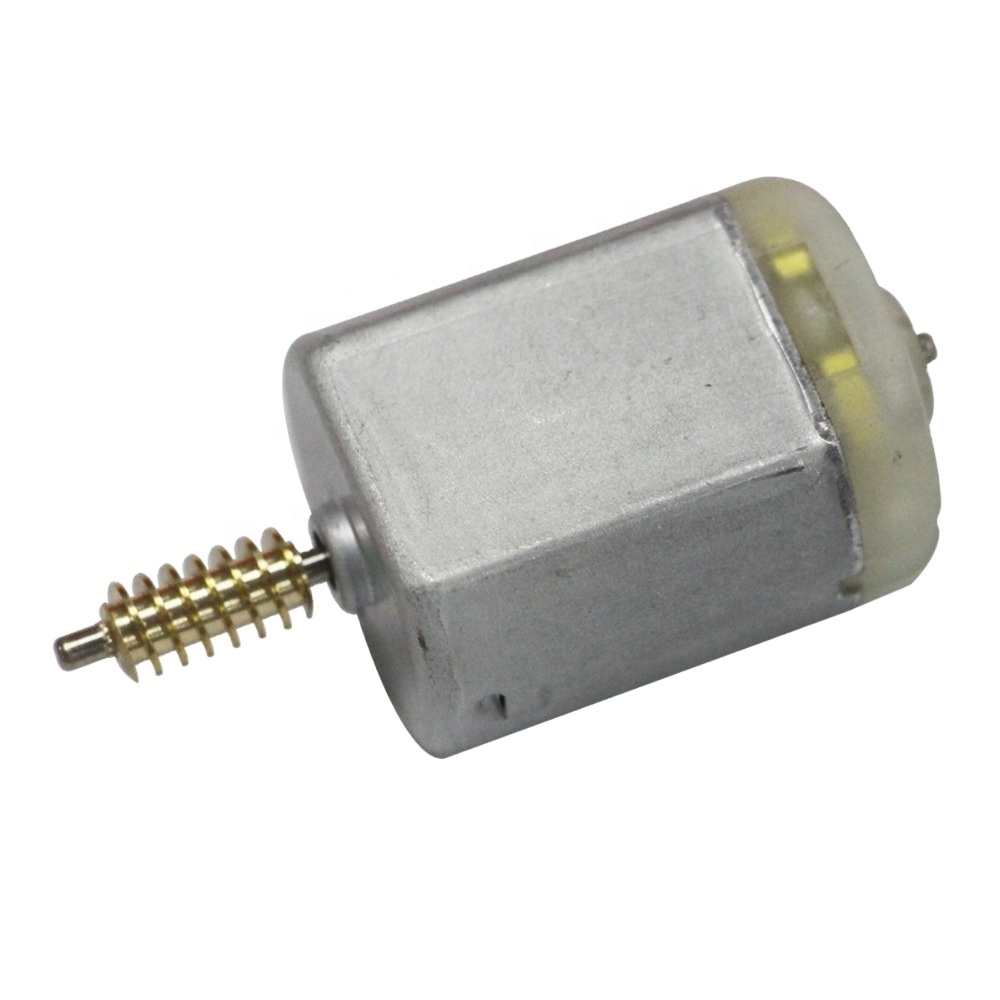

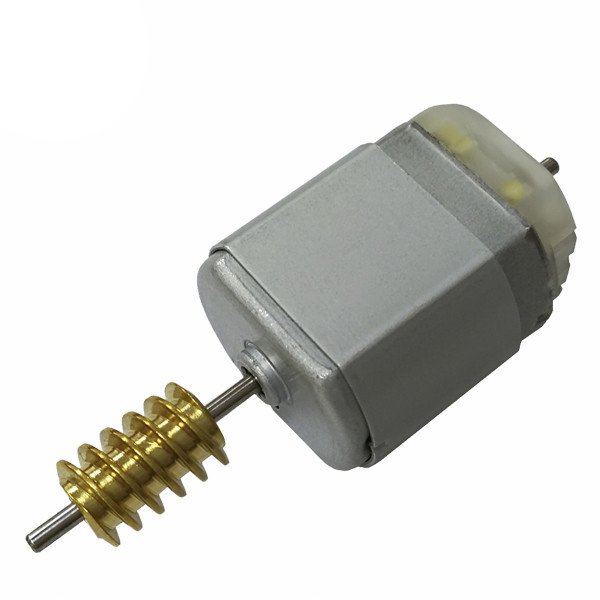

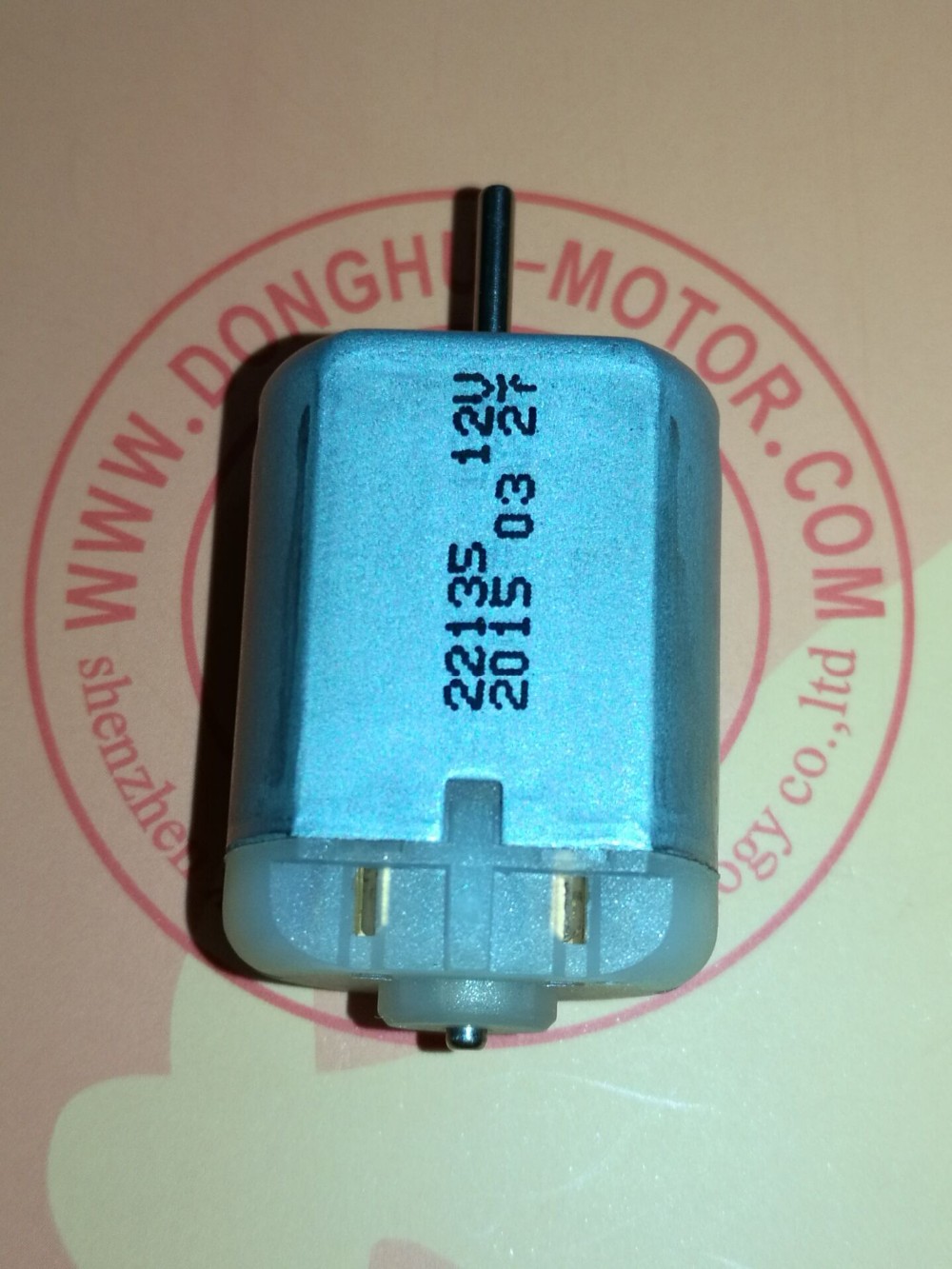

Photo: 12v dc car lock motor

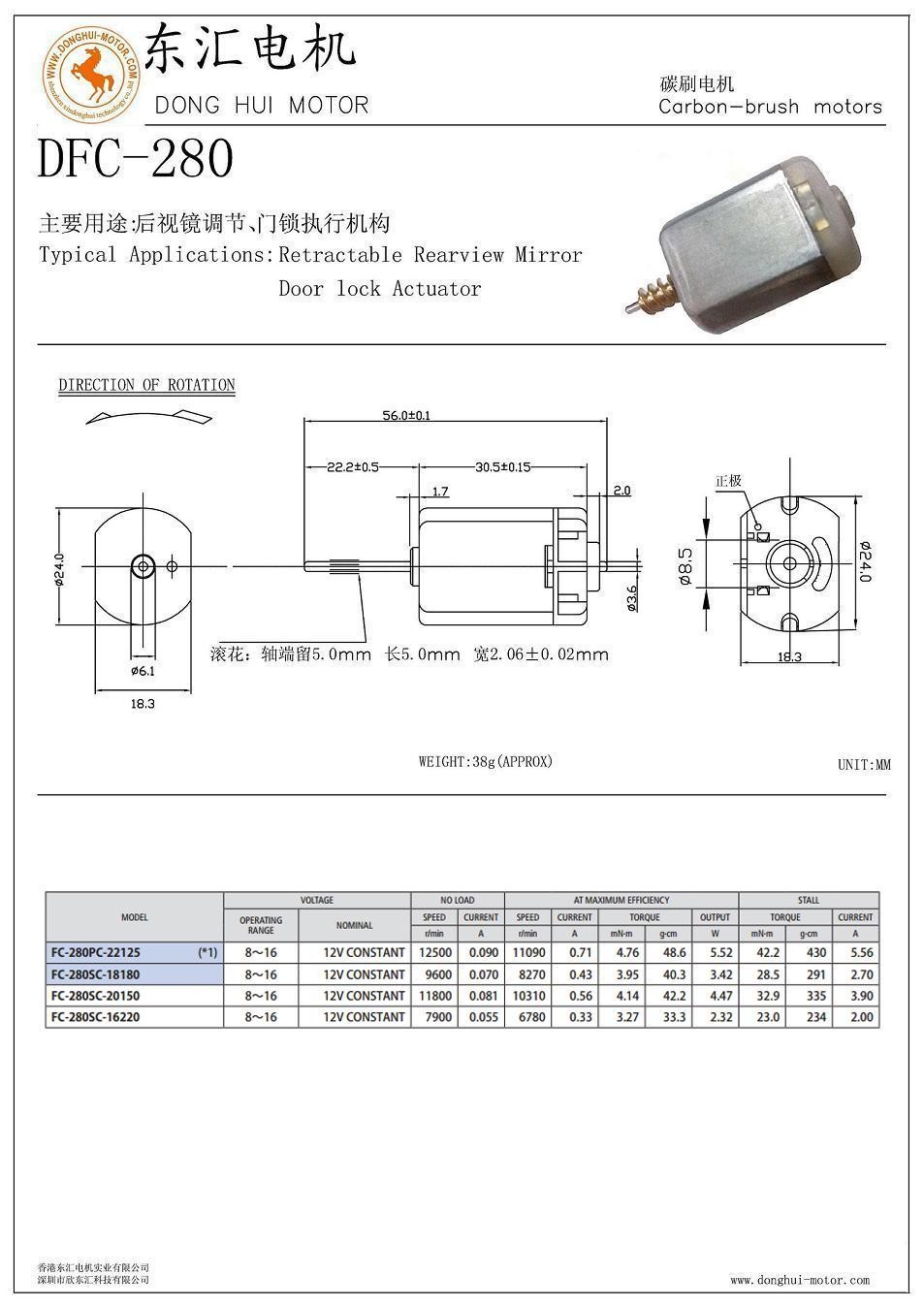

Outline Drawing & Basic Parameters
Manufacturing Capabilities & Facilities
Since establishment in 2003, there has been a strong commitment to the development and production of high-quality micro motors. Production includes 4 major product series: Micro DC motors, DC gear motors, coreless motors, and brushless motors. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.

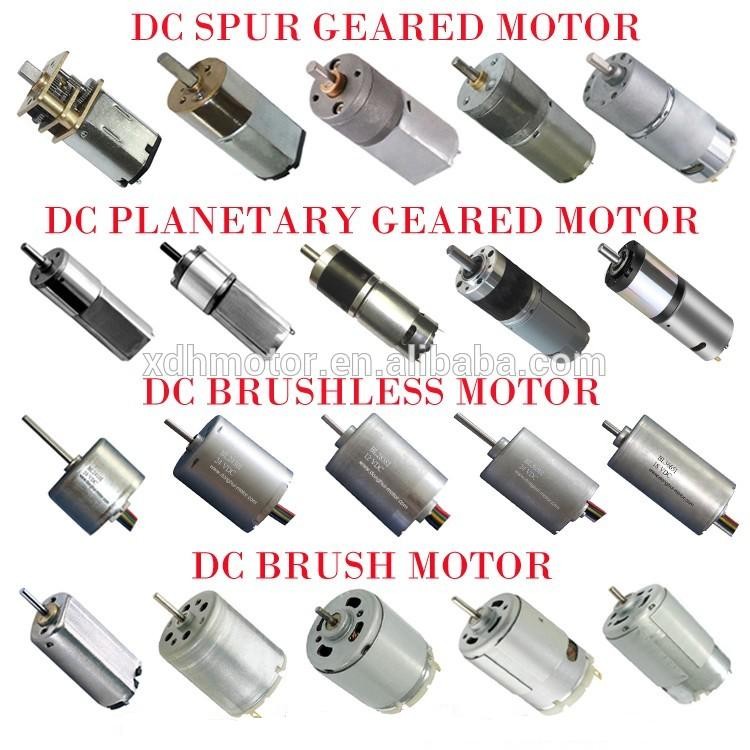

- Main Products: Dia 4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Vibration motor, etc.
- Products Size Range: Diameter 4 - 100mm
- DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V, etc.)
- Speed Range: 1 RPM - 30,000 RPM
- Stall Torque Range: 1g.cm - 30kg.cm
- Wide Application Fields: Home appliances, power tools, toys & models, precision instruments, office equipment, personal care products, automotive components, and audio/visual equipment.
Frequently Asked Questions (FAQ)
Q:What is the main application of the FC-280SC-20150 motor?
A: The FC-280SC-20150 motor is specifically designed for automotive products, primarily serving as a highly reliable car door lock actuator, but it can also be used in scanner systems.
Q:What are the electrical specifications for this micro motor?
A: It operates on a nominal voltage of 12V DC, drawing a continuous current range of 0.1-5A, with an output power of 4.5W. The no-load speed is rated at 11,800 RPM.
Q:What kind of construction and protection features does it have?
A: The motor features a permanent magnet construction with a reversible brush commutation system (carbon brushes), oil-impregnated bearings, and a closed protect feature.
Q:What is the standard packaging and delivery time?
A: Standard packaging details are 500 pieces per carton, with carton dimensions of 39x29x46 cm. Orders are typically shipped and delivered within 30 days.
Q:Is this micro motor environmentally certified?
A: Yes, this DC micro motor has achieved ROHS certification, ensuring compliant material sourcing and safety standards.
Q:What custom motor specifications can be supported?
A: Production lines can accommodate diameters from 4mm to 100mm, DC voltages from 1.5V to 42V, speed options up to 30,000 RPM, and stall torques ranging from 1g.cm to 30kg.cm.
