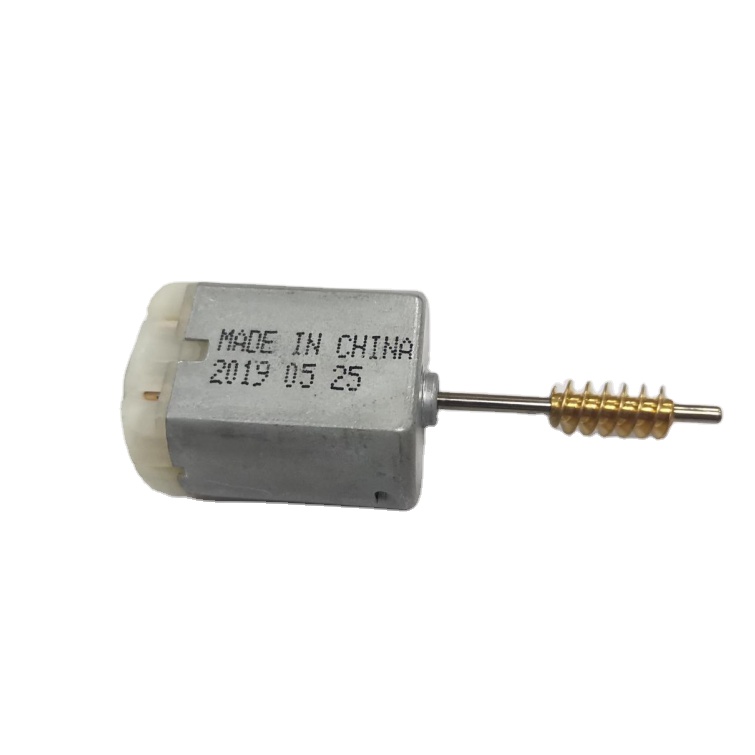

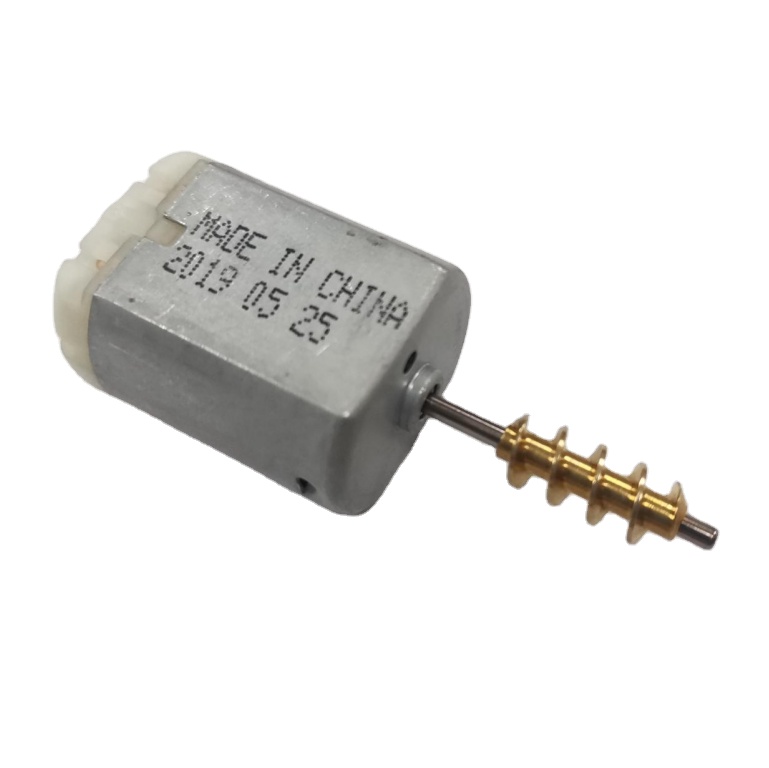

12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
Product Description
Product Description
| Place of Origin | Guangdong China (Mainland) | Model Number | FC-280SC-20150 |
| Usage | Car, Scanner | Certification | ROHS |
| Type | Micro Motor | Torque | 335G.CM AT STALL |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Closed | Speed (RPM) | 11800rpm (At No load Speed) |
| Continuous Current (A) | 0.1-5A | Output Power | 4.5W |
| Voltage (V) | 12V | Efficiency | IE 1 |
| Bearing | TBD | End Cap | Plastic End Cap |
| Stator and Slots | 2-Pole stator and 3-Slot armature | Brush Type | Carbon brushes |
| Bearing Type | Oil-impregnated bearing | Rotation | Reversible |
Packaging & Shipping
| Packaging Details | 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM |
| Delivery Detail | Within 30 days |
Specifications
FC-280 12v dc motor electric for car

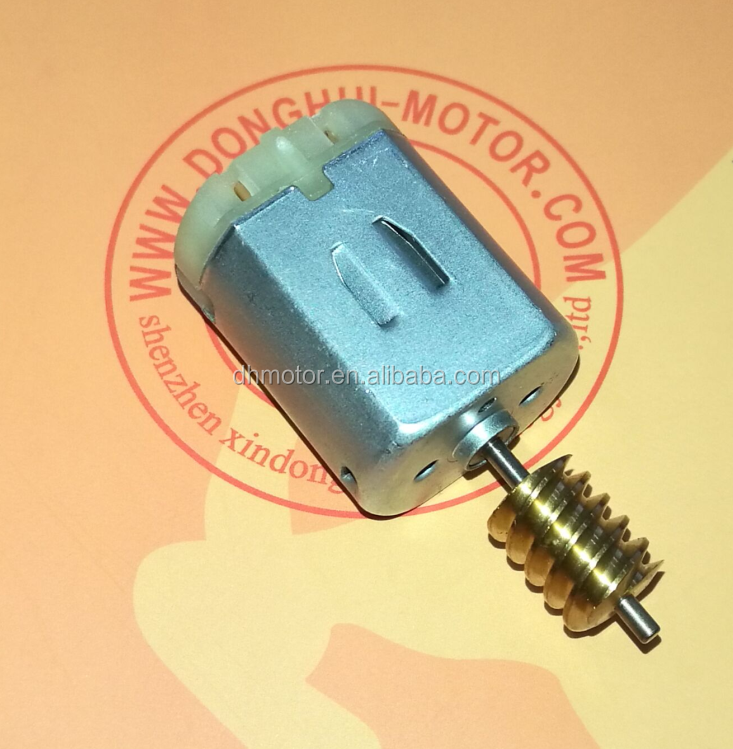

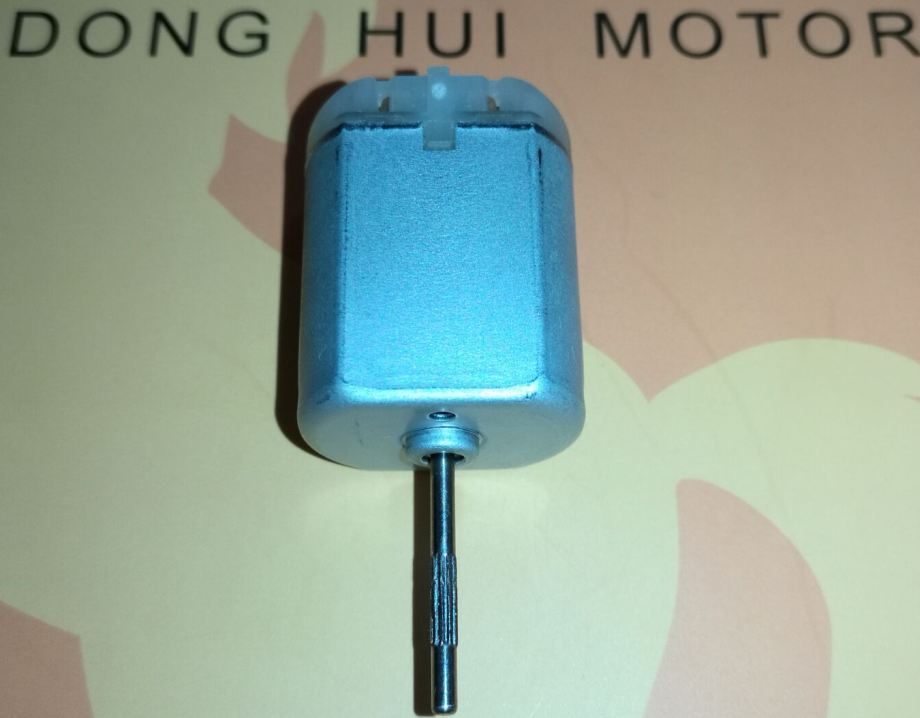

12V car door lock actuator motor fc280
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
Application
Door lock Actuator, Automotive Product
Outline Drawing and Basic Parameters
Manufacturing Capabilities
Since established in 2003, there has been a commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home automation, office automation equipment, medical equipment, power tools, automotive and other fields.
Product Overview & Scope
- Main Products: Dia4~100mm DC Micro Motor, Auto DC motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Size Range: Diameter: 4-100mm
- DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed Range: 1 RPM - 30,000 RPM
- Stall Torque: 1g.cm - 30kg.cm
- Applications: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
Q1: What are the primary applications of the FC-280 micro DC motor?
A1: The FC-280 motor is widely used in automotive products (such as car door lock actuators), scanners, and other precision applications requiring reliable micro motor performance.
Q2: What is the operating voltage and speed of the FC-280SC-20150 model?
A2: This model operates at a nominal voltage of 12V and features a no-load speed of 11,800 RPM, with a continuous current range of 0.1-5A.
Q3: Is the rotation direction of this micro motor customizable?
A3: Yes, the FC-280 micro DC motor is configured for reversible rotation, allowing it to turn in both clockwise and counter-clockwise directions.
Q4: What certifications does this product carry?
A4: The motor is certified under ROHS standards, ensuring that it meets strict environmental and hazard-free material compliance requirements.
Q5: What are the packaging and delivery details for volume orders?
A5: Standard packaging is 500 PCS per carton (carton size: 39x29x46 cm). Delivery is typically completed within 30 days.
Q6: What ranges of sizes and voltages are supported across your micro motor series?
A6: Available diameters range from 4mm to 100mm, with DC operating voltages spanning from 1.5V up to 42V (including AC rectified configurations up to 240V).
