12v Micro Dc Motor Fc 280sc 18180 Dc Motor for Car Door Lock Actuator
Product Description
Product Description
Place of Origin:
Guangdong China (Mainland)
Model Number:
fc 280sc 18180
Usage:
Car, Scanner
Certification:
ROHS
Type:
Micro Motor
Torque:
291G.CM
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Closed
Speed(RPM):
9600rpm At No load Speed
Continuous Current(A):
0.1-5A
Output Power:
1-6W
Voltage(V):
12V
Efficiency:
IE 1
Bearing:
TBD
End Cap:
Plastic End Cap
Stator and Slots:
2-Pole stator and 3-Slot armature
Brush Type:
Carbon brushes
Bearing Type:
Oil-impregnated bearing
Rotation:
Reversible
Packaging & Shipping
| Packaging Details: | 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM |
| Delivery Detail: | Within 30 days |
Our Services
Specifications:
12v micro dc motor fc 280sc 18180 dc motor for car door lock actuator
- 12V Car DC Motor car lock actuator motor (12v 9600rpm)
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
Application: Door lock Actuator, Automotive Product

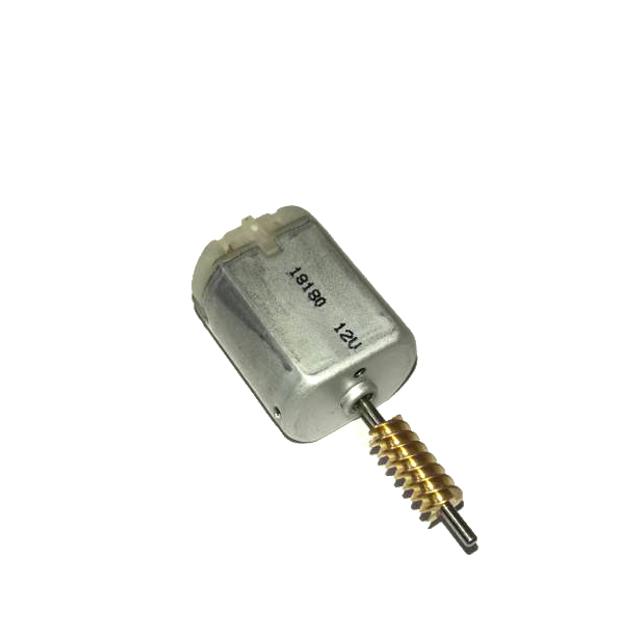

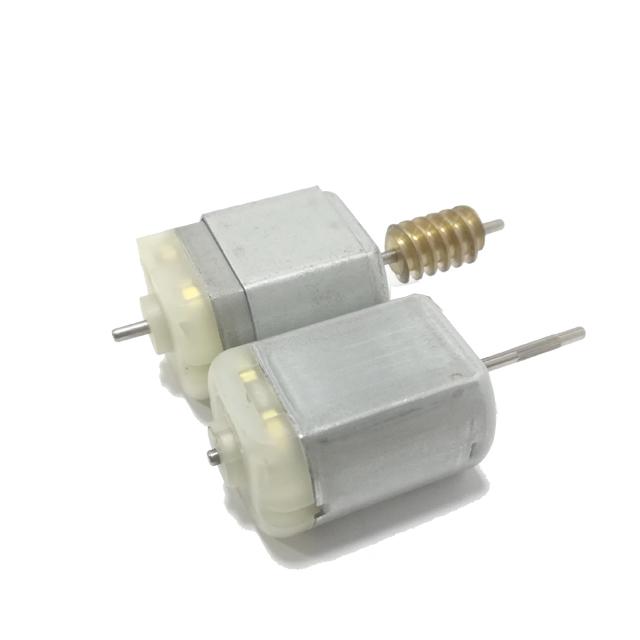

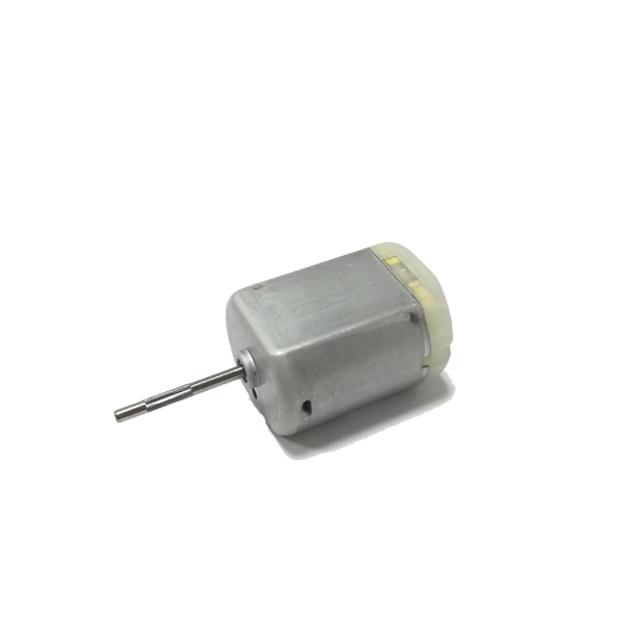

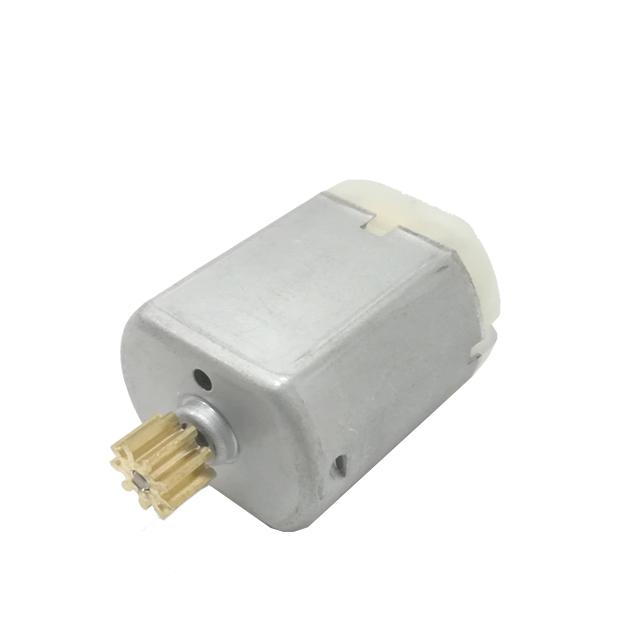

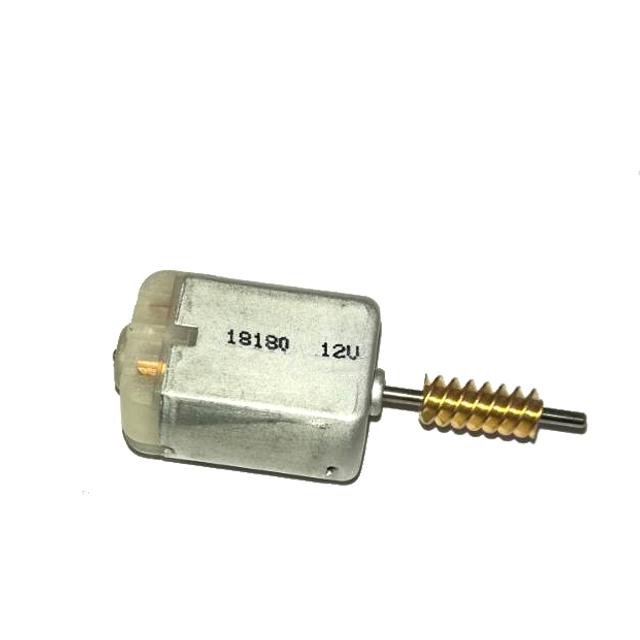

Photo: 12v dc car door lock motor fc 280sc 18180 dc motor
Outline Drawing and basic parameters (fc-280sc-18180)
Company Information
Since established in 2003, has been committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:
- 1. Our main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- 2. Products size range: Diameter: 4-100mm
- 3. DC Voltage range: 1.5V -42V; AC rectify: 100V, 110V, 220V, 230V, 240V etc.
- 4. Speed range: 1 RPM-30,000RPM
- 5. Stall torque: 1g.cm-30kg.cm
- 6. Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
What is the standard operating voltage for the FC-280SC-18180 motor?
This micro DC motor operates at a standard voltage of 12V DC.
What are the primary applications of this micro motor?
It is primarily designed for automotive door lock actuators, automotive products, and scanners.
What are the speed and torque specifications of this motor?
The motor features a no-load speed of 9600 RPM and a torque rating of 291 g.cm.
Does the FC-280SC-18180 motor support reversible rotation?
Yes, this motor is designed with reversible rotation capabilities.
What certifications does this micro DC motor hold?
This product has achieved ROHS certification, ensuring compliance with environmental standards.
What are the packaging options and standard shipping details?
The standard packaging is 500 units per carton (500PCS/CTN) with dimensions of 39X29X46 CM, typically delivered within 30 days.
