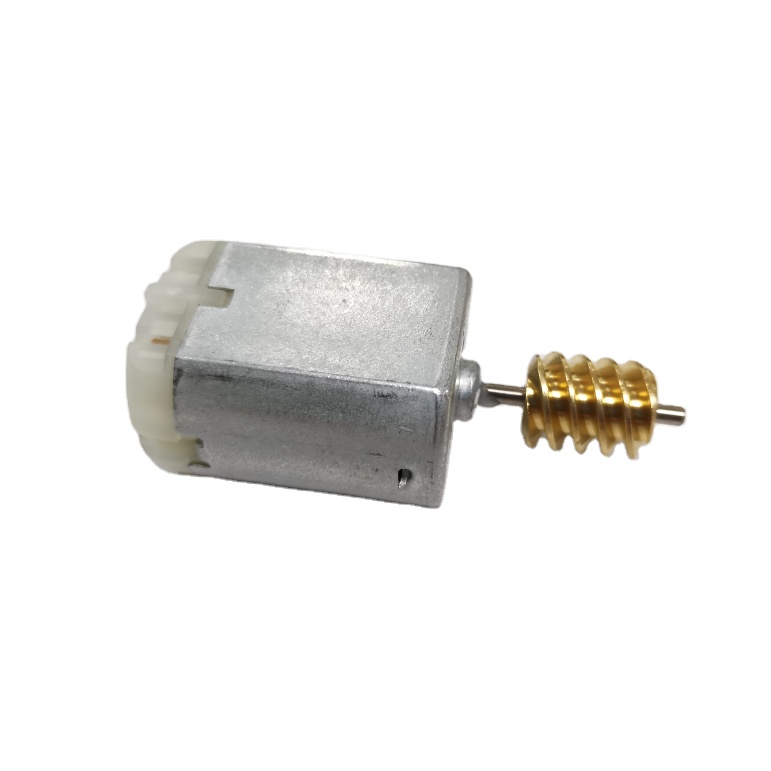

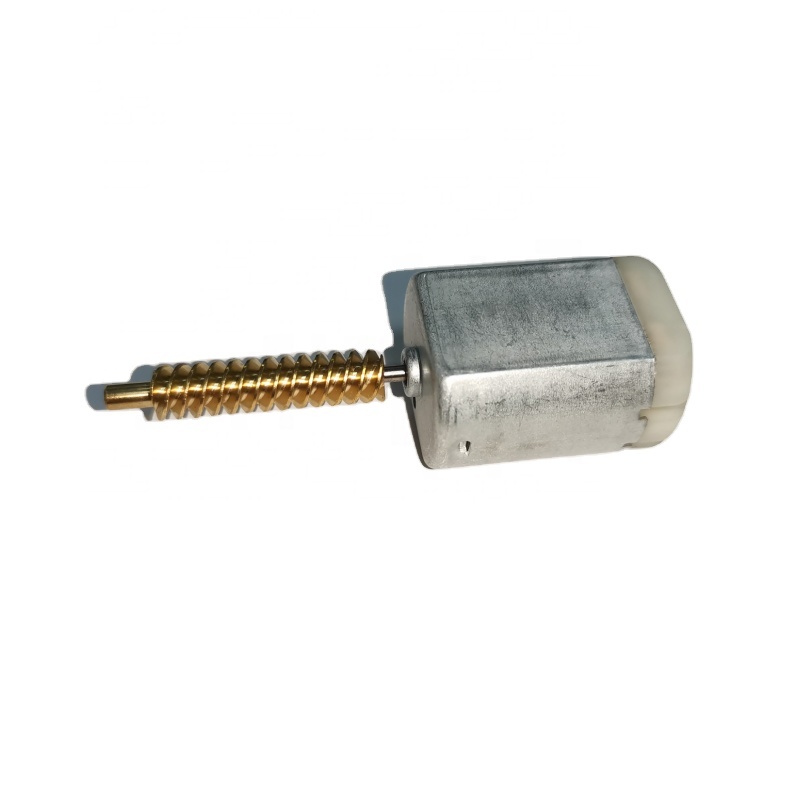

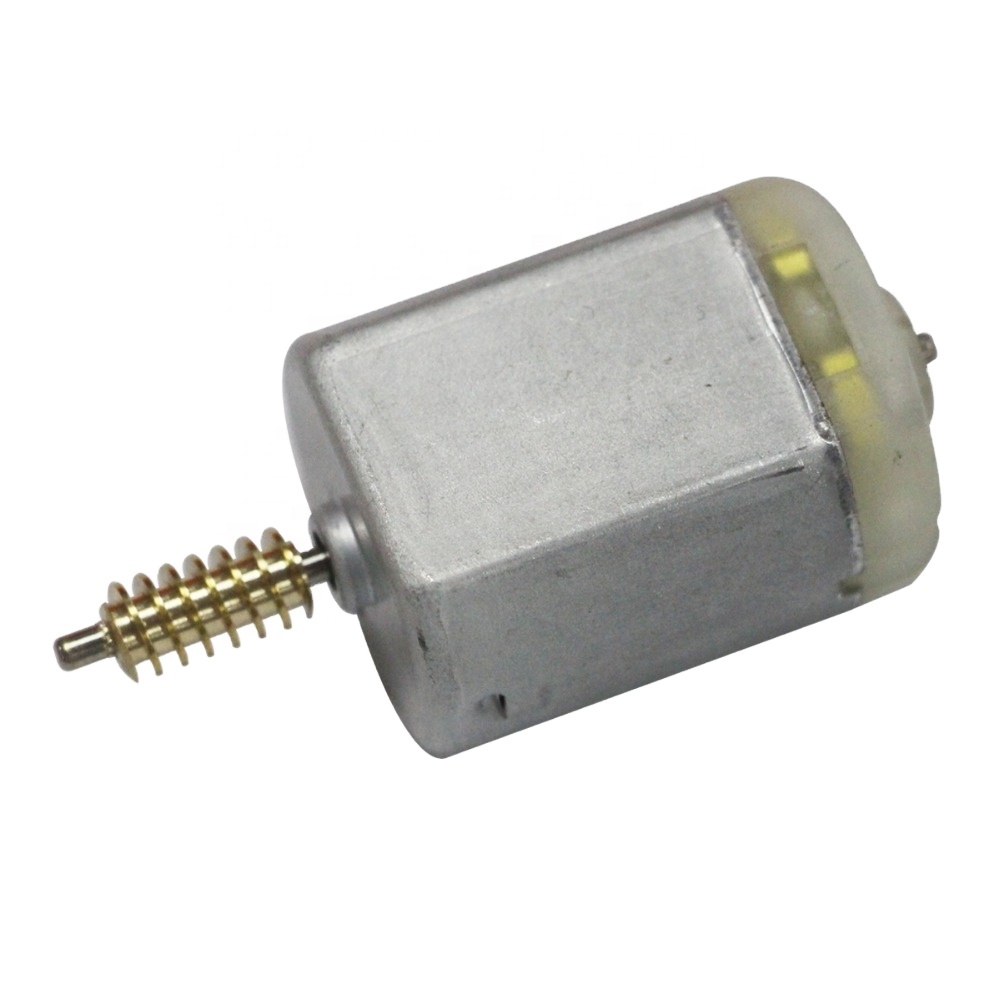

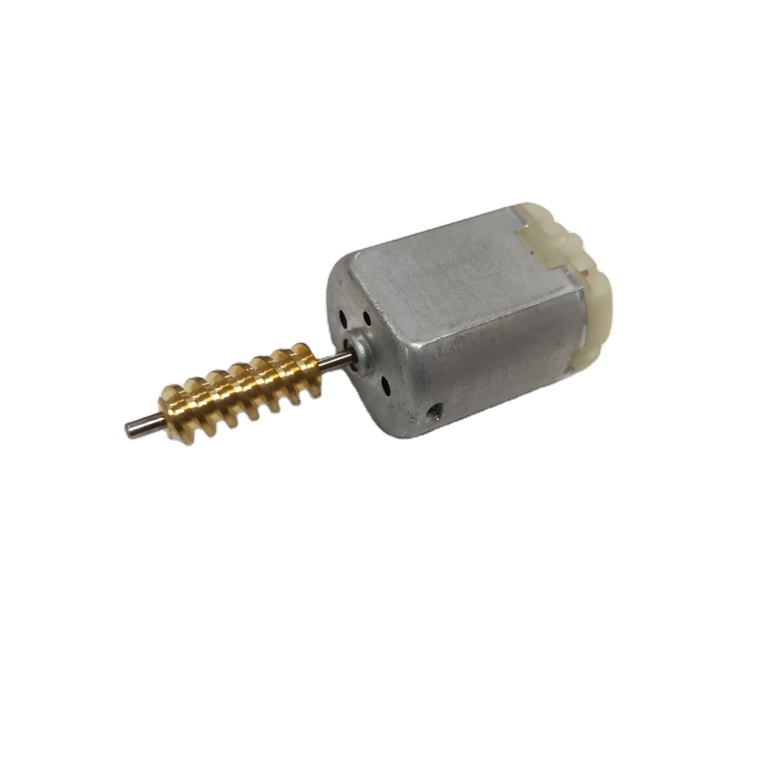

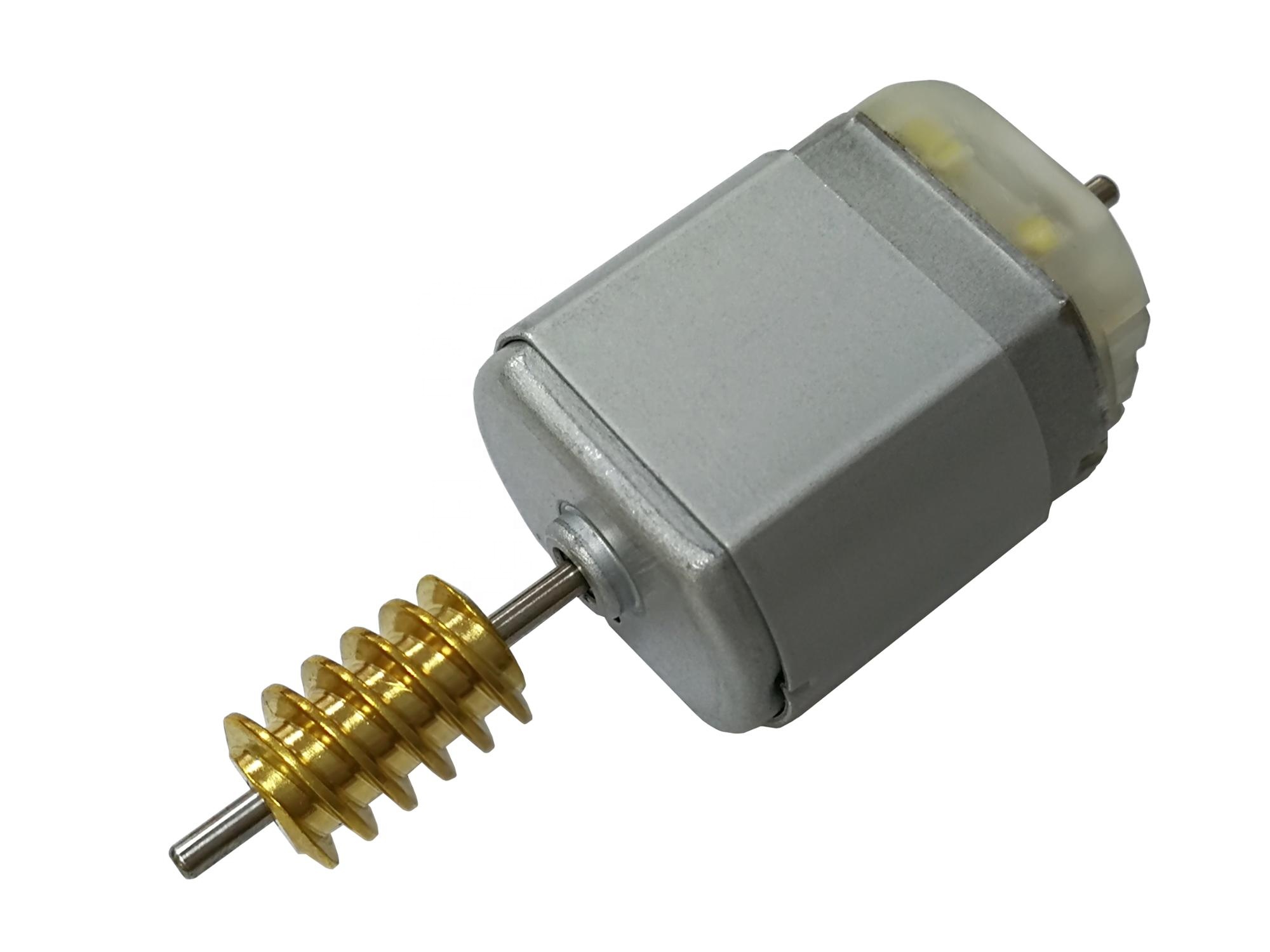

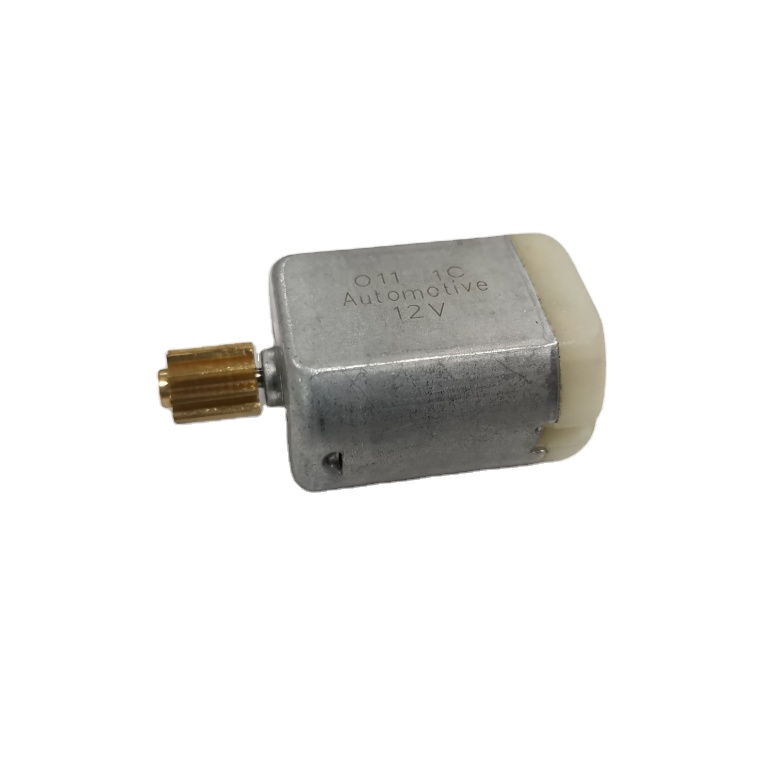

FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
Product Description
Product Description
Specification
| Product Name | 12V Worm Gear DC Motor For Door Lock Actuator |
| Model Number | FC-280SC-20150 |
| Type | Worm Gear Motor For Automobile |
| Construction | Permanent Magnet |
| Commutation | Brush |

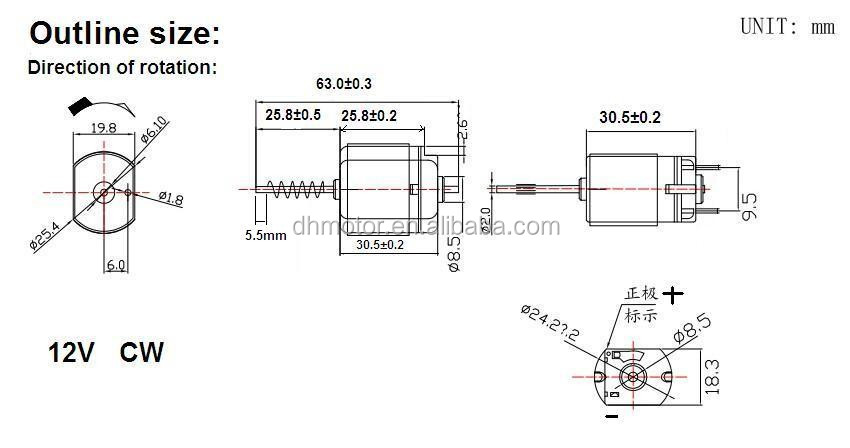

| Size | Diam 24mm * W 18.3mm * L 30.5 |
| Shaft Length | Customized as request |
| Worm Gear | Customized as request |
| Voltage Nominal | 12V |
| Speed(Max Efficiency) | 10310rpm |
| Current(Max Efficiency) | 0.56A |
| Torque(Max Efficiency) | 42.2g.cm |
| Output Power(Max Efficiency) | 4.47W |
| Stall Torque | 335g.cm |

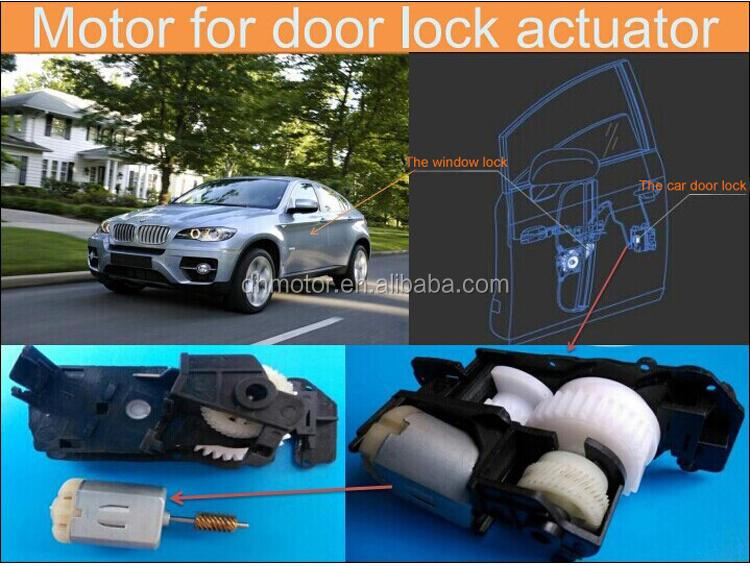

| Typical Application | For Retractable Rearviem Mirror,Door Lock Actuator,etc. |

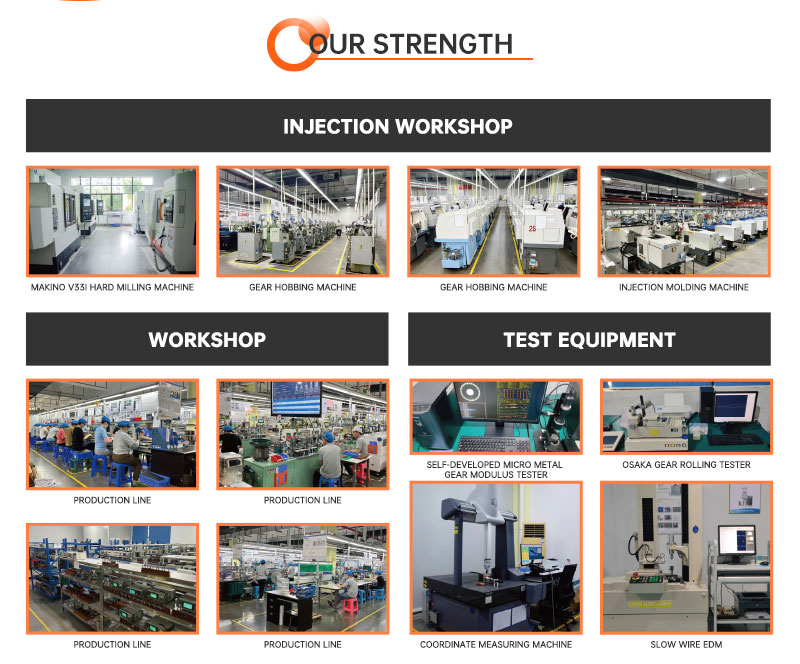

Company Profile
FAQ
Q1
Are you trading company or manufacturer?
We are the manufacturer over 15 years’ experience.
Q2
What’s your main products?
Dia10-60mm dc motor, dc gear motor, brushless dc motor, planetary gear motor, high voltage dc motor, coreless motor.
Q3
What’s the main usage of your products?
Our products are widely used in aviation, tools, medical, robotics, automation, security doors, DMS, and other fields.
Q4
Do you accept OEM/ODM?
We only accept ODM. Our R&D team have six experienced engineers. Tell us your needs, we can make it.
Q5
What do I need to provide if I want to make a customized order?
Please kindly tell us the voltages, speed, torque and overall dimension.
Q6
How about the sample order?
Samples are available. The max Qty of samples can be obtained is 5-10pcs, and the MOQ is 1000pcs for the formal order.
