Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Product Description
Product Description
Place of Origin:
Guangdong China (Mainland)
Model Number:
FC 280
Usage:
Car, Scanner
Certification:
ROHS
Type:
Micro Motor
Torque:
48G.CM
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Closed
Speed(RPM):
12500rpm At No load Speed
Continuous Current(A):
0.1-5A
Output Power:
1-6W
Voltage(V):
12V
Efficiency:
IE 1
Bearing:
TBD
End Cap:
Plastic End Cap
Stator and Slots:
2-Pole stator and 3-Slot armature
Brush Type:
Carbon brushes
Bearing Type:
Oil-impregnated bearing
Rotation:
Reversible
Packaging & Shipping
Packaging Details:
500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail:
Within 30 days
Product Specifications
Specifications: 12v dc mini motors fc 280 motor for car door lock
12V fc 280 MICRO DC CAR MOTOR
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life

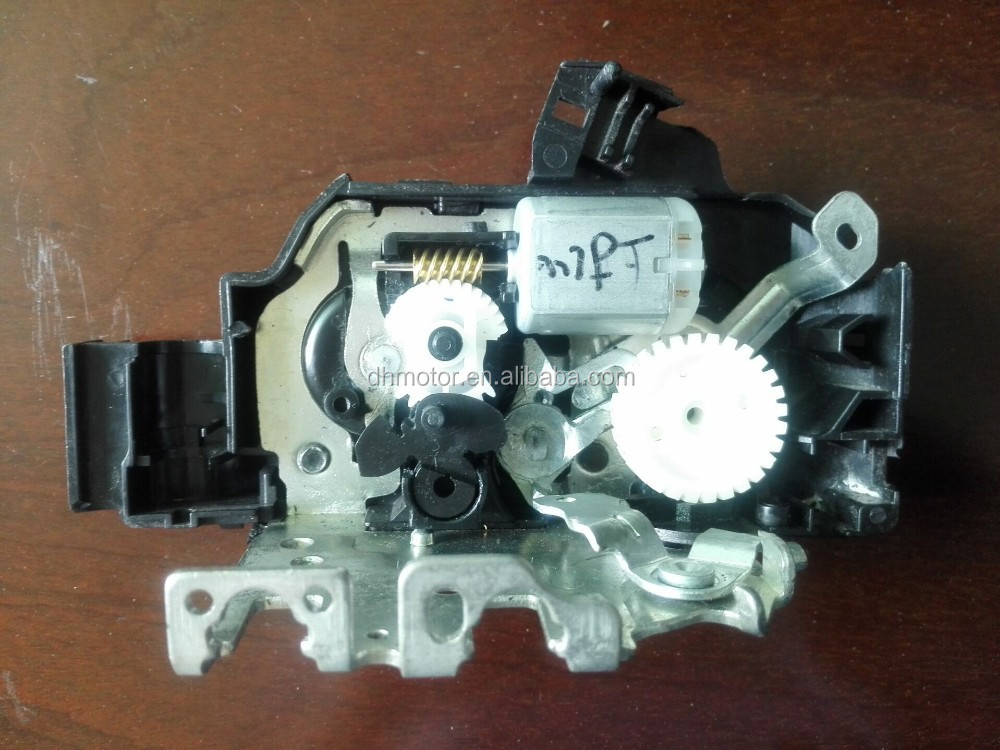

Application: Door lock Actuator, Automotive Product

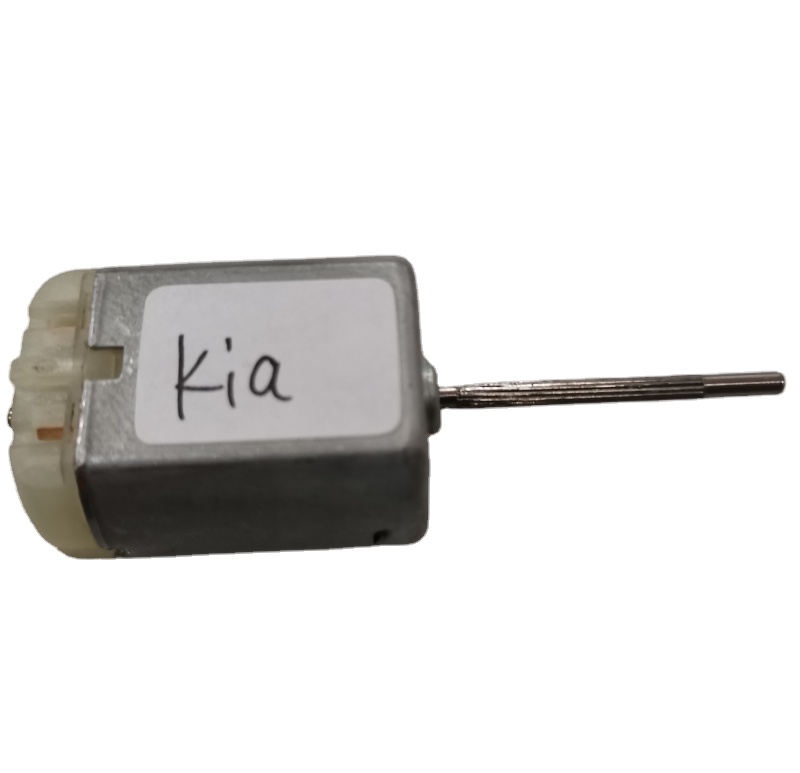

Photo: 12v dc electric motor micro dc car motor for car
Outline Drawing and basic parameters
Manufacturing Capabilities
Since established in 2003, committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More:
- Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products size range: Diameter: 4-100mm
- DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed range: 1 RPM-30,000RPM
- Stall torque: 1g.cm-30kg.cm
- Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio& Visual equipment etc.
Frequently Asked Questions (FAQ)
What are the primary applications for the FC 280 micro DC motor?
The FC 280 micro motor is primarily designed for automotive products, such as car door lock actuators, and is also widely utilized in scanner devices.
What is the nominal operating voltage and speed of the motor?
The motor operates at a nominal voltage of 12V DC, delivering a no-load speed of approximately 12,500 RPM. The general DC voltage range is 1.5V to 42V.
What are the main construction features of this micro motor?
It is constructed with a permanent magnet, a 2-pole stator, a 3-slot armature, carbon brushes, and a protective plastic end cap designed for low noise and long operational life.
Is this micro motor certified for environmental compliance?
Yes, the motor holds ROHS certification, ensuring it meets environmental safety and chemical restriction standards.
What is the standard packaging and delivery lead time?
The standard packaging configuration is 500 pieces per carton (carton dimensions: 39x29x46 CM), with a standard delivery timeline within 30 days.
Can this DC motor run in both clockwise and counter-clockwise directions?
Yes, the rotation of this FC 280 micro DC motor is fully reversible.
